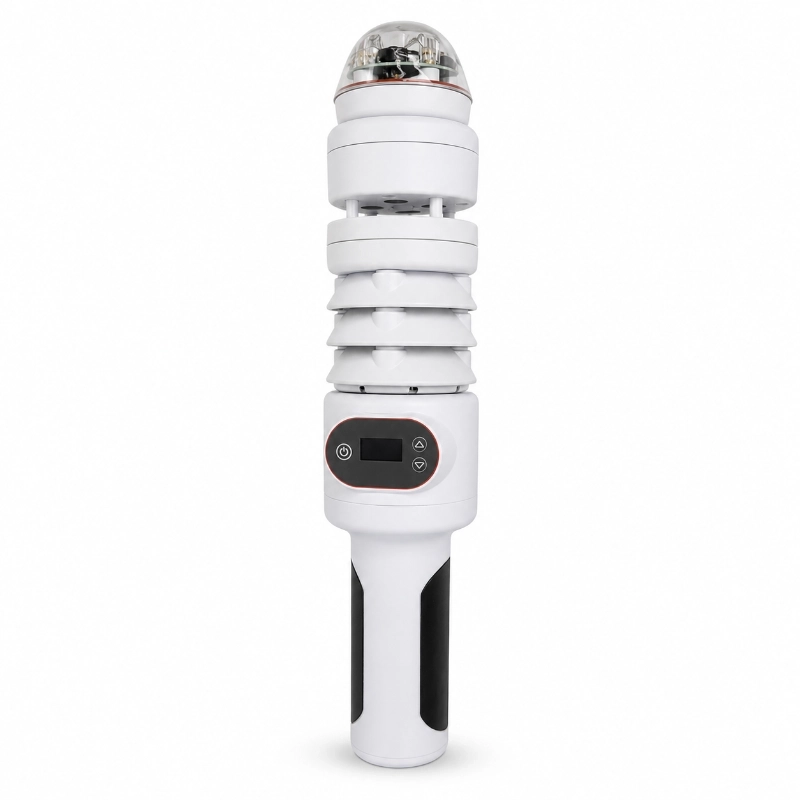

Portable Weather Station for Outdoor Field Monitoring

The JW-XF600H(YN24) Portable Weather Station is a handheld six-parameter weather monitoring instrument designed for outdoor field inspections, temporary meteorological observation, agricultural surveys, and environmental measurements.

Integrating air temperature, relative humidity, wind speed, wind direction, barometric pressure, and optical rainfall sensing, it allows users to collect local weather data without installing a permanent weather station.

The instrument features a 0.96-inch OLED display, rechargeable battery, RS485 Modbus RTU output, and handheld or tripod operation, making it suitable for engineers, field technicians, system integrators, and environmental monitoring professionals.

1. What Is the JW-XF600H Portable Weather Station?

A portable weather station measures local atmospheric conditions without requiring permanent installation.

Unlike fixed monitoring stations, the JW-XF600H can be transported between locations for field inspections, temporary observation, and comparative environmental measurements.

Its integrated sensor design reduces the need to carry several separate measuring instruments.

Users can view measurements directly on the OLED display or connect the device to external data-acquisition equipment through RS485 Modbus RTU.

For permanent installations, explore JW-IoT’s Integrated Weather Station range.

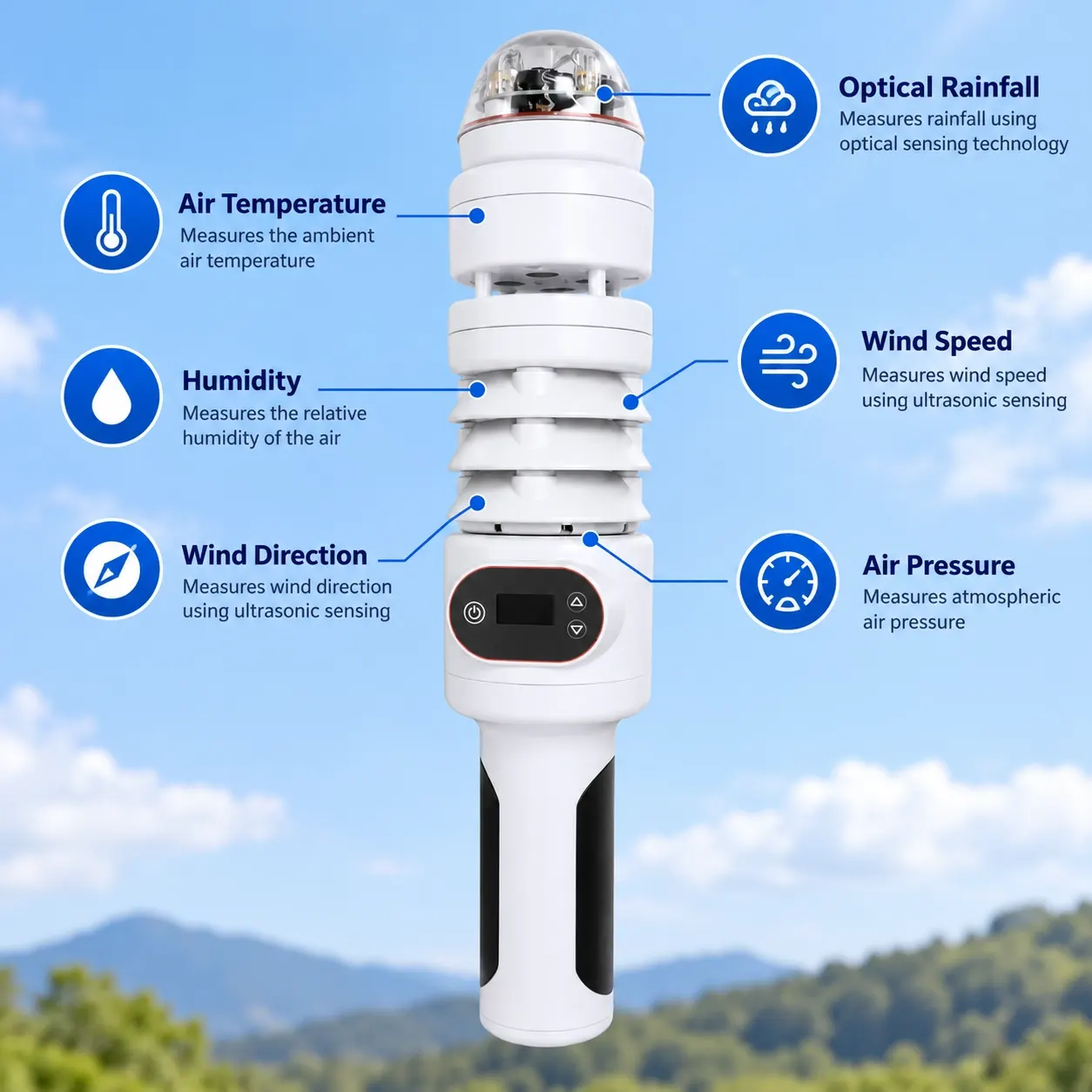

2. Six Weather Parameters in One Portable Instrument

Air Temperature and Humidity

The station measures air temperature from -40°C to +85°C and relative humidity from 0 to 100% RH.

These measurements support agricultural microclimate surveys, environmental inspections, and outdoor site assessments.

Wind Speed and Direction

Wind speed measurement covers 0–35 m/s, while wind direction measurement covers 0–360°.

The instrument provides local wind information for field inspection, temporary weather observation, and outdoor engineering activities.

Barometric Pressure

Atmospheric pressure measurement covers 300–1100 hPa, providing additional meteorological reference information.

Optical Rainfall

The integrated optical rainfall sensor measures rainfall intensity from 0.2 to 4 mm/min.

This eliminates the need to carry a separate rainfall instrument for supported temporary measurement tasks.

For applications requiring dedicated accumulated rainfall monitoring, consider the Stainless Steel Tipping Bucket Rain Gauge.

3. Technical Specifications

Note: The operating temperature range of the complete instrument differs from the measurement range of its temperature sensor. Battery life depends on environmental conditions and operating modes.

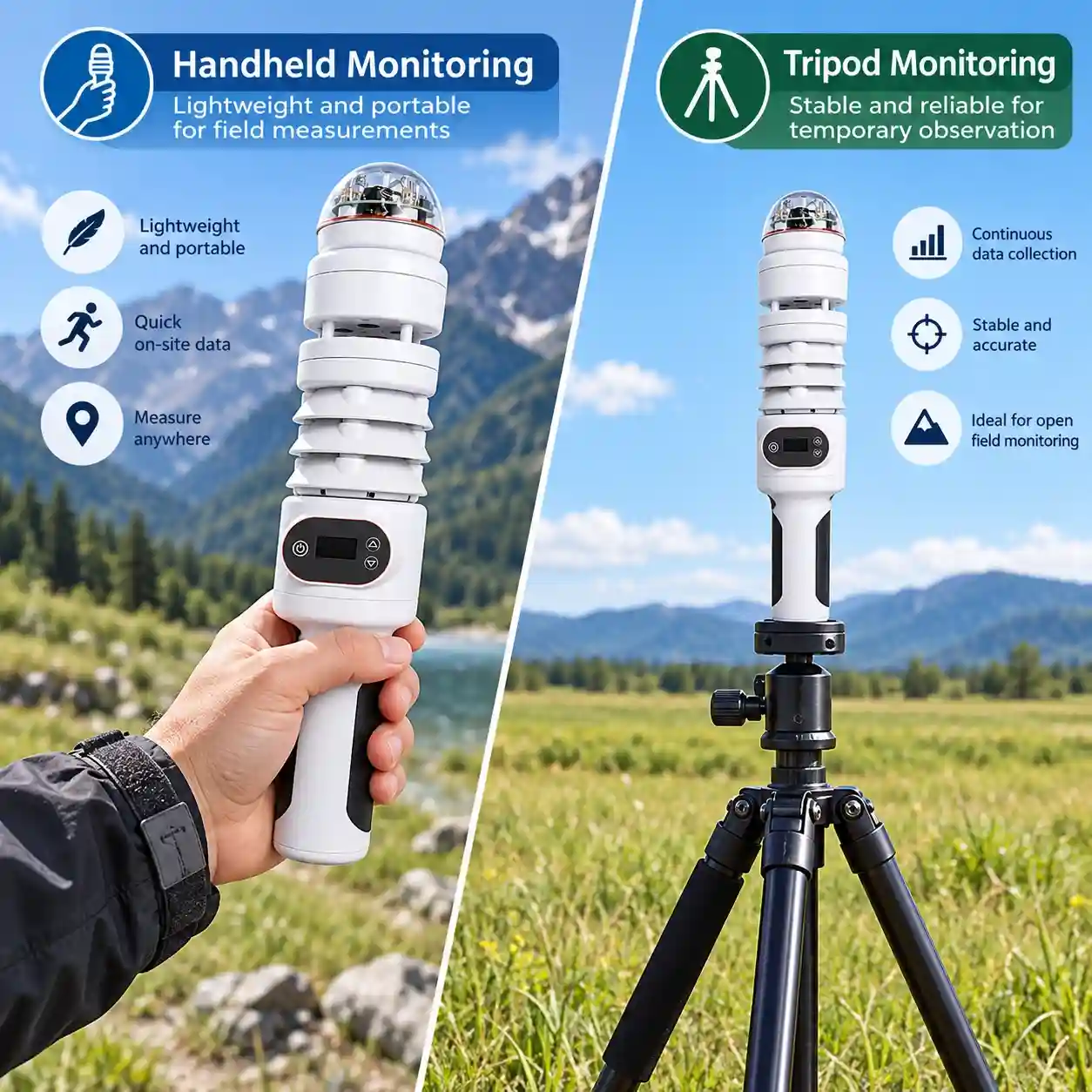

4. Handheld Weather Monitoring vs Tripod Observation

The JW-XF600H supports two practical deployment methods.

Handheld Weather Measurement

The handheld configuration is designed for rapid observation at multiple locations.

Typical tasks include:

• Checking weather conditions during agricultural field visits.
• Comparing microclimates across outdoor sites.
• Inspecting wind conditions near roads or construction areas.
• Performing rapid environmental surveys.

For consistent measurements, users should avoid obstructing airflow or placing the instrument close to heat sources.

Tripod-Mounted Weather Observation

The portable tripod provides a stable mounting position for temporary monitoring.

This is particularly useful when observing changing wind conditions or collecting repeated measurements at a selected site.

Tripod installation also reduces the influence of operator movement on measurements.

For unattended monitoring over extended periods, the Portable Automatic Weather Station provides a different system configuration with additional data-acquisition and power options.

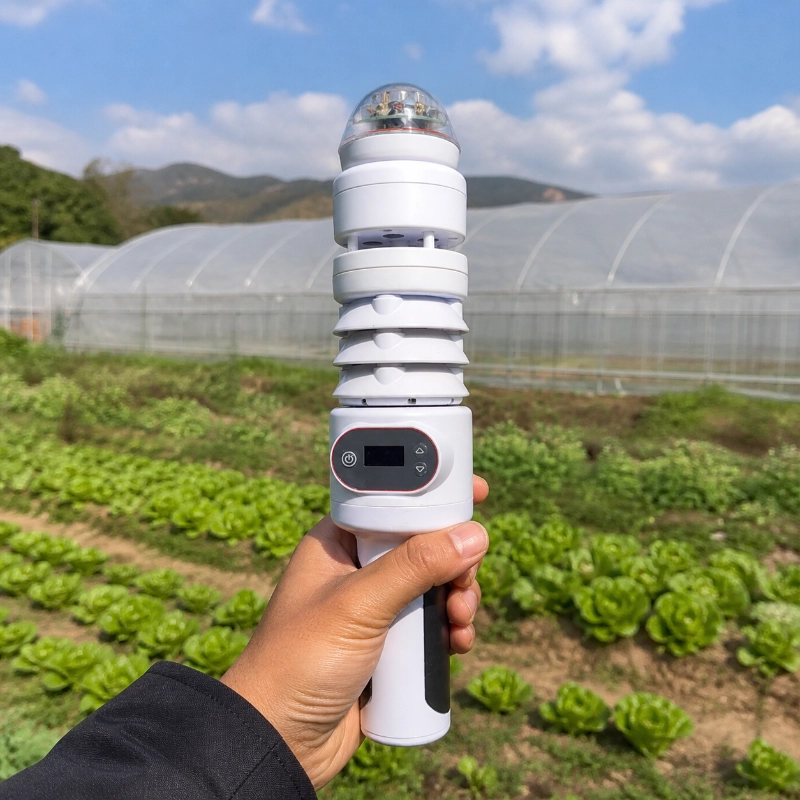

5. OLED Display and On-Site Data Reading

The built-in 0.96-inch OLED screen displays meteorological measurements directly at the field location.

Users can inspect real-time weather conditions without requiring a separate cloud platform for basic measurements.

The one-second data update interval supports observation of short-term weather changes during field inspection.

The integrated display is especially useful for agricultural technicians, environmental survey teams, engineering inspectors, and research personnel.

6. RS485 Modbus RTU Data Integration

The JW-XF600H provides an RS485 Modbus RTU interface for connection to compatible external equipment.

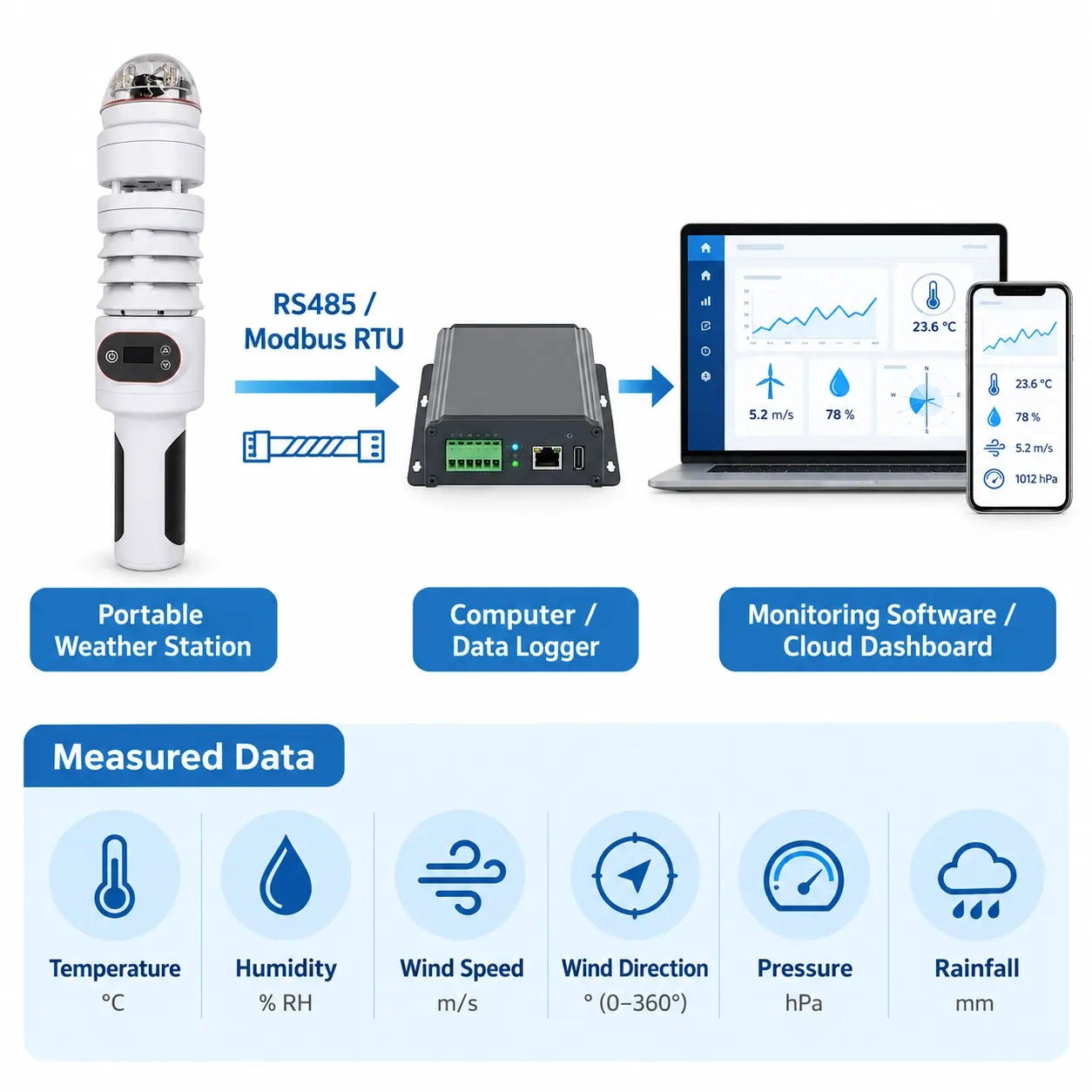

A typical connection is:

Portable Weather Station → RS485 Interface → Computer / Data Logger → Monitoring Software

This configuration may be used for temporary data acquisition, instrument integration, and research monitoring projects.

The external software or data logger must support the instrument’s communication protocol and register configuration.

For projects requiring permanent remote monitoring, explore the Weather Monitoring Station Solution.

7. Rechargeable Battery for Outdoor Field Work

The instrument includes a DC12V, 3200 mAh rechargeable battery.

Published operating durations include:

• At least 60 hours of continuous use at normal temperature.
• At least 6 hours of operation at -40°C.
• At least 30 days in sleep standby mode.

The built-in low-battery alarm helps users identify when charging is necessary.

Actual battery runtime depends on temperature, display operation, and usage conditions.

The rechargeable design reduces dependence on continuous external power during field surveys.

8. Portable Weather Station Applications

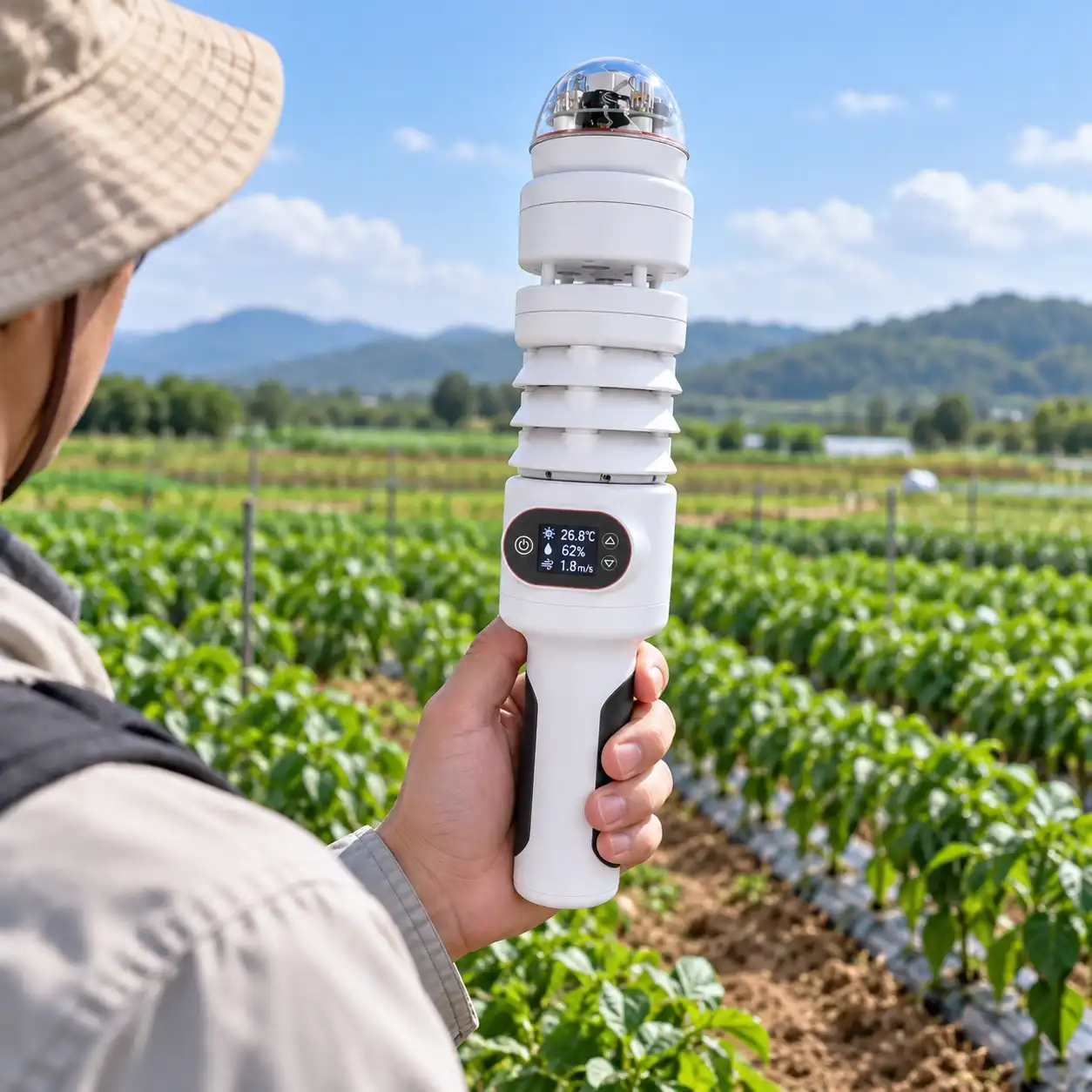

Smart Agriculture and Crop Field Inspection

Measure local wind, temperature, humidity, pressure, and rainfall conditions while visiting different agricultural locations.

The instrument can support weather inspections across orchards, farms, and greenhouse surroundings.

Environmental Field Surveys

Collect portable meteorological reference measurements during environmental assessments, site investigations, and temporary research projects.

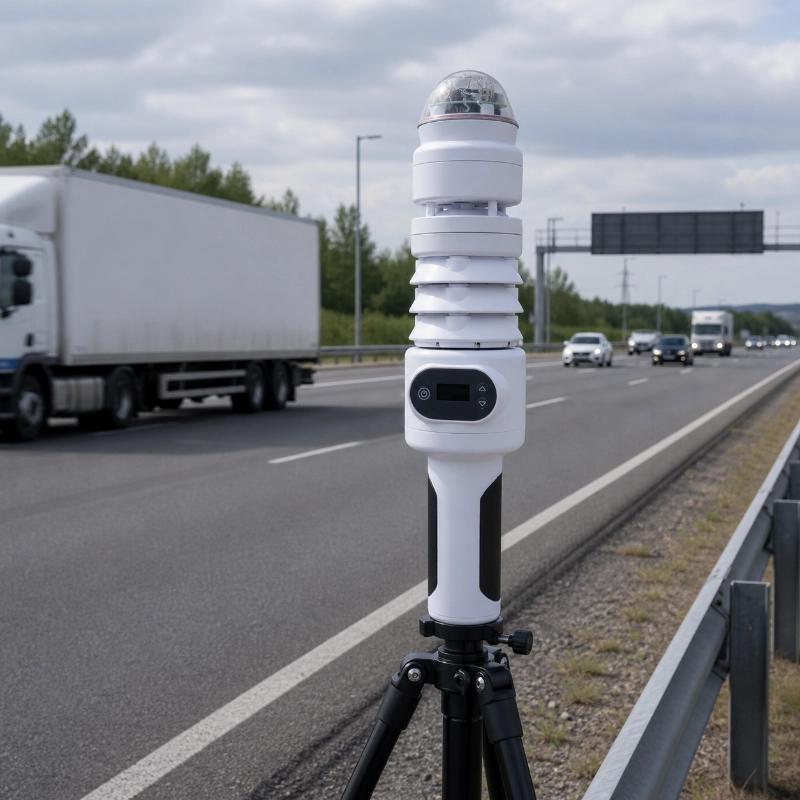

Road and Construction Site Inspection

Check local weather conditions at roads, bridges, construction areas, and outdoor engineering sites.

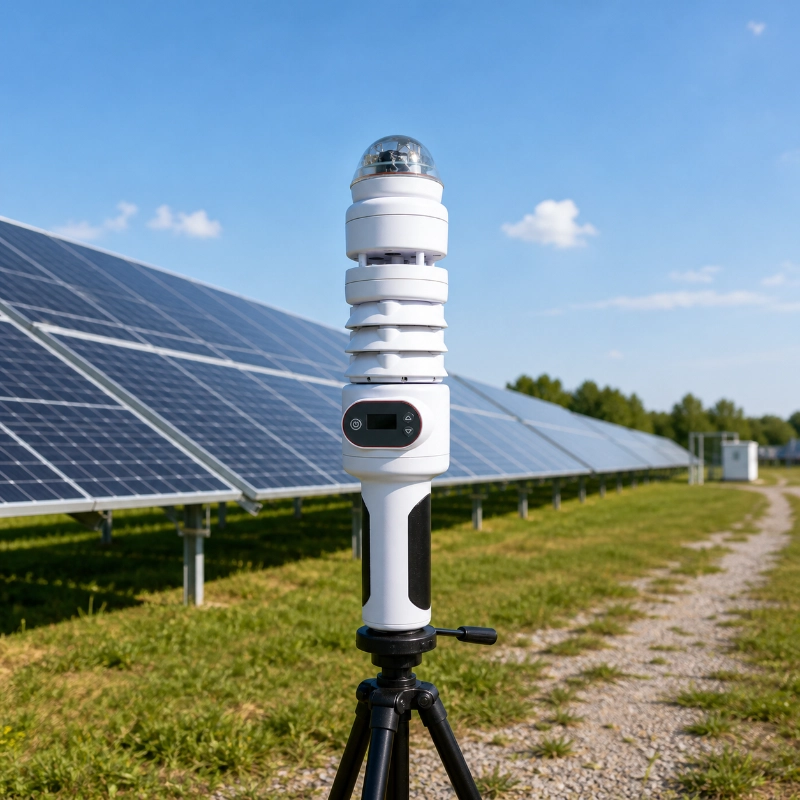

Solar PV Site Surveys

Measure ambient temperature, wind, humidity, and rainfall during solar plant inspections.

For performance ratio testing or accurate plane-of-array irradiance measurement, dedicated instruments such as the Class A Pyranometer Solar Radiation Sensor are required.

Emergency and Temporary Observation

Provide local weather information when rapid field deployment is required and permanent monitoring infrastructure is unavailable.

9. Portable Handheld vs Portable Automatic Weather Station

Choose the JW-XF600H when portability, local display, and rapid measurements are priorities.

Choose a portable automatic weather station when continuous logging, remote communication, or expandable sensors are required.

10. Request a Portable Weather Station Quotation

The JW-XF600H(YN24) Portable Weather Station combines six meteorological measurements, an OLED display, rechargeable battery power, and flexible field operation in one instrument.

To select a suitable configuration, please provide your intended application, measurement requirements, quantity, and any external data integration needs.

Contact JW-IoT to request a technical datasheet, accessory information, or quotation.
