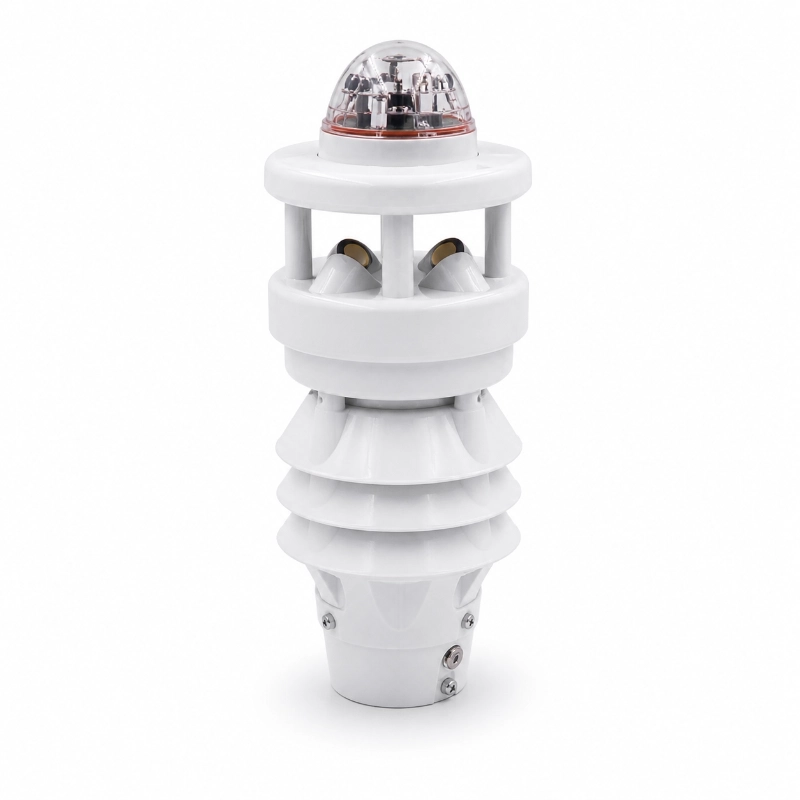

Seven Parameter Weather Station for Environmental Monitoring

Key Features

Seven weather parameters in one device: Measures air temperature relative humidity wind speed wind direction barometric pressure optical rainfall and solar radiation.
Compact all in one structure: Integrated sensor design reduces installation space wiring complexity and field deployment cost.
Optical rainfall measurement: Detects rainfall using an optical method with no tipping bucket or mechanical structure suitable for low maintenance sites.
Solar radiation monitoring: Measures solar radiation from 0 to 2000 W/m² for solar PV environmental monitoring agriculture and weather analysis.
Ultrasonic wind speed and direction sensing: Wind speed and wind direction are measured using ultrasonic technology with no moving parts for long term outdoor use.
RS485 Modbus RTU communication: Standard RS485 Modbus RTU output makes it easy to connect with data loggers RTUs PLCs IoT gateways and cloud platforms.
Outdoor radiation shield design: Temperature humidity and pressure sensors are protected by a multi layer radiation shield to reduce solar heating influence.
IP65 weather resistant housing: Suitable for outdoor installation in farmland roads rooftops solar farms wind farms and remote monitoring stations.
Expandable system options: Optional SDI 12 NMEA ASCII CAN electronic compass GPS heating function and built in 4G are available for project customization.

Product Description

1. Description

JW-XF700S(YN23) Solar PV Weather Station is an integrated environmental monitoring sensor designed for solar power plants and renewable energy monitoring systems. It measures solar irradiance POA ambient temperature relative humidity module temperature wind speed wind direction barometric pressure and accumulated radiation through one compact structure. With RS485 Modbus RTU output IP65 protection and adjustable pyranometer angle it is ideal for PV performance analysis solar farm operation and environmental data acquisition.

2. Product Overview

JW-XF700S(YN23) Seven Parameter Weather Station is built for outdoor microclimate and environmental monitoring where multiple meteorological parameters are required in a compact device. Compared with traditional weather stations using separated sensors, the XF700S integrates wind temperature humidity pressure rainfall and solar radiation into one unit, helping system integrators reduce installation time and wiring work.

Its optical rainfall sensor is suitable for mobile monitoring unattended stations and sites where mechanical tipping bucket rain gauges are difficult to maintain. The solar radiation sensor also makes the product suitable for solar PV site monitoring and agricultural radiation analysis.

With RS485 Modbus RTU output, the weather station can be easily integrated into industrial IoT systems, environmental monitoring platforms, agricultural data loggers, traffic weather stations and renewable energy monitoring networks.

Item	Specification
Product Type	Seven Parameter Compact Weather Station
Measured Parameters	Temperature humidity wind speed wind direction pressure rainfall solar radiation
Air Temperature Range	-40°C to 85°C
Air Temperature Accuracy	±0.3°C at 25°C
Relative Humidity Range	0 to 100%RH
Relative Humidity Accuracy	±3%RH from 10% to 90%RH non condensing
Wind Speed Range	0 to 60 m/s
Wind Direction Range	0 to 359.9°
Barometric Pressure Range	500 to 1100 hPa
Rainfall Measurement	Optical rainfall
Rainfall Range	0 to 200 mm/h
Rainfall Resolution	0.2 mm
Solar Radiation Range	0 to 2000 W/m²
Solar Radiation Accuracy	±5%
Output Signal	RS485 Modbus RTU
Optional Output	SDI 12
Power Supply	DC9–30V
Working Temperature	-40°C to 80°C
Protection Rating	IP65
Standard Cable	3 m
Optional Cable	10 m

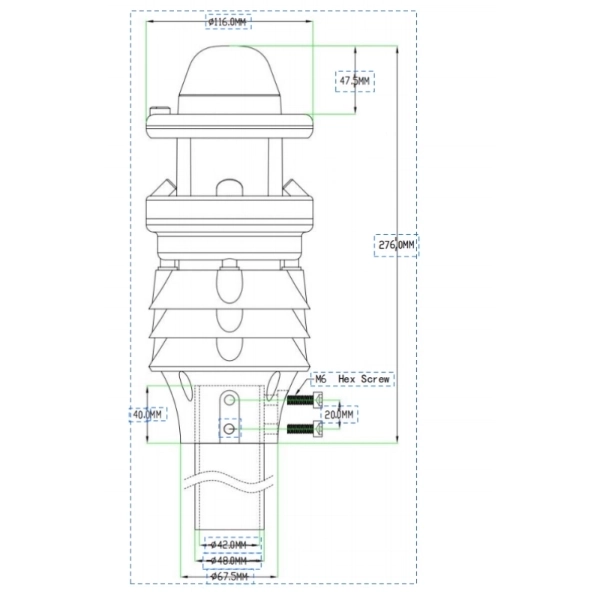

Mounting	Sleeve mounting standard flange or bent plate optional

3. Application Scenarios

Smart agriculture weather monitoring

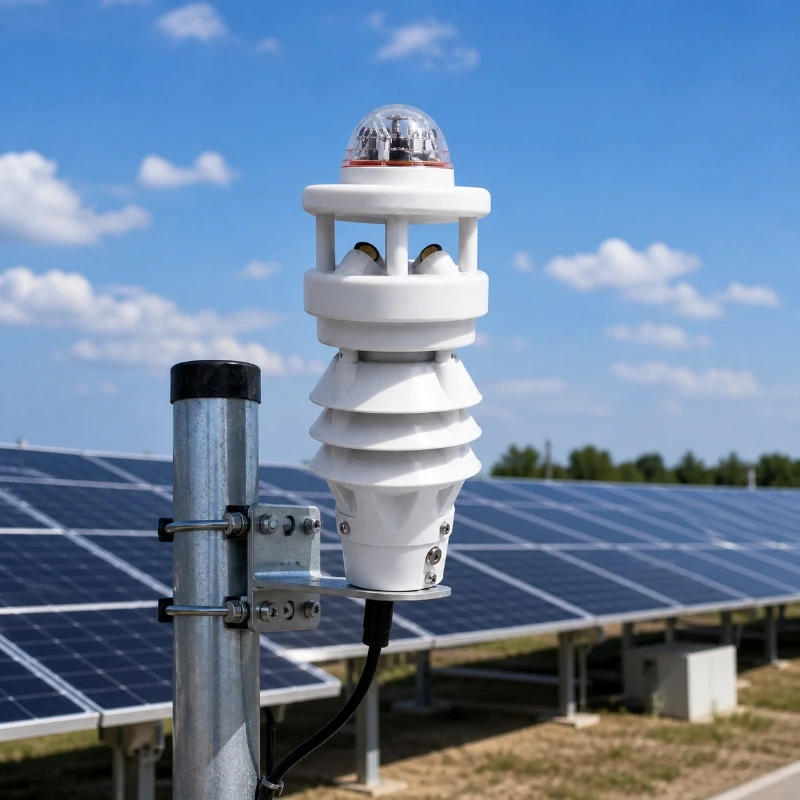

Solar PV environmental monitoring
Road and traffic weather monitoring

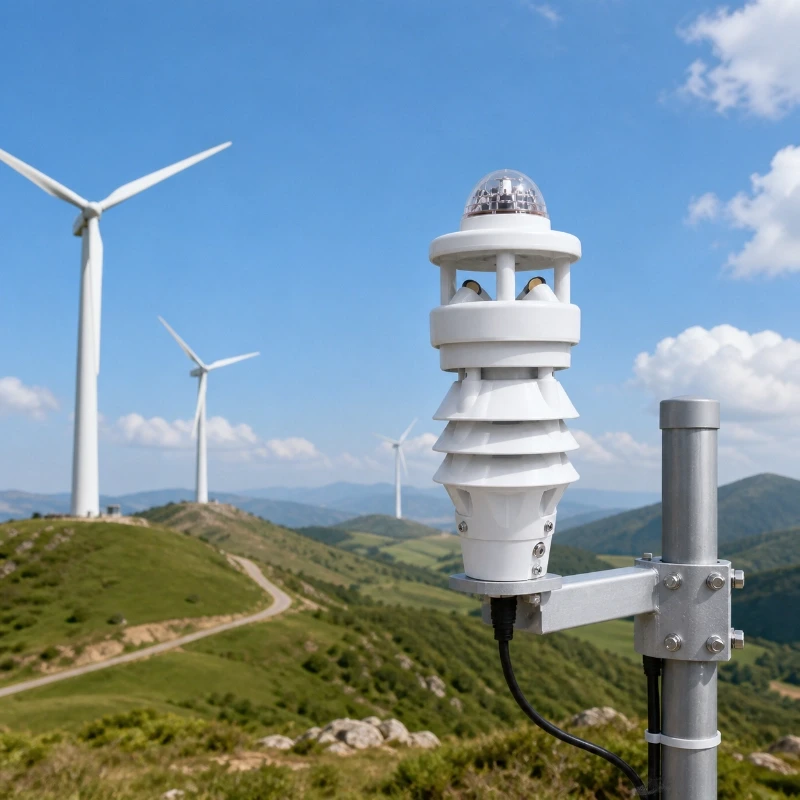

Wind farm meteorological monitoring
Smart city environmental grid monitoring

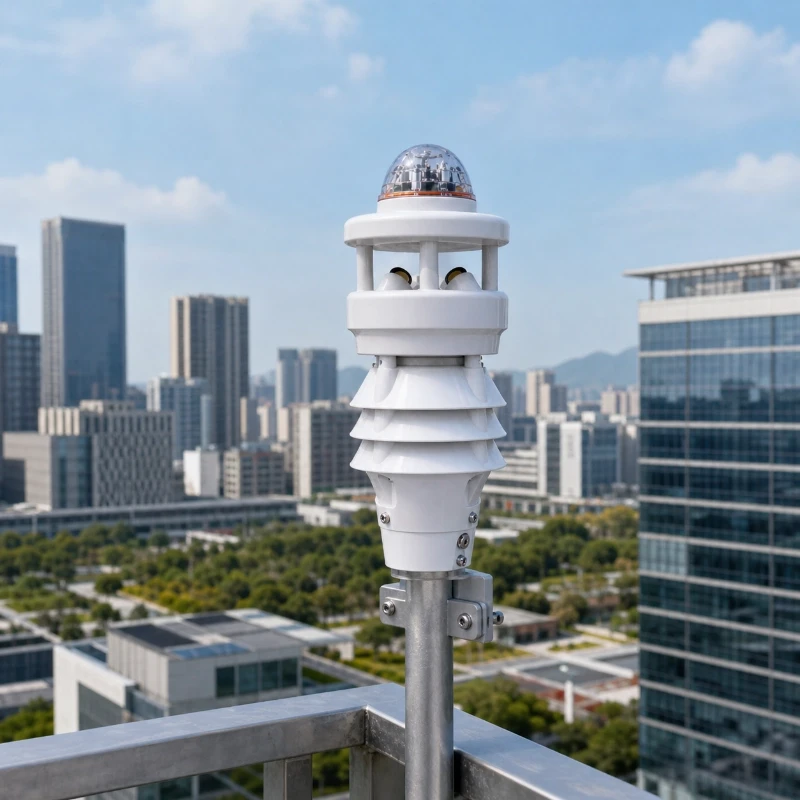

Rooftop microclimate monitoring
Remote weather monitoring stations
Scientific research and outdoor test sites
Mobile or unattended weather monitoring

FAQ

Q

1. What parameters does this seven parameter weather station measure?

A

It measures air temperature relative humidity wind speed wind direction barometric pressure optical rainfall and solar radiation.
Q

2. What is the difference between XF700S and a basic five parameter weather station?

A

XF700S adds optical rainfall and solar radiation measurement in addition to temperature humidity wind speed wind direction and pressure.
Q

3. Can JW-IoT provide this weather station for smart agriculture projects?

A

Yes. JW-IoT can provide this seven parameter weather station for farmland greenhouses irrigation systems and agricultural microclimate monitoring.
Q

4. Does the product support RS485 Modbus RTU?

A

Yes. The standard output is RS485 Modbus RTU, which is suitable for data loggers RTUs IoT gateways and monitoring platforms.
Q

5. Is the rainfall sensor mechanical or optical?

A

It uses optical rainfall measurement with no tipping bucket mechanism, making it suitable for low maintenance and unattended sites.
Q

6. Can JW-IoT customize communication or expansion functions?

A

Yes. JW-IoT can support optional SDI 12 NMEA ASCII CAN GPS electronic compass heating function and built in 4G depending on project requirements.
Q

7. Can this sensor be used for solar PV monitoring?

A

Yes. It includes solar radiation measurement and can be used for solar PV environmental monitoring and renewable energy site data collection.
Q

8. Is the weather station suitable for outdoor installation?

A

Yes. It has IP65 protection and works in outdoor environments such as farms roads rooftops solar farms and wind power sites.
Q

9. Can JW-IoT integrate this weather station with a cloud platform?

A

Yes. With RS485 Modbus RTU output, JW-IoT can help connect the device to IoT gateways cloud dashboards and environmental monitoring platforms.
