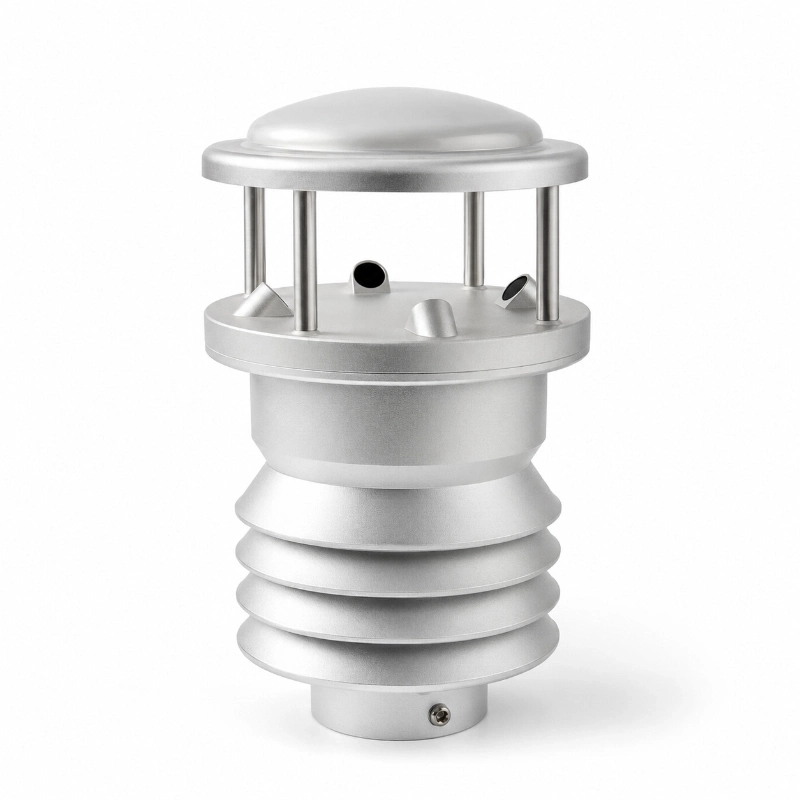

JW-IWS600(SW07)micro weather station is a high-precision all-in-one meteorological sensor designed for outdoor environmental monitoring. It can simultaneously measure wind speed, wind direction, ambient temperature, relative humidity, atmospheric pressure, and rainfall. Featuring an aluminum alloy housing, IP66 protection, DC 8–30V power supply, and RS485 output, it is ideal for solar PV, agriculture, transportation, smart city, environmental monitoring, and industrial IoT projects.
Product Overview
JW-IWS600(SW07)Micro Weather Station is a compact integrated weather sensor that combines six important meteorological parameters into one device. Compared with traditional multi-sensor systems, it helps reduce installation complexity, improve deployment efficiency, and lower maintenance requirements.
Its high-strength aluminum alloy body and special surface treatment provide excellent corrosion resistance and durability in harsh outdoor environments. The device is suitable for long-term operation in applications such as transmission lines, substations, PV plants, farms, smart poles, highways, and railway monitoring sites.
With standard RS485 half-duplex or full-duplex communication, this micro weather station can be connected to RTUs, data loggers, PLCs, gateways, and cloud monitoring platforms, making it suitable for both independent weather monitoring and complete IoT system integration.
Main Benefits
Reduces wiring and installation work by integrating six sensors into one device
Helps improve real-time environmental data collection efficiency
Suitable for harsh field environments with strong corrosion resistance
Supports reliable communication for industrial monitoring systems
Can be customized for different project requirements
Technical Specifications
Item
Specification
Product Model
JW-IWS600(SW07)
Product Type
Micro Weather Station
Measured Parameters
Wind Speed Wind Direction Temperature Humidity Air Pressure Rainfall
Size
135 mm × 233 mm
Weight
1.6 kg
Working Temperature
-40°C to +85°C
Optional Low Temperature Version
-55°C to +85°C
Power Consumption
12VDC max 120VA with heating
Operating Power Consumption
12VDC max 0.24VA
Working Voltage
8–30 VDC
Electrical Connection
6-pin aviation connector
Housing Material
Aluminum
Protection Grade
IP66
Corrosion Resistance
C5-M
Surge Protection Level
Level 4
Baud Rate
1200–57600
Digital Output Signal
RS485 half duplex or full duplex
Measurement Parameters
Wind Speed
Item
Specification
Range
0–50 m/s
Optional Range
0–75 m/s
Accuracy
0.2 m/s at 0–10 m/s
Additional Accuracy
±2% above 10 m/s
Resolution
0.1 m/s
Wind Direction
Item
Specification
Range
0–360°
Accuracy
±2°
Resolution
1°
Ambient Temperature
Item
Specification
Range
-40°C to +85°C / -55°C to +85°C optional
Accuracy
±0.2°C
Resolution
0.1°C
Relative Humidity
Item
Specification
Range
100% RH at 0–80°C
Accuracy
±2% RH
Resolution
1% RH
Atmospheric Pressure
Item
Specification
Range
200–1200 hPa
Accuracy
±0.5 hPa at -10°C to +50°C
Resolution
0.1 hPa
Rainfall
Item
Specification
Range
0–24 mm/min
Accuracy
0.5 mm/min
Resolution
0.01 mm/min
Environmental and Reliability Tests
The micro weather station is designed for outdoor industrial use and has been tested according to multiple environmental and reliability standards.
Test Item
Reference Standard
Electrostatic Discharge Test
GB/T 17626.2-2006
Surge Immunity Test
GB/T 17626.5-2008
Fast Transient Burst Test
GB/T 17626.4-2008
Conducted Disturbance Immunity Test
GB/T 17626.6-2008
IP Protection Test
GB 4208-2008
Wind Tunnel Test
JJG 0001-1992
Vibration Test
GB 5170.14-85
High and Low Temperature Storage Test
GB/T 2423.2-2008, GB/T 2423.1-2008
High and Low Temperature Operation Test
GB/T 2423.2-2008, GB/T 2423.1-2008
Salt Spray Test
ISO 6270-1:1998, ISO 7253:2001, ISO 12944-6:1998
Typical Applications
Power Industry: Transmission lines/Substations/Wind measurement towers
Meteorology and Environmental Monitoring: Weather observation projects/Military monitoring applications/Environmental protection systems

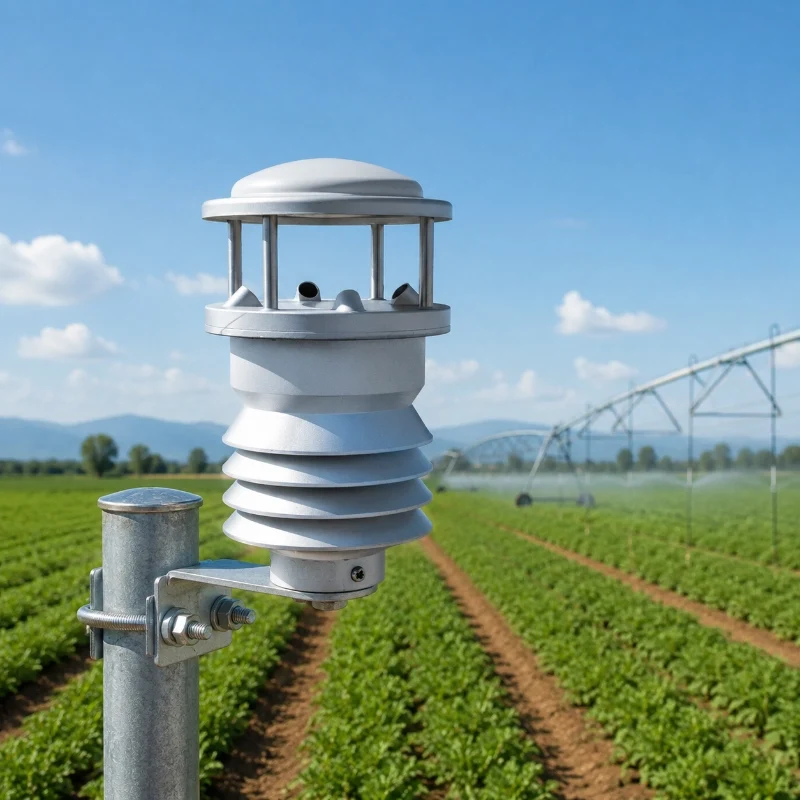

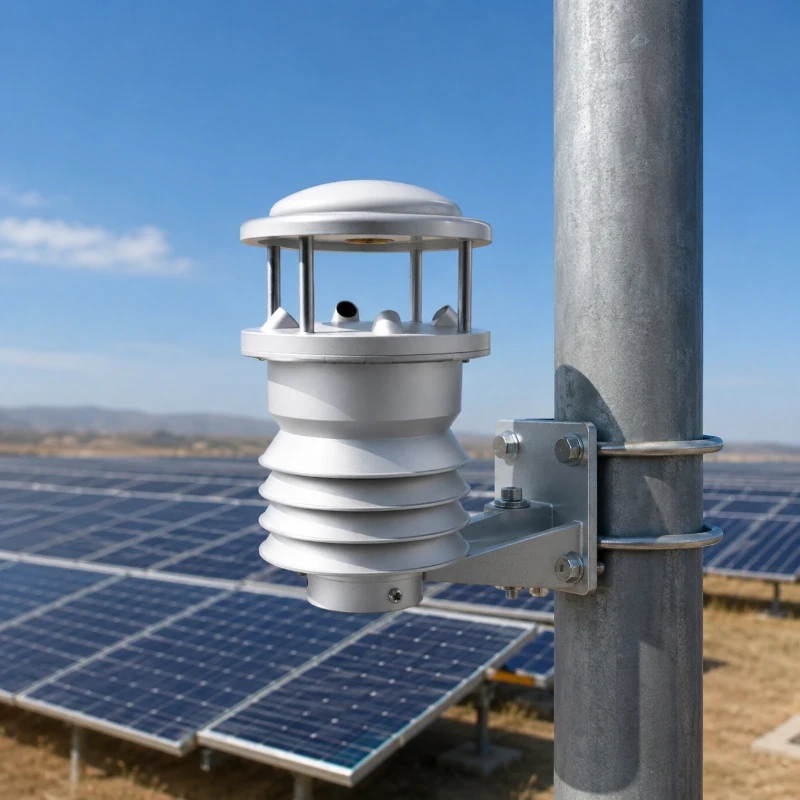

Solar PV and Agriculture: Solar photovoltaic power plants/Farmland weather monitoring/Irrigation and smart agriculture systems

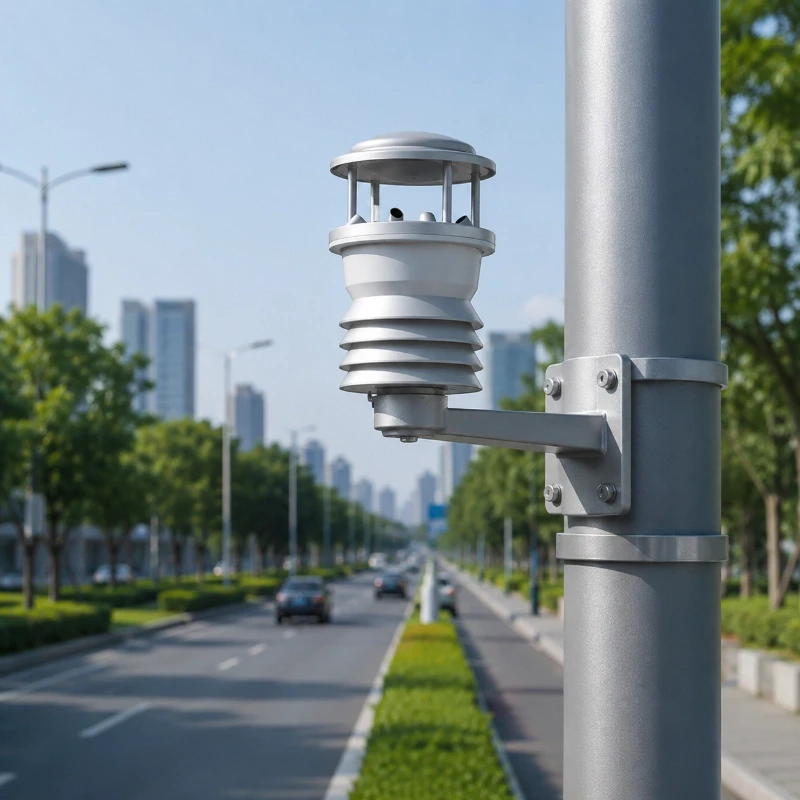

Smart City: Smart street poles/Urban environmental sensing
Transportation: Railways/Highways/Road weather monitoring systems
Why This Product Is Useful?
A compact micro weather station is especially valuable for projects that require multiple weather parameters in one location. Instead of installing separate wind, temperature, humidity, pressure, and rainfall sensors, users can deploy one integrated unit to simplify installation and improve project efficiency.
This is particularly useful for solar power stations, agriculture, smart cities, and transportation infrastructure, where reliable weather data supports safety, automation, and operational decision-making.
Why Integrated Weather Monitoring Matters?
In outdoor monitoring projects, data quality often depends on sensor placement, communication stability, and long-term durability. An integrated weather station helps solve these challenges by offering a more compact and reliable solution.
With a single device measuring multiple parameters, users can:
reduce wiring and installation costs
simplify maintenance
improve monitoring consistency
collect real-time environmental data more efficiently
Why Rainfall Monitoring Is Important?
Rainfall is a key parameter in many outdoor applications. In agriculture, rainfall data helps optimize irrigation decisions. In transportation, it supports road safety and weather response systems. In PV plants, rainfall data can help evaluate environmental conditions and site performance. In environmental monitoring, it provides useful context for climate and hydrological analysis.
Why RS485 Is Common in Industrial Monitoring?
RS485 communication is widely used in industrial and outdoor monitoring systems because it supports long-distance communication, strong anti-interference capability, and stable data transmission. This makes it ideal for micro weather stations deployed in remote or electrically noisy environments.
Need a Reliable Micro Weather Station for Your Project
Contact JW-IoT for datasheets, integration support, and customized environmental monitoring solutions for agriculture, solar PV, smart city, transportation, and industrial applications.
FAQ
Q
1. What does this micro weather station measure?
A
This micro weather station measures wind speed, wind direction, ambient temperature, relative humidity, atmospheric pressure, and rainfall in one integrated device.
Q
2. Is this product suitable for outdoor use?
A
Yes. The device is designed for harsh outdoor environments with an IP66 protection rating, aluminum housing, and corrosion resistance.
Q
3. Can JW-IoT provide protocol support for this weather station?
A
Yes. JW-IoT can provide communication support and technical assistance for integrating the micro weather station into RTUs, gateways, PLCs, and cloud platforms.
Q
4. Does the micro weather station support RS485 output?
A
Yes. It supports RS485 half duplex or full duplex output, which is widely used in industrial monitoring systems.
Q
5. Can this product be used in cold regions?
A
Yes. It has an optional heating function and optional low-temperature version, making it suitable for severe cold and icy environments.
Q
6. Does JW-IoT support customization for project needs?
A
Yes. JW-IoT supports project-based customization, including configuration adjustment and integration support according to application requirements.
Q
7. What industries can use this micro weather station?
A
It is suitable for power systems, environmental monitoring, agriculture, photovoltaic projects, smart cities, and transportation monitoring.
Q
8. Is rainfall monitoring included in the standard version?
A
Yes. Rainfall monitoring is included as one of the six integrated meteorological parameters of this micro weather station.
Q
9. Can JW-IoT help with complete weather monitoring solutions?
A
Yes. JW-IoT can provide not only the sensor itself, but also complete weather monitoring solutions including data collection, communication, and cloud platform integration.
