Air Quality Weather Station for Smart City Monitoring

Key Features

Eight in one environmental monitoring: Integrates temperature, humidity, wind speed, wind direction, barometric pressure, PM2.5, PM10 and noise monitoring in one compact station.
Designed for smart city air quality networks: Suitable for urban environmental monitoring, roadside air quality, intelligent light poles, parks, campuses and grid based monitoring stations.
PM2.5 and PM10 particle monitoring: Uses laser scattering technology to continuously detect suspended particulate matter concentration in ambient air.
Environmental noise measurement: Built in high precision electret microphone supports A weighted environmental noise monitoring from 30 to 130 dB.
Third generation ultrasonic wind sensing: Wind speed and wind direction are measured by ultrasonic technology with no moving parts, helping reduce outdoor maintenance.
RS485 Modbus RTU output: Standard industrial communication interface enables easy integration with RTUs, IoT gateways, PLCs, data loggers and cloud platforms.
Outdoor radiation shield structure: Temperature, humidity and pressure sensors are placed inside a multi layer radiation shield to reduce solar radiation interference.
IP65 weather resistant design: Suitable for long term outdoor deployment in roadsides, industrial parks, smart poles and ecological monitoring stations.
Flexible mounting options: Supports sleeve mounting as standard, with optional flange mounting, bent plate mounting and 1.5 m, 1.8 m or 3 m poles.

Product Description

1. Description

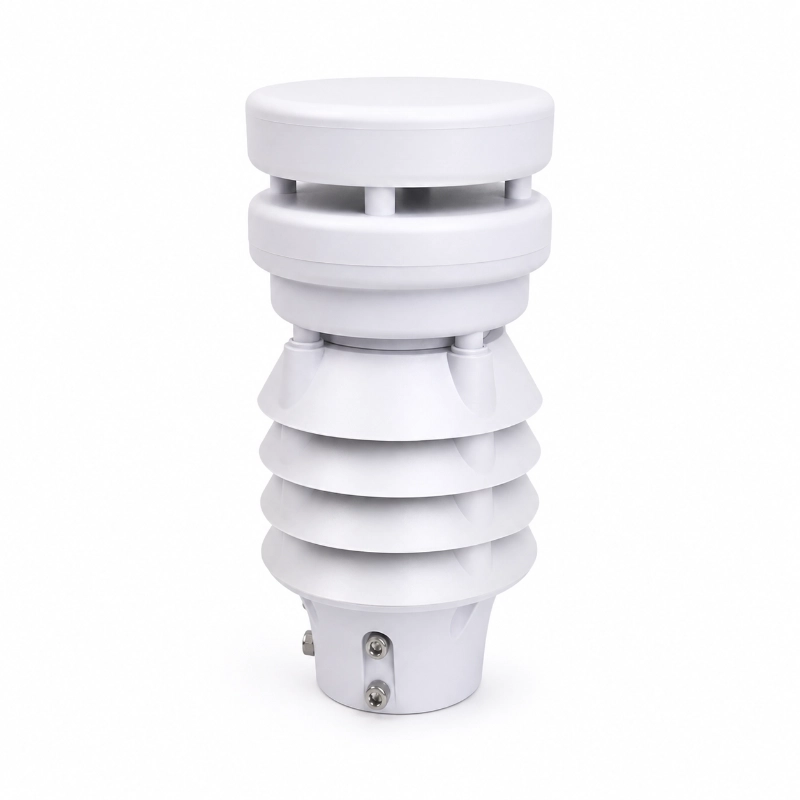

JW-XF800L(YN25) Air Quality Weather Station is a compact eight in one environmental monitoring sensor designed for smart city, roadside, ecological and intelligent light pole applications. It measures air temperature, relative humidity, wind speed, wind direction, barometric pressure, PM2.5, PM10 and environmental noise in one integrated device. With RS485 Modbus RTU output, IP65 protection and ultrasonic wind sensing, it is ideal for outdoor IoT air quality and micro weather monitoring systems.

2. Product Overview

JW-XF800L(YN25) Air Quality Weather Station is developed for outdoor monitoring projects that require both meteorological data and air quality data. It combines micro weather, particulate matter and noise monitoring into one integrated sensor, helping reduce installation points, wiring work and system integration cost.

For smart city and traffic monitoring projects, weather conditions affect air quality dispersion and noise analysis. By monitoring wind, temperature, humidity, pressure, PM2.5, PM10 and noise together, the XF800L provides a more complete data source for urban environmental management.A single air quality weather station can serve as one monitoring node. For distributed deployment across multiple districts, roads, parks, and communities, it can be integrated into a complete urban environmental monitoring system with remote communication and cloud-based data management.

The RS485 Modbus RTU interface makes the device easy to connect with IoT gateways, environmental data acquisition terminals, smart pole systems and cloud based monitoring platforms.

Item	Specification
Product Type	Eight in One Air Quality Weather Station
Measured Parameters	Temperature humidity wind speed wind direction pressure PM2.5 PM10 noise
Air Temperature Range	-40°C to 60°C
Air Temperature Accuracy	±0.3°C at 25°C
Relative Humidity Range	0 to 100%RH
Relative Humidity Accuracy	±3%RH from 10% to 90%RH non condensing
Wind Speed Range	0 to 40 m/s
Wind Speed Accuracy	±0.3 plus 0.03V m/s when V ≤ 30 m/s
Wind Speed Sampling	10 Hz
Wind Direction Range	0 to 360°
Wind Direction Accuracy	±5° when wind speed is below 10 m/s
Wind Direction Sampling	10 Hz
Barometric Pressure Range	500 to 1100 hPa
Barometric Pressure Accuracy	±0.5 hPa at 25°C 950 to 1100 hPa
PM2.5 Range	0 to 500 μg/m³ expandable to 1000 μg/m³
PM10 Range	0 to 500 μg/m³ expandable to 1000 μg/m³
PM Accuracy	±10 plus 10% μg/m³
Noise Range	30 to 130 dB
Noise Accuracy	±1.5 dB
Output Signal	RS485 Modbus RTU
Optional Output	SDI 12
Power Supply	DC9–30V
Working Temperature	-30°C to 70°C
Protection Rating	IP65
Standard Cable	3 m
Optional Cable	10 m
Mounting	Sleeve mounting standard flange or bent plate optional

For projects that combine air quality, wind, rainfall, temperature, humidity, and noise monitoring, view the complete weather and environmental monitoring station architecture.

3. Application Scenarios

Smart city air quality monitoring
Intelligent light pole environmental monitoring

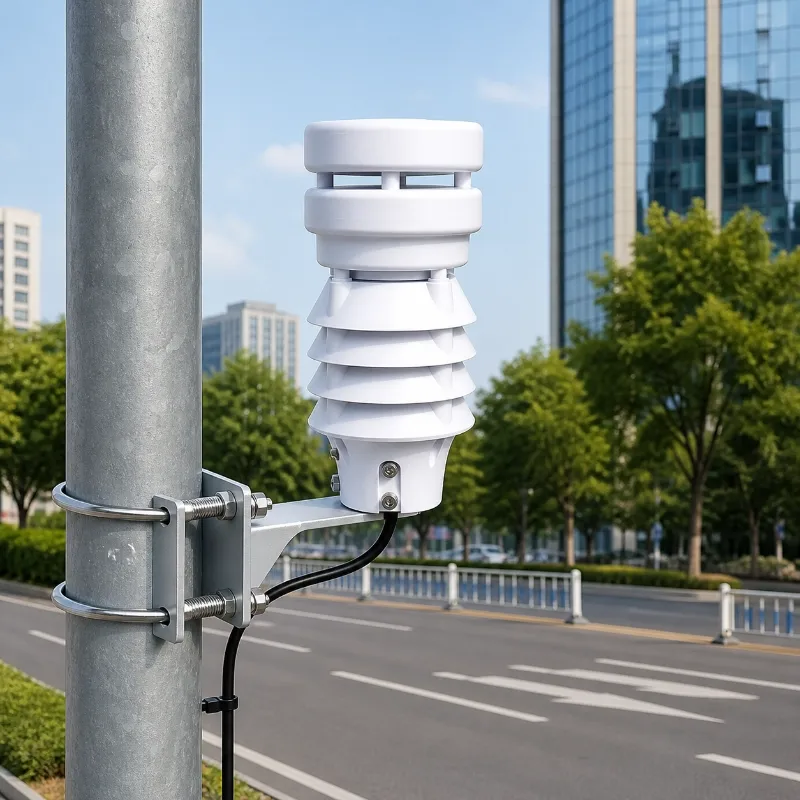

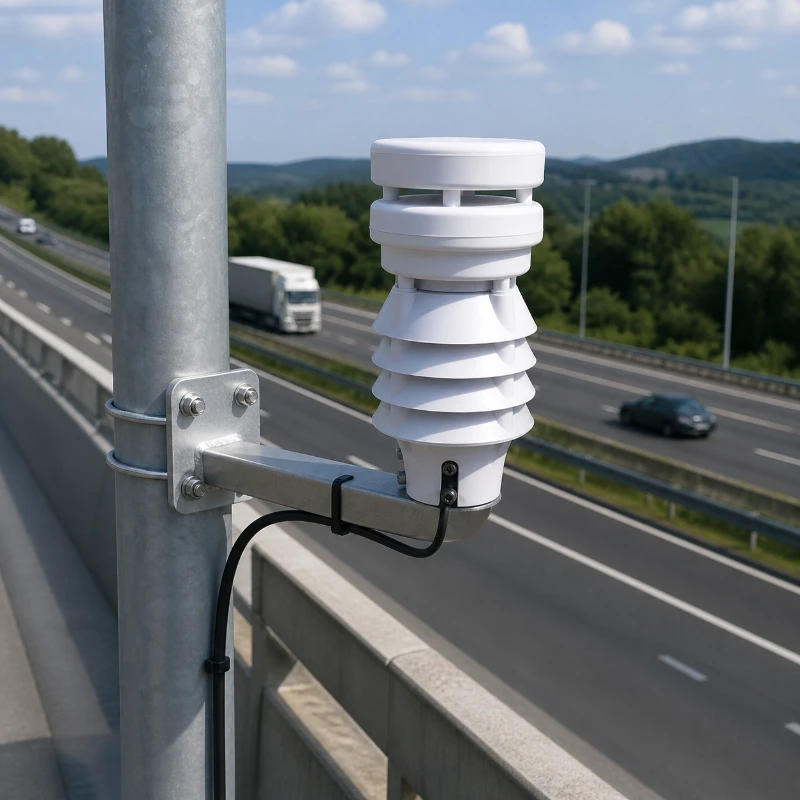

Roadside traffic weather monitoring
Urban PM2.5 and PM10 monitoring
Environmental noise monitoring
Ecological environment monitoring stations

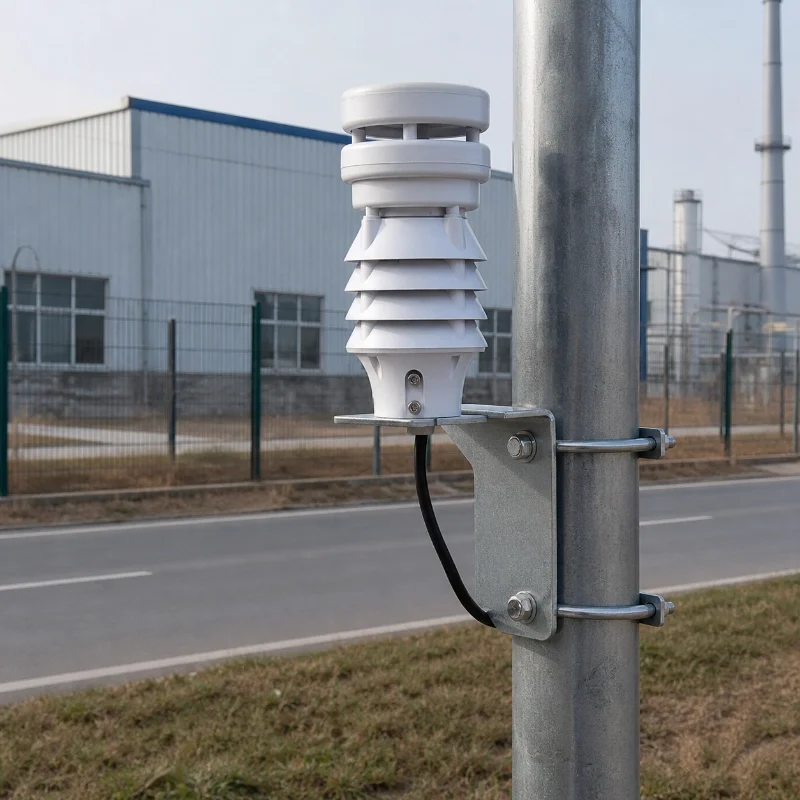

Industrial park boundary monitoring

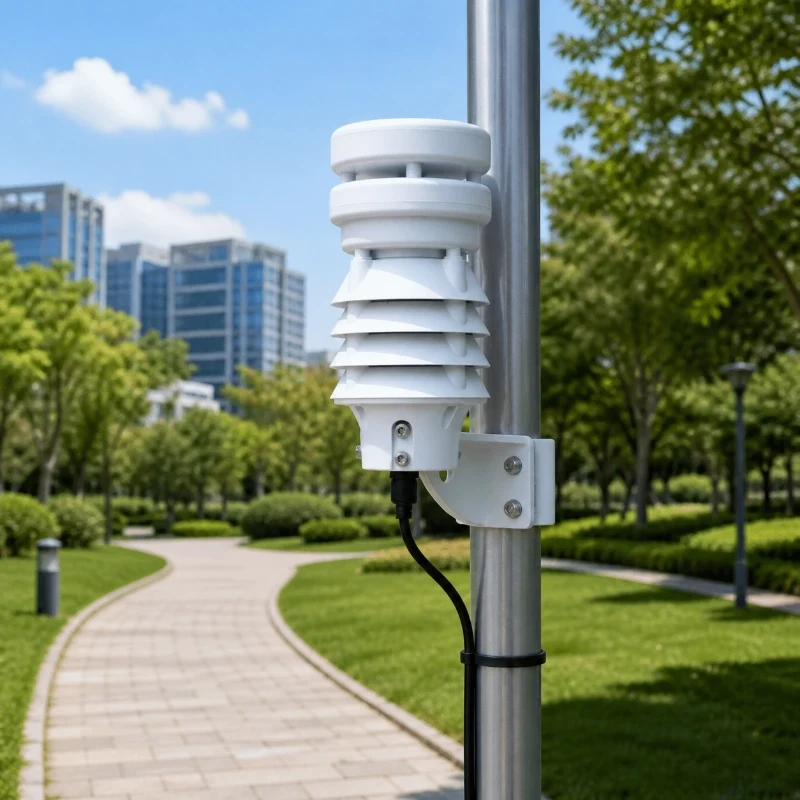

Campus and park environmental monitoring
Outdoor IoT environmental monitoring systems

FAQ

Q

1. What parameters does this air quality weather station measure?

A

It measures air temperature, relative humidity, wind speed, wind direction, barometric pressure, PM2.5, PM10 and environmental noise.
Q

2. Is this product suitable for smart city monitoring?

A

Yes. It is suitable for smart city environmental monitoring, urban grid monitoring, roadside monitoring and intelligent light pole projects.
Q

3. Can JW-IoT provide this sensor for intelligent light pole applications?

A

Yes. JW-IoT can provide this air quality weather station for intelligent light pole systems and outdoor IoT environmental monitoring projects.
Q

4. Does the product support RS485 Modbus RTU?

A

Yes. The standard output is RS485 Modbus RTU, which is suitable for RTUs, IoT gateways, PLCs, data loggers and monitoring platforms.
Q

5. How does it measure PM2.5 and PM10?

A

It uses laser scattering technology to continuously detect suspended particles and calculate PM2.5 and PM10 concentration in ambient air.
Q

6. Can JW-IoT support mounting accessories for outdoor deployment?

A

Yes. JW-IoT can provide optional flange mounts, bent plate mounts and mounting poles for different installation requirements.
Q

7. Is the wind sensor mechanical?

A

No. Wind speed and wind direction are measured by ultrasonic sensing, with no moving parts and lower maintenance requirements.
Q

8. Can this station monitor environmental noise near roads?

A

Yes. It supports A weighted noise measurement from 30 to 130 dB, making it suitable for roadside and urban noise monitoring.
Q

9. Can JW-IoT integrate this device with a cloud platform?

A

Yes. With RS485 Modbus RTU output, JW-IoT can help connect the sensor to IoT gateways, cloud dashboards and environmental monitoring systems.
