JW-PM01X(JY05) Reliable industrial pressure transmitter with high accuracy, 316L stainless steel diaphragm, multiple output signals, anti-interference protection, and IP65 to IP68 grade suitable for petrochemical, water, and process control applications.
2. Product Overview

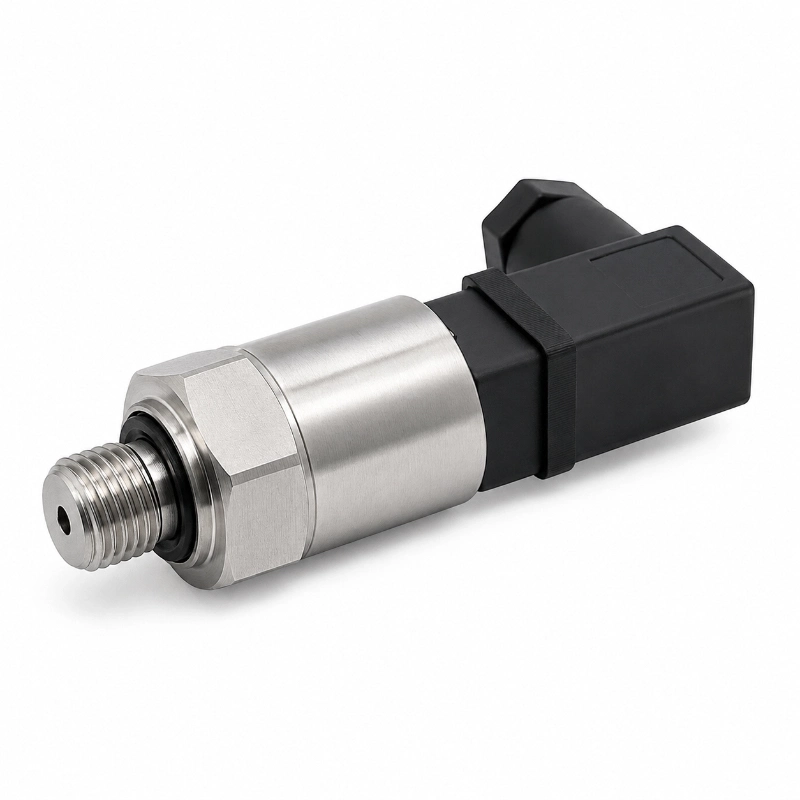

JW-PM01X(JY05) pressure transmitter is designed for high precision and stable industrial pressure measurement. Using a silicon pressure sensor with a 316L stainless steel isolation diaphragm, the device integrates signal amplification, linear compensation, anti-interference and surge protection, delivering standard industrial output signals. Its robust construction and advanced electronics make it ideal for pipelines, industrial automation, and process control systems in petrochemical, water supply, hydraulic, and pneumatic applications.
Item
Specification
Pressure Range
-100 to 10 to 1000 kPa / 0–1 to 100 MPa
Pressure Type
Gauge (G), Sealed Gauge (S), Absolute (A)
Output Signal
4–20mA, 0.5–4.5VDC, 0–10VDC, IIC, RS485
Input Voltage
8–30VDC, 5–8VDC, 3.3VDC
Accuracy Class
0.1, 0.2 (0.25), 0.5
Nonlinearity / Repeatability / Hysteresis
0.1 / 0.2 (0.25) / 0.5
Zero Drift
0.01 / 0.02 (0.025) / 0.05
Sensitivity Drift
0.01 / 0.02 (0.025) / 0.05
Compensation Temperature
0–50°C; -10–70°C
Working Temperature
-20–85°C
Storage Temperature
-40–125°C
Long Term Stability
≤0.2% FS/year; ≤0.5% FS/year
Response Time
<1 ms
Overload Capacity
200%
Load Resistance
R = (U-12.5)/0.02 – R0
Measuring Medium
Corrosive media compatible with 316L
Diaphragm Material
316L, C-276, TC4
Housing Material
304SS, 316L, C-276, TC4
Electrical Connection
DIN43650A or customized
Process Connection
M20×1.5 or customized
Protection Grade
IP65, IP66, IP67, IP68
Explosion Proof
Ex ia II CT6 optional

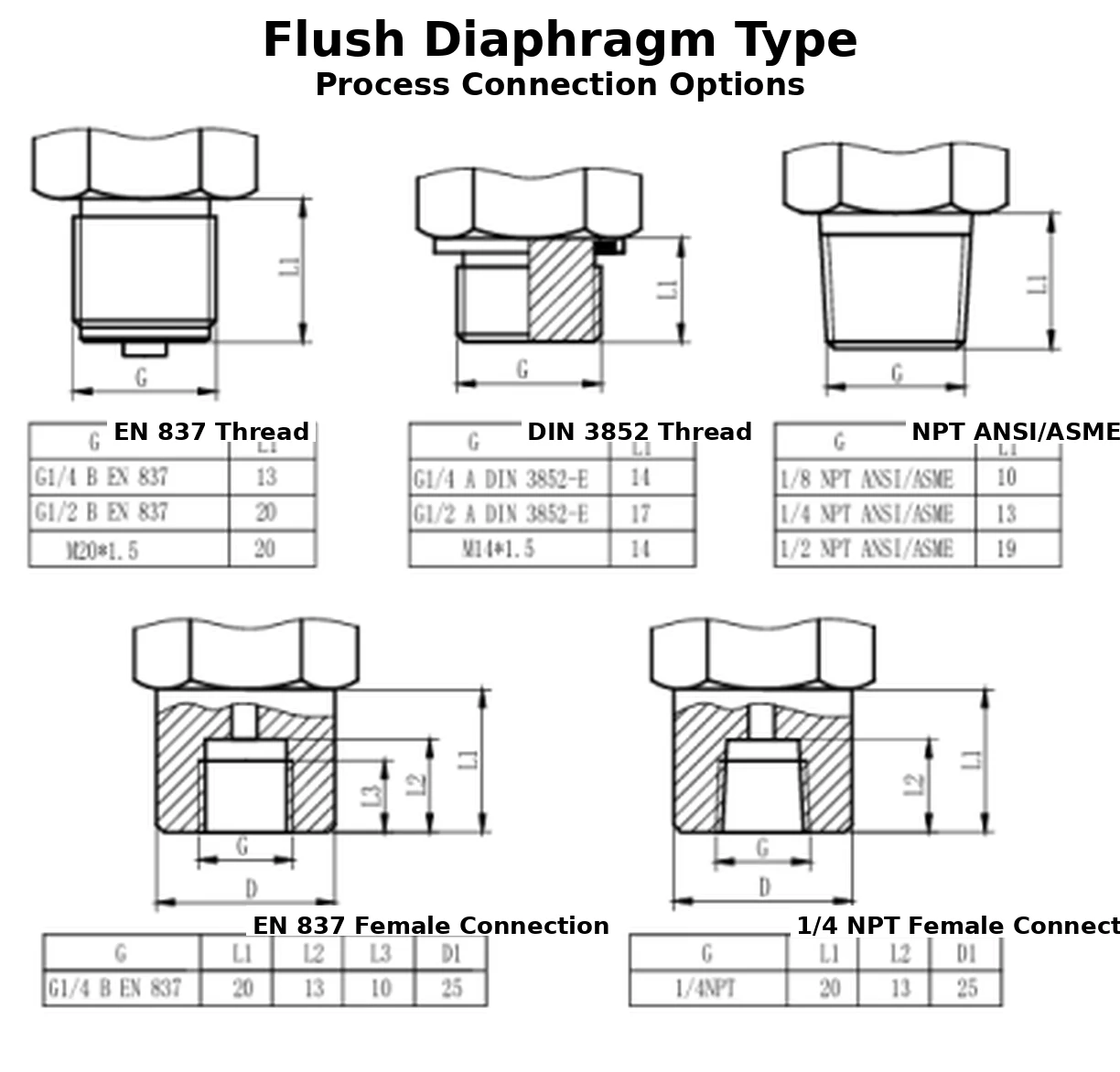

3. Process Connection

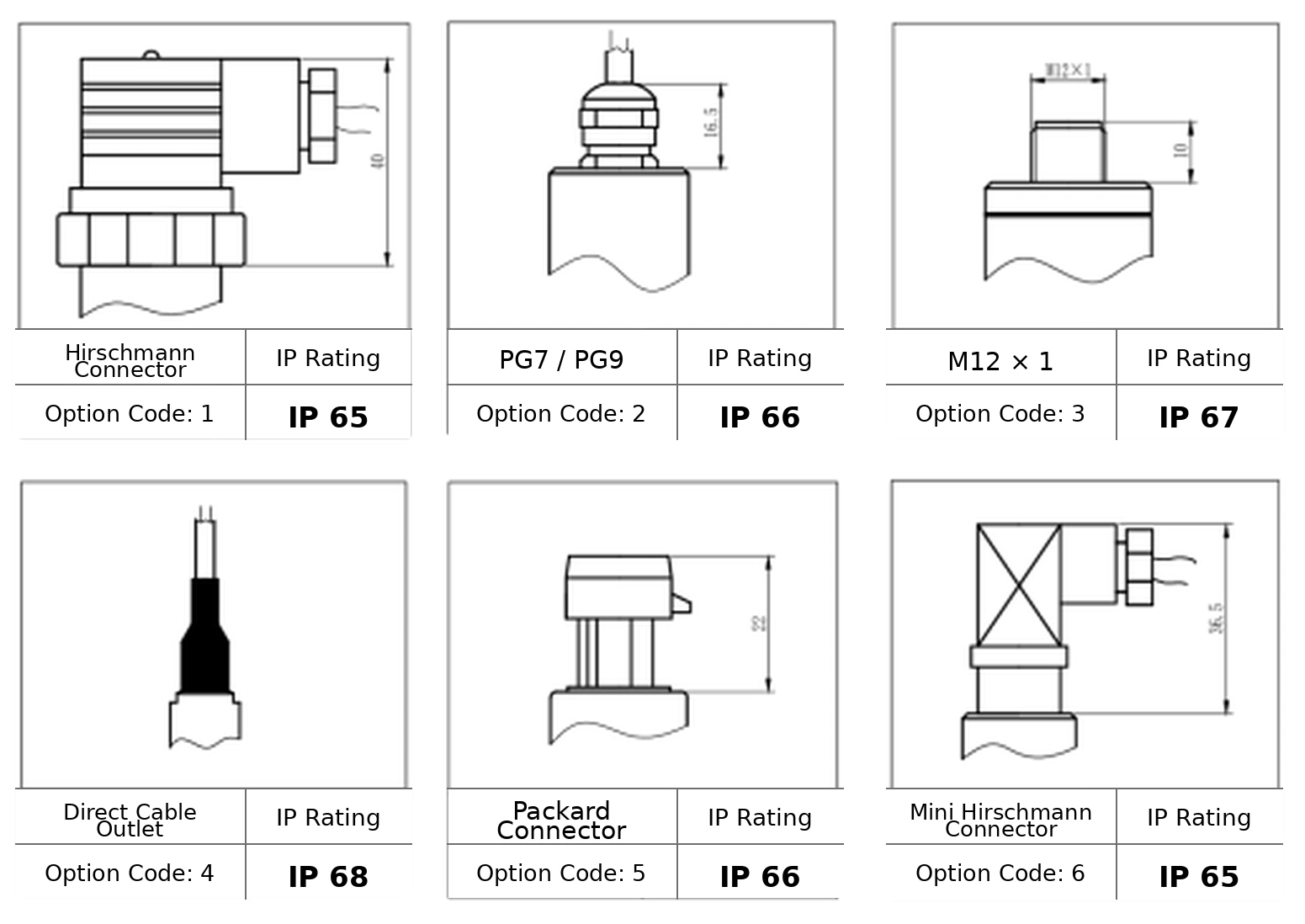

4. Electrical Interface

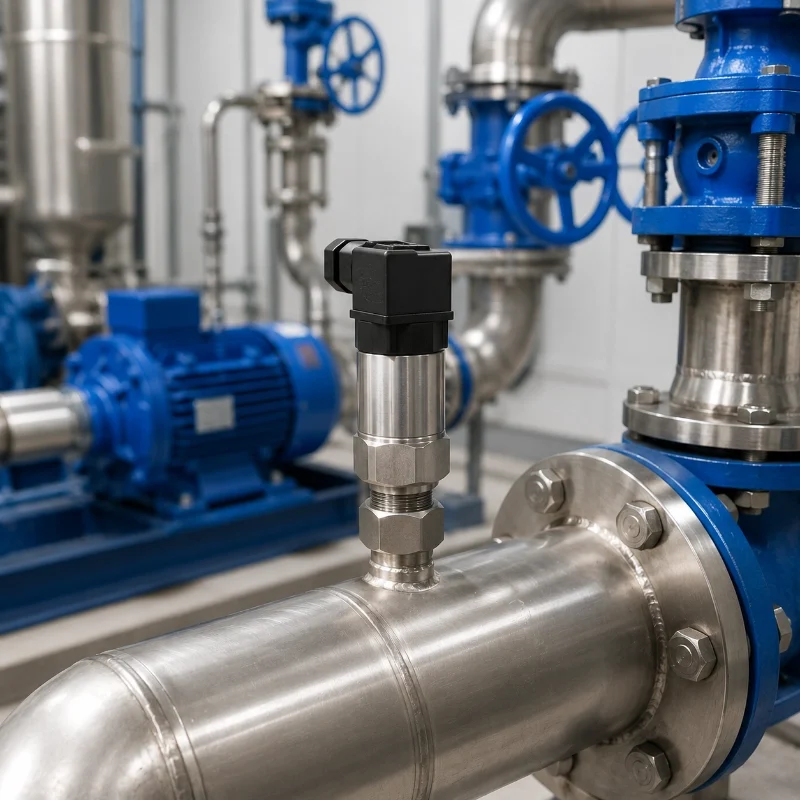

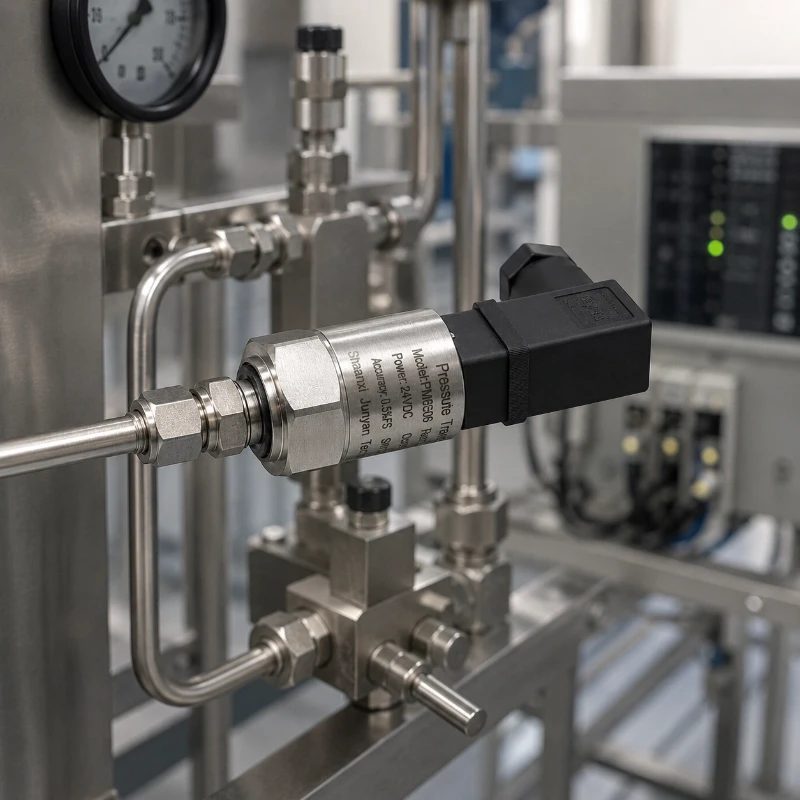

5. Application Scenarios

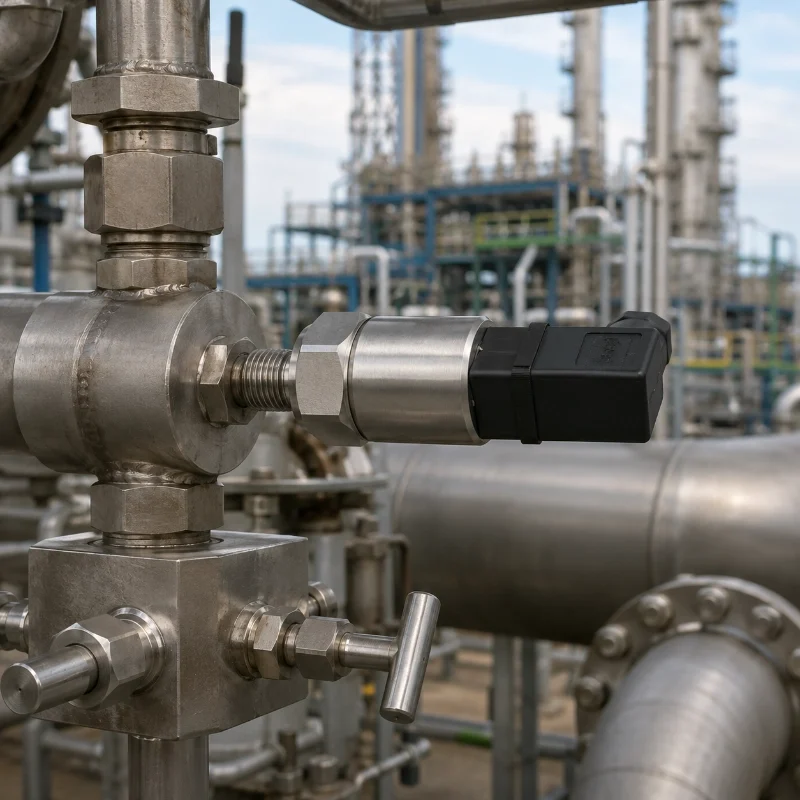

Petrochemical Industry – pipeline and tank pressure monitoring
Constant Pressure Water Supply – pump and pipeline control
Industrial Measurement and Control – PLC integration, automation systems

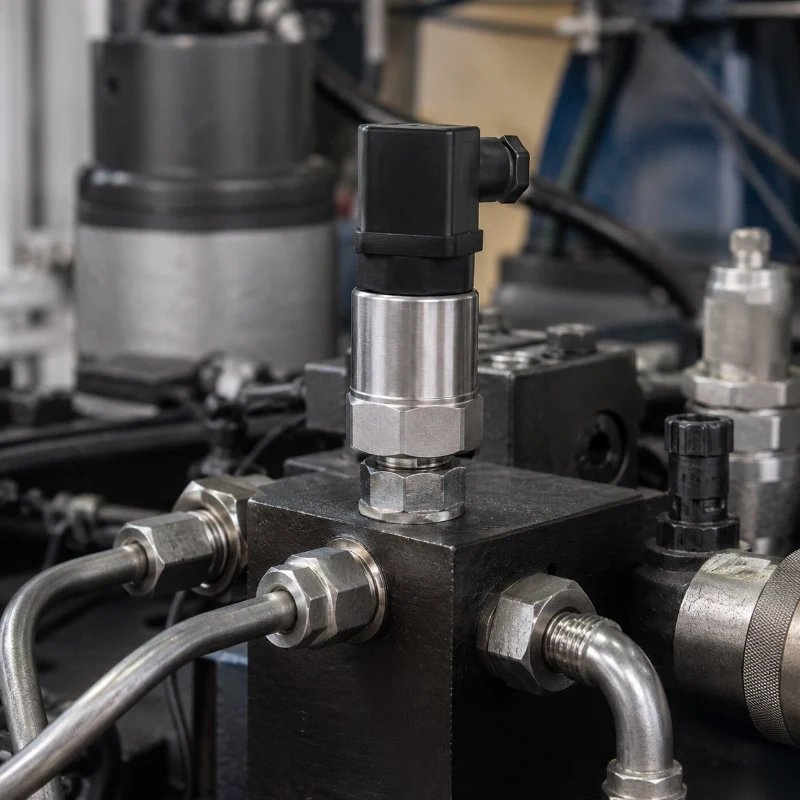

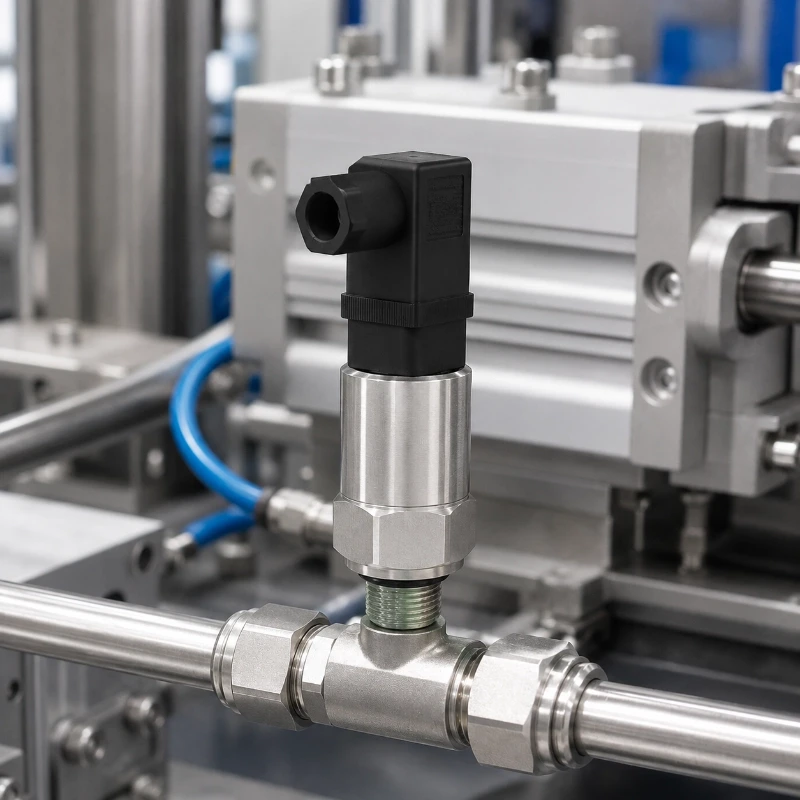

Hydraulic and Pneumatic Systems – equipment and process monitoring
FAQ
Q
1. What output signals are available for this transmitter?
A
The PM01X supports 4–20mA, 0–10VDC, 0.5–4.5VDC, IIC, and RS485 output signals for integration with PLC and automation systems.
Q
2. Can this pressure transmitter be used in water supply systems?
A
Yes. It is suitable for pipelines, pump stations, and constant pressure water supply systems.
Q
3. Does JW-IoT provide customization options?
A
Yes. JW-IoT can customize process connections, electrical interfaces, and protection grades for industrial applications.
Q
4. What is the working temperature range?
A
The transmitter operates reliably between -20°C and 85°C.
Q
5. What industries is this pressure transmitter suitable for?
A
It is used in petrochemical, water supply, hydraulic, pneumatic, and industrial process control systems.
Q
6.How accurate is the PM01X pressure transmitter?
A
Accuracy options are 0.1%, 0.2% (0.25%), and 0.5% FS.
Q
7. What is the protection grade?
A
The device is available in IP65, IP66, IP67, and IP68 protection grades.
Q
8. Can this transmitter withstand overloads?
A
Yes. It has a 200% overload capacity and fast response time <1 ms.
Q
9. What materials are used for the diaphragm?
A
The diaphragm is made of 316L stainless steel, C-276, or TC4 depending on the application requirements.
