JW-IDW(S14) Incremental Draw Wire Displacement Sensor 0 to 100000mm is designed for high-precision long-stroke linear position measurement and motion control. With ABZ differential output, multiple pulse options, 0.05%FS linearity, IP65 protection, and up to 5 million reciprocating cycles, it is suitable for industrial automation, gate control, lifting equipment, hydraulic machinery, and ultra-long travel displacement monitoring.
2. Product Overview

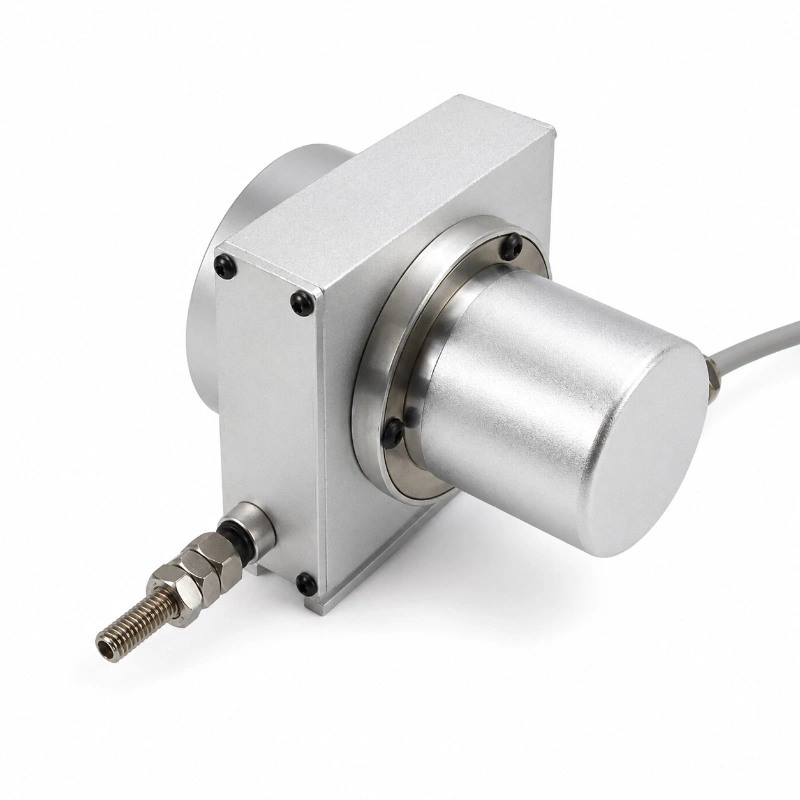

JW-IDW(S14)incremental draw wire displacement sensor is a high-precision linear position sensor that converts linear movement into pulse signals for displacement measurement, speed feedback, and position control. It combines the advantages of long measuring stroke, compact installation, high accuracy, and stable encoder output.
This sensor is available with several pulse resolutions, including 5000P, 3600P, 2500P, 1000P, and 500P, and provides ABZ differential drive output for reliable signal transmission. It is especially suitable for industrial equipment that requires accurate motion tracking, ultra-long-stroke position feedback, and real-time control.
With IP65 protection, a service life of 5 million reciprocating cycles, and robust mechanical performance, the sensor can be used in demanding industrial environments for automation, machinery control, and precision measurement applications.
Item
Specification
Product Type
Incremental Draw Wire Displacement Sensor
Measuring Range
0 to 100000mm customizable
Linearity Accuracy
0.05%FS
Repeatability
0.02%FS
Pulse Options
5000P 3600P 2500P 1000P 500P
Output Signal
ABZ differential drive signal
Fixed Screw
M4
Installation Method
Two bracket mounting
Service Life
5 million reciprocating cycles
Protection Rating
IP65
Supply Voltage
24VDC
Pulse Type Supply Voltage
5 to 24VDC
Bracket Hole Distance
28 ±0.5mm
Recommended Distance Between Two Brackets
40 to 55mm
Mounting Screw
M4
Tether Screw Installation
M6
Incremental Encoder Parameters
Item
Specification
Power Supply
DC 8 to 30V
Operating Temperature
-40°C to 80°C
Output Signal
ABZ
Axial Load
Radial 60N axial 40N
Response Frequency
200kHz
Mechanical Speed
500 rpm
Resolution Table
Measuring Range
Resolution
1000mm
0.028mm
1500mm
0.037mm
2000mm
0.042mm
2500mm
0.046mm
6500mm
0.070mm
17000mm
0.105mm
Wiring Definition
Lead wire length: 1 meter
Wire Color
Function
Red
8 to 30V
Black
0V
Green
A
White
B
Yellow
Z
3. Application Scenarios：
Reservoir gate opening measurement

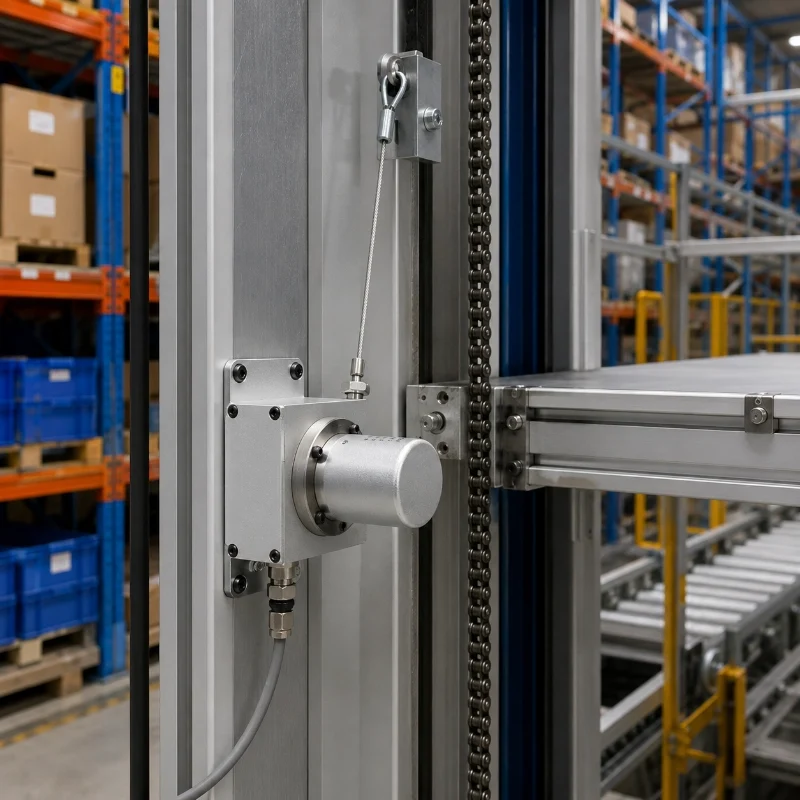

Dam gate position monitoring
Warehouse positioning systems

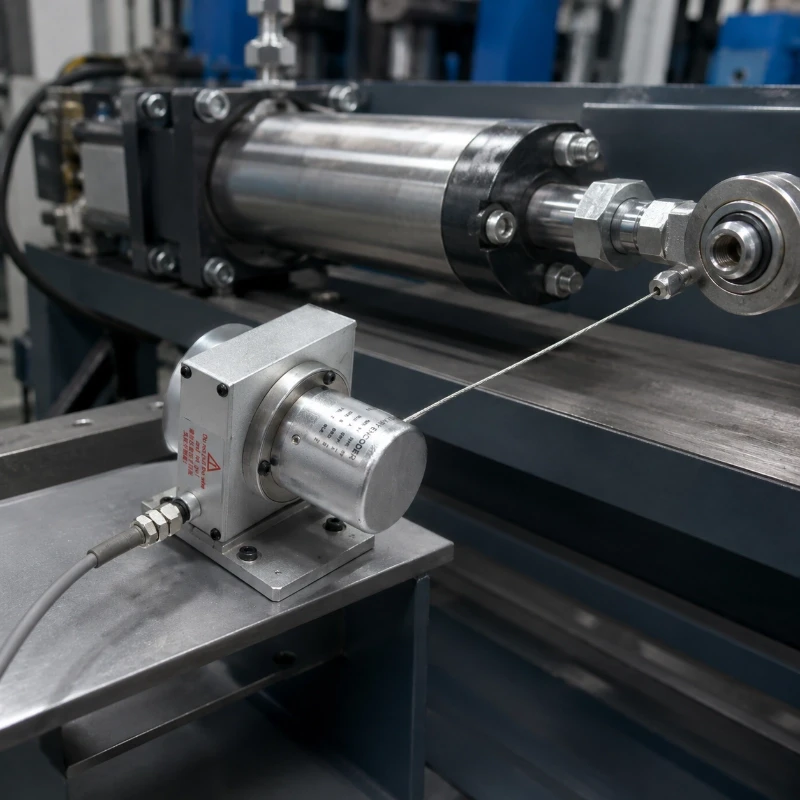

Hydraulic cylinder stroke measurement

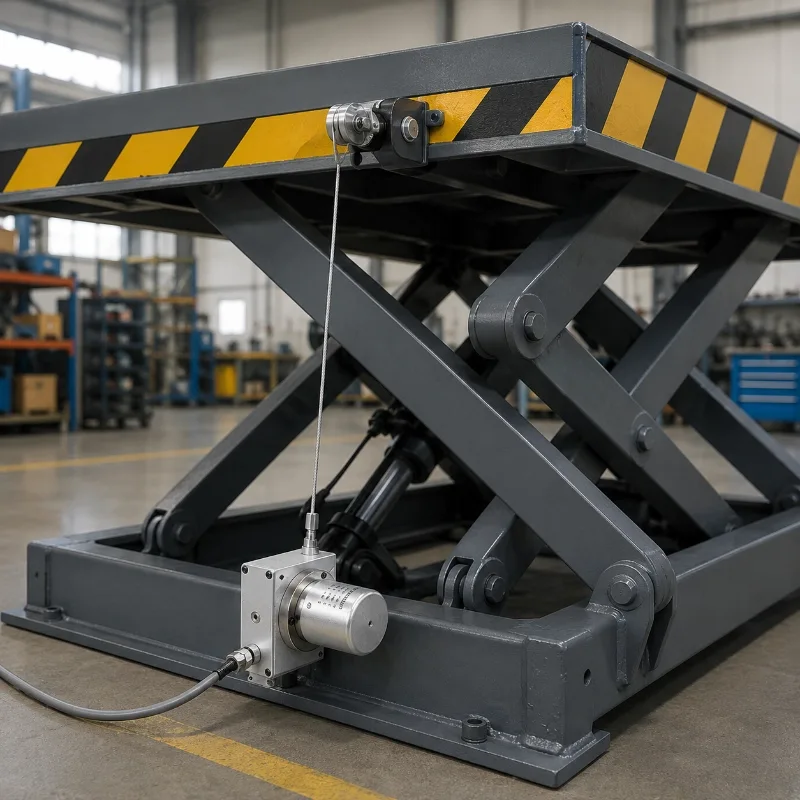

Lifting platform displacement feedback
Industrial automation equipment
Packaging machinery
Printing machinery
Construction machinery
Elevators and hoists
Linear motion control systems
Robotics and mechanical positioning
Ultra-long travel displacement measurement
4. Installation Notes
Use the mounting bracket holes to install the sensor in the correct orientation according to the equipment structure.
Keep the wire rope moving as straight as possible from the outlet to the moving point to reduce angular deviation and maintain accuracy.
Avoid scratching, bending, burning, or impacting the wire rope during installation and use. Do not pull the wire rope out manually and let it retract suddenly before installation is complete.
For non-linear movement, use a suitable pulley or guide mechanism to convert the motion into linear travel.
Select the appropriate pulse resolution based on measuring range, required accuracy, and controller compatibility.
FAQ
Q
1. What is an incremental draw wire displacement sensor used for?
A
It is used to measure linear movement, stroke length, and position change while providing pulse feedback for motion control systems.
Q
2. What is the measuring range of this sensor?
A
This sensor supports a customizable measuring range from 0 to 100000mm, making it suitable for ultra-long travel displacement applications.
Q
3. What output signal does this sensor provide?
A
This model provides ABZ differential drive output, which is suitable for precise position feedback and direction detection.
Q
4. What pulse resolutions are available?
A
Available options include 5000P 3600P 2500P 1000P and 500P.
Q
5. Can JW-IoT provide customized measuring ranges?
A
Yes. JW-IoT can support customized measuring ranges according to project requirements.
Q
6. Is this sensor suitable for industrial environments?
A
Yes. With IP65 protection and a service life of 5 million reciprocating cycles, it is suitable for many industrial applications.
Q
7. Can JW-IoT help select the right pulse resolution?
A
Yes. JW-IoT can recommend suitable pulse options based on stroke length, required accuracy, and control system requirements.
Q
8. What equipment can use this sensor?
A
It can be used in reservoir gates, dam gates, lifting platforms, hydraulic systems, warehouse positioning systems, and other long-stroke automation equipment.
Q
9. Why choose JW-IoT for incremental draw wire sensors?
A
JW-IoT provides flexible configuration options, practical application support, and industrial sensing solutions for different displacement measurement projects.
