Flush Diaphragm Pressure Transmitter For Sanitary Applications

Key Features

Flush diaphragm design for sanitary pressure measurement without media blockage
316L stainless steel diaphragm compatible with food grade and corrosive media
Anti interference and surge leakage protection for stable industrial operation
Multiple output signals available including 4 to 20mA 0 to 10VDC IIC and RS485
Wide pressure range options from negative pressure to high pressure applications
Sanitary structure helps prevent crystallization residue and contamination
Easy to clean design for food beverage and pharmaceutical environments
IP65 IP66 IP67 and IP68 protection options for demanding installation conditions
High overload capacity up to 200 percent for improved reliability
Optional explosion proof version suitable for special industrial environments

Product Description

1. Description

JW-PM03X(JY02) Sanitary flush diaphragm pressure transmitter with 316L stainless steel diaphragm, anti interference protection, multiple output signals and IP65 to IP68 options for food, beverage, pharmaceutical and viscous media pressure measurement.

2. Product Overview

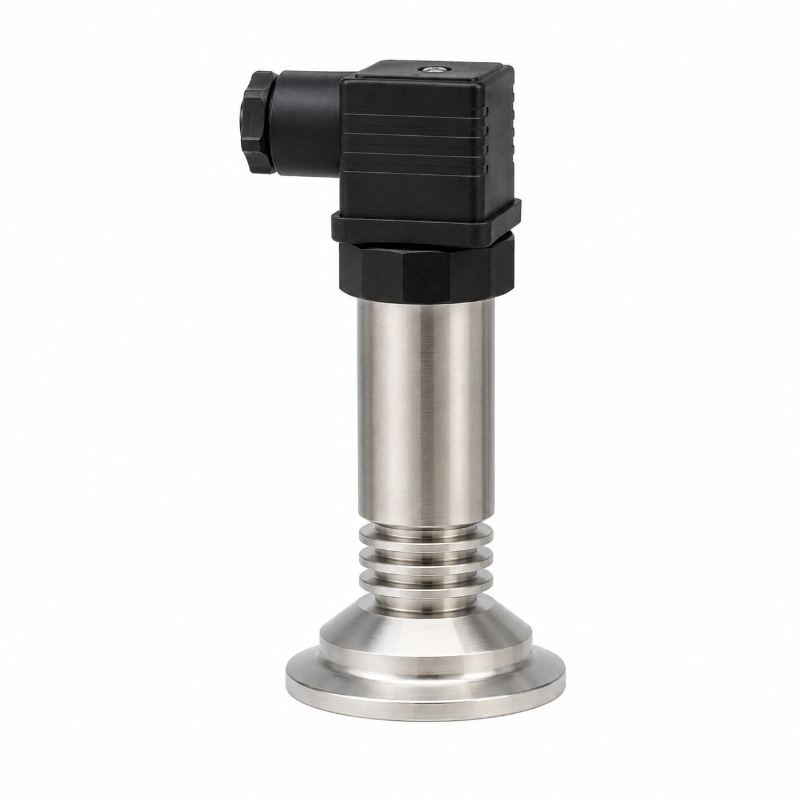

JW-PM03X(JY02) The flush diaphragm pressure transmitter is designed for sanitary pressure measurement in applications where cleanliness, anti-clogging performance and stable signal output are required. The sensing diaphragm is welded directly to the front of the process connection, allowing the transmitter to detect pressure without dead zones or blocked cavities.

Using a silicon sensing chip and dedicated digital circuit, the transmitter provides signal amplification, linear compensation, anti interference processing and surge leakage protection. It converts pressure into standard industrial signals for reliable integration with PLCs, data loggers, control systems and IoT monitoring platforms.

This product is especially suitable for food processing, beverage production, brewing, pharmaceutical manufacturing, sanitary pipelines and viscous media measurement.

Item	Specification
Pressure Range	-100 to 10 to 1000 kPa 0 to 1 to 100 MPa
Pressure Type	Gauge pressure sealed gauge pressure absolute pressure
Output Signal	4 to 20mA 0.5 to 4.5VDC 0 to 10VDC IIC RS485
Input Voltage	8 to 30VDC 5 to 8VDC 3.3VDC
Accuracy Class	0.1 0.2 0.25 0.5
Nonlinearity Repeatability Hysteresis	0.1 0.2 0.25 0.5
Zero Drift	0.01 0.02 0.025 0.05
Sensitivity Drift	0.01 0.02 0.025 0.05
Compensation Temperature	0 to 50°C or -10 to 70°C
Working Temperature	-20 to 85°C
Storage Temperature	-40 to 125°C
Long Term Stability	≤0.2 percent FS per year or ≤0.5 percent FS per year
Response Time	Less than 1 ms
Overload Capacity	200 percent
Measuring Medium	Corrosive media compatible with 316L
Diaphragm Material	316L C276 TC4
Housing Material	304SS 316L C276 TC4
Electrical Connection	DIN43650A or customized
Process Connection	M20×1.5 or customized
Protection Grade	IP65 IP66 IP67 IP68
Explosion Proof Grade	Ex ia II CT6 optional

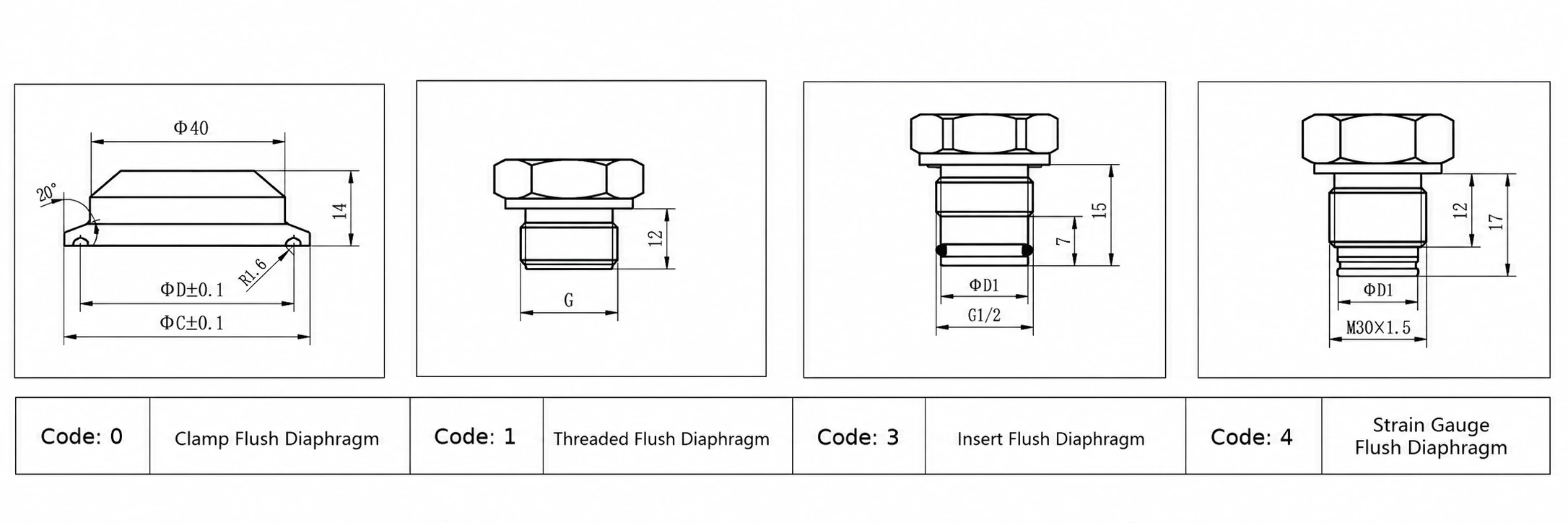

3. Flush Diaphragm Type

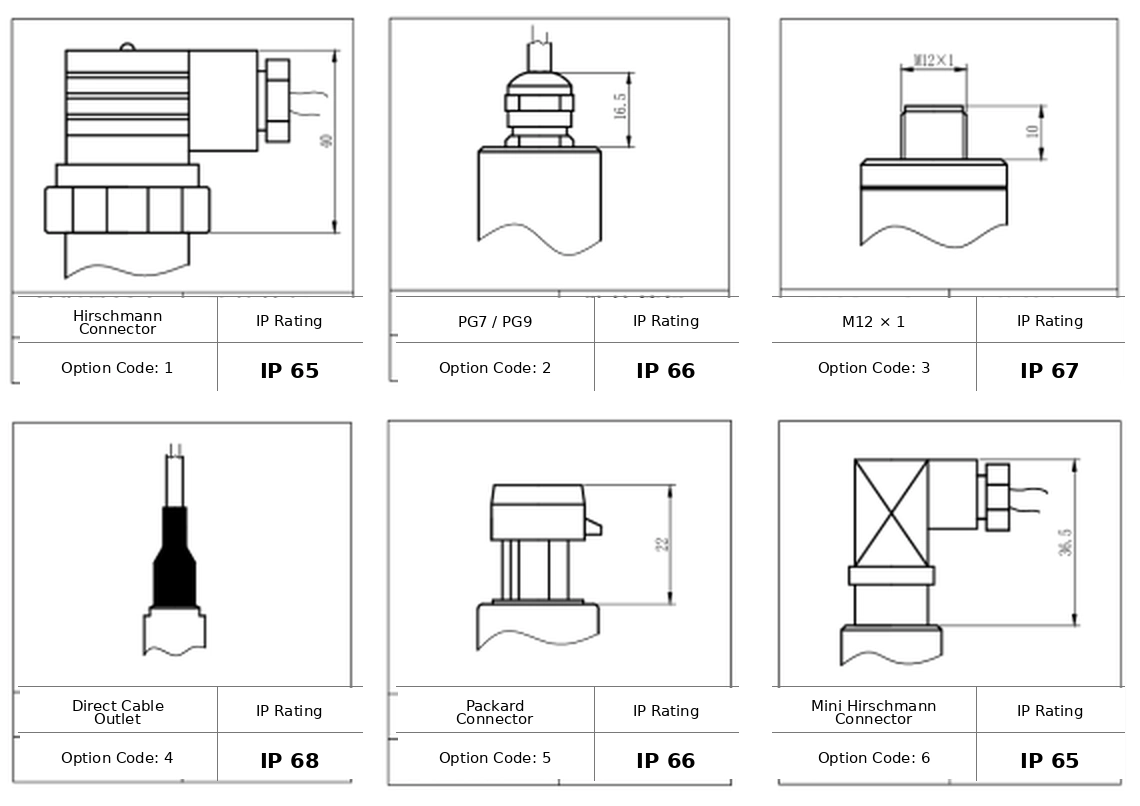

4. Electrical Interface

5. Application Scenarios

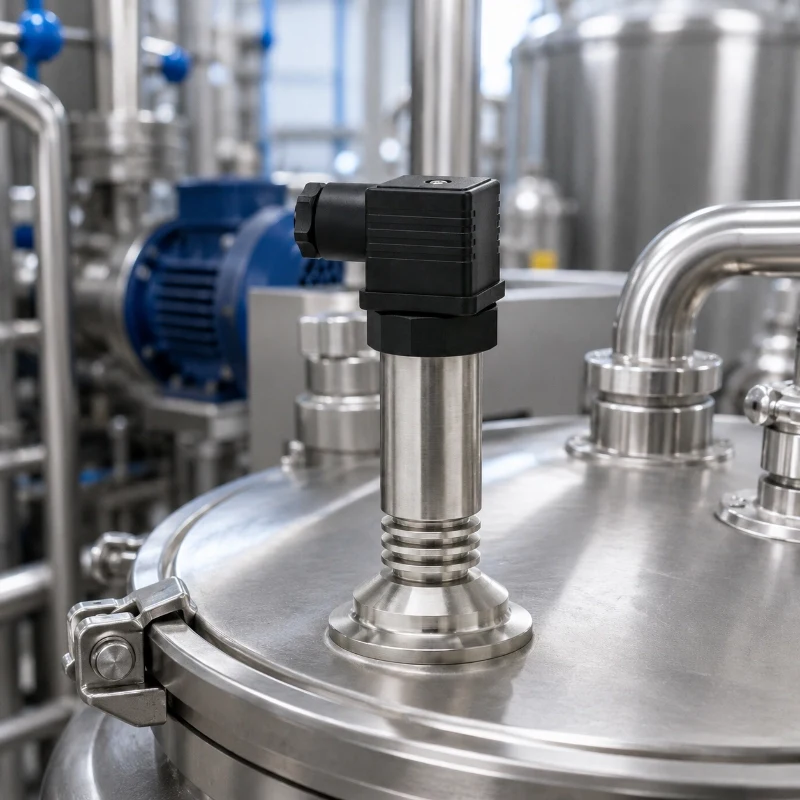

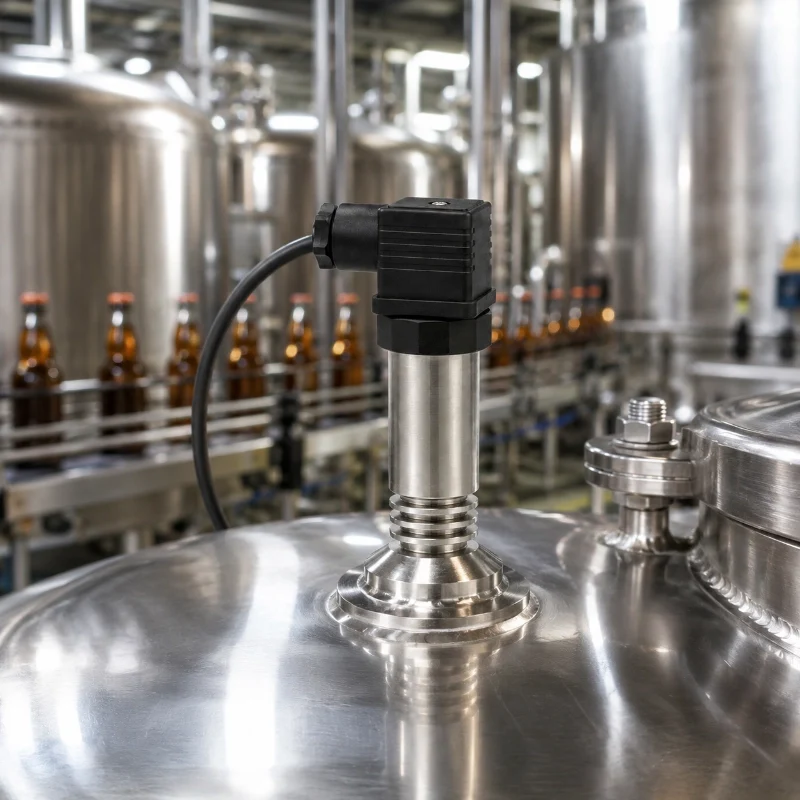

Food and Beverage Processing: The flush diaphragm structure is ideal for pressure measurement in milk, juice, beer, sauce, edible oil and other food processing lines where hygiene and easy cleaning are important.

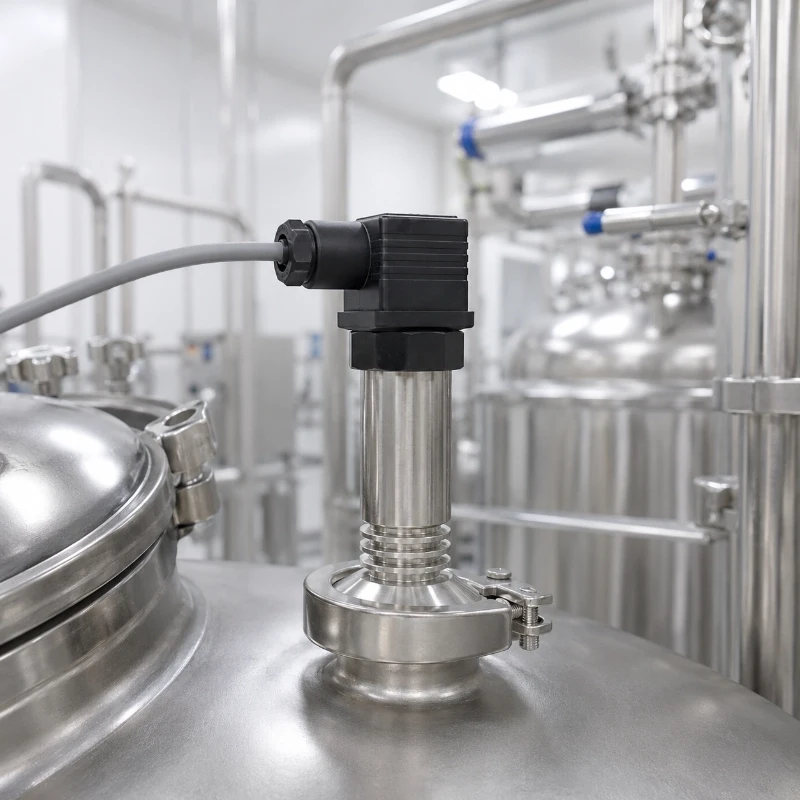

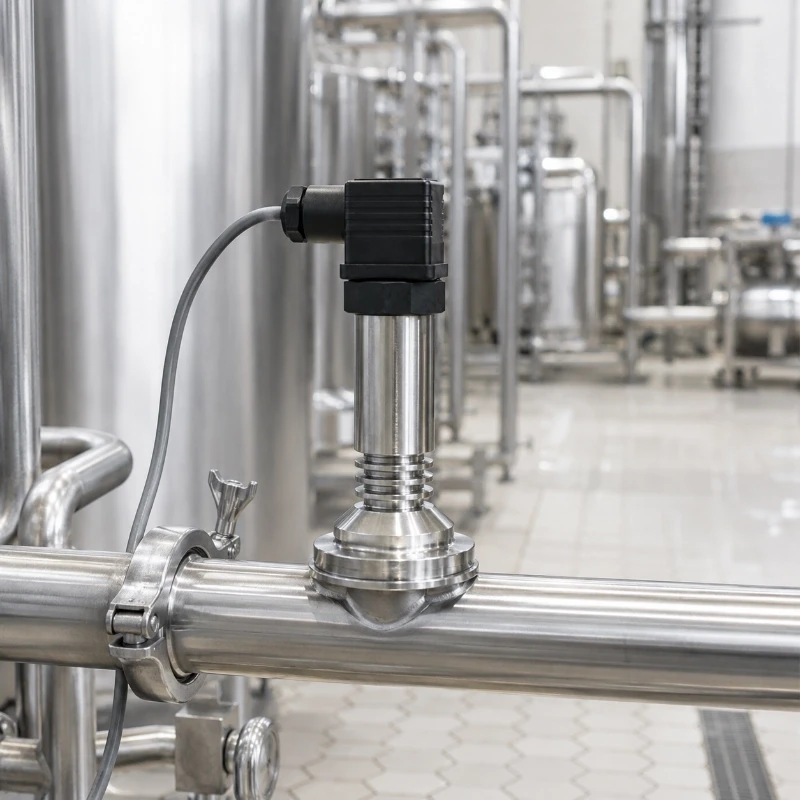

Pharmaceutical and Sanitary Industries: The transmitter supports clean pressure monitoring in pharmaceutical production, sanitary pipelines and high cleanliness process environments.

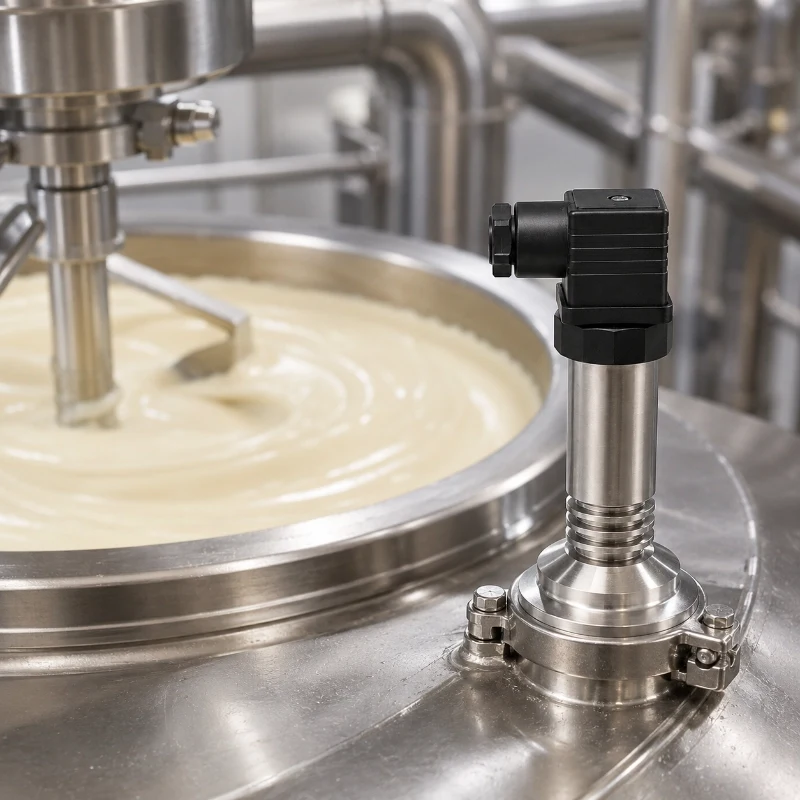

Viscous Media Measurement: The flat membrane design reduces clogging risk when measuring paste, syrup, slurry, cream, adhesive liquid or other high viscosity media.
Imported Equipment Replacement: With standard process connections and industrial output signals, it can be used as a replacement pressure transmitter for imported equipment and automated production systems.

FAQ

Q

1. What is a flush diaphragm pressure transmitter used for?

A

A flush diaphragm pressure transmitter is used to measure pressure in sanitary or viscous media applications where standard pressure ports may become blocked or difficult to clean.
Q

2. Is this pressure transmitter suitable for food processing?

A

Yes. The 316L stainless steel diaphragm and sanitary flat membrane design make it suitable for food, beverage, brewing and clean process applications.
Q

3. Can JW-IoT provide RS485 output for this pressure transmitter?

A

Yes. JW-IoT can provide multiple output options including RS485, IIC, 4 to 20mA, 0 to 10VDC and 0.5 to 4.5VDC depending on project requirements.
Q

4. What pressure ranges are available?

A

The transmitter supports pressure ranges from negative pressure to high pressure, including -100 kPa ranges and pressure ranges up to 100 MPa depending on configuration.
Q

5. Why is a flush diaphragm design better for viscous media?

A

The flush diaphragm has no narrow pressure port, which helps reduce clogging, residue buildup and crystallization when measuring paste, syrup, slurry or other viscous liquids.
Q

6. Can JW-IoT customize the process connection?

A

Yes. JW-IoT can support standard M20×1.5 process connection and customized process connections for different equipment or pipeline installation needs.
Q

7. What protection grades are available?

A

Protection grades include IP65, IP66, IP67 and IP68, making the transmitter suitable for different industrial and outdoor environments.
Q

8. What materials can be selected?

A

Available materials include 316L stainless steel, C276 and TC4 for the diaphragm, with 304SS, 316L, C276 and TC4 available for the housing.
Q

9. Can JW-IoT support OEM or project based configuration?

A

Yes. JW-IoT can support project based configuration for pressure range, signal output, electrical connection, process connection, material selection and labeling requirements.
