Draw Wire Displacement Sensor 0 to 2500mm

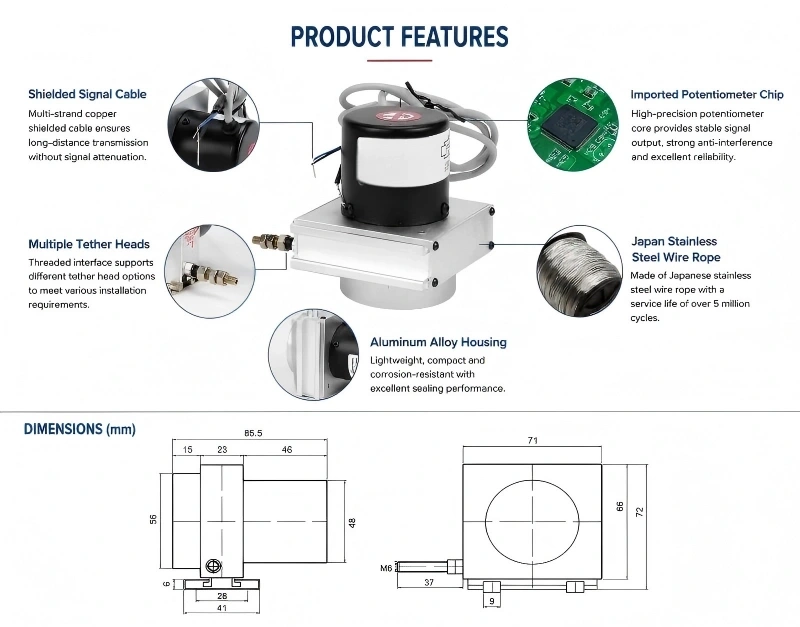

Key Features

Measuring range from 0 to 2500mm
Compact structure for installations with limited space
Standard linearity of 0.25%FS
Precision linearity of 0.05% to 0.08%FS
Repeatability up to 0.01%FS to 0.005%FS
Multiple outputs including current, voltage, resistance, pulse, and digital signals
IP65 protection rating for industrial environments
Aluminum alloy housing with good sealing and corrosion resistance
Imported potentiometer chip for stable signal output and strong anti-interference performance
Shielded multi-strand signal cable for long-distance transmission
Japanese stainless steel wire rope with long service life
Service life up to 5 million reciprocating cycles
Supports bracket mounting and thread mounting

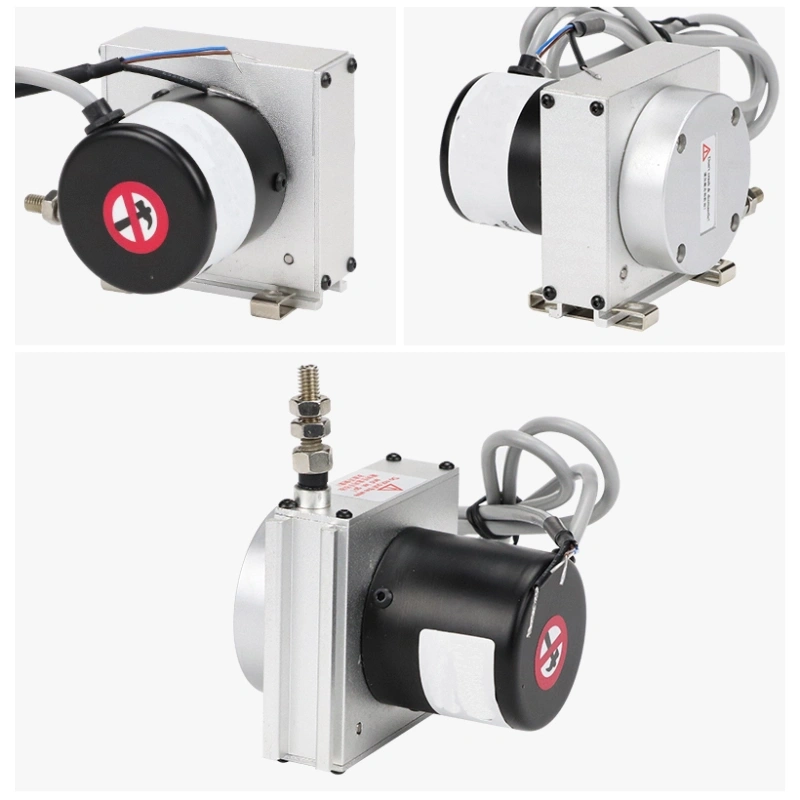

Product Description

1. Description

JW-WPS-S(S11) Draw Wire Displacement Sensor 0 to 2500mm is a compact and high-precision linear position sensor designed for displacement measurement, motion feedback, and positioning control. With multiple output options, stable signal transmission, IP65 protection, and long service life, it is ideal for industrial automation, hydraulic systems, gate control, warehouse positioning, packaging machinery, and many other motion monitoring applications.

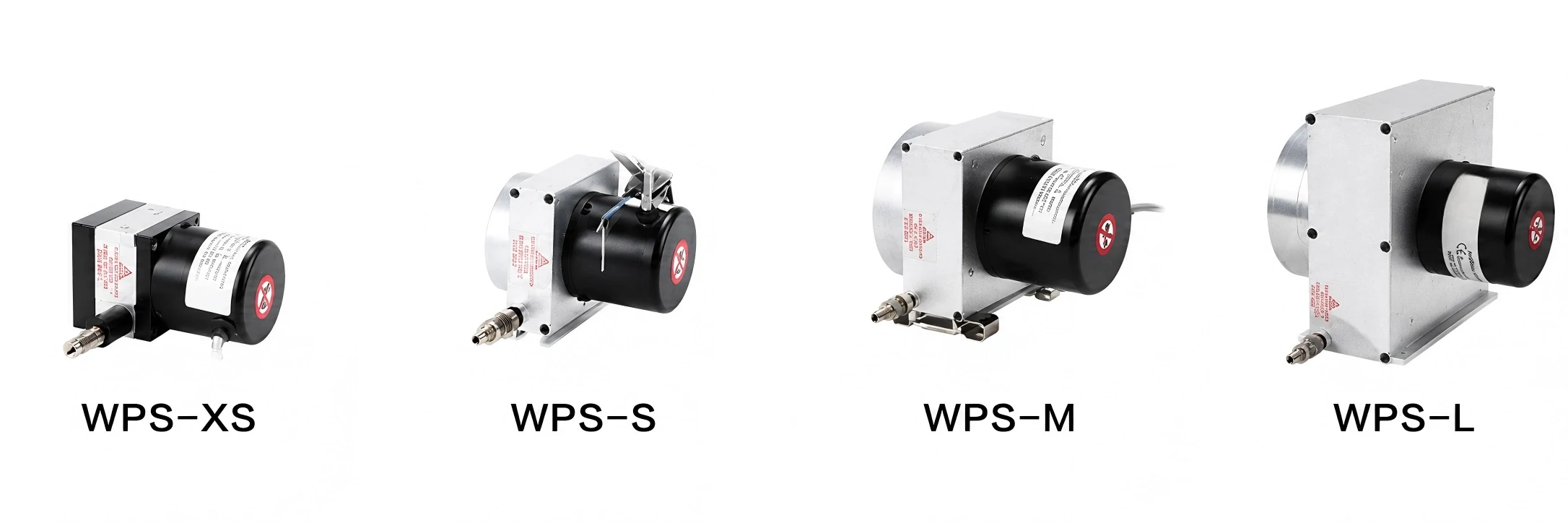

2. Product Overview

JW-WPS-S(S11) small draw wire displacement sensor is designed for accurate linear displacement measurement and positioning control. It combines the advantages of compact mechanical design, flexible installation, high measurement precision, and strong repeatability. The sensor converts linear movement into electrical signals, making it suitable for industrial motion monitoring, automation feedback, and precise position control.

Compared with conventional displacement sensing methods, this draw wire displacement sensor offers a compact body, a small installation footprint, reliable long-stroke measurement, and stable output performance. It can be used together with display instruments, controllers, PLC systems, and industrial automation equipment.Longer-range displacement measurement can be used for monitoring large structural movement, gate position, expansion joints, or mechanical deformation. For multi-sensor infrastructure projects, the device can be integrated into an IoT structural monitoring system.

Item	Specification
Product Name	Small Draw Wire Displacement Sensor
Model	WPS-S
Measuring Range	0 to 2500mm
Linearity Accuracy	Standard type 0.25%FS
Precision Accuracy	0.05% to 0.08%FS
Repeatability	0.01%FS to 0.005%FS
Current Output	4 to 20mA or 20 to 4mA
Voltage Output	0 to 10Vdc or 10 to 0Vdc
Resistance Output	0 to 5kΩ or 0 to 10kΩ
Pulse Output	Typically 3600 to 5000 ppr incremental output AB phase or ABZ phase
Digital Output	RS485 or absolute encoder signal including 4 to 20mA 0 to 10V CAN Open and Profinet
Protection Rating	IP65
Service Life	5 million reciprocating cycles
Supply Voltage	24VDC
Pulse Type Supply Voltage	5 to 24VDC
Tension Force	350 ±35g
Housing Material	Aluminum alloy
Fixed Screw	M4
Installation Bracket	2 brackets
Bracket Hole Distance	28 ±0.5mm
Recommended Distance Between Two Brackets	40 to 55mm
Tether Head Thread	M6

3. Application Scenarios：

Storage position monitoring

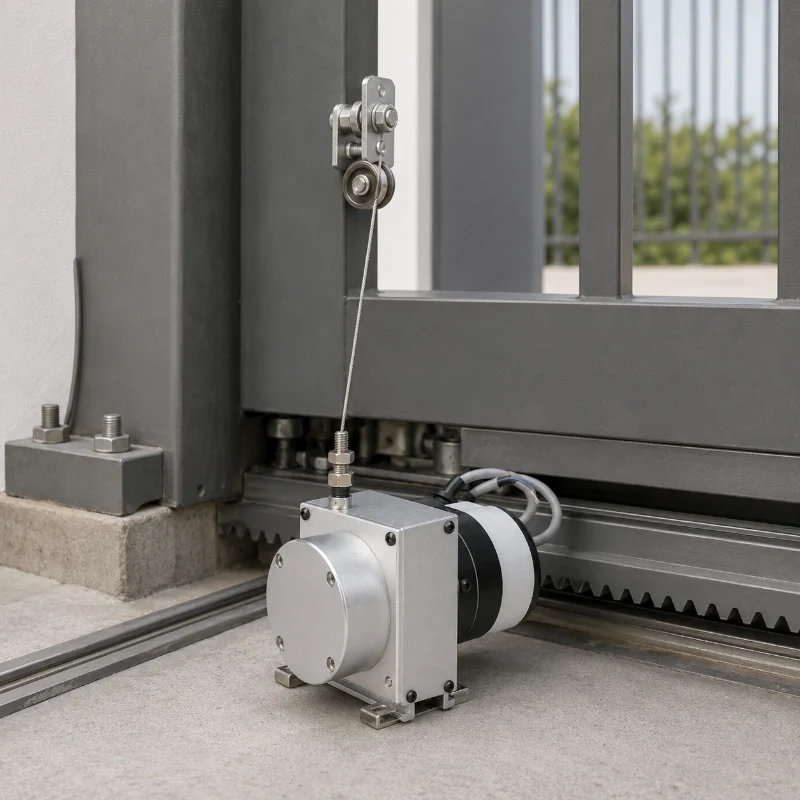

Reservoir gate positioning
Sluice gate opening control
Pressure machinery
Shipbuilding machinery
Textile machinery
Metal sheet processing equipment
Packaging machinery
Printing machinery

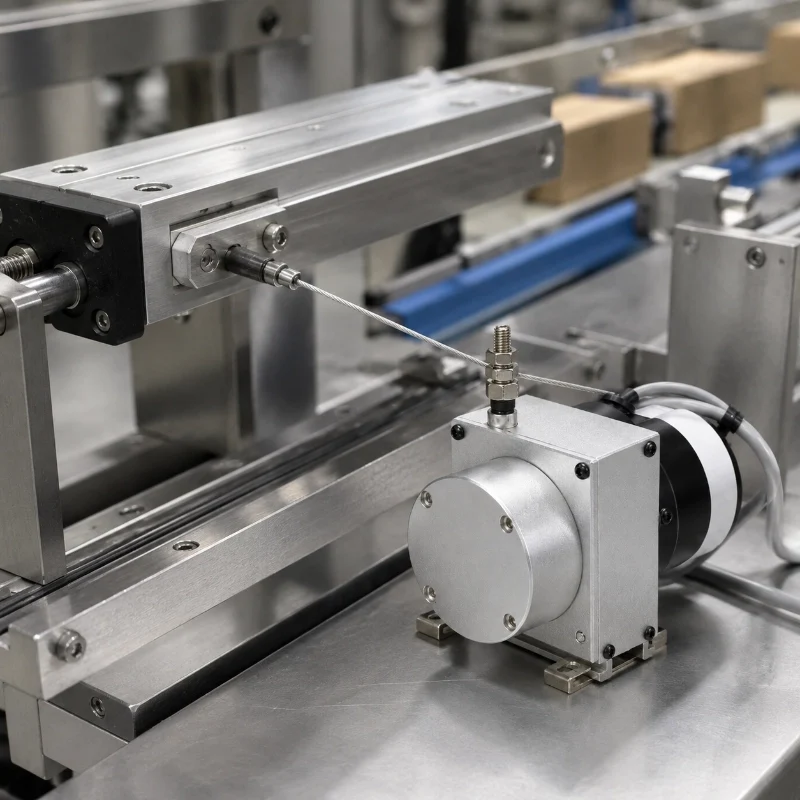

Horizontal movement control
Construction machinery
Industrial robots
Injection molding machines
Woodworking machinery
Elevators
Air compressors

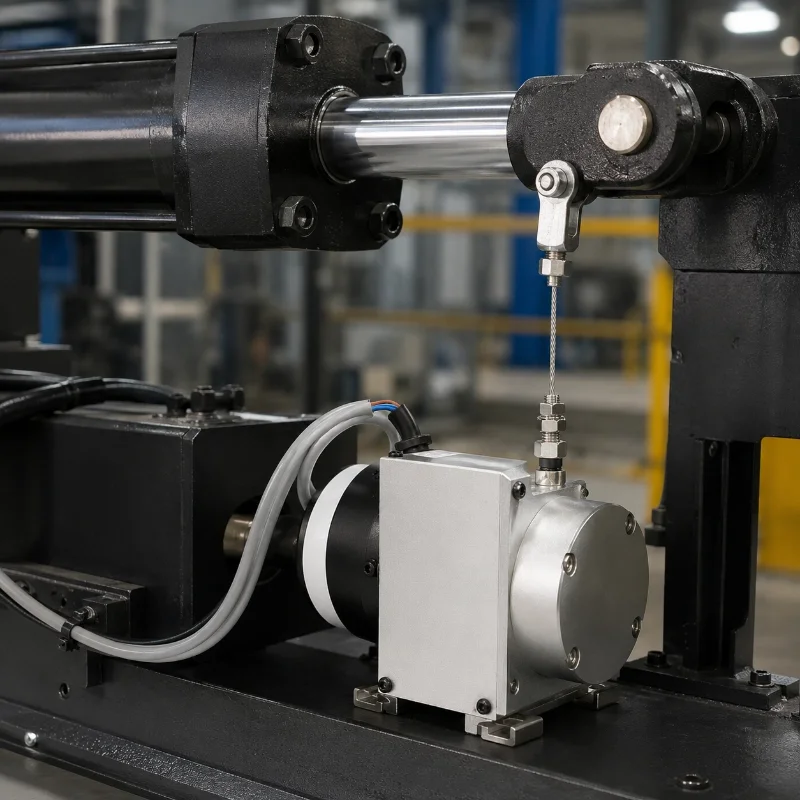

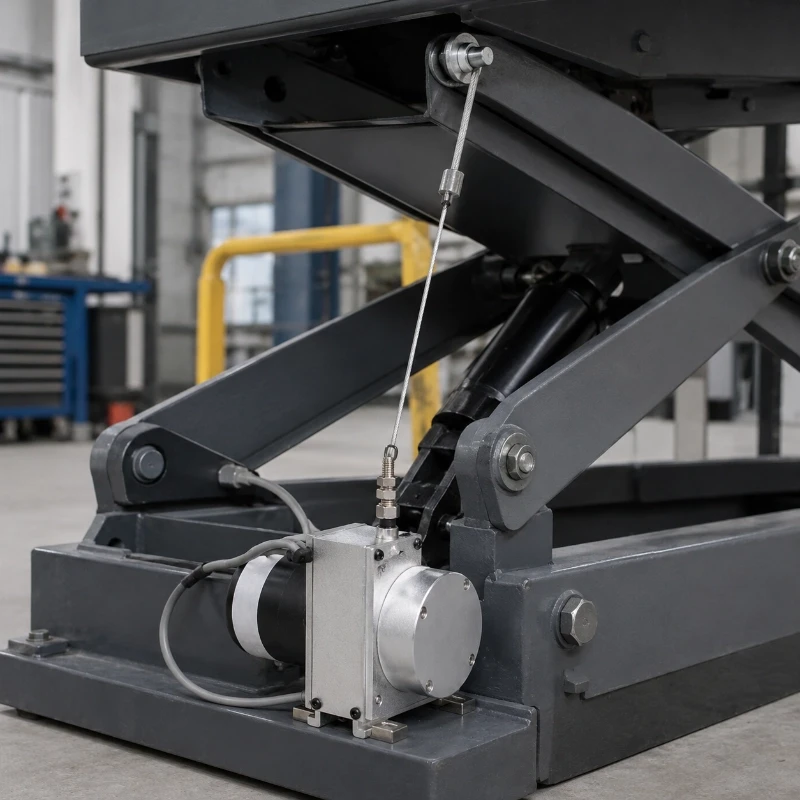

Hydraulic machines
Height and length measurement
X Y axis displacement monitoring
Highway Slope Monitoring:Highway slopes are vulnerable to rainfall, excavation, erosion, and geological movement. Continuous monitoring helps detect early deformation and prevent slope failure.For large highway cut slopes with significant movement ranges, long-stroke displacement sensors can provide accurate deformation data. These sensors can be combined with rainfall and soil monitoring devices to build a complete landslide early warning system.

FAQ

Q

1. What is a draw wire displacement sensor used for?

A

A draw wire displacement sensor is used to measure linear movement, stroke length, and position changes in machinery, gates, lifting systems, robots, and other industrial equipment.
Q

2. What is the measuring range of this sensor?

A

This model supports a measuring range from 0 to 2500mm, making it suitable for short to medium stroke displacement applications.
Q

3. What output signals are available?

A

The sensor supports current output, voltage output, resistance output, pulse output, and digital output such as RS485, CAN Open, and Profinet.
Q

4. Is this sensor suitable for industrial environments?

A

Yes. With IP65 protection, aluminum alloy housing, and a durable stainless steel wire rope, it is suitable for many industrial applications.
Q

5. Can JW-IoT provide this draw wire displacement sensor for OEM projects?

A

Yes. JW-IoT can support OEM and project-based applications for displacement monitoring, position feedback, and industrial automation integration.
Q

6. What are the main installation methods?

A

This sensor supports both bracket mounting and thread mounting, which helps users adapt it to different machine structures and installation spaces.
Q

7. Does JW-IoT support different output options?

A

Yes. JW-IoT can provide different signal output configurations based on project needs, including analog, pulse, and digital communication outputs.
Q

8. What industries can use this draw wire sensor?

A

It is widely used in packaging, construction machinery, reservoir gates, warehouse systems, industrial robots, textile machinery, elevators, and hydraulic systems.
Q

9. Why choose JW-IoT for draw wire displacement sensors?

A

JW-IoT offers practical industrial sensing solutions with flexible configuration options, stable quality, and support for various automation and measurement applications.
