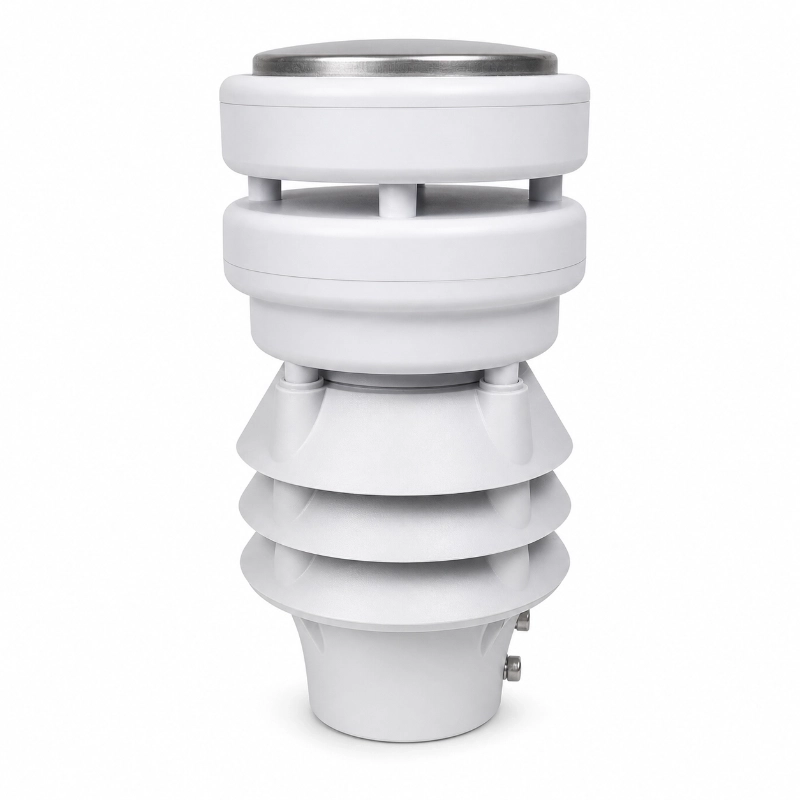

Compact Weather Station With Rainfall And Wind Monitoring

Key Features

Six in one weather monitoring: Measures air temperature humidity wind speed wind direction barometric pressure and rainfall in one compact device.
Compact all in one design: Integrated structure saves installation space and simplifies deployment for outdoor weather stations.
Ultrasonic wind measurement: Wind speed and wind direction are measured by ultrasonic technology without mechanical moving parts.
Piezoelectric rainfall detection: Rainfall is measured through rain drop impact on the sensor surface making the structure compact and suitable for low maintenance applications.
RS485 Modbus RTU output: Standard RS485 interface with Modbus RTU protocol supports integration with data loggers RTUs gateways and IoT monitoring platforms.
24 hour online monitoring: Designed for continuous outdoor weather parameter monitoring and digital data output.
Radiation shield for temperature humidity and pressure: The temperature humidity and pressure module is installed inside a three layer outdoor radiation shield with thermal insulation treatment.
IP65 protection rating: Suitable for outdoor installation in agriculture environment monitoring traffic and smart city applications.
Flexible mounting options: Standard sleeve mounting is supported with optional flange mounting or bent plate mounting accessories.

Product Description

1. Description

JW-XF600AL(YN27) Compact Weather Station is a highly integrated six in one outdoor weather monitoring device designed for continuous measurement of air temperature humidity wind speed wind direction barometric pressure and rainfall. With an all in one structure RS485 Modbus RTU communication and no moving parts in the wind and rainfall measurement sections it is suitable for agriculture weather monitoring traffic weather stations solar PV sites smart city projects and grid based environmental monitoring.

2. Product Overview

JW-XF600AL(YN27) Compact Weather Station is built for outdoor micro weather monitoring where multiple meteorological parameters need to be collected from one compact device. It combines temperature humidity wind speed wind direction atmospheric pressure and rainfall measurement into a single integrated station. This helps system integrators reduce wiring installation time and maintenance workload compared with separate weather sensors.

For smart agriculture applications the station can be used to monitor crop field microclimate greenhouse surroundings irrigation weather conditions and farm weather trends. For environmental and smart city projects it can provide reliable local weather data for grid based monitoring traffic weather warning solar PV operation and urban weather observation.

The product uses RS485 Modbus RTU as the standard communication interface making it easy to connect with industrial controllers remote terminal units weather data loggers and IoT gateways. SDI 12 communication can also be customized with an additional module according to project requirements.The compact sensor can be combined with an IoT data logger, solar power system, 4G or LoRaWAN gateway, and cloud dashboard to build a complete outdoor weather monitoring station.

Parameter	Specification
Product Type	Six in one compact weather station
Measured Parameters	Air temperature humidity wind speed wind direction barometric pressure rainfall
Air Temperature Range	-40 to 85°C
Air Temperature Accuracy	±0.3°C at 25°C
Air Temperature Resolution	0.01°C
Humidity Range	0 to 100%RH
Humidity Accuracy	±3%RH from 10% to 90%RH non condensing
Humidity Resolution	0.01%RH
Wind Speed Range	0 to 40 m/s
Wind Speed Accuracy	±0.3 plus 0.03V m/s when V ≤ 30 m/s
Wind Direction Range	0 to 359.9°
Wind Direction Accuracy	±3° when wind speed is below 10 m/s
Barometric Pressure Range	500 to 1100 hPa
Barometric Pressure Accuracy	±0.5 hPa at 25°C from 950 to 1100 hPa
Rainfall Measurement Type	Piezoelectric rainfall measurement
Rainfall Range	0 to 200 mm/h
Rainfall Resolution	0.2 mm
Working Temperature	-30 to 70°C
Standard Output	RS485 Modbus RTU
Optional Output	SDI 12 with additional module
Power Supply	DC 9 to 30V
Protection Rating	IP65
Cable	Standard 3 m cable optional 10 m cable
Mounting Method	Sleeve mounting standard flange or bent plate optional

3. Application Scenarios

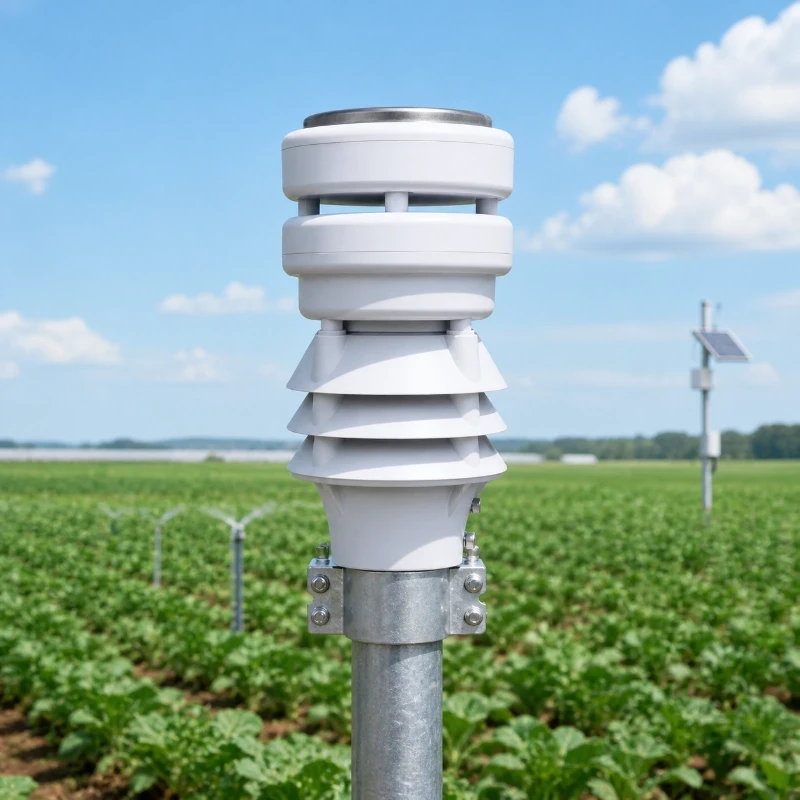

Agricultural weather monitoring
Greenhouse and farm microclimate monitoring
Smart irrigation weather data collection
Traffic weather monitoring

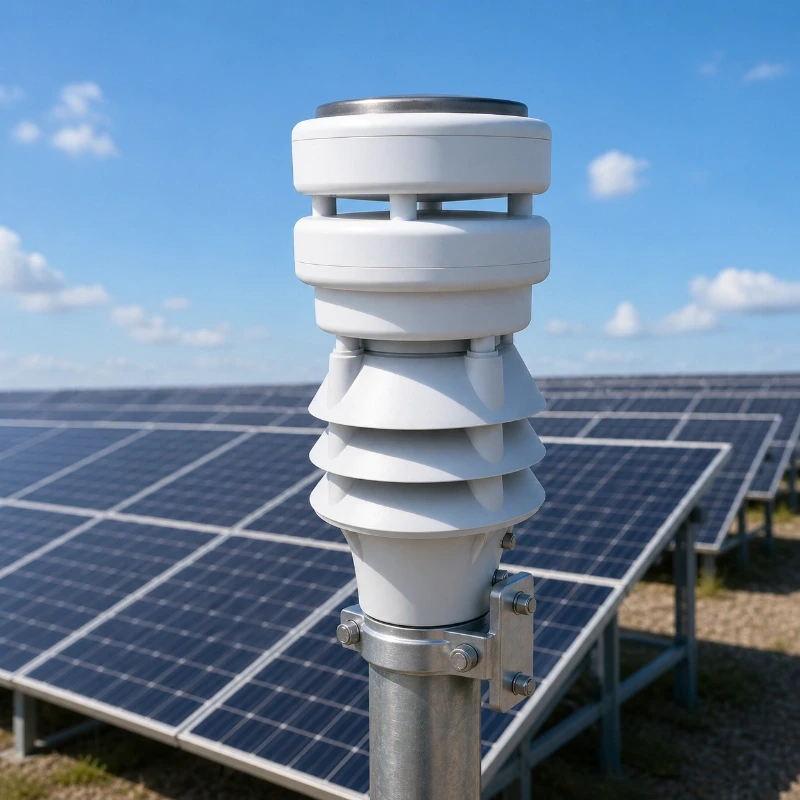

Solar PV environmental monitoring

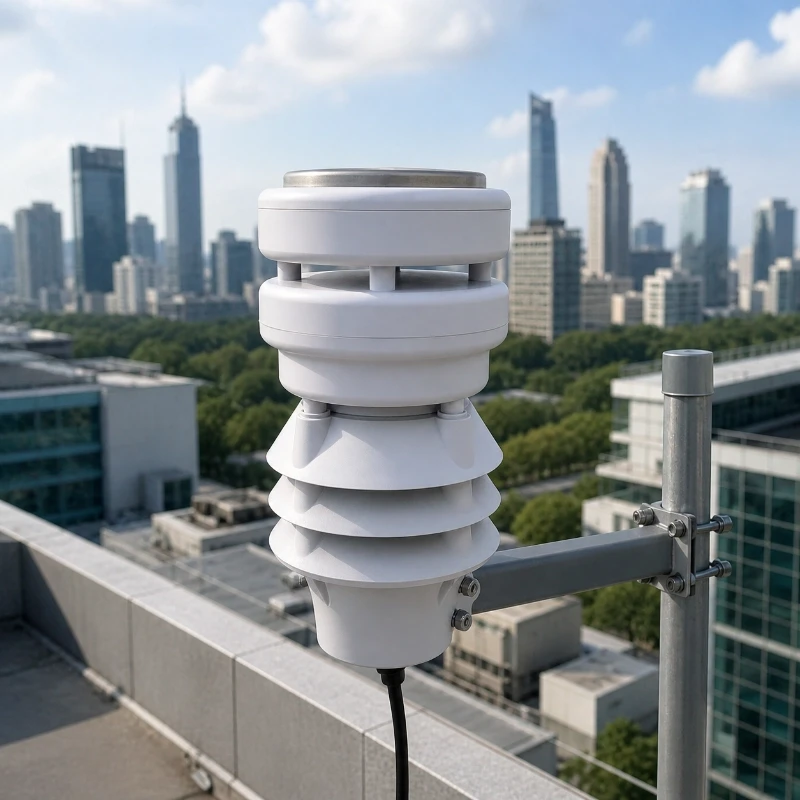

Smart city weather monitoring
Grid based environmental monitoring
Outdoor micro meteorological stations
Remote IoT weather monitoring projects

FAQ

Q

1. What parameters does this compact weather station measure?

A

It measures air temperature humidity wind speed wind direction barometric pressure and rainfall in one integrated device.
Q

2. Does the weather station support RS485 Modbus RTU?

A

Yes. The standard product supports RS485 communication with Modbus RTU protocol for easy integration with data loggers RTUs and IoT gateways.
Q

3. Can JW-IoT provide this compact weather station for smart agriculture projects?

A

Yes. JW-IoT can support smart agriculture applications such as farm weather monitoring greenhouse microclimate monitoring and irrigation weather data collection.
Q

4. Is the wind sensor mechanical or ultrasonic?

A

The wind speed and wind direction measurement uses ultrasonic technology and has no mechanical moving parts.
Q

5. How does the rainfall sensor work?

A

The rainfall module uses piezoelectric measurement. It calculates rainfall by detecting the impact force of falling raindrops on the sensor surface.
Q

6. Can this weather station be used for solar PV sites?

A

Yes. It can be used for solar PV environmental monitoring where local weather data is required for operation analysis and site management.
Q

7. Does JW-IoT support OEM or project integration?

A

Yes. JW-IoT can support project based integration including RS485 Modbus data connection and optional communication customization.
Q

8. What is the protection rating of the product?

A

The product has an IP65 protection rating for outdoor monitoring applications.
Q

9. What mounting options are available?

A

The standard product supports sleeve mounting. Optional flange mounting and bent plate mounting accessories are also available.
