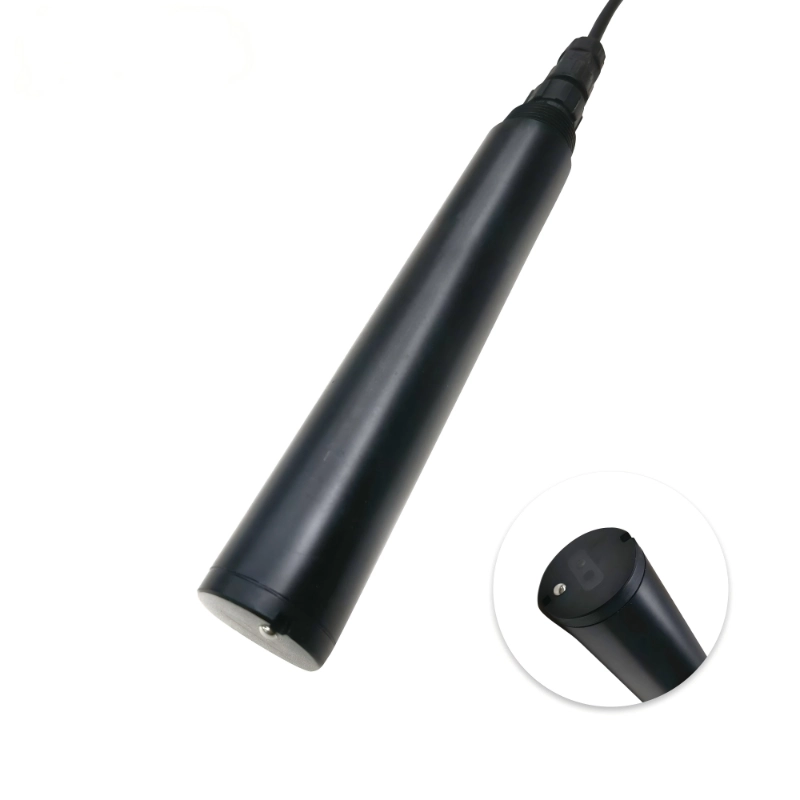

JW-ZS-206(K07) Online Turbidity Sensor is designed for continuous turbidity measurement in drinking water, surface water, wastewater treatment, industrial process water, tanks, pipelines, and environmental monitoring systems. Based on the 90° scattered light principle with a stable infrared LED source, the sensor delivers reliable turbidity and temperature data through RS485 Modbus RTU communication. Its IP68 waterproof structure supports long term submerged installation for smart water quality
2. Product Overview
JW-ZS-206(K07)online turbidity sensor is engineered for continuous monitoring of suspended particles and water clarity in industrial and environmental water systems. It uses a 90° scattered light method: when light enters the water sample, suspended turbidity particles scatter the beam, and the sensor calculates turbidity by measuring the scattered light intensity perpendicular to the incident light.
With RS485 Modbus RTU communication, the sensor can be easily connected to industrial control systems, smart water platforms, data acquisition terminals, and remote telemetry units. Its compact integrated design, IP68 protection, and 3/4 NPT installation thread make it suitable for long term online monitoring in tanks, pipelines, reservoirs, treatment plants, and outdoor water monitoring stations.
Item
Specification
Product Type
Online Turbidity Sensor
Measurement Principle
Scattered light method
Light Source
Infrared LED
Measuring Ranges
0–20.00 NTU 0–200.0 NTU 0–1000.0 NTU
Resolution
0.01 NTU or 0.1 NTU depending on range
Temperature Resolution
0.1°C
Accuracy
±3% or ±1.5 NTU for 0–20 NTU
Accuracy
±3% or ±2 NTU for 0–200 NTU
Accuracy
±5% or ±3 NTU for 0–1000 NTU
Temperature Accuracy
±0.3°C
Response Time
T90 less than 30 s
Minimum Detection Limit
0.01 NTU for 0–20 NTU range
Calibration
Two point calibration
Temperature Compensation
Automatic Pt1000 compensation
Output
RS485 Modbus RTU
Storage Temperature
-5°C to 65°C
Working Temperature
0°C to 50°C
Working Pressure
Less than 0.2 MPa
Installation
Submersible installation 3/4 NPT thread
Power Supply
12–24V DC
Power Consumption
0.2W at 12V
Protection Grade
IP68
Waterproof Depth
Within 20 m
Housing Material
POM and ABS
Cable Length
Standard 5 m customizable
Connector
M16 5 pin waterproof male connector
3. Application Scenarios

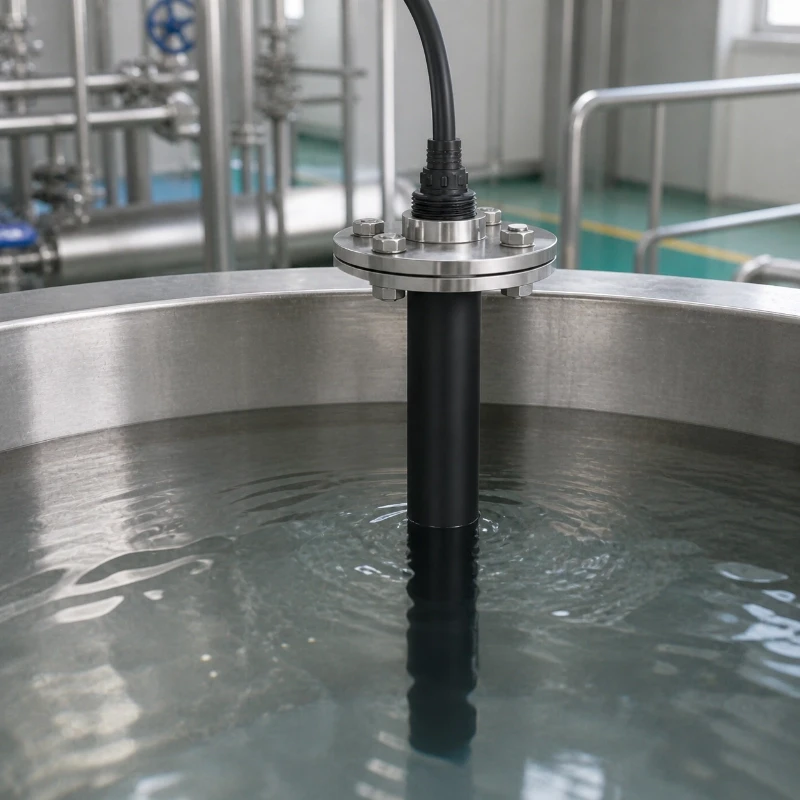

Drinking Water Monitoring: Suitable for continuous turbidity monitoring in drinking water treatment, clean water tanks, and water supply networks.

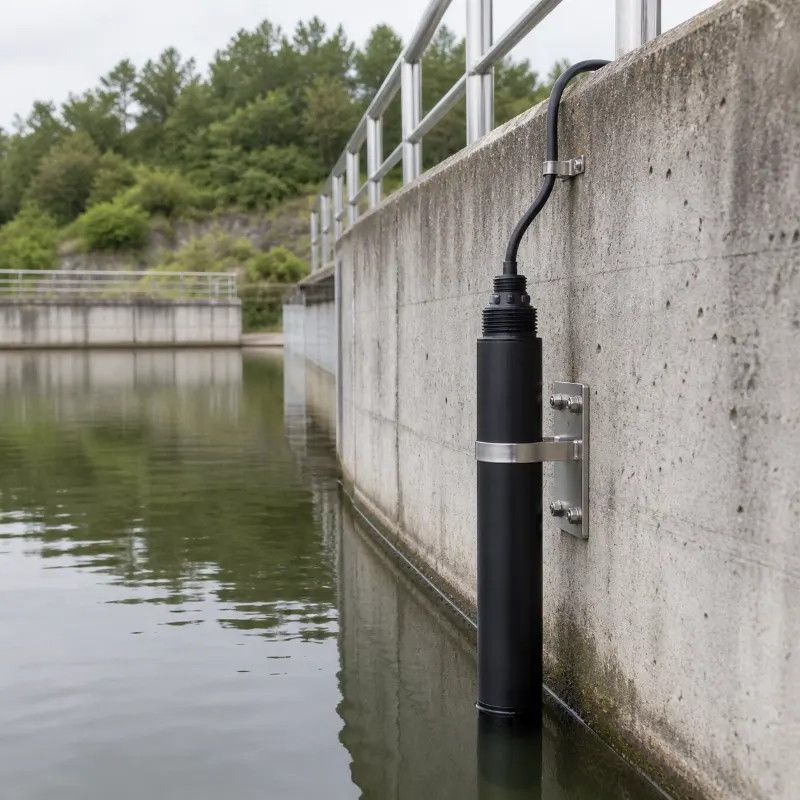

Surface Water Monitoring: Can be used in rivers, lakes, reservoirs, canals, and environmental monitoring stations to track changes in water clarity.

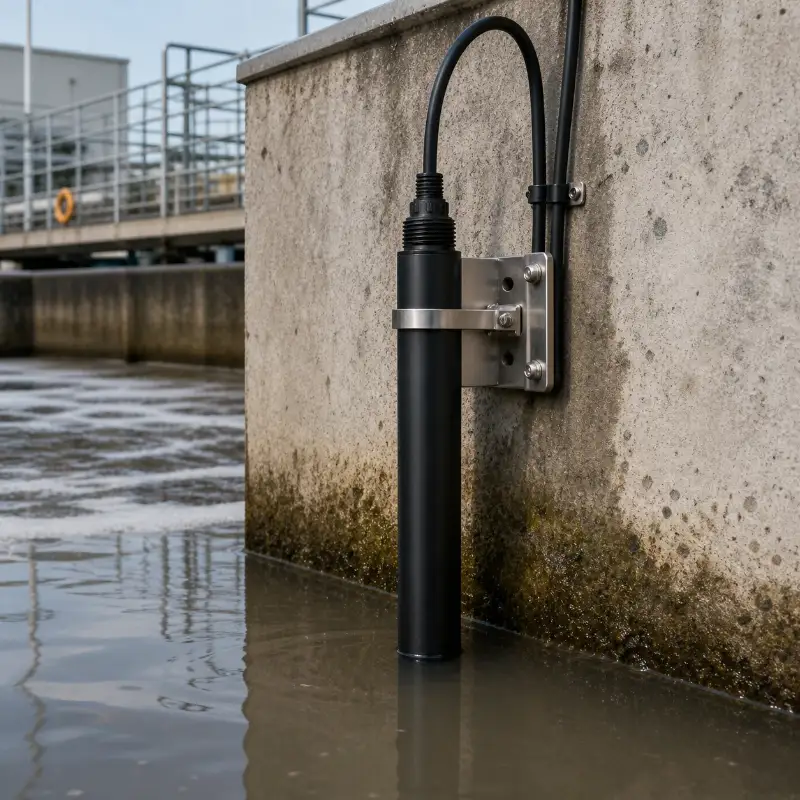

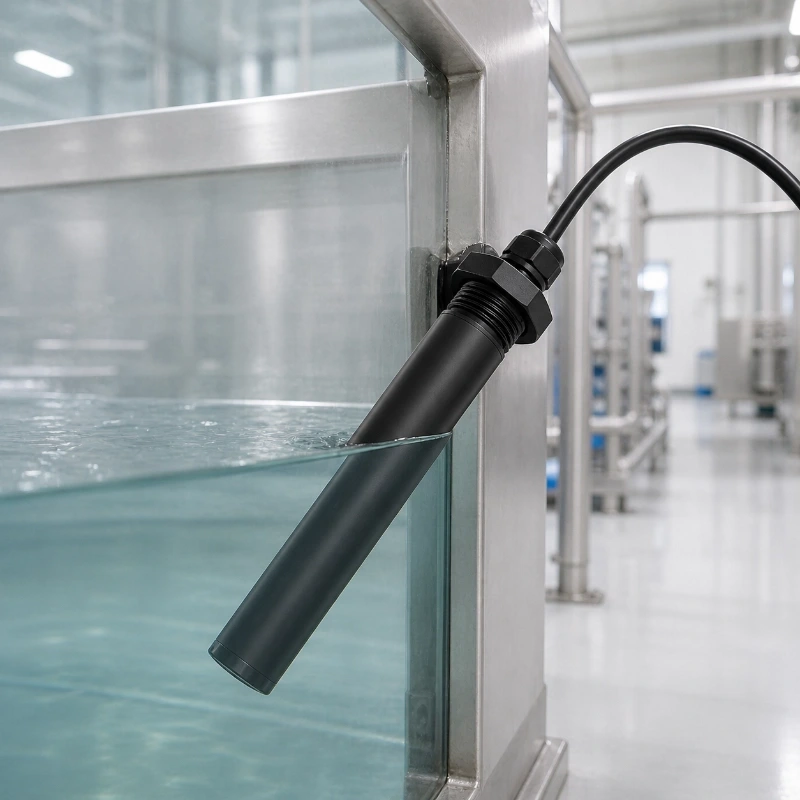

Wastewater Treatment: Useful for turbidity monitoring in treatment tanks, discharge outlets, aeration systems, sedimentation tanks, and process control points.
Industrial Process Water: Supports turbidity measurement in industrial water circulation, filtration systems, cooling water, and production water treatment.
Smart Water IoT Systems: The RS485 Modbus RTU output makes the sensor easy to integrate with telemetry terminals, gateways, cloud dashboards, and remote alarm systems.
4. Installation Notes
The sensor supports submerged installation with a 3/4 NPT thread. During installation, the sensor should maintain a distance of more than 5 cm from the side wall and more than 10 cm from the bottom to reduce measurement interference. Cable joints should be waterproofed, especially when the sensor is used in long term submerged environments or exposed outdoor applications.
5. Maintenance Guide
The measuring window must remain clean to maintain accurate readings. The sensor surface can be cleaned with tap water. If debris remains, wipe it gently with a damp soft cloth. For stubborn contamination, a small amount of household detergent may be added to water for cleaning. Avoid strong mechanical impact because the sensor contains sensitive optical and electronic components.
FAQ
Q
1. What is an online turbidity sensor used for?
A
It is used to continuously measure water turbidity in drinking water, surface water, wastewater treatment, industrial water, tanks, and pipelines.
Q
2. Does this turbidity sensor support RS485 Modbus RTU?
A
Yes. The sensor supports RS485 Modbus RTU communication for integration with PLCs, controllers, data loggers, and IoT monitoring systems.
Q
3. Can JW-IoT integrate this turbidity sensor into a smart water platform?
A
Yes. JW-IoT can integrate the sensor with telemetry terminals, cloud dashboards, alarm systems, and remote water quality monitoring platforms.
Q
4. What measuring ranges are available?
A
The sensor supports 0–20.00 NTU, 0–200.0 NTU, and 0–1000.0 NTU ranges, depending on the application requirement.
Q
5. Is this sensor suitable for submerged installation?
A
Yes. It has an IP68 waterproof rating and can be used within 20 m water depth.
Q
6. What measurement principle does the sensor use?
A
It uses the 90° scattered light method with an infrared LED light source to measure turbidity in water.
Q
7. Does JW-IoT provide complete water quality monitoring solutions?
A
Yes. JW-IoT can provide sensors, data acquisition devices, communication modules, cloud platforms, and customized water quality monitoring solutions.
Q
8. How should the turbidity sensor be cleaned?
A
Clean the outer surface and optical measuring window with tap water and a soft cloth. Avoid scratching or damaging the optical window.
Q
9. Can JW-IoT support customized cable length or project integration?
A
Yes. JW-IoT can support customized cable length and help integrate the sensor into smart water, environmental monitoring, and industrial water treatment systems.
