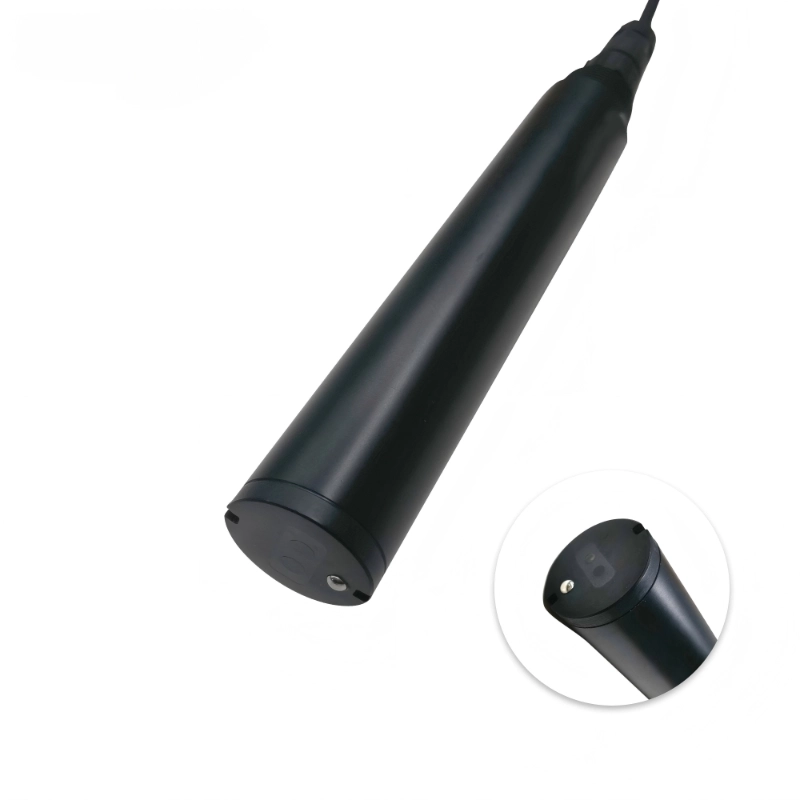

JW-CHLO-406(K22)online chlorophyll sensor is designed for continuous chlorophyll monitoring in rivers, lakes, ponds, reservoirs, aquaculture farms, marine surveys, drinking water sources, and environmental water quality systems. With integrated optical sensing technology, RS485 Modbus RTU output, built-in temperature measurement, IP68 protection, and low-power design, it provides fast and stable online monitoring for algae and phytoplankton conditions.
2. Product Overview
JW-CHLO-406(K22)chlorophyll sensor is an integrated online optical water quality sensor for measuring chlorophyll concentration and tracking algae or phytoplankton changes in water. It uses advanced optical sensing technology with efficient power management and a robust structure, making it suitable for long-term online monitoring with low maintenance and reduced calibration frequency.
This sensor is ideal for river monitoring, lake and reservoir monitoring, pond water quality control, aquaculture water monitoring, marine investigation, drinking water source protection, algae monitoring, and phytoplankton research. It supports RS485 Modbus RTU communication, allowing integration with PLCs, RTUs, water quality controllers, data acquisition systems, and cloud-based IoT monitoring platforms.
With IP68 protection, submerged installation capability within 20 m water depth, and a compact POM housing, the sensor is suitable for field deployment in environmental water monitoring and smart water quality systems.
Item
Specification
Product Type
Online Chlorophyll Sensor
Measurement Range
0 to 400.0 ug/L
Resolution
0.1 ug/L
Temperature Resolution
0.1°C
Accuracy
±3%
Temperature Accuracy
±0.3°C
Response Time
T90 less than 10 seconds
Minimum Detection Limit
1 ug/L
Calibration Method
Two-point calibration
Protection Grade
IP68
Water Depth
Within 20 m
Storage Temperature
-5 to 65°C
Working Condition
0 to 50°C less than 0.2 MPa
Output Signal
RS485 Modbus RTU
Power Supply
12 to 24V DC
Power Consumption
0.2W at 12V
Cable Length
5 m standard cable customizable
Housing Material
POM
Connector
M16 5 pin waterproof male connector
3. Application Scenarios
Chlorophyll monitoring in lakes and reservoirs
Algae and phytoplankton monitoring
Aquaculture pond water quality monitoring
River and surface water monitoring
Marine survey and coastal water monitoring
Drinking water source protection
Environmental water quality monitoring stations
Algal bloom early warning systems
Smart water quality IoT platforms
Research and field water quality observation
4. Installation Notes

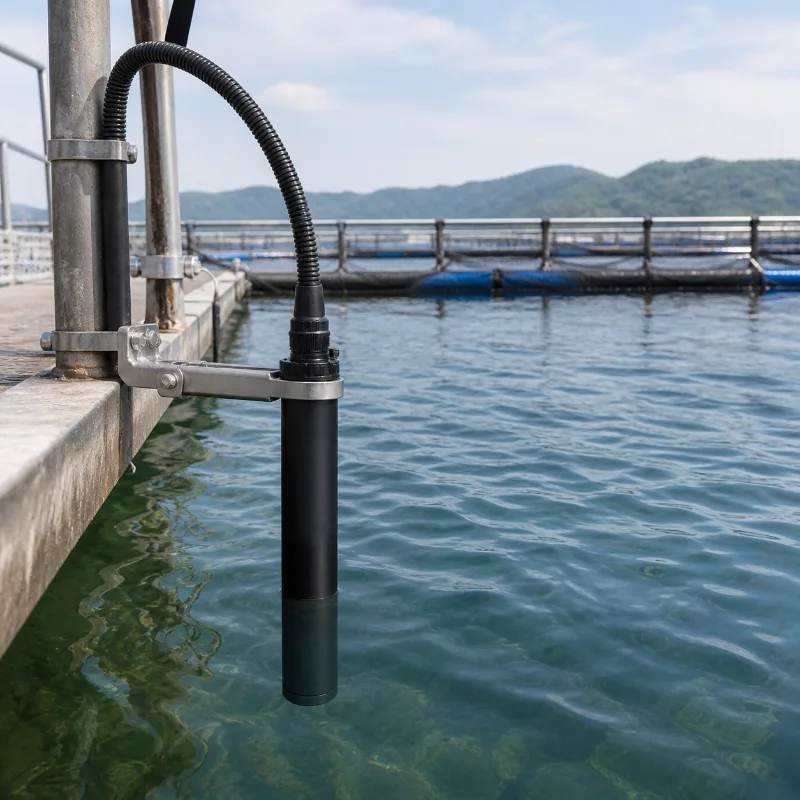

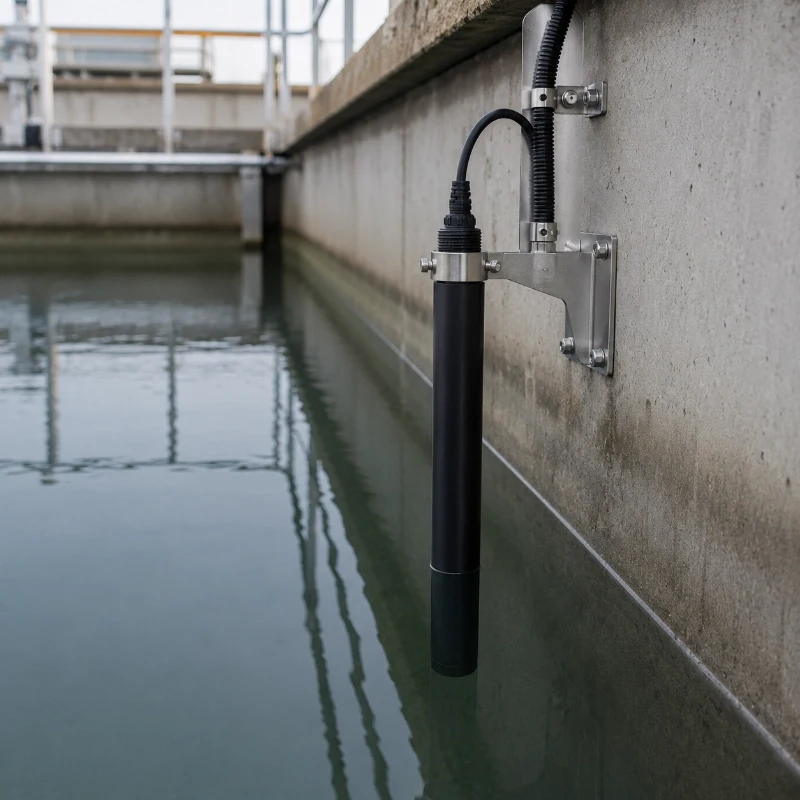

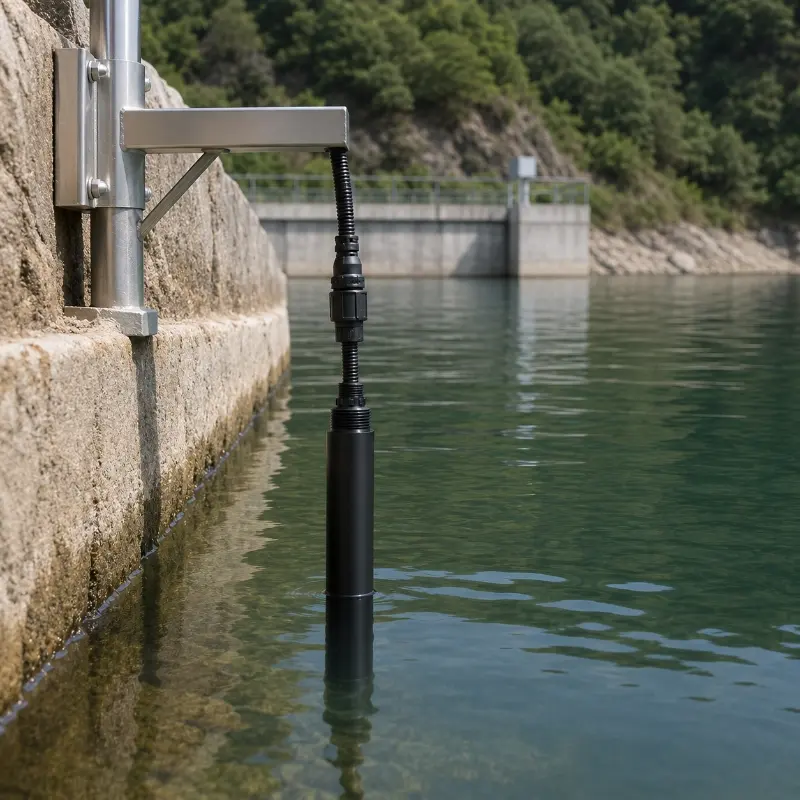

The chlorophyll sensor is designed for submerged installation in water quality monitoring applications. During installation, keep the sensor at least 3 cm away from side walls and at least 10 cm away from the bottom to reduce measurement interference and prevent sediment or wall reflection from affecting the optical measurement window.
For long-term use in water, seawater, or humid outdoor environments, all wiring joints should be waterproofed, and the user-side cable should have corrosion-resistant protection. Before power-on, check the wiring order carefully to avoid damage caused by incorrect wiring.

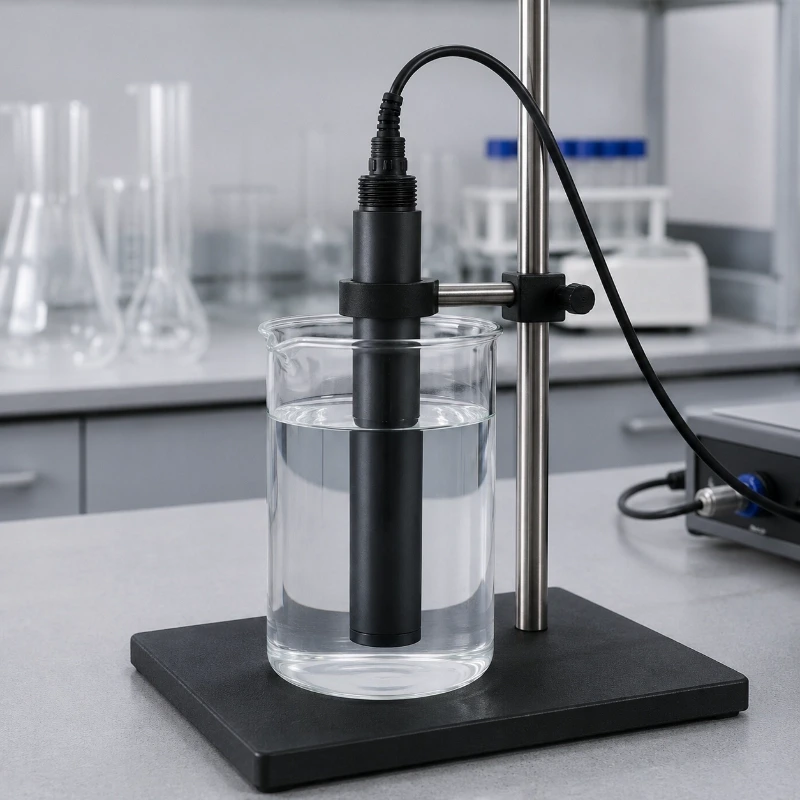

During calibration, place the sensor vertically in distilled water or standard solution and keep the sensor front end at least 10 cm away from the bottom of the beaker. Wait 3 to 5 minutes until the readings stabilize before calibration.
5. Maintenance Notes
The cleanliness of the measurement window is important for accurate readings. Clean the external sensor surface with tap water. If debris remains, wipe it gently with a wet soft cloth. For stubborn dirt, a small amount of household detergent can be added to tap water.
Check the cable regularly and ensure it is not under tension during operation, because excessive pulling may damage internal wires and cause sensor malfunction. Inspect the measurement window for dirt during routine maintenance. The sensor contains sensitive optical and electronic components and should not be exposed to strong mechanical impact.
FAQ
Q
1. What is an online chlorophyll sensor used for?
A
It is used to continuously monitor chlorophyll concentration in rivers, lakes, reservoirs, ponds, aquaculture farms, marine water, and drinking water sources.
Q
2. What is the measurement range of this chlorophyll sensor?
A
The sensor measures chlorophyll from 0 to 400.0 ug/L with 0.1 ug/L resolution.
Q
3. Can this sensor monitor water temperature as well?
A
Yes. The sensor includes a built-in temperature sensor and provides temperature data with 0.1°C resolution.
Q
4. Can this chlorophyll sensor connect to an IoT platform?
A
Yes. It supports RS485 Modbus RTU, making it suitable for PLCs, RTUs, data loggers, water quality controllers, and IoT platforms.
Q
5. How does JW-IoT use this sensor in algal bloom monitoring?
A
JW-IoT can integrate the chlorophyll sensor with IoT gateways, cloud dashboards, threshold alarms, and multi-point monitoring stations for algal bloom early warning.
Q
6. Is this sensor suitable for submerged installation?
A
Yes. It has IP68 protection and supports submerged deployment within 20 m water depth.
Q
7. Can JW-IoT provide a complete algae monitoring solution?
A
Yes. JW-IoT can combine chlorophyll, blue green algae, turbidity, pH, dissolved oxygen, conductivity, temperature, and water level sensors into a complete smart water monitoring system.
Q
8. What installation distance should be maintained?
A
The sensor should be installed at least 3 cm from side walls and at least 10 cm from the bottom to reduce measurement interference.
Q
9. Can JW-IoT customize the system integration?
A
Yes. JW-IoT can support customized cable length, RS485 Modbus integration, gateway connection, dashboard configuration, and multi-site water quality monitoring.
