JW-TSS-206(K19) online suspended solids sensor is designed for continuous TSS monitoring in wastewater treatment, sludge process control, industrial discharge, aquaculture water, rivers, lakes, and environmental water quality systems. Based on the scattered light method, it measures suspended solids from 0 to 2000.0 mg/L with RS485 Modbus RTU output, automatic temperature compensation, IP68 protection, and a 3/4 NPT installation interface.
2. Product Overview

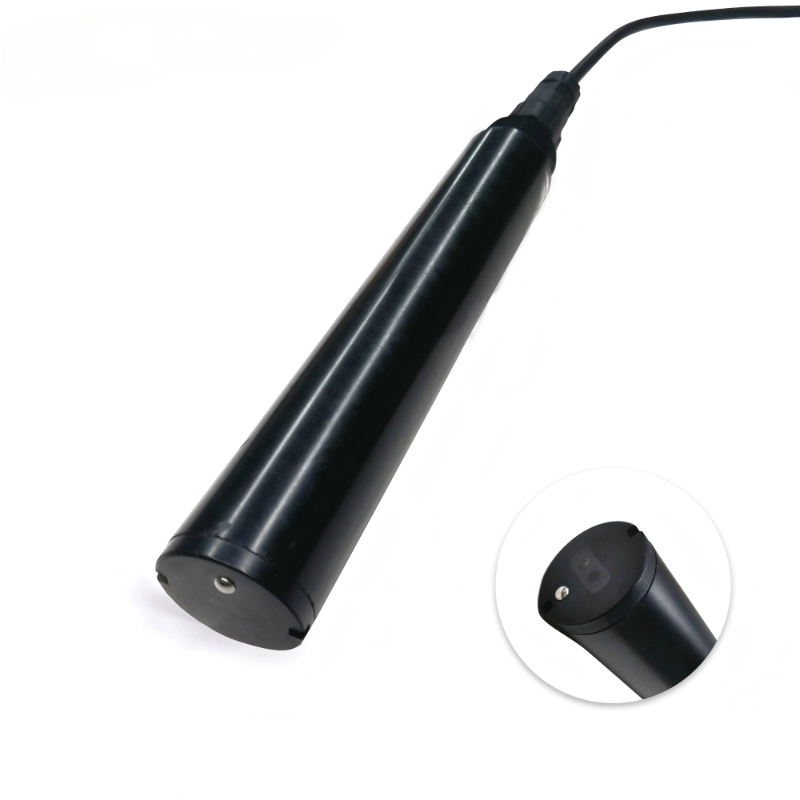

JW-TSS-206(K19) suspended solids sensor is an integrated online water quality sensor designed to measure TSS concentration in water and wastewater. It uses the scattered light method: when a light beam enters the water sample, suspended particles scatter the light. The sensor measures the intensity of backscattered light, compares it with internal calibration values, and outputs the final suspended solids value after linear processing.
This sensor is suitable for online monitoring of wastewater treatment plants, sludge concentration, industrial wastewater discharge, sediment-laden surface water, aquaculture ponds, environmental monitoring stations, and smart water quality systems. With RS485 Modbus RTU communication, it can be connected to PLCs, RTUs, DTUs, data acquisition systems, water quality controllers, and cloud-based IoT monitoring platforms.
Its POM and ABS housing, IP68 protection, and submerged installation design make it suitable for long-term operation in water environments. The sensor is compact, fast, stable, and easy to maintain, providing reliable data for process control and environmental compliance monitoring.
Item
Specification
Product Type
Online Suspended Solids Sensor
Measurement Principle
Scattered light method
Measurement Range
0 to 2000.0 mg/L
Resolution
0.1 mg/L
Accuracy
±5% depending on sludge homogeneity
Temperature Accuracy
±0.3°C
Response Time
T90 less than 30 seconds
Minimum Detection Limit
1 mg/L
Calibration Method
Two-point calibration
Cleaning Method
None
Temperature Compensation
Automatic temperature compensation with Pt1000
Output Signal
RS485 Modbus RTU
Storage Temperature
-5 to 65°C
Working Condition
0 to 50°C less than 0.2 MPa
Housing Material
POM and ABS
Installation Method
Submerged installation 3/4 NPT pipe thread
Power Consumption
0.2W at 12V
Power Supply
12 to 24V DC
Protection Grade
IP68
Water Depth
Within 20 m
Standard Cable Length
5 m customizable
Connector
M16 5 pin waterproof male connector
3. Application Scenarios
Wastewater treatment suspended solids monitoring
Sludge concentration and process control
Industrial wastewater discharge monitoring

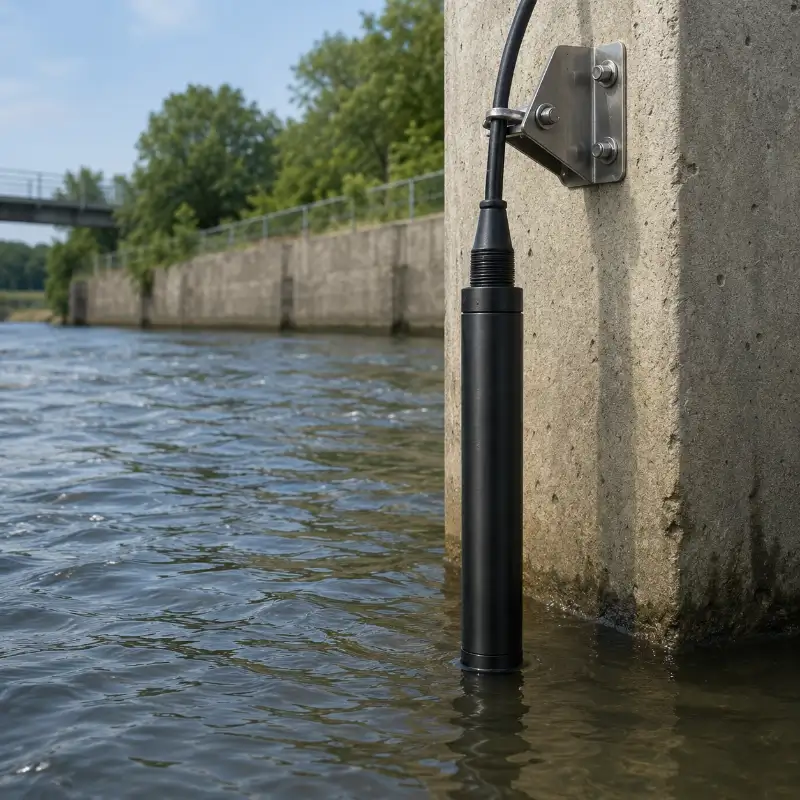

River and lake suspended solids measurement

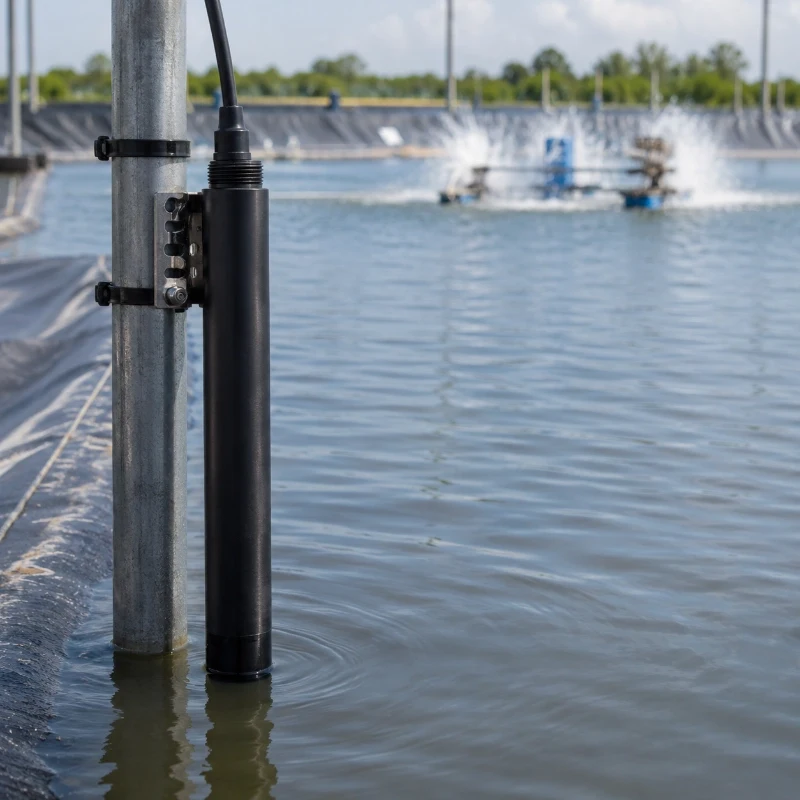

Aquaculture pond water quality monitoring
Sedimentation tank and clarifier monitoring
Environmental water quality stations
Surface water turbidity and TSS tracking
Smart water quality IoT platforms
Online optical water monitoring systems
4. Installation Notes

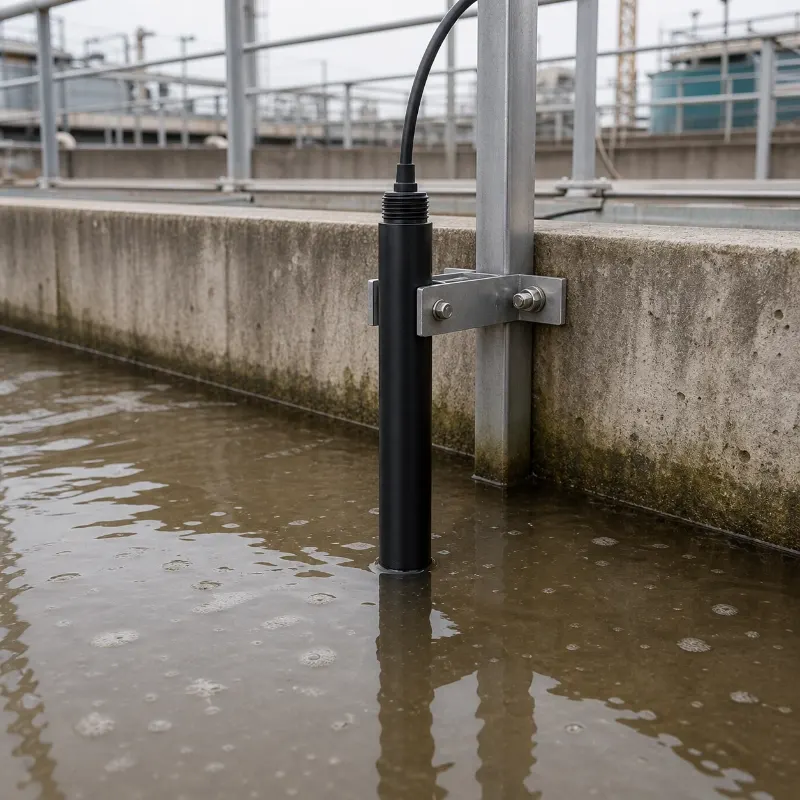

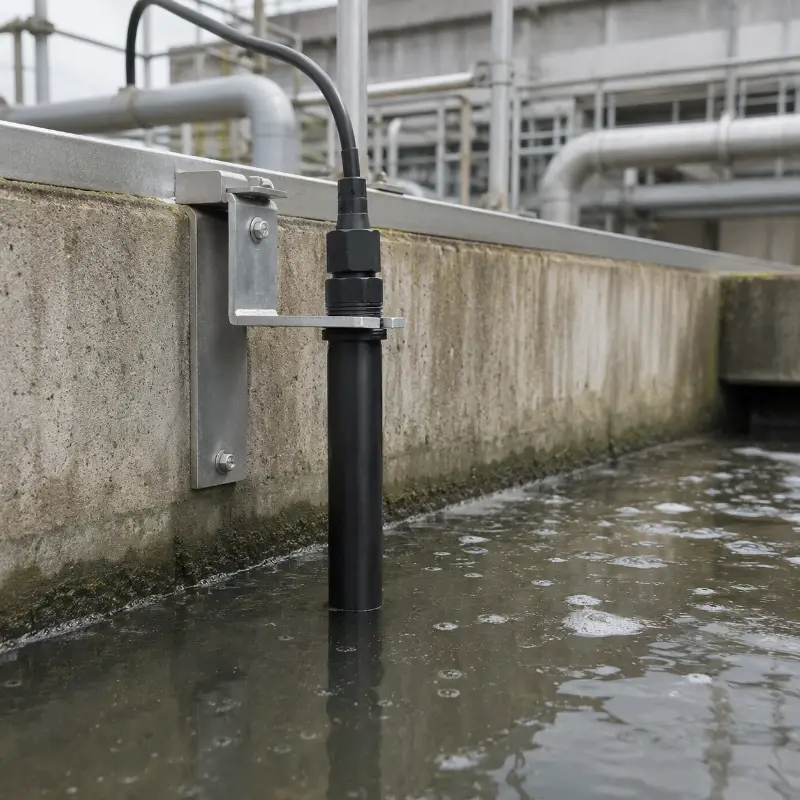

The sensor is designed for submerged installation with a 3/4 NPT pipe thread. During installation, keep the sensor at least 5 cm away from side walls and at least 10 cm away from the bottom to reduce measurement interference and prevent sediment accumulation around the optical window.
For long-term use in water, seawater, or humid outdoor environments, all wiring joints should be waterproofed, and the user-side cable should have corrosion-resistant protection. Before power-on, check the wiring order carefully to avoid unnecessary damage caused by incorrect wiring.
During calibration, keep the sensor front end at least 10 cm away from the bottom of the beaker or container. The sensor front end should not have air bubbles, as bubbles may affect optical measurement stability.
5. Maintenance Guide
The cleanliness of the optical measurement window is important for accurate readings. Clean the external surface of the sensor with tap water. If debris remains, wipe it gently with a wet soft cloth. For stubborn dirt, a small amount of household detergent can be added to tap water.
Check the cable regularly and ensure it is not under tension during operation, because excessive pulling may damage internal wires and cause sensor malfunction. Inspect the measurement window for dirt during routine maintenance. The sensor contains sensitive optical and electronic components and should not be exposed to strong mechanical impact.
FAQ
Q
1. What is a suspended solids sensor used for?
A
It is used to continuously monitor total suspended solids in wastewater treatment, sludge process control, industrial discharge, aquaculture water, rivers, lakes, and environmental water quality stations.
Q
2. What measurement method does this TSS sensor use?
A
The sensor uses the scattered light method, measuring backscattered light caused by suspended particles in the water sample.
Q
3. What is the measurement range of the sensor?
A
The sensor measures suspended solids from 0 to 2000.0 mg/L with a resolution of 0.1 mg/L.
Q
4. Can this sensor connect to an IoT platform?
A
Yes. It supports RS485 Modbus RTU, making it suitable for PLCs, RTUs, data loggers, water quality controllers, and IoT monitoring platforms.
Q
5. How does JW-IoT use this sensor in wastewater projects?
A
JW-IoT can integrate the suspended solids sensor with IoT gateways, cloud dashboards, threshold alarms, and multi-parameter wastewater monitoring stations.
Q
6. Is this sensor suitable for submerged installation?
A
Yes. It has IP68 protection and supports submerged installation within 20 m water depth using a 3/4 NPT pipe thread.
Q
7. Can JW-IoT provide a complete TSS monitoring solution?
A
Yes. JW-IoT can combine suspended solids, turbidity, pH, dissolved oxygen, conductivity, ammonia nitrogen, nitrate, and temperature sensors into a complete smart water monitoring system.
Q
8. What should be noted during installation?
A
Keep the sensor at least 5 cm from side walls and 10 cm from the bottom. The sensing front end should not have air bubbles.
Q
9. Can JW-IoT customize system integration for different projects?
A
Yes. JW-IoT can support RS485 Modbus integration, customized cable length, gateway connection, dashboard configuration, and multi-site monitoring according to project requirements.
