JW-CQ11(YN12)Road Surface Condition Sensor is a non-intrusive infrared monitoring device designed for real-time pavement condition detection. It helps identify road surface status such as dry, damp, wet, icy, snowy, or frosty conditions, making it ideal for highways, bridges, tunnels, airports, and intelligent transportation systems.
2. Product Overview

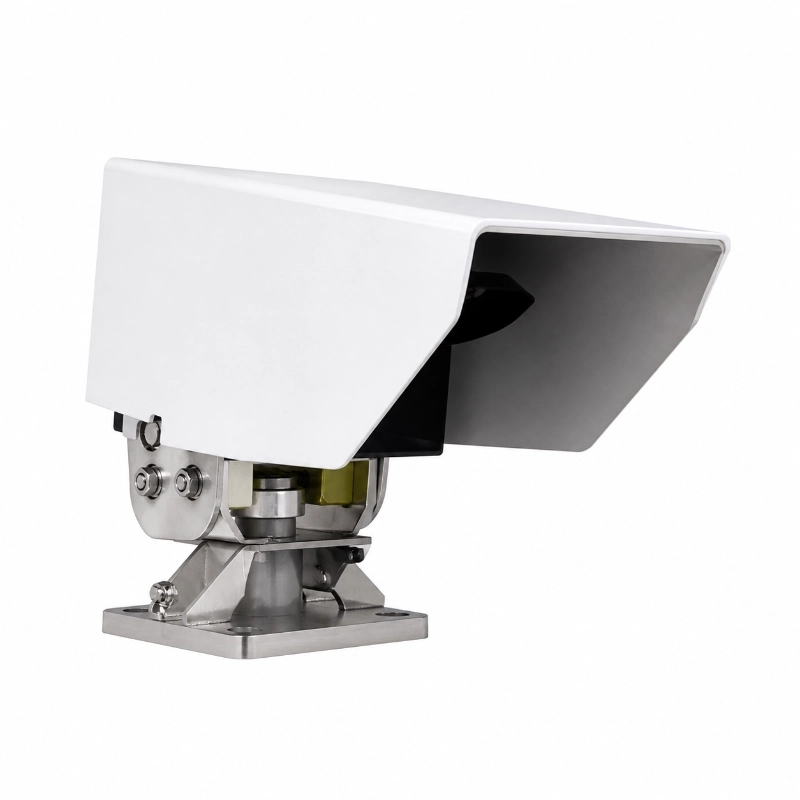

JW-CQ11(YN12)Road Surface Condition Sensor is built for accurate and continuous road weather monitoring without damaging the pavement. Using infrared detection technology and remote measurement, it can monitor key surface condition data to support traffic safety, winter road maintenance, and smart transportation decision-making.
Unlike embedded sensors, this sensor is installed above the road surface with a bracket, making deployment easier and maintenance more convenient. It is especially suitable for road weather information systems, expressways, municipal roads, airport runways, bridge decks, and tunnel entrances where real-time pavement status is critical.
By providing reliable road condition data, this sensor helps operators improve winter maintenance efficiency, reduce accident risks, and strengthen traffic warning systems.
Item
Specification
Detection Distance
3–10 m
Detection Area Diameter
50 cm at 6 m distance
Installation Angle to Horizontal Plane
30°–90°
Power Supply
DC 9–30V
Power Consumption
1W excluding defogging heating
Operating Temperature
-40°C to +60°C
Operating Humidity
0–100% RH
Water Film Thickness
0–10 mm
Ice Film Thickness
0–10 mm
Snow Thickness
0–10 mm
Slipperiness Coefficient
0.01 slippery to 0.82 high friction
Road Surface Status Report
Dry damp wet snow ice ice water mixture
Road Weather Parameter
Road surface temperature -40°C to +85°C
Road Surface Material
Asphalt pavement
Communication Interface
RS485
3. Application Scenarios

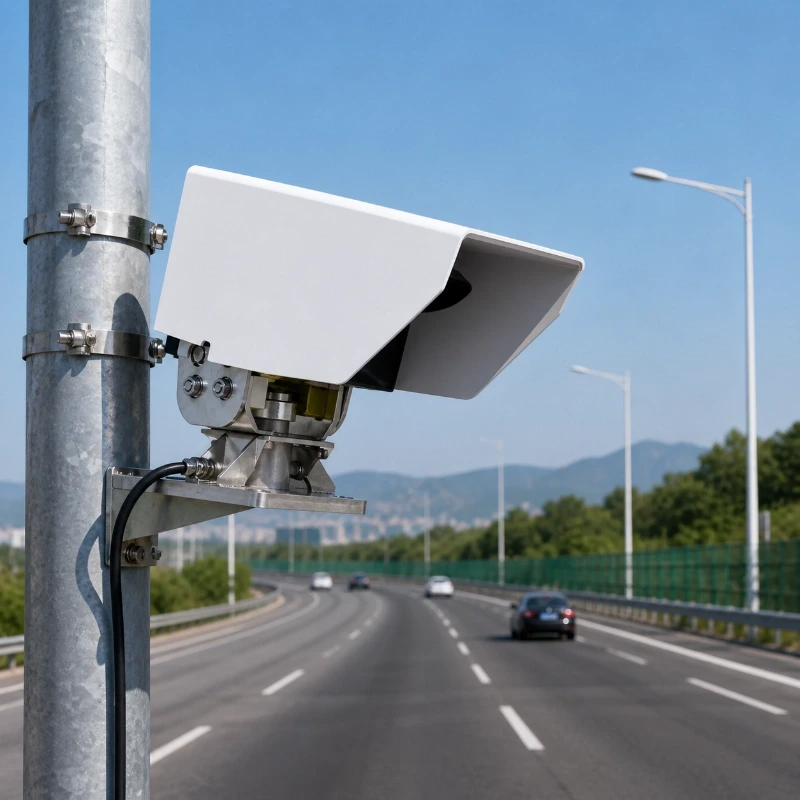

Highway road weather monitoring

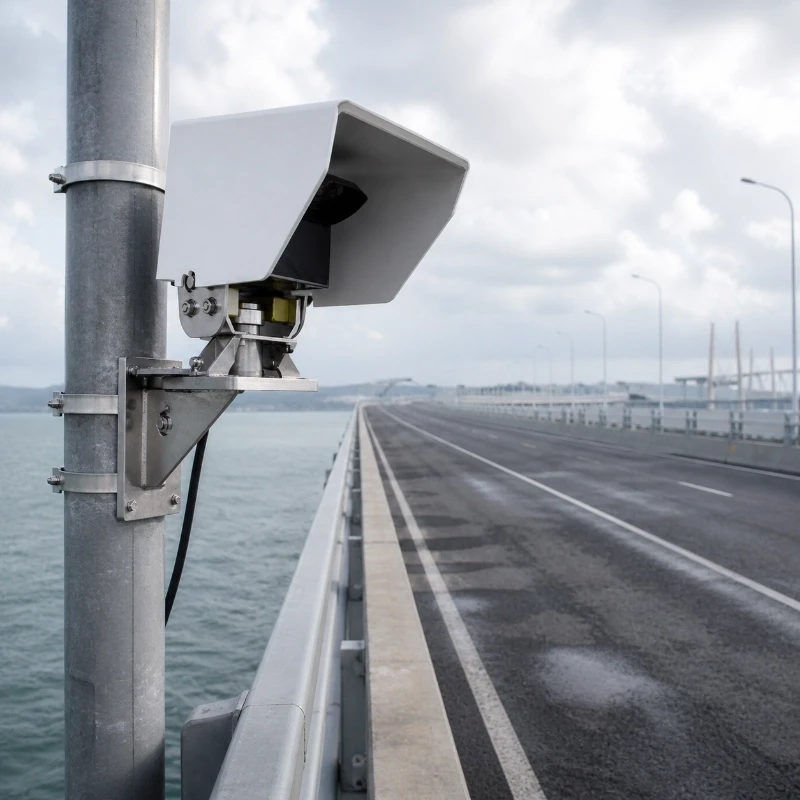

Bridge deck condition monitoring

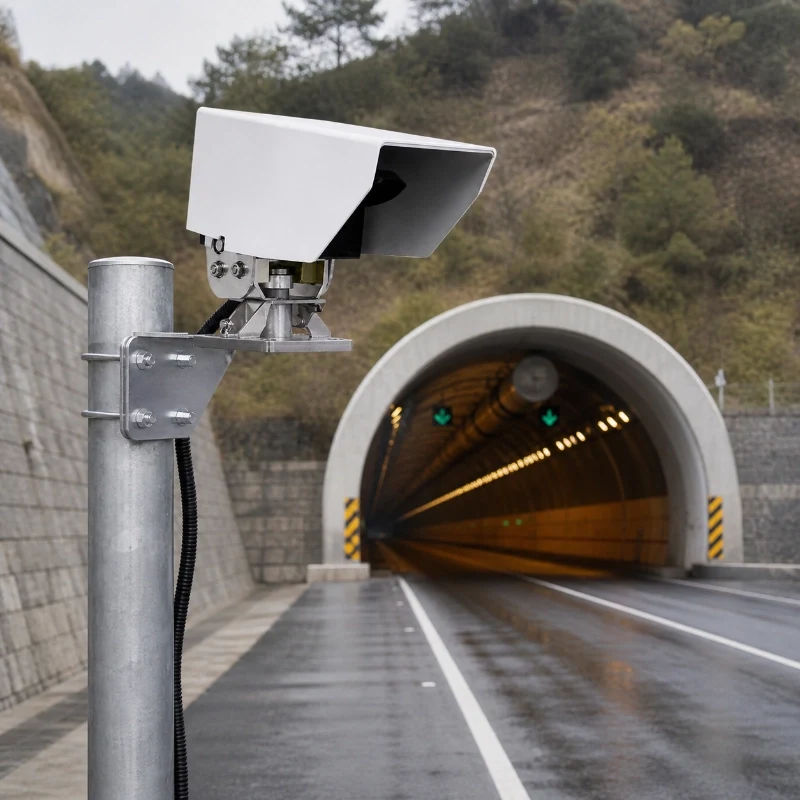

Tunnel entrance and exit monitoring
Airport runway surface monitoring
Urban traffic safety systems
Smart transportation projects
Road weather information systems

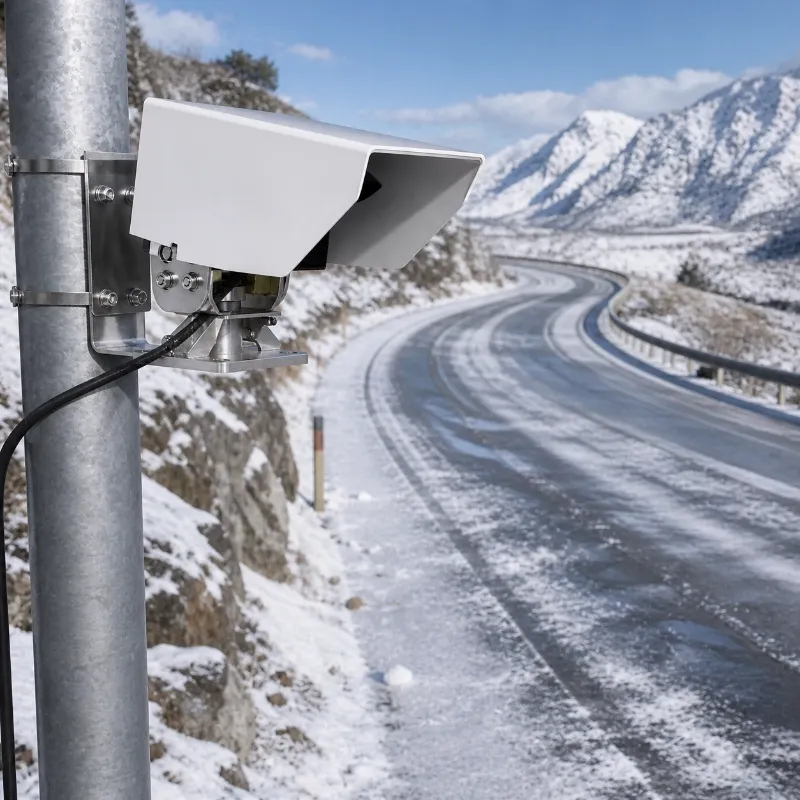

Winter maintenance and de-icing management
FAQ
Q
1. What does this road surface condition sensor detect?
A
It detects pavement status such as dry, damp, wet, icy, snowy, or frosty road conditions, helping users understand real-time road safety conditions.
Q
2. Does the sensor require cutting into the pavement?
A
No. This is a non-intrusive road surface sensor, which means it is mounted above the road and does not require road cutting or embedded installation.
Q
3. Can JW-IoT provide this sensor for smart traffic projects?
A
Yes. JW-IoT can provide this road surface condition sensor for smart transportation, highway safety monitoring, and road weather information system projects.
Q
4. What is the advantage of infrared detection technology?
A
Infrared detection allows remote measurement of road conditions, reduces installation difficulty, and helps maintain pavement integrity.
Q
5. Where can this road surface condition sensor be installed?
A
It is suitable for highways, bridges, tunnels, airport runways, urban roads, and other locations where real-time pavement condition monitoring is needed.
Q
6. Can JW-IoT support integration with monitoring platforms?
A
Yes. JW-IoT can support integration with traffic monitoring systems, road weather platforms, and intelligent transportation solutions according to project requirements.
Q
7. Is this sensor suitable for winter road maintenance?
A
Yes. It is especially useful for winter maintenance because it helps identify snow, ice, and frost conditions for faster response and better de-icing decisions.
Q
8. Is installation and maintenance convenient?
A
Yes. The overhead bracket-mounted design makes installation easier and maintenance more convenient than embedded road sensors.
Q
9. Why choose JW-IoT for road condition monitoring solutions?
A
JW-IoT offers professional sensing products and solution support for smart transportation, helping customers build efficient and reliable road weather monitoring systems.
