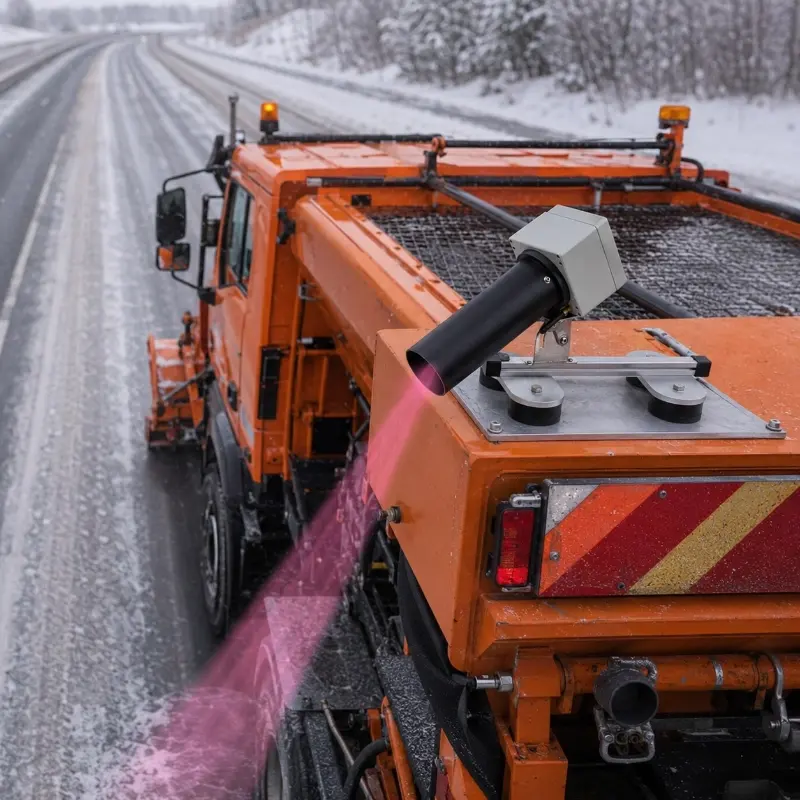

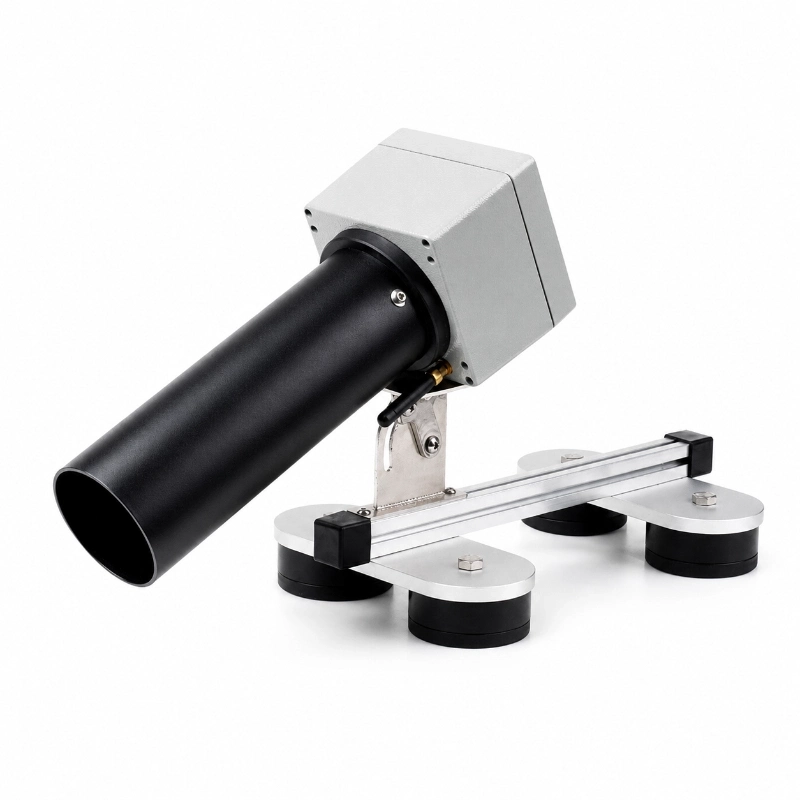

JW-MRSS2(HY01)road surface condition sensor is a vehicle-mounted pavement monitoring device designed for fast, real-time detection of road surface ice, snow, water film, and wetness conditions during mobile inspection. Using remote sensing technology, it helps road maintenance teams monitor winter road hazards, evaluate pavement friction conditions, and make timely decisions for traffic safety management.
2. Product Overview
JW-MRSS2(HY01) road surface condition sensor can identify multiple pavement states, including dry, damp, wet, snow, ice, and ice-water mixed surfaces. It measures water film thickness, ice thickness, skid resistance level, road surface temperature, and ambient temperature while the vehicle is moving, providing reliable data for winter road maintenance, highway patrol, and traffic safety control.
With a rugged structure, built-in rechargeable lithium batteries, Bluetooth communication, and RS485 output, the sensor supports both mobile and fixed installation. Measurement data can be displayed in real time through a mobile app or transmitted to computer software for storage and analysis.
Parameter
Specification
Model No.
JW-MRSS2(HY01)
Installation Height
1–1.9 m
Measurement Frequency
10 times per second
Power Supply
Built-in 2 × 18650 rechargeable lithium batteries or DC 5 V adapter
Operating Temperature
-40°C to +60°C
Operating Humidity
0–95% RH
Water Film Thickness
0–2 mm
Ice Thickness
0–2 mm
Slipperiness Range
0.01 slippery to 0.82 high friction
Detected Road States
Dry damp wet snow ice ice-water mixed
Optional Weather Parameters
Road surface temperature -40°C to +60°C ambient temperature -40°C to +60°C
Road Surface Materials
Concrete asphalt pavement
Communication
Bluetooth RS485
3. Application Scenarios：
Winter road maintenance and deicing decision support
Highway and urban road surface condition monitoring
Detection of water film ice snow and wet pavement
Traffic accident-prone road sections Rain snow and freezing-prone road areas

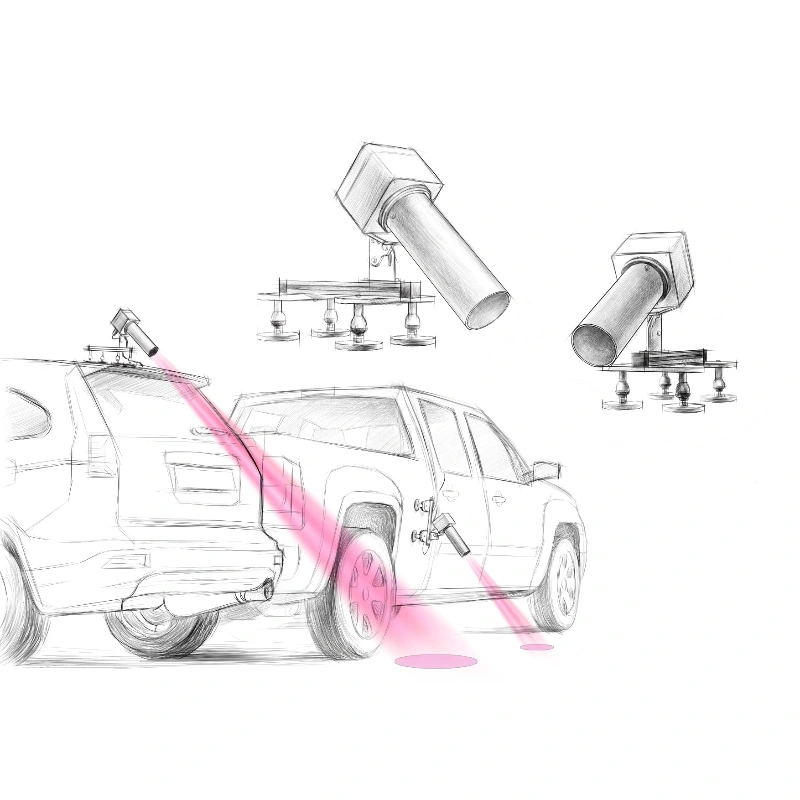

Mobile patrol vehicles and fixed roadside monitoring stations
Road safety management and intelligent transportation systems
4. How It Works
The sensor uses remote sensing technology to scan the road surface without direct contact. By analyzing the reflected signal from the pavement, it identifies surface conditions and calculates key parameters such as water film thickness, ice thickness, and friction level. This enables rapid road condition assessment while the vehicle is in motion, making it especially useful for dynamic winter maintenance operations.
FAQ
Q
1. What can this road surface condition sensor detect?
A
It can detect dry, damp, wet, snow, ice, and ice-water mixed pavement conditions, while also measuring water film thickness, ice thickness, and road slipperiness.
Q
2. Is this sensor suitable for vehicle-mounted inspection?
A
Yes. The sensor is designed for vehicle-mounted mobile monitoring and can perform real-time detection while the vehicle is moving.
Q
3. What is the measurement range for water film and ice thickness?
A
Both water film thickness and ice thickness can be measured from 0 to 2 mm.
Q
4. Can JW-IoT provide this sensor for winter road maintenance projects?
A
Yes. JW-IoT can supply this road surface condition sensor for winter maintenance vehicles, highway monitoring systems, and intelligent transportation projects.
Q
5. What types of road surfaces can it be used on?
A
It is suitable for concrete and asphalt pavement surfaces.
Q
6. Does the sensor support data transmission to external systems?
A
Yes. It supports Bluetooth for mobile app display and RS485 for connection to computer software or monitoring systems.
Q
7. Can JW-IoT customize the road condition monitoring solution?
A
Yes. JW-IoT can provide solution support based on project requirements, including mobile monitoring, fixed installation, and data integration needs.
Q
8. Why is a road surface condition sensor important for traffic safety?
A
It helps identify hazardous road conditions such as black ice, snow accumulation, and wet pavement in time, allowing operators to take preventive measures before accidents occur.
Q
9. Does JW-IoT offer optional temperature monitoring with this sensor?
A
Yes. JW-IoT can provide optional road surface temperature and ambient temperature measurement functions for more complete road weather monitoring.
