Integrated Road Weather Station for Highway Monitoring

Key Features

Compact integrated design for roadside and bridge deployment
Lightweight and low power consumption for efficient long-term use
Supports multi-point installation along highways and trunk roads
Real-time monitoring of key road and weather parameters
Visibility measurement range from 10 to 6000 m
Road surface condition detection for water ice and snow
Road surface temperature measurement range from -40 to +80°C
Wind speed monitoring from 0 to 60 m s
Wind direction monitoring from 0 to 360°
Ambient temperature range from -40 to +80°C
Ambient humidity range from 0 to 100% RH
Air pressure range from 500 to 1100 hPa
Supports rainfall intensity level monitoring
Optional PM2.5 PM10 radiation noise illuminance rainfall and camera modules
Optional 4G and Bluetooth communication for flexible data transmission
Easy installation easy maintenance and reliable outdoor performance

Product Description

1. Description

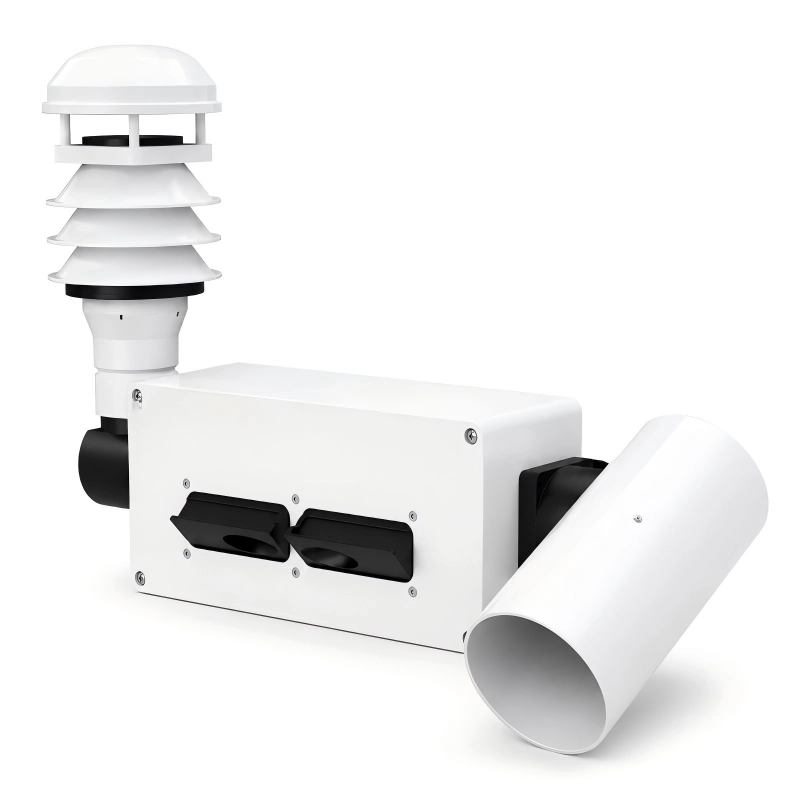

JW-TWS(HY02) series is a compact integrated road weather station designed for highways, national and provincial roads, bridges, and urban main roads. With a small footprint, lightweight structure, low power consumption, and easy installation, it provides reliable real-time traffic weather data to support safer and smarter road management.

2. Product Overview

JW-TWS(HY02)series road weather station is developed for multi-point deployment along road corridors where traffic weather monitoring is critical. It is designed to help traffic authorities, highway operators, and road maintenance teams collect accurate environmental and pavement data for daily operations, early warning, and safety decision-making.

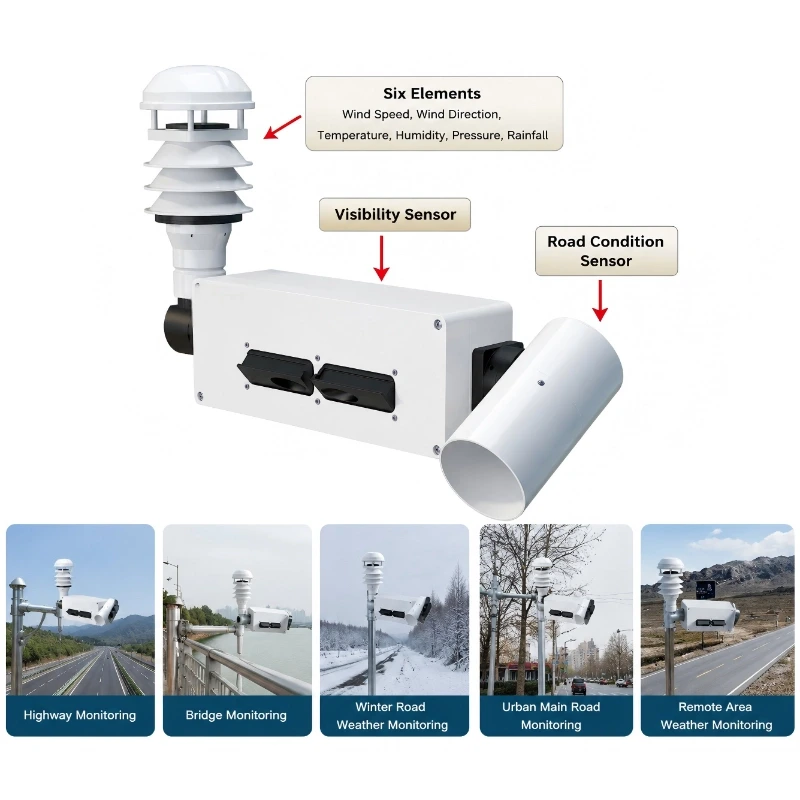

Depending on the model, the system can monitor visibility, road surface status, road temperature, wind speed, wind direction, ambient temperature, ambient humidity, air pressure, rainfall intensity grade, and several optional environmental parameters such as PM2.5 PM10, solar radiation, noise, illuminance, rainfall, camera, 4G, and Bluetooth.

Its all-in-one structure makes it ideal for roadside deployment where space, maintenance effort, and installation time must be minimized.

Model Selection Guide

Model	Main Functions
JW-TWS-A	Visibility monitoring road condition monitoring road surface temperature monitoring
JW-TWS-B	Visibility wind speed wind direction ambient temperature ambient humidity air pressure rainfall intensity grade
JW-TWS-C	Road condition road surface temperature wind speed wind direction ambient temperature ambient humidity air pressure rainfall intensity grade
JW-TWS-D	Visibility road condition road surface temperature wind speed wind direction ambient temperature ambient humidity air pressure rainfall intensity grade with extended communication and optional features

Standard Monitoring Parameters by Series

Parameter	Range or Function
Visibility	10 to 6000 m
Road Surface Status	Water ice snow
Road Surface Temperature	-40 to +80°C
Wind Speed	0 to 60 m s
Wind Direction	0 to 360°
Ambient Temperature	-40 to +80°C
Ambient Humidity	0 to 100% RH
Air Pressure	500 to 1100 hPa
Rainfall Intensity Grade	Light rain moderate rain heavy rain storm rain torrential rain extreme rainstorm

Optional Parameters

Optional Item	Range
PM2.5 PM10	0 to 2000 ug m³
Solar Radiation	0 to 2000 W m²
Noise	10 to 130 dB
Illuminance	0 to 200000 lux
Rainfall	0 to 200 mm h
4G Communication	Optional depending on model
Bluetooth Communication	Optional depending on model
Camera	Optional

3. Application Scenarios：

Highway roadside weather monitoring
National and provincial road environmental monitoring

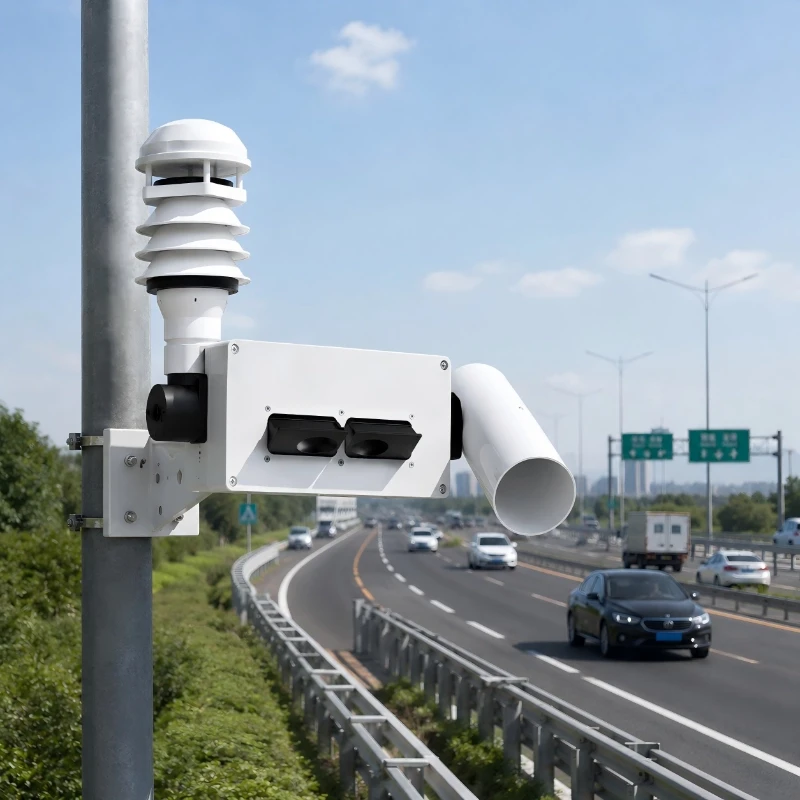

Bridge deck weather and road condition monitoring
Urban main road traffic weather monitoring
Traffic safety warning systems
Road maintenance and winter road management
Intelligent transportation system projects

FAQ

Q

1. What does JW-TWS series road weather station monitor?

A

JW-TWS series can monitor visibility, road surface status, road surface temperature, wind speed, wind direction, ambient temperature, ambient humidity, air pressure, and rainfall intensity level. Optional parameters include PM2.5 PM10, solar radiation, noise, illuminance, rainfall, camera, 4G, and Bluetooth.
Q

2. Where can this road weather station be installed?

A

It is suitable for highways, national roads, provincial roads, bridge decks, and urban main roads where traffic weather monitoring is required.
Q

3. What is the difference between JW-TWS-A JW-TWS-B JW-TWS-C and JW-TWS-D?

A

The models are designed for different monitoring combinations. JW-TWS-A focuses on visibility and road condition, JW-TWS-B focuses on atmospheric parameters, JW-TWS-C combines road and atmospheric monitoring, and JW-TWS-D offers the most comprehensive configuration.
Q

4. Can JW-IoT provide customized configurations for different projects?

A

Yes. JW-IoT can support different model selections and optional sensor combinations according to project requirements, monitoring goals, and communication needs.
Q

5. Is this weather station easy to install and maintain?

A

Yes. The system is designed with a compact all-in-one structure, making installation easier and reducing maintenance workload compared with larger conventional stations.
Q

6. Does JW-IoT support communication options such as 4G and Bluetooth?

A

Yes. JW-IoT can provide optional 4G and Bluetooth communication functions depending on the selected model and project demand.
Q

7. Is the road weather station suitable for intelligent transportation systems?

A

Yes. It is well suited for intelligent transportation, road safety warning, smart highway, and roadside environmental monitoring applications.
Q

8. Why choose JW-IoT for road weather monitoring solutions?

A

JW-IoT offers practical and scalable road weather monitoring products designed for real roadside deployment, helping customers build reliable traffic weather data systems with flexible configuration options.
