JW-FUV-408(K31)full spectrum water quality sensor is designed for online monitoring of multiple water quality parameters including COD, BOD, TOC, color, turbidity, TP, TN, NHN, nitrate, nitrite, UV254, and CODMn. Based on UV visible full spectrum absorption technology and micro fiber spectrometer design, it enables reagent free monitoring, real time pollution tracking, and stable long term deployment in wastewater, surface water, aquaculture, and industrial water applications.
2. Product Overview

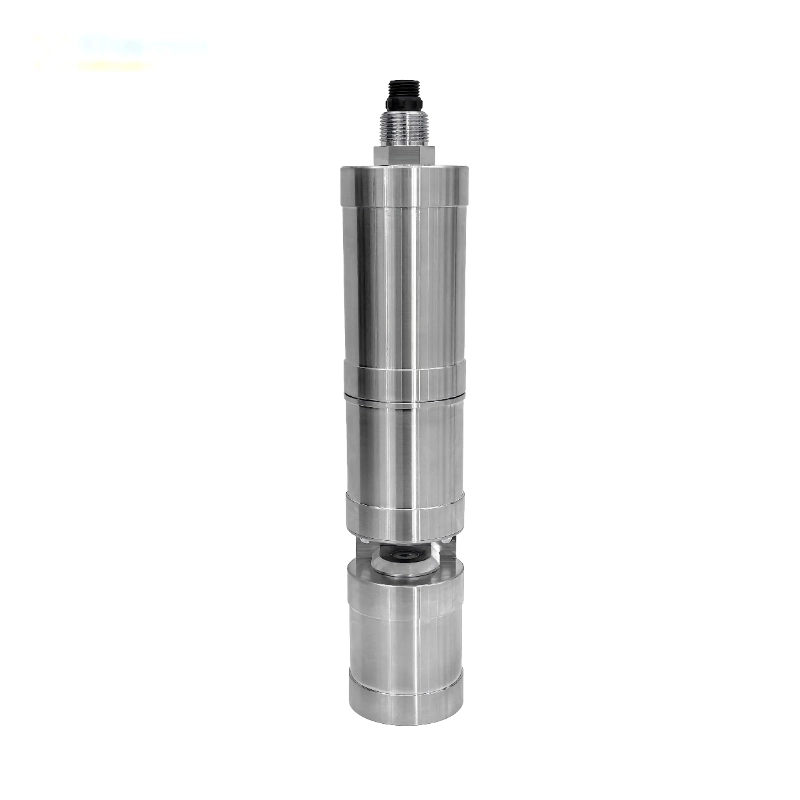

JW-FUV-408(K31)full spectrum water quality sensor is an advanced online sensor for simultaneous monitoring of more than ten key water quality parameters. It uses UV visible full spectrum absorption technology to analyze the absorption characteristics of pollutants at specific wavelengths, enabling online estimation of COD, BOD, TOC, color, turbidity, TP, TN, NHN, nitrate, nitrite, UV254, CODMn, and other indicators.For continuous pollution monitoring, this sensor can be combined with pH, conductivity, turbidity, dissolved oxygen, ammonia nitrogen, data acquisition, and cloud software in a complete environmental water quality monitoring system.
Compared with traditional single parameter sensors or reagent based analyzers, this sensor supports reagent free monitoring and does not require chemical consumables during routine operation. It helps reduce maintenance workload, avoid secondary pollution, and lower long term operating costs. The built in intelligent algorithm compensates for optical path attenuation and suspended solids interference, supporting stable measurement in complex water environments.
With RS485 Modbus RTU output, 12V DC power supply, IP68 waterproof structure, and 316L stainless steel housing, the sensor is suitable for online water quality monitoring stations, industrial wastewater outlets, surface water sites, aquaculture water bodies, and smart environmental monitoring systems.
Item
Specification
Product Type
Online Full Spectrum Multi Parameter Sensor
Model
FUV-408
Measurement Principle
Full Spectrum Absorption Method
Spectral Range
200–750 nm continuous scanning
Calibration Method
Spectral Calibration
Output Signal
RS485 Modbus RTU
Power Supply
12V DC
Power Consumption
5W at 12V
Working Conditions
0–45°C <0.1 MPa
Storage Temperature
-5–65°C
Protection Rating
IP68
Installation Method
Submersible Installation
Cable Length
5 m standard customizable
Housing Material
316L Stainless Steel
Measuring Parameters and Ranges
Parameter
Measuring Range
COD
0–200 mg/L equiv. KHP
Color
0–500 Hazen
TOC
0–150 mg/L
Turbidity
0–400 NTU
BOD
0–150 mg/L
UV254
0–1.5 AU
TP
0–15 mg/L
TN
0–100 mg/L
NHN
0–80 mg/L
Nitrate
0–15 mg/L
Nitrite
0–10 mg/L
CODMn
0–100 mg/L
Accuracy and Resolution
Parameter
Accuracy
Resolution
COD
±5% F.S.
0.1 mg/L
Color
±5% F.S.
0.1 Hazen
TOC
±5% F.S.
0.1 mg/L
Turbidity
±5% F.S.
0.1 NTU
BOD
±5% F.S.
0.1 mg/L
UV254
±5% F.S.
0.0001 AU
TP
±5% F.S.
0.1 mg/L
TN
±5% F.S.
0.1 mg/L
NHN
±5% F.S.
0.1 mg/L
Nitrate
±5% F.S.
0.01 mg/L
Nitrite
±5% F.S.
0.01 mg/L
CODMn
±5% F.S.
0.1 mg/L
3. Application Scenarios

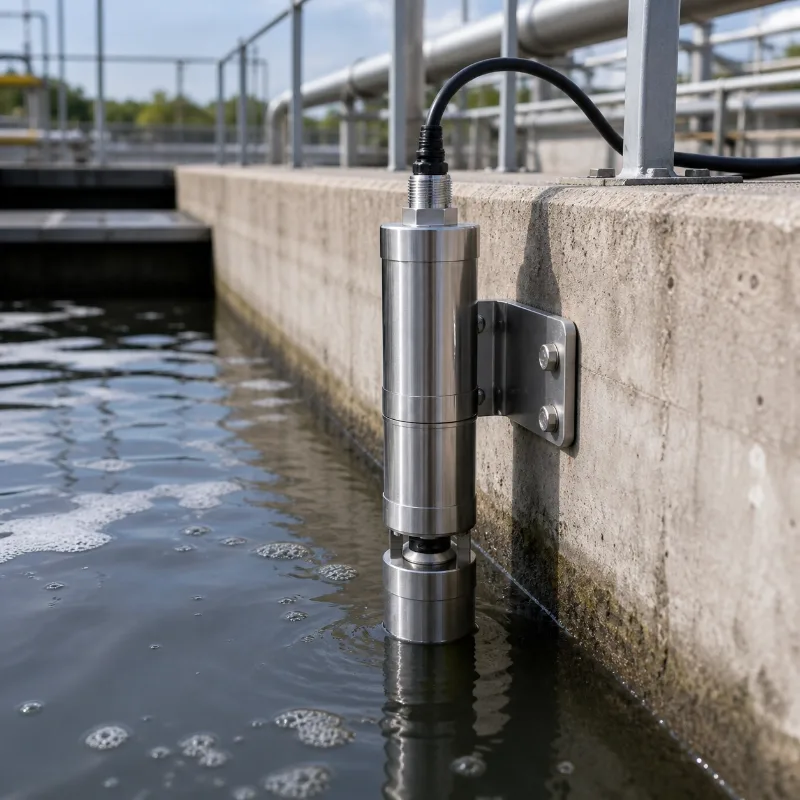

Industrial Wastewater Monitoring: The sensor can be installed at wastewater outlets, equalization tanks, process water channels, and discharge monitoring points to track COD, turbidity, nutrients, and organic pollution changes in real time.

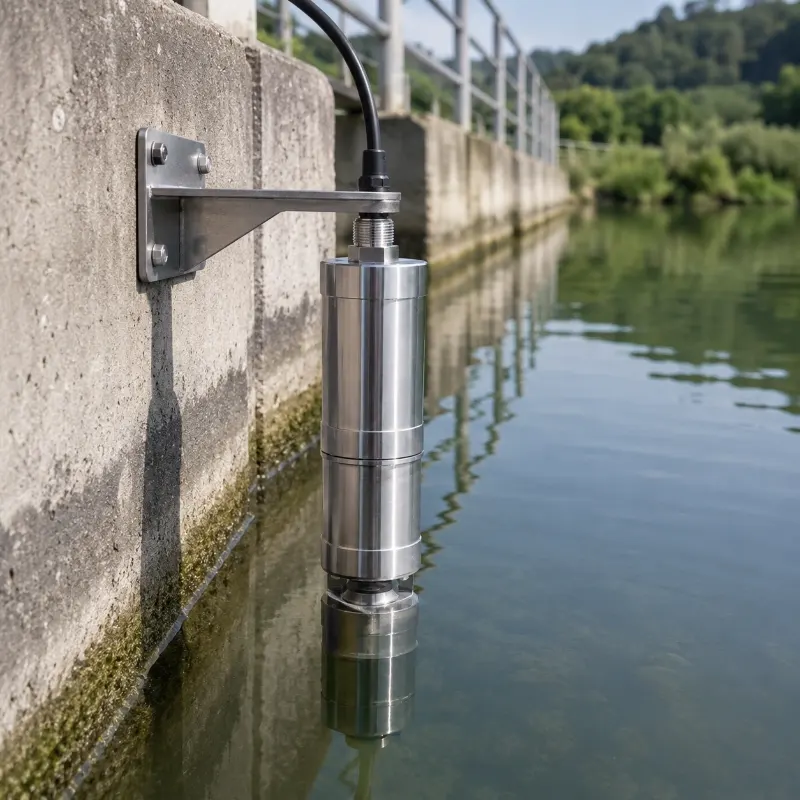

Surface Water and River Monitoring: With IP68 protection and 316L stainless steel housing, the sensor is suitable for rivers, lakes, reservoirs, and water quality monitoring stations where long term submerged operation is required.

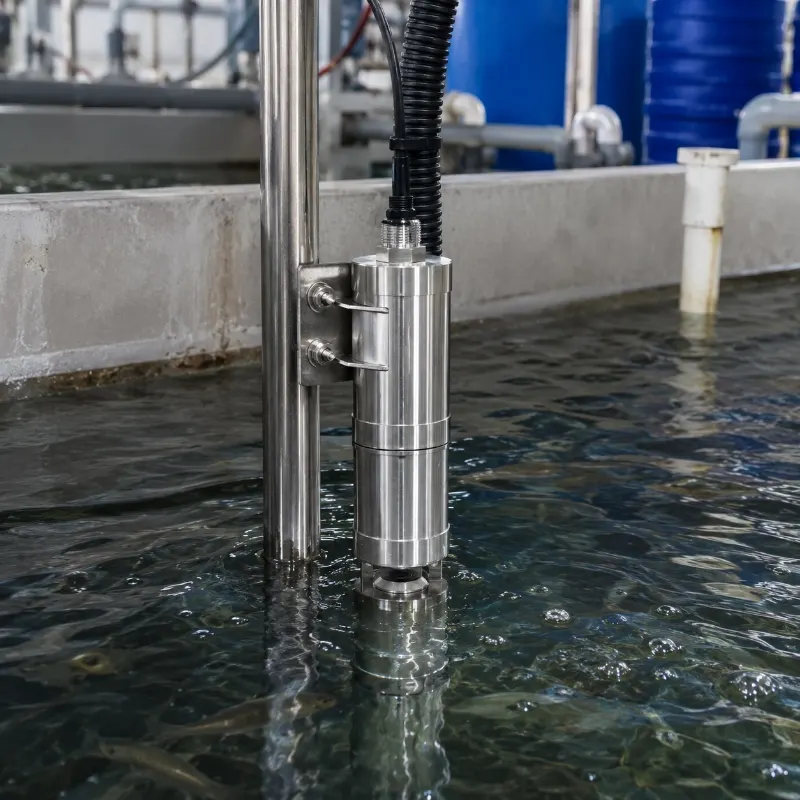

Aquaculture Water Quality Monitoring: The sensor supports multi indicator monitoring in aquaculture ponds and recirculating aquaculture systems, helping users understand organic load, turbidity, and nutrient changes.
Smart Environmental Monitoring Stations: RS485 Modbus RTU output makes the sensor easy to integrate with RTUs, data loggers, solar powered telemetry stations, and cloud based IoT water quality platforms.
Pollution Warning and Source Tracing: The full spectrum absorption method provides pollutant fingerprint recognition, helping operators detect abnormal water quality changes and support pollution source analysis.
FAQ
Q
1. What parameters can this full spectrum water quality sensor monitor?
A
It can monitor COD, BOD, TOC, color, turbidity, TP, TN, NHN, nitrate, nitrite, UV254, CODMn, and other water quality indicators.
Q
2. What measurement principle does the sensor use?
A
The sensor uses UV visible full spectrum absorption technology and analyzes pollutant absorption characteristics across the 200–750 nm spectral range.
Q
3. Does this sensor require chemical reagents?
A
No. It is designed for reagent free online monitoring, helping reduce consumable cost and avoid secondary pollution.
Q
4. Can JW-IoT provide this sensor for industrial wastewater monitoring?
A
Yes. JW-IoT can supply full spectrum multi parameter sensors for industrial wastewater outlets, treatment tanks, surface water stations, and pollution monitoring projects.
Q
5. What communication output does the sensor support?
A
The sensor supports RS485 communication with Modbus RTU protocol, making it suitable for PLC, SCADA, RTU, and IoT platform integration.
Q
6. Is the sensor suitable for submerged installation?
A
Yes. The sensor supports submerged installation, uses a 316L stainless steel housing, and has an IP68 protection rating.
Q
7. Can JW-IoT integrate this sensor with a cloud monitoring platform?
A
Yes. JW-IoT can integrate the sensor with data acquisition units, wireless telemetry, solar power systems, and cloud based water quality monitoring platforms.
Q
8. What is the power supply requirement?
A
The sensor uses 12V DC power supply with 5W power consumption at 12V, making it suitable for field and solar powered monitoring stations.
Q
9. What are the main advantages over traditional water analyzers?
A
It supports multi parameter monitoring in one device, requires no chemical reagents, reduces equipment procurement cost, lowers maintenance workload, and enables real time online pollution warning.
