JW-KTF(S03) KTF slider linear displacement sensor is designed for direct absolute position measurement in industrial machinery where compact installation length and long stroke feedback are required. With a conductive plastic resistance element, smooth analog output, adjustable mounting feet, durable anodized aluminum housing, and slider driven structure, it is suitable for injection molding machines, rubber machinery, hydraulic equipment, woodworking machinery, and automated production systems.
2. Product Overview
JW-KTF(S03)KTF slider linear displacement sensor is a practical position feedback solution for industrial machinery requiring long stroke measurement and compact installation. Unlike rod type displacement sensors, the slider structure allows the sensor to be driven from one side, helping reduce the required installation length in the machine direction. This makes it especially suitable for large machinery where space is limited but long measuring travel is needed.
The sensor uses a conductive plastic resistance element to provide smooth and stable analog output. It supports direct absolute position measurement, allowing PLCs, controllers, and data acquisition systems to obtain real time linear position feedback. Its infinite resolution and good linearity make it suitable for precision stroke monitoring, position control, and motion feedback applications.

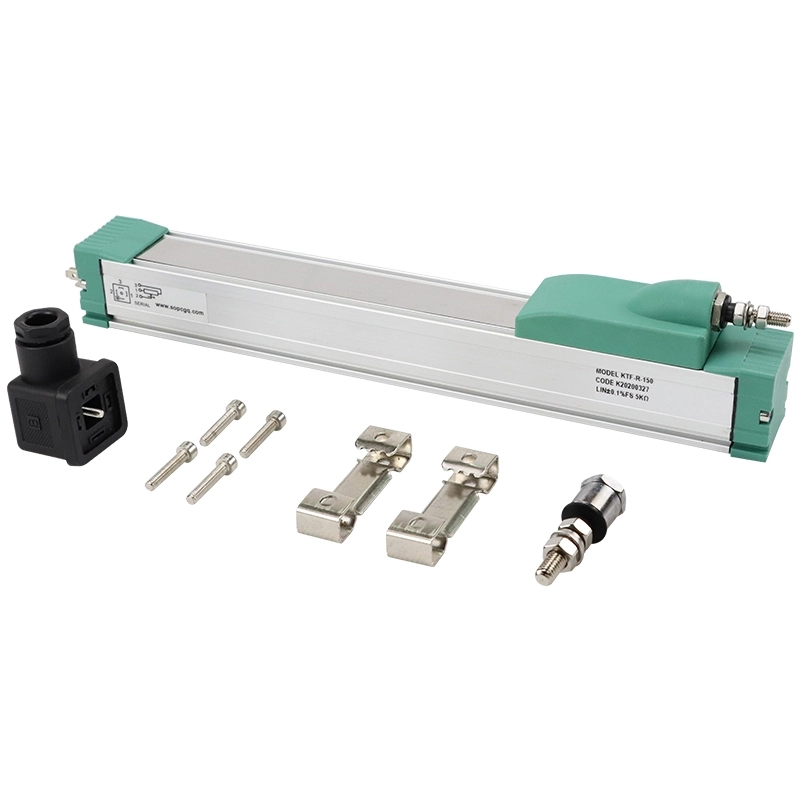

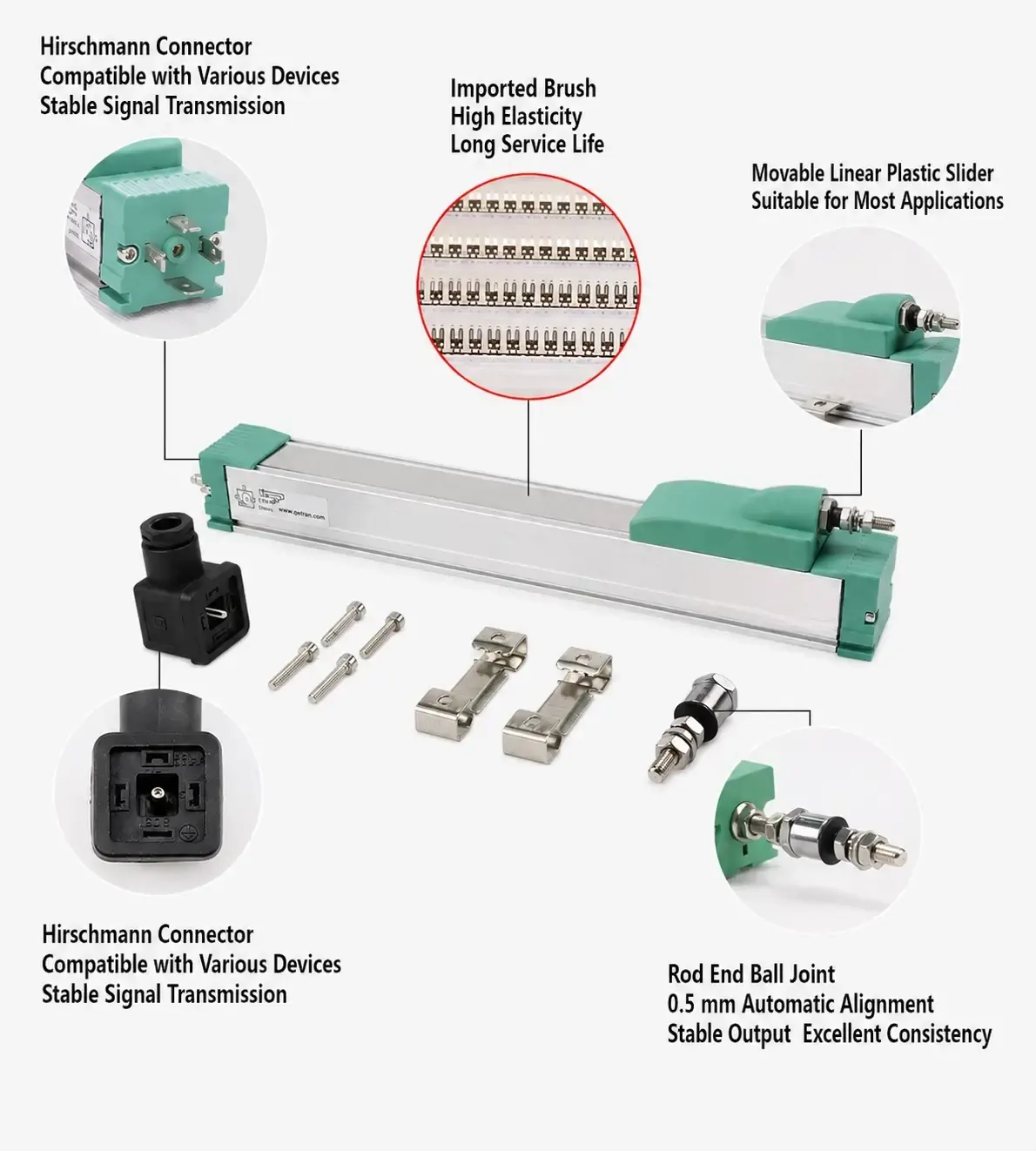

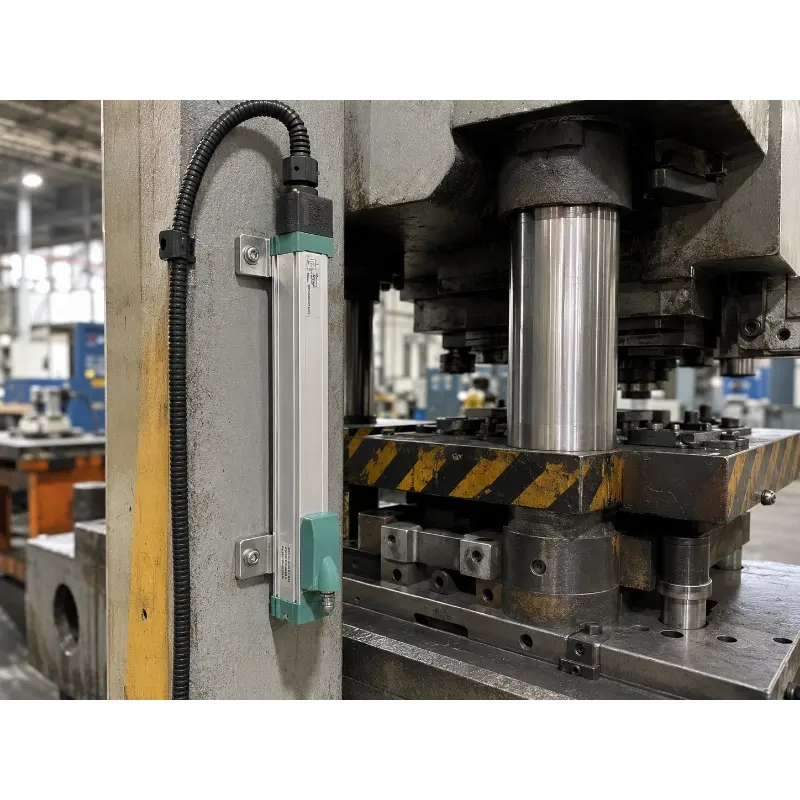

The KTF sensor features an anodized aluminum housing for corrosion resistance and long term durability. Adjustable mounting feet allow flexible installation, while the optional rod end joint helps reduce side load caused by mechanical misalignment. The product is designed for demanding applications such as large injection molding machine clamping stroke measurement, rubber machine stroke monitoring, woodworking machinery, hydraulic equipment, shoe machinery, and customized automation systems.

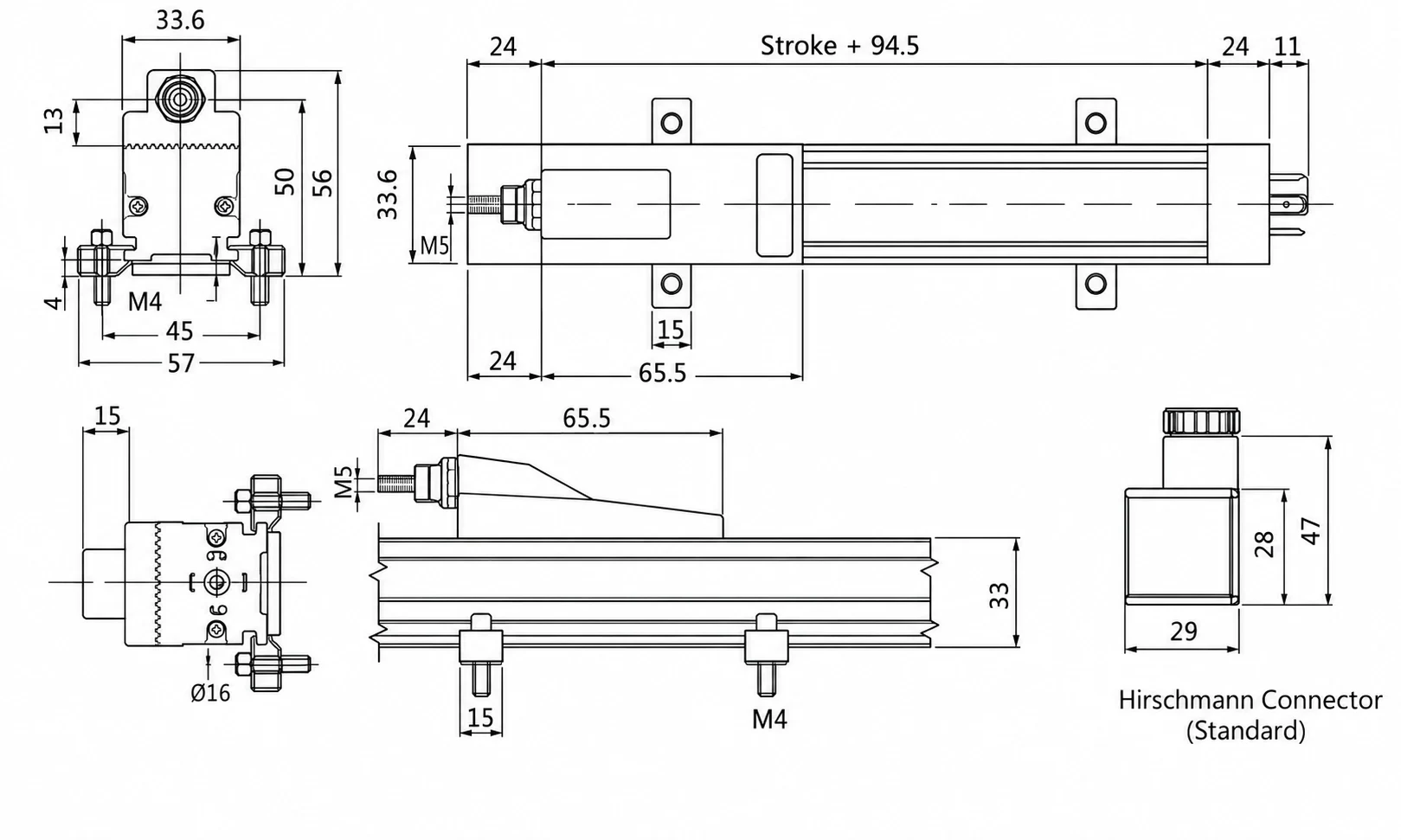

Item
Specification
Product Type
Rodless Linear Displacement Sensor
Measuring Stroke
75–2500 mm
Structure Design
Rodless design
Side Load Protection
Ball joint design helps prevent side force
Service Life
Long service life
Linearity
Low non linearity
Resolution
Better than 0.01 mm
Operating Speed
High speed operation
Connector Type
DIN43650 standard plug and socket
Protection Grade
IP54 standard IP65 when installed downward
Output Configuration
Configurable voltage and current modules
Wiring Options
2 wire 3 wire
Resistance Output
5 kΩ 10 kΩ
Current Output
4–20 mA
Voltage Output
0–5 V 0–10 V
3. Application Scenarios：

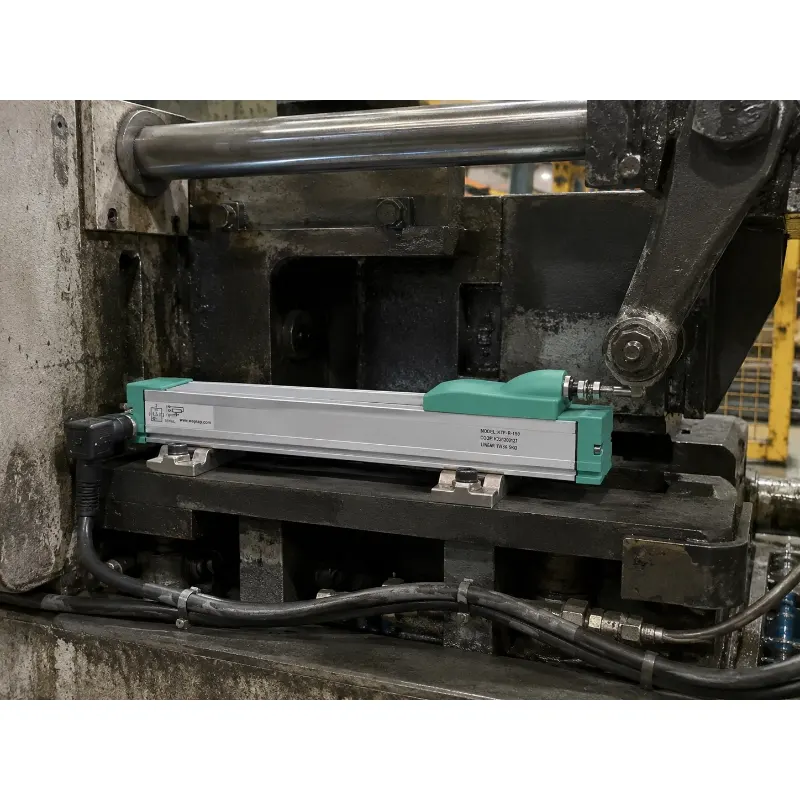

Large Injection Molding Machines: The KTF slider displacement sensor is suitable for mold clamping stroke feedback, injection unit travel monitoring, and moving platen position control. Its compact structure helps reduce installation length on large machines.

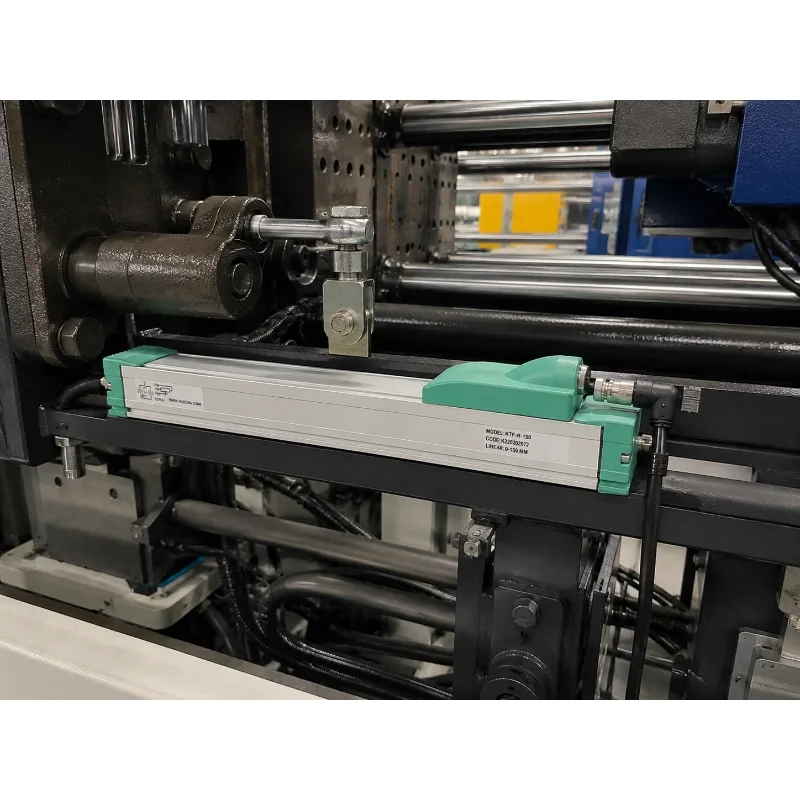

Rubber Machinery: The sensor can be used for rubber injection machines, vulcanizing machines, and rubber processing equipment that require stable long stroke measurement.

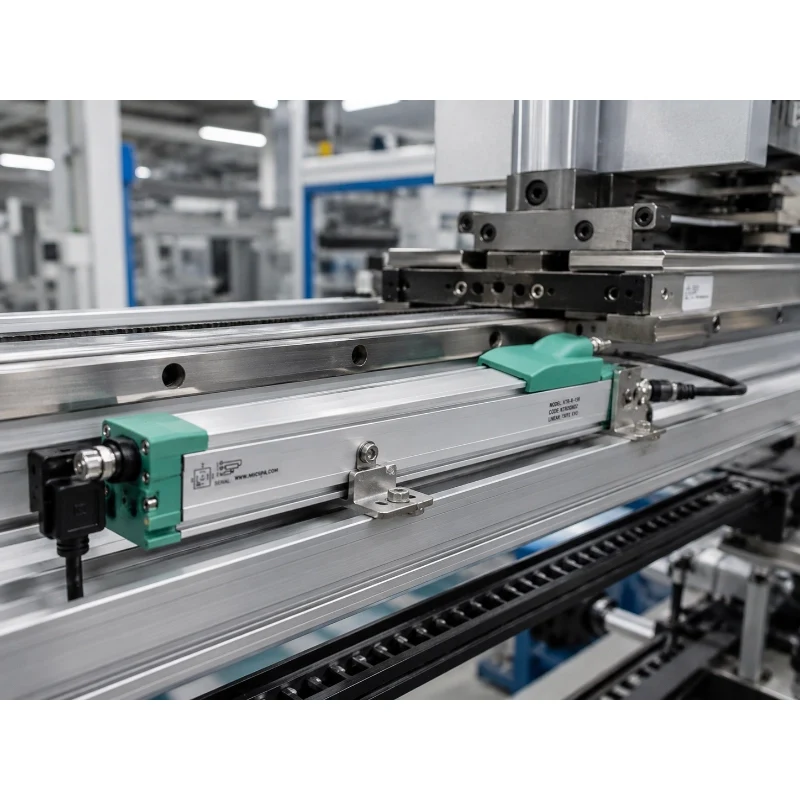

Hydraulic Machinery: KTF sensors can provide linear stroke feedback for hydraulic presses, hydraulic cylinders, lifting mechanisms, and motion control systems.

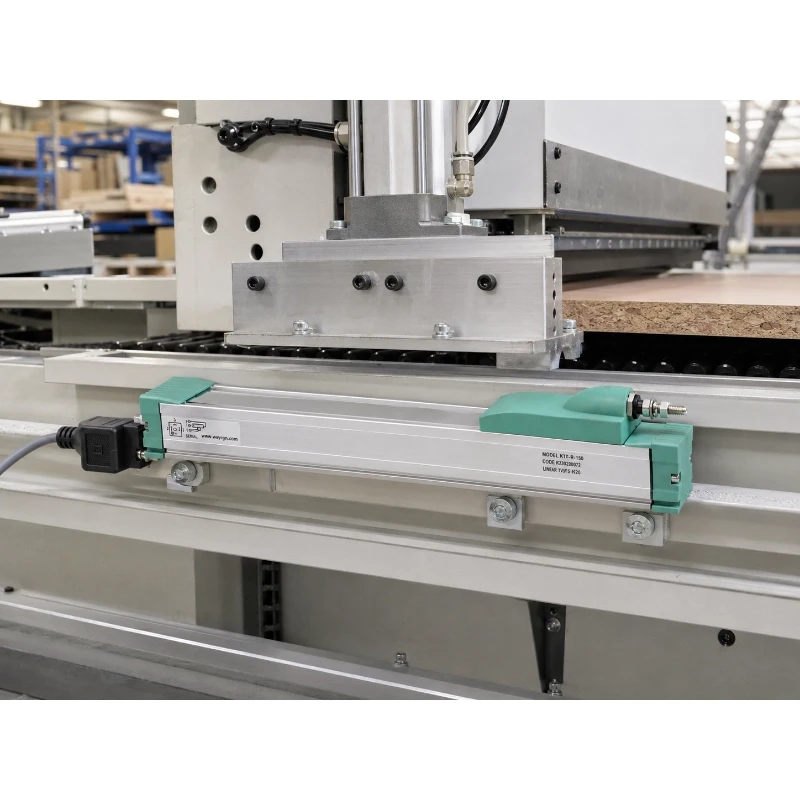

Woodworking Machinery: The slider structure supports position monitoring in sawing equipment, cutting machines, panel processing lines, and automatic woodworking systems.
Automation Equipment: The sensor can be integrated into industrial automation lines, mechanical processing systems, testing equipment, and customized long stroke motion platforms.
FAQ
Q
1. What is a KTF slider linear displacement sensor used for?
A
The KTF slider linear displacement sensor is used to measure linear motion and provide analog position feedback for industrial machines and automation systems.
Q
2. What is the measuring stroke of the KTF sensor?
A
The KTF sensor is commonly available with measuring strokes from 75mm to 2500mm, depending on the selected configuration.
Q
3. How is a slider type displacement sensor different from a rod type sensor?
A
A slider type sensor is driven by a moving slider rather than a long external rod, which helps reduce installation length and makes it suitable for long stroke applications.
Q
4. Can JW-IoT supply KTF sensors for injection molding machines?
A
Yes. JW-IoT can supply KTF slider displacement sensors for injection molding machines, hydraulic equipment, rubber machinery, and automation projects.
Q
5. Is this sensor suitable for long stroke position measurement?
A
Yes. The KTF series is designed for long stroke position feedback and is commonly used in large machines where extended measuring travel is required.
Q
6. What output signal does the sensor provide?
A
The sensor provides a smooth analog voltage signal based on the slider position, making it suitable for PLCs, controllers, and data acquisition systems.
Q
7. Can JW-IoT support sensor selection and installation guidance?
A
Yes. JW-IoT can help select the proper stroke length, output type, connector option, and mounting method according to the machine structure.
Q
8. What machines can use this slider displacement transducer?
A
It can be used in injection molding machines, rubber machines, woodworking machinery, hydraulic presses, shoe machinery, testing equipment, and automated production lines.
Q
9. Why choose JW-IoT for displacement sensing solutions?
A
JW-IoT provides industrial displacement sensors, application matching, and integration support for customers who need reliable position feedback in machine control systems.
