    Structural Health Monitoring System

    Real-Time Structural Stress Monitoring • Deformation & Displacement Detection • Vibration Analysis • LoRaWAN & 4G Connectivity • Cloud-Based Safety Management

    Request Structural Monitoring Solution

    Challengesin Structural Safety Management

    Bridges, buildings, towers, dams, tunnels, and industrial structures are exposed to long-term stress, vibration, settlement, displacement, cracking, and environmental impact. Traditional manual inspection methods are often unable to provide continuous, real-time, and data-driven safety assessment.

    • Lack of Real-Time Structural Data

      Many infrastructure assets rely on periodic manual inspections, making it difficult to identify early-stage deformation, stress change, or abnormal vibration in time.

    • Hidden Safety Risks

      Cracks, displacement, settlement, tilt, and fatigue damage may develop gradually and remain unnoticed until they become serious structural risks.

    • Manual Inspection Inefficiency

      Manual inspection requires significant labor, time, and professional expertise, especially for bridges, high-rise buildings, slopes, towers, tunnels, and remote infrastructure.

    • Difficult Multi-Point Monitoring

      Large structures often require monitoring at multiple critical points, including beams, columns, foundations, joints, supports, and expansion sections. Without an integrated system, data collection and comparison are difficult.

    • Lack of Centralized Safety Assessment

      Structural monitoring data is often scattered across different instruments, making it hard for engineers and asset owners to evaluate overall safety conditions and make maintenance decisions.

    JW-IoT Structural Health Monitoring Solution

    A complete IoT-based structural health monitoring system designed for real-time monitoring of structural stress, deformation, vibration, displacement, tilt, cracks, and environmental conditions.

    • Stress & Strain Monitoring
      · Strain Sensors
      · Stress Sensors
      · Vibrating Wire Sensors
      · Load Cells
      · Structural Force Monitoring Sensors
    • Deformation & Displacement Monitoring
      · Displacement Sensors
      · Crack Meters
      · Joint Meters
      · Settlement Sensors
      · Laser Displacement Sensors
      · GNSS Displacement Monitoring Units
    • Vibration Monitoring
      · Vibration Sensors
      · Acceleration Sensors
      · Dynamic Response Sensors
      · Frequency Monitoring Units
      · Seismic Monitoring Sensors
    • Tilt & Inclination Monitoring
      · Tilt Sensors
      · Inclinometers
      · MEMS Tilt Monitoring Nodes
      · Structural Inclination Monitoring Devices
    • Environmental Monitoring
      · Temperature
      · Humidity
      · Wind Speed & Direction
      · Rainfall
      · Water Level
      · Groundwater Level
      · Corrosion Environment
    • Communication Options
      · LoRaWAN for large-area and low-power monitoring
      · 4G LTE for remote infrastructure projects
      · RS485 Modbus for wired sensor integration
      · Ethernet for fixed monitoring stations
      · MQTT Cloud API for platform integration
      · Solar-powered outdoor monitoring options
    • Cloud Platform Features
      · Real-time structural monitoring dashboard
      · Multi-point data visualization
      · Stress, displacement, vibration, and tilt trend analysis
      · Alarm threshold setting
      · Abnormal event notification
      · Historical data query
      · Remote device status monitoring
      · Multi-project management
      · Web and mobile app access
      · API integration with third-party platforms

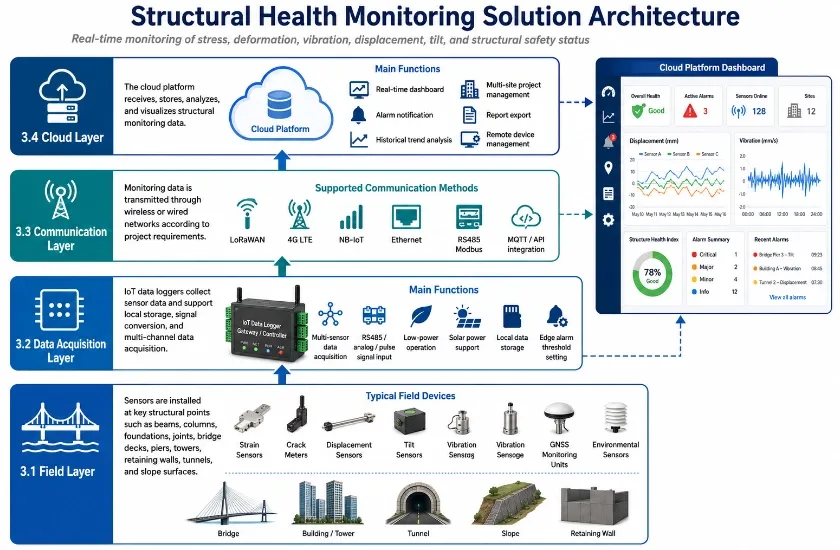

    ArchitectureOverview

    Sensors → IoT Data Logger → LoRaWAN / 4G Gateway → Cloud Server → Web / Mobile App → Alarm & Maintenance Decision

    • Field Layer

      Sensors are installed at key structural points such as beams, columns, foundations, joints, bridge decks, piers, towers, retaining walls, tunnels, and slope surfaces.

    • Control Layer

      IoT data loggers collect sensor data and support local storage, signal conversion, and multi-channel data acquisition.

    • Communication Layer

      Monitoring data is transmitted through wireless or wired networks according to project requirements.

    • Cloud Layer

      The cloud platform receives, stores, analyzes, and visualizes structural monitoring data.

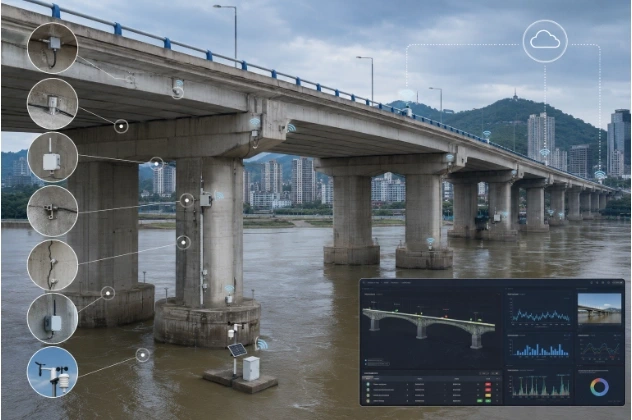

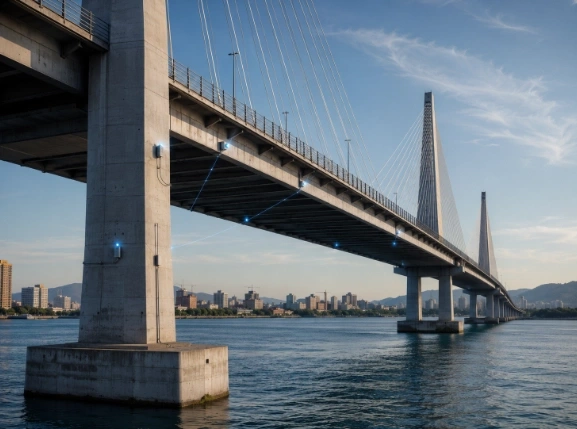

    Case Study– Bridge Structural Health Monitoring Project

    Driven by reliability, precision, and global compatibility, JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

    Project Type: Real-Time Structural Stress, Vibration, Displacement and Tilt Monitoring

    Project Scale: Highway Bridge

    Communication:LoRaWAN + 4G Gateway

    • Deployment:

      · 24 Strain Monitoring Points
      · 16 Vibration Monitoring Points
      · 12 Displacement Monitoring Points
      · 8 Tilt Monitoring Points
      · 6 Crack Monitoring Points
      · 4 Environmental Monitoring Stations
      · 3 LoRaWAN Gateways
      · 1 Cloud-Based Structural Health Monitoring Platform

    • Results:

      ✔ 24-hour real-time monitoring of bridge structural status
      ✔ Faster identification of abnormal vibration and displacement
      ✔ Improved bridge safety assessment capability
      ✔ Reduced manual inspection workload
      ✔ Centralized monitoring of multiple structural points
      ✔ Real-time alarm notification for abnormal stress, tilt, or displacement
      ✔ Better data support for preventive maintenance decisions
      ✔ Improved long-term infrastructure operation and safety management

    Why Choose JW-IoT?

    Empower Your Smart Solutions

    Empower Your Smart Solutions

    • Scenario-Driven Architecture

    • Compatible With Existing Greenhouse Motors

    • OEM / White Label Support

    • Multi-Protocol Integration

    • Modular & Scalable Design

    • Remote Technical Support

    Empower Your Smart Solutions

    • Scenario-Driven Architecture

    • Compatible With Existing Greenhouse Motors

    • OEM / White Label Support

    • Multi-Protocol Integration

    • Modular & Scalable Design

    • Remote Technical Support

    Scopeof Applications

    JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

    • Suitable For

      Bridges

    • Suitable For

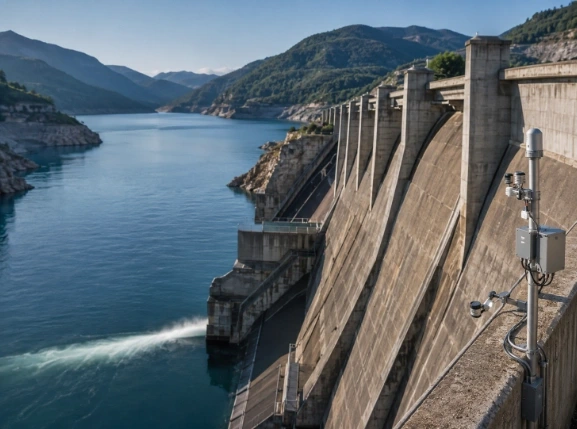

      Dams and Reservoir Structures

    • Suitable For

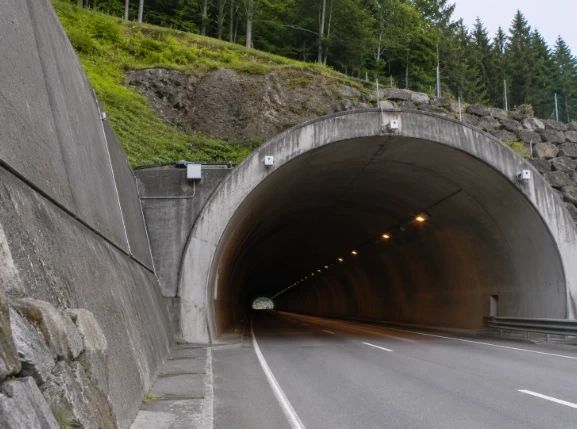

      Tunnels

    • Suitable For

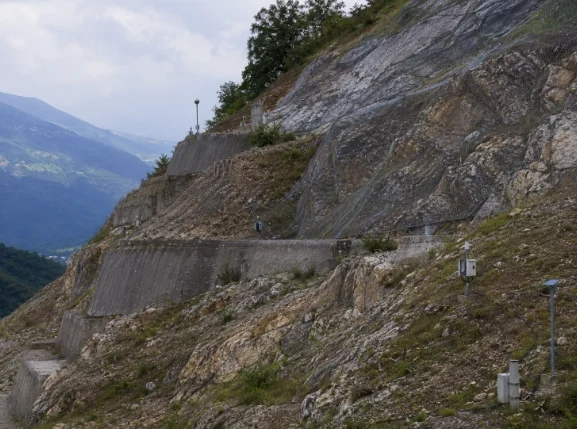

      Slopes and Landslide-Prone Areas

    Ready to Upgrade Your Structural Safety Management?

    • Get Free System Design
    • Request Quotation
    • Speak with Technical Engineer
    Contact Us
