Compact Weather Station Five Parameter RS485 Sensor for Agriculture and Solar Monitoring

Key Features

Five weather parameters in one sensor: Measures air temperature relative humidity wind speed wind direction and barometric pressure in a compact integrated unit.
RS485 Modbus RTU output: Standard RS485 interface with Modbus RTU protocol enables easy connection to data loggers RTUs IoT gateways and weather monitoring platforms.
No moving parts for stable outdoor operation: Ultrasonic wind measurement design helps reduce mechanical wear and supports long term field deployment.
Compact and lightweight structure: The small integrated housing is suitable for pole mounting rooftop stations solar farms agricultural fields and traffic monitoring points.
Radiation shield for temperature and humidity sensing: The temperature humidity and pressure module is protected by a multi layer outdoor radiation shield to reduce solar radiation influence.
High frequency wind data response: Wind speed and wind direction support 4 Hz sampling for responsive micro weather monitoring.
DC9–30V power input: Wide voltage input supports common industrial power systems solar powered stations and remote monitoring cabinets.
IP65 weather resistant enclosure: Designed for outdoor installations exposed to rain dust wind and changing environmental conditions.
Optional expansion functions: Optional SDI 12 NMEA ASCII CAN electronic compass GPS heating function and built in 4G can be customized for specific projects.

Product Description

1. Description

JW-XF500(YN21) Compact Weather Station is an integrated five parameter weather sensor designed for continuous outdoor monitoring of air temperature humidity wind speed wind direction and barometric pressure. With RS485 Modbus RTU output compact structure and no moving parts it is suitable for smart agriculture road weather solar PV sites wind farms environmental grids and microclimate monitoring systems.

2. Product Overview

JW-XF500(YN21) Compact Weather Station combines five essential meteorological parameters into one mini weather sensor. It is built for 24 hour online monitoring in outdoor environments where space installation time and system integration cost matter.

Compared with traditional weather stations that require separate sensors for wind temperature humidity and pressure the XF500 provides a more compact solution for distributed weather networks. The integrated structure reduces wiring complexity while the RS485 Modbus RTU protocol makes it easy to connect with industrial controllers weather data loggers IoT gateways and cloud monitoring platforms.

Item	Specification
Measured Parameters	Air temperature humidity wind speed wind direction barometric pressure
Air Temperature Range	-40°C to 85°C
Air Temperature Accuracy	±0.3°C at 25°C
Relative Humidity Range	0 to 100%RH
Relative Humidity Accuracy	±3%RH from 10% to 90%RH non condensing
Wind Speed Range	0 to 60 m/s
Wind Direction Range	0 to 359.9°
Barometric Pressure Range	500 to 1100 hPa
Barometric Pressure Accuracy	±0.5 hPa at 25°C 950 to 1100 hPa
Output Signal	RS485 Modbus RTU standard
Optional Output	SDI 12 NMEA ASCII CAN
Power Supply	DC9–30V
Protection Rating	IP65
Standard Cable	3 m cable
Optional Cable	10 m communication cable

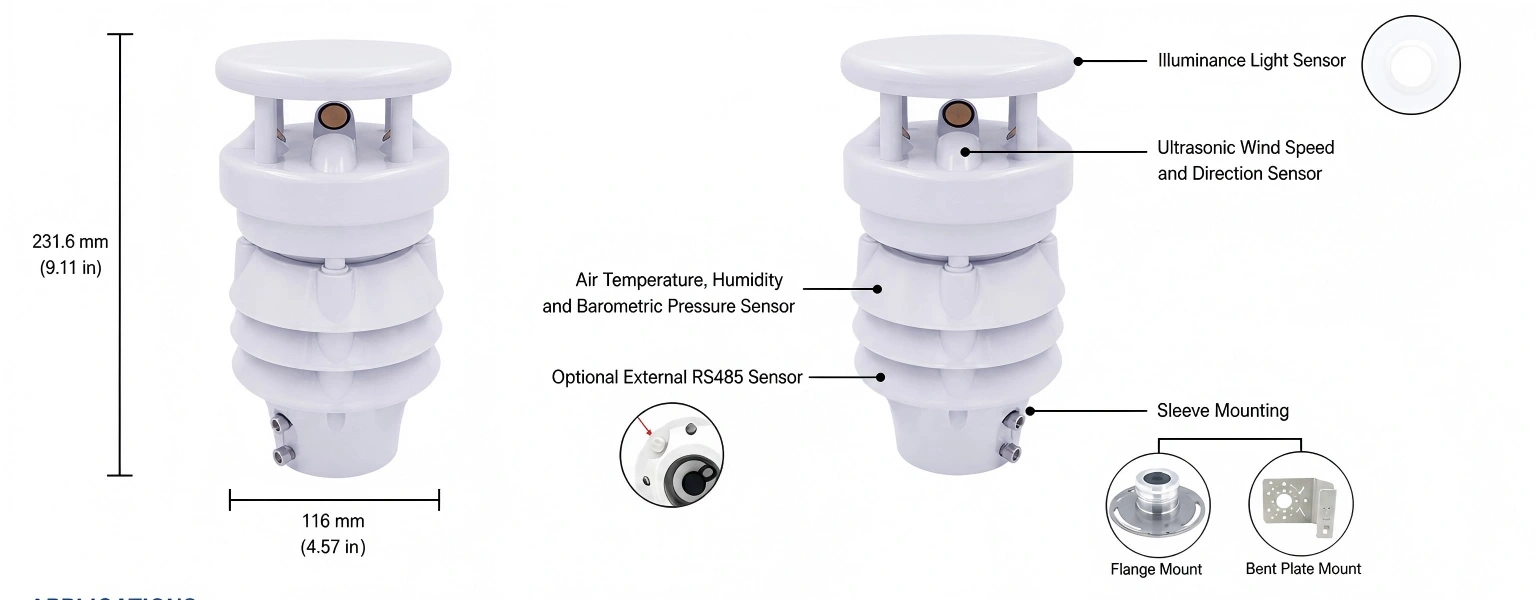

Mounting	Sleeve mounting standard flange or bent plate optional
Optional Stand	1.5 m or 1.8 m mounting stand

3. Application Scenarios

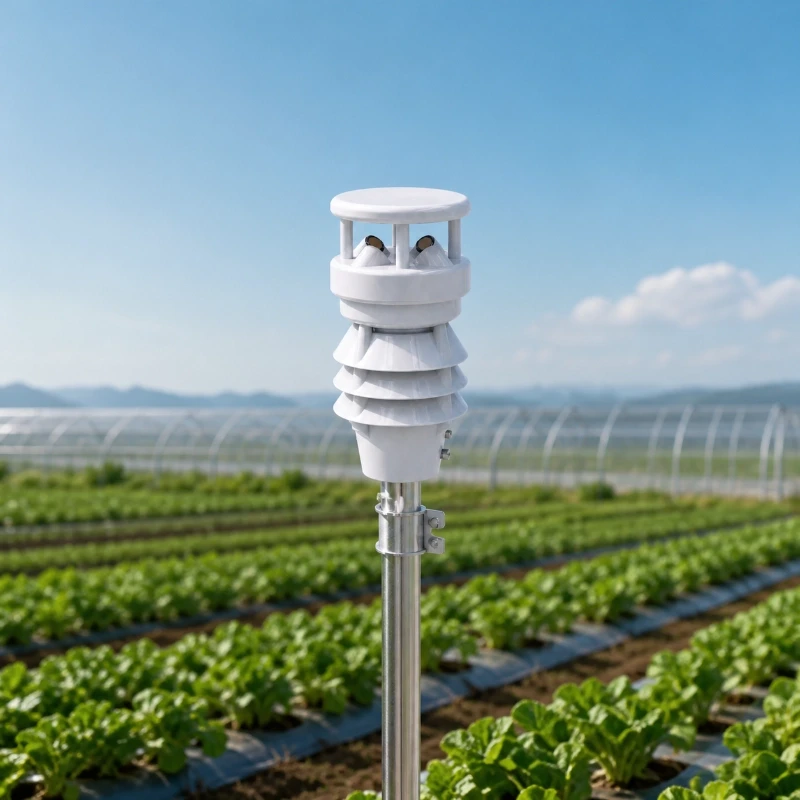

Smart agriculture weather monitoring

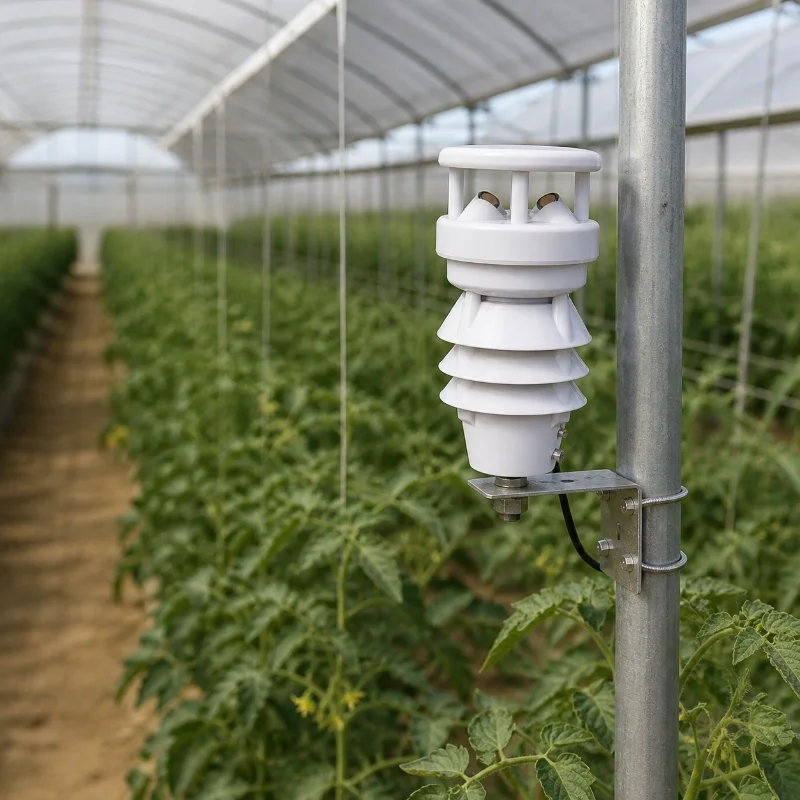

Greenhouse and open field microclimate monitoring
Solar PV power station environmental monitoring

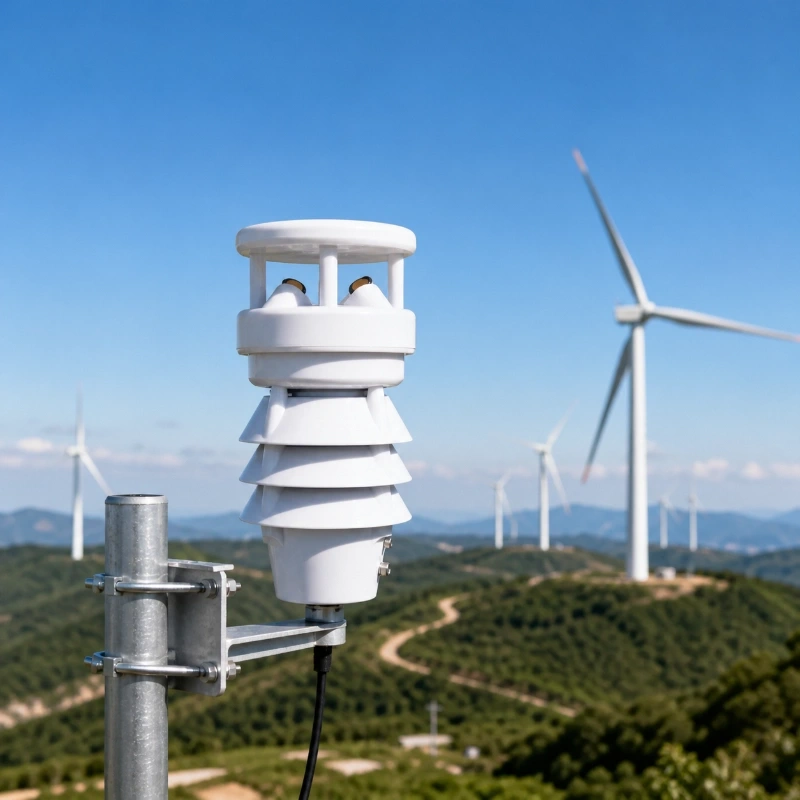

Wind farm meteorological monitoring
Road and traffic weather monitoring
Urban environmental grid monitoring
Campus rooftop and building weather stations
Remote IoT weather monitoring stations
Small weather station projects for system integrators

FAQ

Q

1. What parameters does this compact weather station measure?

A

It measures five key weather parameters including air temperature relative humidity wind speed wind direction and barometric pressure.
Q

2. Does the sensor support RS485 Modbus communication?

A

Yes. The standard version supports RS485 with Modbus RTU protocol for easy integration with data loggers RTUs PLCs and IoT gateways.
Q

3. Can JW-IoT provide this weather station for smart agriculture projects?

A

Yes. JW-IoT can supply this compact weather station for greenhouse monitoring open field farming irrigation control and agricultural microclimate monitoring.
Q

4. Is this product suitable for solar PV weather monitoring?

A

Yes. It can be used in solar PV stations to monitor environmental weather conditions such as wind temperature humidity and pressure.
Q

5. Does the weather station have moving parts?

A

The wind speed and wind direction are measured using ultrasonic technology with no moving parts which helps improve durability and reduce maintenance.
Q

6. Can JW-IoT customize communication protocols or functions?

A

Yes. JW-IoT can support optional functions such as SDI 12 NMEA ASCII CAN GPS electronic compass heating function and built in 4G depending on project requirements.
Q

7. What is the protection rating of the compact weather station?

A

The product has an IP65 protection rating for outdoor environmental monitoring applications.
Q

8. Can this sensor be used in traffic weather monitoring?

A

Yes. It is suitable for road weather monitoring traffic safety systems bridge weather stations and other distributed monitoring points.
Q

9. Does JW-IoT provide mounting accessories for field installation?

A

Yes. JW-IoT can provide optional mounting options such as flange mounting bent plate mounting and 1.5 m or 1.8 m support stands for different installation sites.
