Compact Weather Station Sensor With Optical Rain Gauge For Smart Agriculture
Key Features
4 in 1 weather monitoring: Measures air temperature, relative humidity, atmospheric pressure, and optical rainfall in one compact device.
Integrated optical rain gauge: Detects rainfall through optical sensing without mechanical tipping parts, suitable for mobile monitoring and low-maintenance outdoor sites.
RS485 Modbus RTU output: Standard RS485 interface supports Modbus RTU protocol for easy integration with RTUs, data loggers, gateways, PLCs, and cloud platforms.
Compact all in one structure: The integrated design reduces wiring complexity and makes field installation easier.
No moving parts: Modular design without moving mechanical parts improves reliability and reduces maintenance requirements.
Outdoor radiation shield design: The temperature, humidity, and pressure sensing module is installed inside a multi-layer outdoor radiation shield to reduce solar radiation impact.
Wide working temperature range: Supports outdoor operation from -40°C to 80°C, suitable for harsh field environments.
IP65 weatherproof protection: Designed for long-term outdoor deployment in agricultural, meteorological, traffic, solar, and wind power monitoring systems.
JW-XF400(YN20) Compact Weather Station Sensor is an integrated four-parameter micro weather station designed for continuous outdoor monitoring of air temperature, relative humidity, atmospheric pressure, and optical rainfall. With a compact structure, RS485 Modbus RTU output, IP65 protection, and DC9–30V power input, it is suitable for smart agriculture, automatic weather stations, road weather monitoring, solar farms, wind power sites, urban environmental monitoring, and remote IoT weather networks.
2. Product Overview

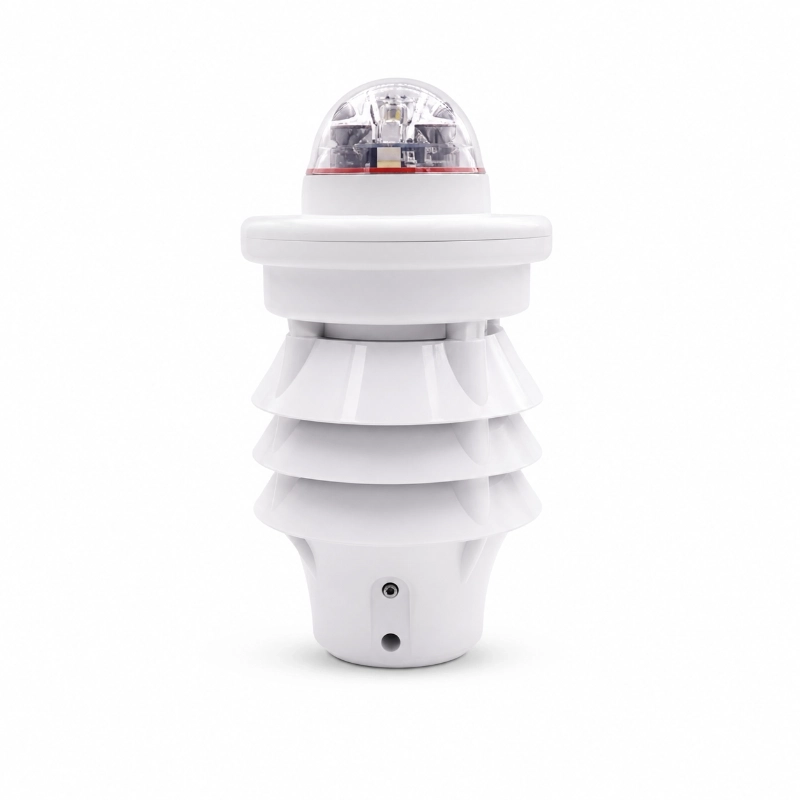

JW-XF400(YN20) compact weather station sensor is designed for multi-parameter outdoor weather monitoring where space, installation time, and maintenance cost matter. It integrates four key weather parameters into one device, allowing users to collect temperature, humidity, pressure, and rainfall data through a single digital communication interface.
The optical rainfall module detects raindrops on the sensor surface and calculates rainfall based on droplet size and quantity. Compared with traditional tipping bucket rain gauges, optical rainfall measurement has no moving parts and is more suitable for mobile monitoring, distributed stations, and unattended sites where mechanical maintenance is difficult.
The radiation shield structure helps reduce the influence of direct sunlight on temperature and humidity measurement, while the IP65 housing supports long-term operation in outdoor environments.
Parameter
Specification
Product Type
Compact Micro Weather Station
Measured Parameters
Air temperature relative humidity atmospheric pressure optical rainfall
Temperature Range
-40°C to 85°C
Temperature Accuracy
±0.3°C at 25°C
Temperature Resolution
0.01°C
Humidity Range
0 to 100%RH
Humidity Accuracy
±3%RH from 10% to 90%RH non-condensing
Humidity Resolution
0.01%RH
Pressure Range
500 to 1100hPa
Pressure Accuracy
±0.5hPa at 25°C 950 to 100hPa
Pressure Resolution
0.1hPa
Rainfall Measurement Type
Optical
Rainfall Range
0 to 200mm/h
Rainfall Resolution
0.01mm
Sampling Frequency
1Hz
Working Temperature
-40°C to 80°C
Output Signal
RS485 Modbus RTU
Optional Output
SDI 12 with additional module
Maximum Output Frequency
Passive mode 1 per second active mode 1 per minute
Power Supply
DC9 to 30V
Protection Grade
IP65
Mounting Method
Sleeve mounting standard flange or bent plate optional
Optional Bracket
1.5 m or 1.8 m bracket
Cable
3 m standard cable optional 10 m communication cable

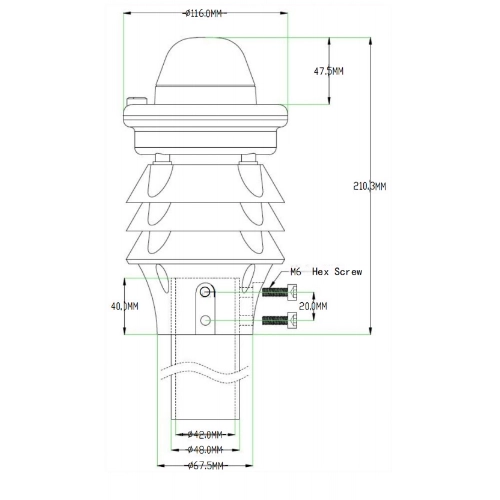

Product Diameter
116 mm
Product Height
Approximately 210.3 mm
3. Application Scenarios

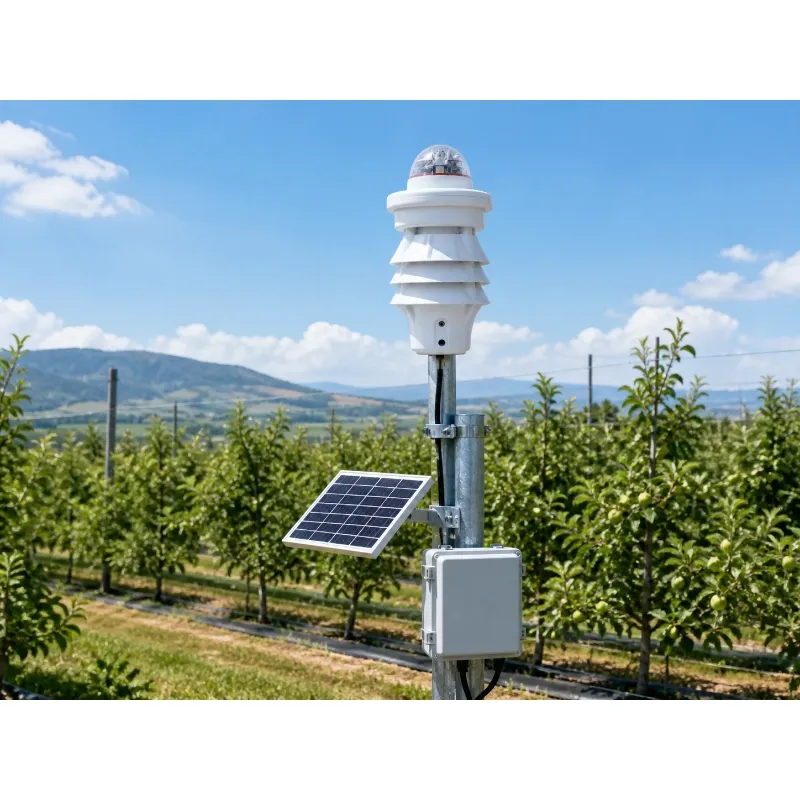

Smart Agriculture Weather Monitoring: The sensor can be installed in farms, orchards, greenhouses, and irrigation zones to monitor microclimate conditions, rainfall events, temperature changes, and humidity trends for crop management.
Automatic Weather Stations: It is suitable for compact weather stations and distributed meteorological networks where temperature, humidity, pressure, and rainfall need to be collected through one integrated device.

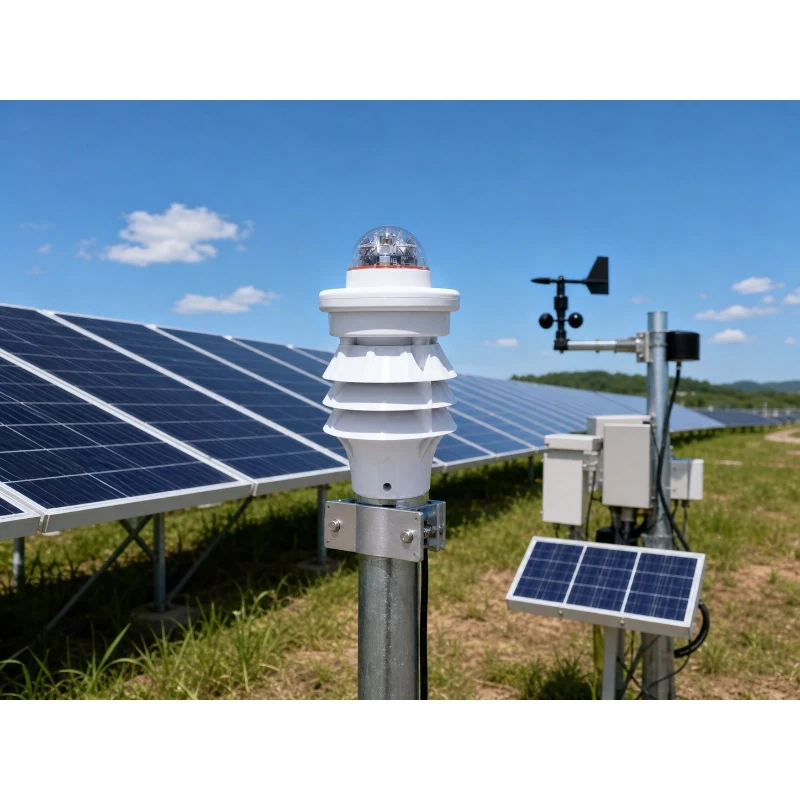

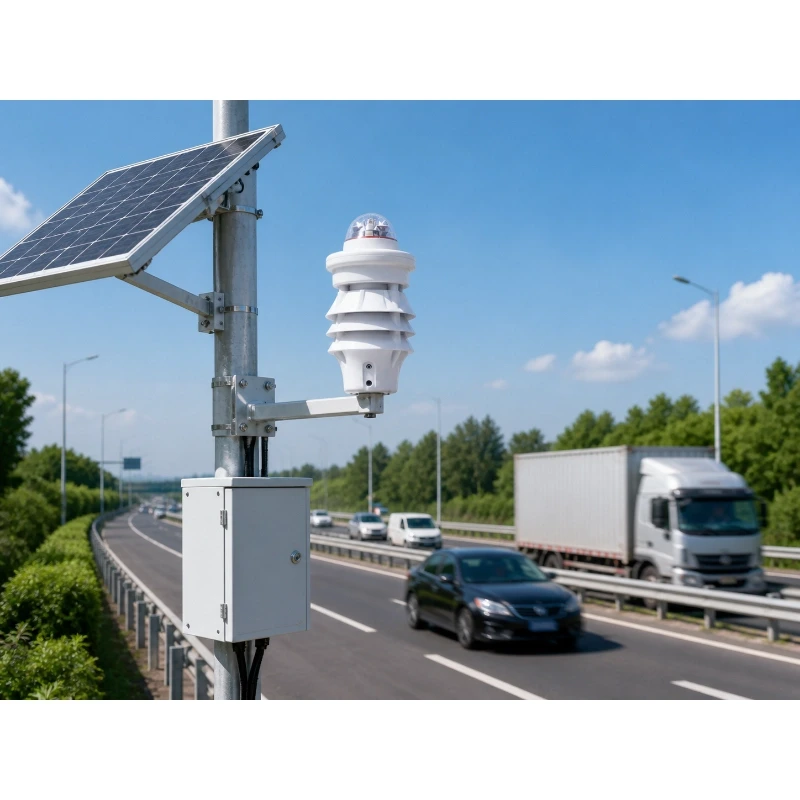

Road Weather Monitoring: The sensor can support highways, bridges, tunnels, and traffic safety systems by providing rainfall and environmental data for weather warning and road operation management.
Solar Farm Environmental Monitoring: In photovoltaic power plants, the sensor can provide local weather data for PV performance evaluation, operation management, and environmental monitoring.

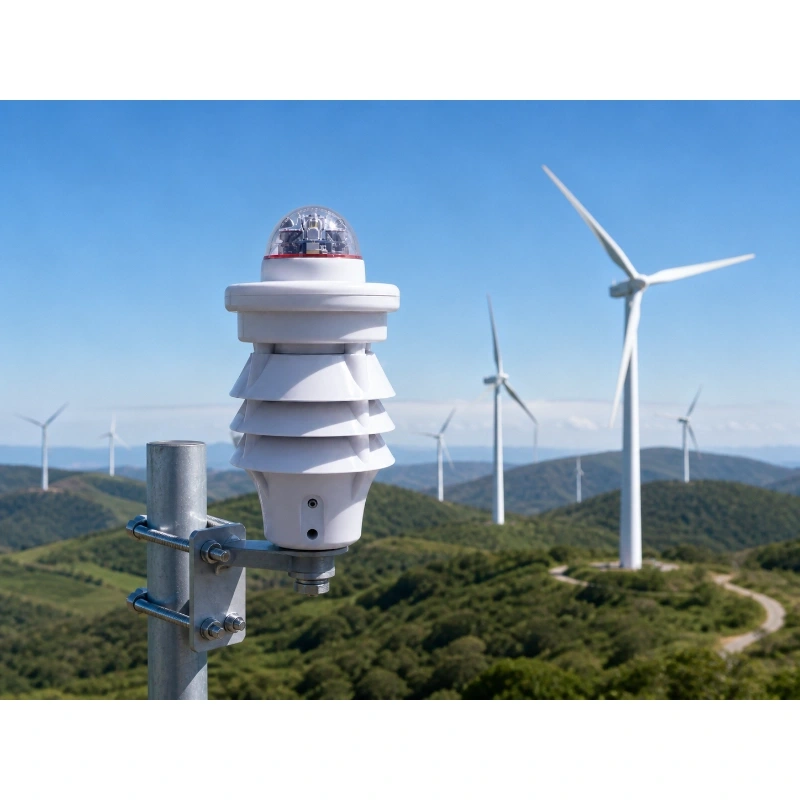

Wind Power Site Monitoring: The compact station can be used in wind farm environmental monitoring systems to collect key weather parameters around turbines and site facilities.

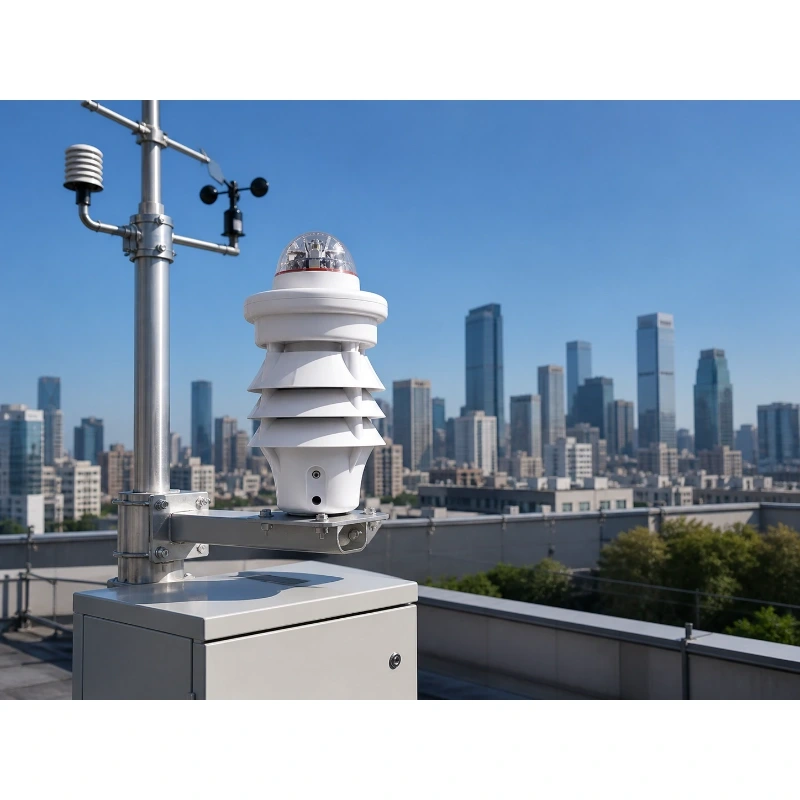

Urban Microclimate Monitoring: It supports smart city environmental networks, urban grid monitoring, rooftop weather stations, and community-level weather observation.
Remote and Mobile Monitoring: Because the optical rain gauge has no moving parts, it is suitable for remote, mobile, and unattended monitoring points where maintenance is limited.
FAQ
Q
1. What parameters does this compact weather station measure?
A
It measures air temperature, relative humidity, atmospheric pressure, and optical rainfall.
Q
2. Does this weather station support RS485 Modbus RTU?
A
Yes. The standard version supports RS485 Modbus RTU output for integration with data loggers, RTUs, gateways, and IoT platforms.
Q
3. What is the rainfall measurement method?
A
It uses optical rainfall sensing to detect raindrops on the sensor surface and calculate rainfall based on droplet size and quantity.
Q
4. Can JW-IoT integrate this compact weather station into smart agriculture systems?
A
Yes. JW-IoT can integrate this sensor into farm weather stations, greenhouse monitoring systems, irrigation platforms, and agricultural IoT solutions.
Q
5. Is the optical rain gauge better than a tipping bucket rain gauge?
A
Optical rainfall sensing has no moving parts and is easier to maintain, especially for mobile or unattended sites. For high-precision rainfall metering in heavy rain events, a tipping bucket or professional rain gauge may still be preferred.
Q
6. Can this sensor be used outdoors for long-term monitoring?
A
Yes. It has IP65 protection and supports a working temperature range of -40°C to 80°C.
Q
7. Can JW-IoT provide mounting accessories for this weather station?
A
Yes. JW-IoT can support sleeve mounting, optional flange mounting, bent plate mounting, and 1.5 m or 1.8 m brackets according to project needs.
Q
8. Where can this compact weather station be used?
A
It can be used in meteorological monitoring, smart agriculture, road weather stations, photovoltaic sites, wind farms, urban environmental monitoring, and remote weather networks.
Q
9. Can JW-IoT support cloud platform connection for this sensor?
A
Yes. JW-IoT can support RS485 Modbus data integration with local software, IoT gateways, cloud platforms, and third-party monitoring systems.
