PV Weather Monitoring Station for Distributed Solar Plants

Key Features

Designed for distributed photovoltaic plants: Suitable for rooftop solar systems, commercial PV projects, distributed solar farms, and remote photovoltaic monitoring sites.
Multi parameter environmental monitoring: Measures solar irradiance, ambient temperature, humidity, wind speed, wind direction, air pressure, module temperature, and sunshine duration.
Reliable solar performance data support: Helps evaluate the relationship between meteorological conditions and photovoltaic power generation efficiency.
Integrated data acquisition unit: Built in data logger collects, stores, and transmits real time environmental and PV performance data.
High accuracy sensor configuration: Supports accurate measurement of weather and irradiance parameters for solar plant operation and assessment.
Compact pole mounted structure: Easy to install on rooftops, solar farms, industrial buildings, and distributed PV project sites.
Remote monitoring ready: Can be integrated with monitoring platforms or energy management systems for real time data viewing.
Supports PV operation and maintenance: Provides data reference for power generation comparison, fault diagnosis, cleaning decisions, and energy yield analysis.
Suitable for harsh outdoor environments: Designed for long term outdoor use in solar power plant applications.
Expandable monitoring solution: Can be configured with different sensors and communication methods according to project requirements.

Product Description

1. Description

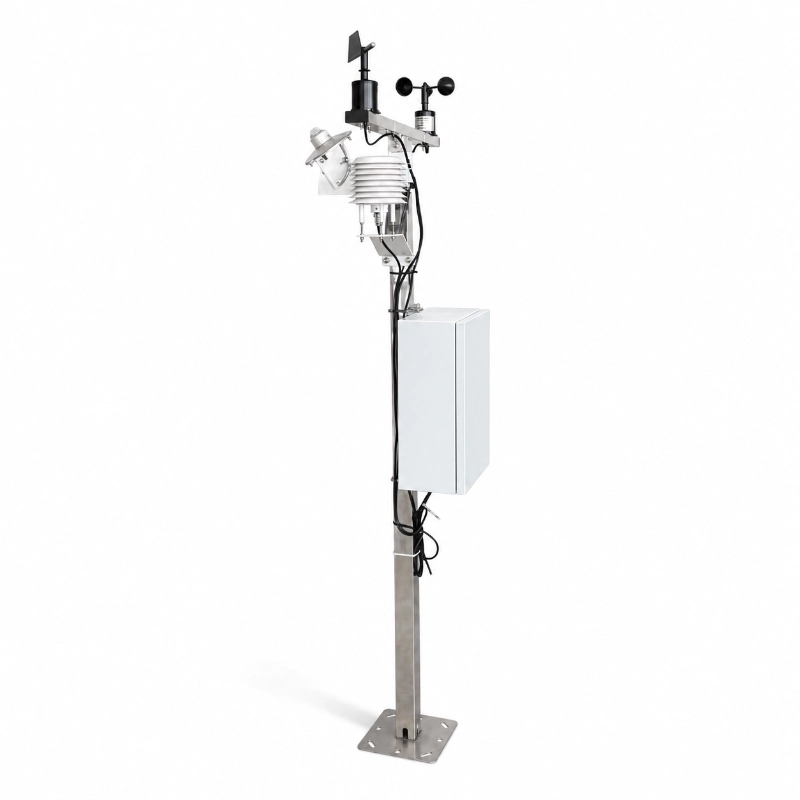

JW-QTF(LC6) PV Weather Monitoring Station is an intelligent environmental monitoring system designed for distributed photovoltaic power stations. It integrates multiple meteorological sensors and a data acquisition unit to monitor key environmental parameters such as solar irradiance, ambient temperature, humidity, wind speed, wind direction, air pressure, module temperature, and sunshine duration.

This PV weather station provides accurate data support for solar power generation analysis, plant operation optimization, fault warning, energy efficiency evaluation, and long-term photovoltaic performance monitoring. It is suitable for rooftop solar systems, distributed PV plants, commercial solar projects, agricultural photovoltaic sites, and utility solar monitoring applications.

2. Product Overview

JW-QTF(LC6) PV Weather Monitoring Station is a professional meteorological monitoring device developed for photovoltaic power generation projects. Accurate environmental data is essential for evaluating PV plant performance, especially in distributed solar systems where installation conditions vary by building, rooftop, region, and local climate.

By collecting real time weather and irradiance data, this system helps operators understand how sunlight, temperature, wind, humidity, and module temperature affect solar power output. It provides valuable support for PV system performance ratio analysis, power generation forecasting, equipment maintenance, fault warning, and energy efficiency evaluation.

This model is especially suitable for distributed photovoltaic power stations, including urban rooftop PV systems, commercial buildings, industrial parks, agricultural PV projects, and small to medium solar farms.

Sensor Parameter	Measuring Range	Accuracy	Resolution
Ambient Temperature	-40 to 125°C	±0.2°C	0.1°C
Ambient Humidity	0 to 100%RH	±2%RH below 80%RH ±3%RH above 80%RH	0.1%RH
Wind Speed	0 to 60 m/s	±3% plus 0.03V m/s	0.1 m/s
Wind Direction	0 to 360°	±3°	1°
Air Pressure	300 to 1100 hPa	±0.2 hPa	0.1 hPa
Module Temperature	-50 to 150°C	±0.2°C	0.1°C
Global Irradiance	0 to 2000 W/m²	≤2%	1 W/m²
Sunshine Duration	0 to 24 h	±0.1 h	0.1 h

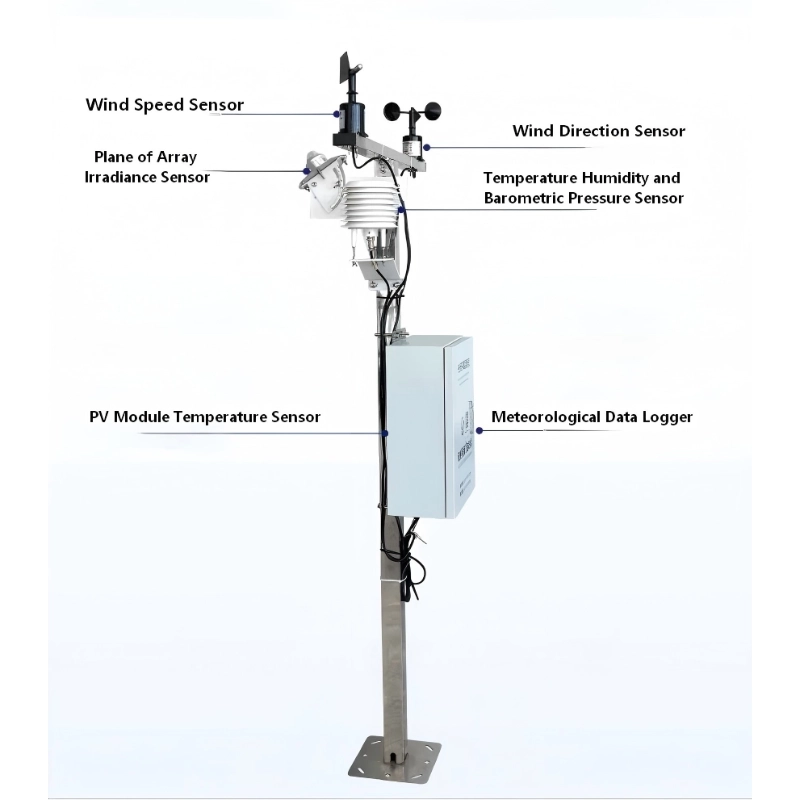

3.Standard Components

4. Communication and Data Functions

The PV weather monitoring station can support multiple communication and integration options depending on the project:

RS485 Modbus communication
Ethernet or RJ45 communication
4G wireless transmission
HTTP data upload
Local data logging
Remote platform monitoring
Integration with PV monitoring software
Customized data interface for third party systems

Although this station is configured for photovoltaic projects, the same sensor-to-cloud architecture can also be adapted for agriculture, water resources, industrial sites, and environmental observation. Explore the broader IoT weather monitoring solution.

5. Application Scenarios

Distributed photovoltaic power stations
Rooftop solar power systems
Commercial building PV projects
Industrial park solar systems
Agricultural photovoltaic projects
Small and medium solar farms
Solar resource monitoring
PV performance ratio analysis
Photovoltaic operation and maintenance
Renewable energy research projects Remote solar site monitoring
Solar power generation efficiency evaluation

FAQ

Q

1. What is a PV weather monitoring station used for?

A

A PV weather monitoring station is used to collect environmental and solar radiation data at photovoltaic project sites. It helps evaluate solar power generation performance, weather impact, and system efficiency.
Q

2. What parameters can this PV weather station measure?

A

It can measure ambient temperature, humidity, wind speed, wind direction, air pressure, module temperature, global irradiance, and sunshine duration.
Q

3. Is this product suitable for rooftop solar systems?

A

Yes. The compact pole mounted design makes it suitable for rooftop solar systems, commercial PV projects, and distributed photovoltaic power stations.
Q

4. Can JW-IoT provide customized PV weather monitoring solutions?

A

Yes. JW-IoT can customize sensor configuration, communication method, power supply mode, installation structure, and platform integration according to project needs.
Q

5. How does the station help improve PV plant performance?

A

It provides irradiance and weather data for comparing actual power generation with expected output. This helps identify efficiency loss, weather impact, module temperature effects, and maintenance needs.
Q

6. Does the system support remote data transmission?

A

Yes. The station can support RS485, RJ45, 4G, HTTP, and other communication methods depending on project requirements.
Q

7. Can JW-IoT integrate this station with an existing solar monitoring platform?

A

Yes. JW-IoT can support data interface customization and third party platform integration for PV plant monitoring, energy management, and remote data visualization.
Q

8. What types of solar projects can use this monitoring station?

A

It is suitable for distributed PV plants, rooftop solar projects, commercial building PV systems, industrial park solar systems, agricultural PV projects, and small to medium solar farms.
Q

9. Why choose JW-IoT for photovoltaic monitoring projects?

A

JW-IoT provides flexible photovoltaic monitoring solutions, professional sensor configuration, remote monitoring support, and customization services for solar energy projects.
