JW-S3S(Z2) soil moisture EC temperature sensor is a compact 3 in 1 probe designed for accurate root zone monitoring in agriculture greenhouse cultivation and irrigation systems. It measures volumetric soil moisture electrical conductivity and temperature in one device, helping growers optimize watering fertilization and crop management. With IP68 waterproof protection corrosion resistant electrodes and optional RS485 Modbus 0 to 2V and 4 to 20mA outputs, it is suitable for long term deployment in soil substrate and nutrient solution applications.
2. Product Overview
This 3 in 1 soil sensor is a practical choice for growers and integrators who need stable monitoring of soil moisture EC and temperature in one compact device. Its IP68 sealed body corrosion resistant electrodes and flexible output options make it well suited for greenhouses irrigation systems substrate cultivation and precision agriculture projects. For OEM supply and smart farming integration, it offers a strong balance of durability compatibility and application flexibility.
Parameter
Model No.
JW-S3S(Z2)
Product Type
Soil Moisture EC Temperature Sensor
Measurement Parameters
Soil Moisture, Electrical Conductivity, Temperature
Soil Moisture Range
0 to 50% or 0 to 100%
Soil Moisture Resolution
0.03% within 0 to 50%; 1% within 50 to 100%
Soil Moisture Accuracy
±2% within 0 to 50%; ±3% within 50 to 100%
EC Range
0 to 5000 us/cm, 0 to 10000 us/cm, 0 to 20000 us/cm
EC Resolution
10 us/cm within 0 to 10000 us/cm; 50 us/cm in higher range
EC Accuracy
±3% within 0 to 10000 us/cm; ±5% within 10000 to 20000 us/cm
EC Temperature Compensation
Built in, 0 to 50°C
Temperature Range
-40 to 80°C
Temperature Resolution
0.1°C
Temperature Accuracy
±0.5°C
Measurement Principle
FDR for soil moisture, AC bridge method for EC
Installation Method
In situ insertion into soil or direct immersion in nutrient solution
Output Options
0 to 2V, 4 to 20mA, RS485 Modbus
Optional Interface Versions
RS485 Modbus with voltage output, RS485 Modbus with current output, SDI-12 optional
Power Supply
3.6 to 30V DC, 12 to 30V DC, optional 2 to 5.5V DC
Static Power Consumption
6mA at 24V DC or 50mA at 24V DC depending on output type
Protection Rating
IP68
Operating Temperature
-40 to 85°C
Probe Material
Corrosion resistant special electrode
Sealing Material
Black flame retardant epoxy resin
Dimensions
88 × 26 × 68 mm
Electrode Length
50 mm
Default Cable Length
2 m
Custom Cable Length
Available on request
Connection Method
Pre installed crimp terminal

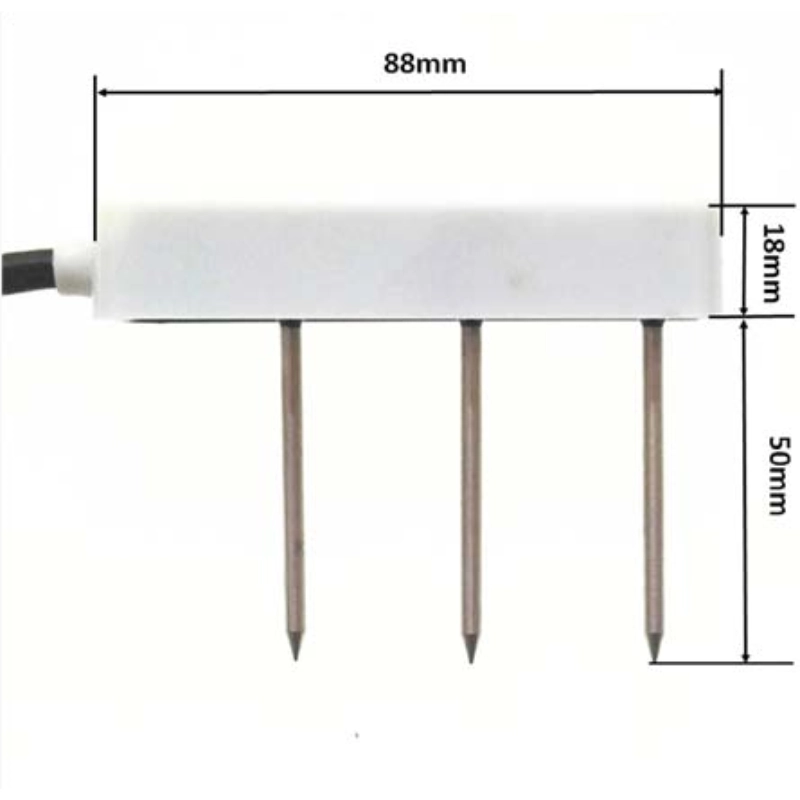

3. Dimension
4. Output Options and Communication
This soil moisture sensor is available with multiple output options for flexible integration into different monitoring systems:
0 to 2V Voltage Output
Suitable for controllers and acquisition devices with voltage input.
4 to 20mA Current Output
Suitable for industrial monitoring systems requiring anti-interference analog transmission.
RS485 Modbus Output
Suitable for PLC RTU datalogger gateway and remote IoT monitoring systems. The manual states the default communication parameters are 9600 bps no parity 8 data bits and 1 stop bit, and parameters such as Modbus address baud rate protocol parity and stop bits can be adjusted.
5. Application Scenarios
This sensor is widely used in:
Precision agriculture
Smart irrigation systems

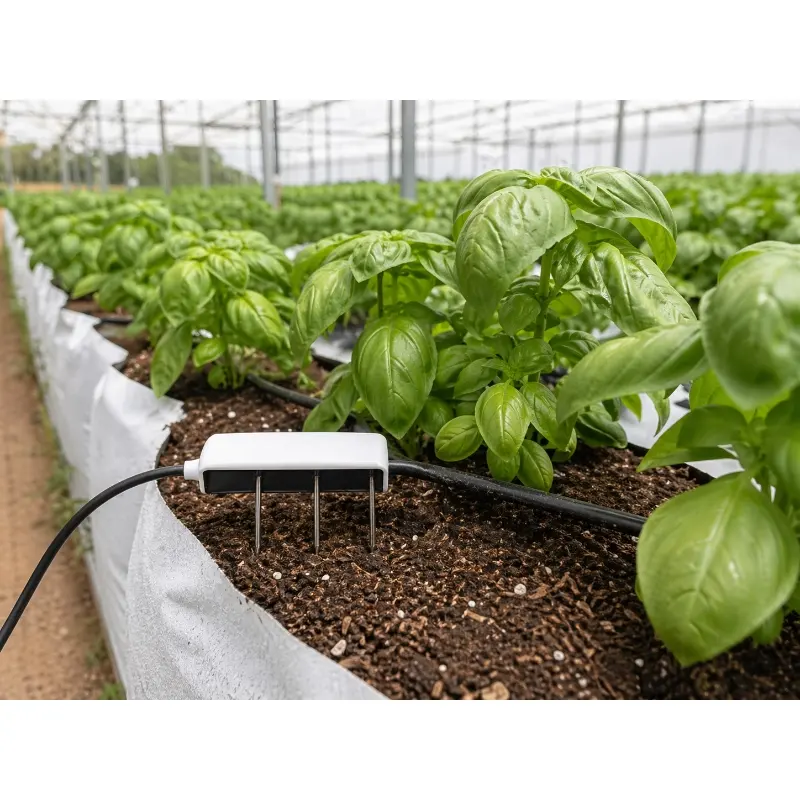

Greenhouses and tunnels
Soilless cultivation and substrate monitoring
Fertigation and nutrient solution monitoring
Flower and vegetable growing
Turf and pasture monitoring
Agricultural research and field trials
Soil condition monitoring
Environmental and water treatment projects
6.Installation and Measurement
For quick field measurement insert the probe vertically into undisturbed soil and avoid shaking during insertion to ensure close contact with the medium. For long term buried installation place the probe horizontally into the pit wall at the required depth and compact the soil after installation. EC readings are more representative when volumetric water content is above about 20% and after irrigation or rainfall.
FAQ
Q
1.What does this sensor measure？
A
It measures soil moisture electrical conductivity and temperature in one probe, helping growers monitor root zone conditions more efficiently.
Q
2. Does it support RS485 Modbus communication?
A
Yes. The sensor offers an RS485 interface with Modbus protocol, making it suitable for agricultural IoT systems controllers and data loggers.
Q
3. Can this sensor be used in nutrient solution or soilless media?
A
Yes. According to the manual it can also be used for water fertilizer integrated solutions nutrient solutions and other substrates.
Q
4. Is the sensor waterproof for long term outdoor use?
A
Yes. It is rated IP68 and the manual states it can be buried in soil or immersed in water for long term dynamic monitoring.
Q
5. Can JW-IoT offer this sensor with custom cable length?
A
Yes. The default cable length of 2 meters and also states that cable length can be customized. JW-IoT can present this as an OEM or project based option.
Q
6. Is the JW-IoT soil sensor suitable for greenhouse irrigation projects?
A
Yes. This product type is suitable for greenhouse monitoring irrigation control and precision agriculture projects. For a JW-IoT product page you can position it as a reliable greenhouse soil monitoring sensor.
Q
7. Can JW-IoT provide analog output versions?
A
Yes. The product selection table includes 0 to 2V 4 to 20mA and RS485 Modbus output options, so JW-IoT can market multiple interface versions for different control systems.
Q
8. What soil moisture ranges are available?
A
The sensor offers optional moisture ranges of 0 to 50% and 0 to 100%, depending on project requirements.
Q
9. What EC ranges are available?
A
Optional EC ranges include 0 to 5000 us/cm 0 to 10000 us/cm and 0 to 20000 us/cm.
