High-Voltage Transmission Line Microclimate Monitoring Station

Solutions

Driven by reliability, precision, and global compatibility, JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

High-Voltage Transmission Line Microclimate Monitoring Station Solution

Real-Time Weather Monitoring • Icing Risk Warning • Strong Wind Assessment • Solar-Powered • 4G / LoRaWAN Connectivity • Cloud-Based Transmission Line Safety Management

Request Transmission Line Monitoring Solution

Challengesin High-Voltage Transmission Line Operation

High-voltage transmission lines are often deployed across mountains, valleys, forests, rivers, high-altitude areas, and remote outdoor environments. These areas are highly affected by local weather conditions, making real-time microclimate monitoring essential for safe and reliable power transmission.

Strong Wind and Conductor Galloping Risk

Sudden strong winds, typhoons, and complex mountain airflow may cause conductor galloping, wind deviation, tower stress, or line clearance risks.
Icing and Freezing Risk

In high-altitude and cold regions, low temperature, high humidity, wind, and precipitation may lead to conductor icing, increasing mechanical load and safety risks.
Heavy Rainfall and Geological Hazards

Continuous rainfall may cause tower foundation erosion, slope instability, landslides, and flash flood risks around transmission corridors.
Lack of Real-Time Field Weather Data

Many transmission line sections still rely on periodic inspection or regional weather forecasts, which cannot accurately reflect local microclimate conditions around towers and conductors.
Difficult Operation in Remote Areas

Transmission towers are often located in remote mountains or harsh outdoor environments, making manual inspection costly, time-consuming, and difficult during extreme weather events.

JW-IoT High-Voltage Transmission Line Microclimate Monitoring Solution

JW-IoT provides a complete IoT-based microclimate monitoring station designed for overhead transmission lines, tower sites, power corridors, and remote grid infrastructure.

Microclimate Monitoring

· Wind speed
· Wind direction
· Air temperature
· Relative humidity
· Atmospheric pressure
· Rainfall
· Solar radiation
· Illumination
· Visibility
· Local weather trend changes
Strong Wind Risk Monitoring

· Strong wind events
· Conductor galloping risk
· Wind deviation risk
· Tower stress risk
· Cross-valley and cross-river wind impact
· Typhoon-prone transmission corridor safety
Icing Risk Assessment

· Low temperature warning
· High humidity warning
· Freezing rain risk
· Conductor icing tendency
· Icing-prone section identification
· Early warning for maintenance teams
Rainfall and Tower Foundation Risk Monitoring

· Heavy rainfall monitoring
· Cumulative rainfall analysis
· Slope instability warning
· Tower foundation erosion risk
· Landslide-prone corridor monitoring
· Flash flood risk around tower sites
Communication Options

· 4G LTE for remote transmission corridors
· LoRaWAN for multi-point tower monitoring
· NB-IoT for low-power data transmission
· RS485 Modbus for sensor integration
· Ethernet for fixed site communication
· MQTT / API integration with third-party platforms
Cloud Platform Features

· Real-time monitoring dashboard
· Multi-site data visualization
· Historical data curves
· Weather trend analysis
· Device status monitoring
· Alarm notification by web, mobile app, SMS, or email
· Data export and report generation
· Integration with power utility operation platforms

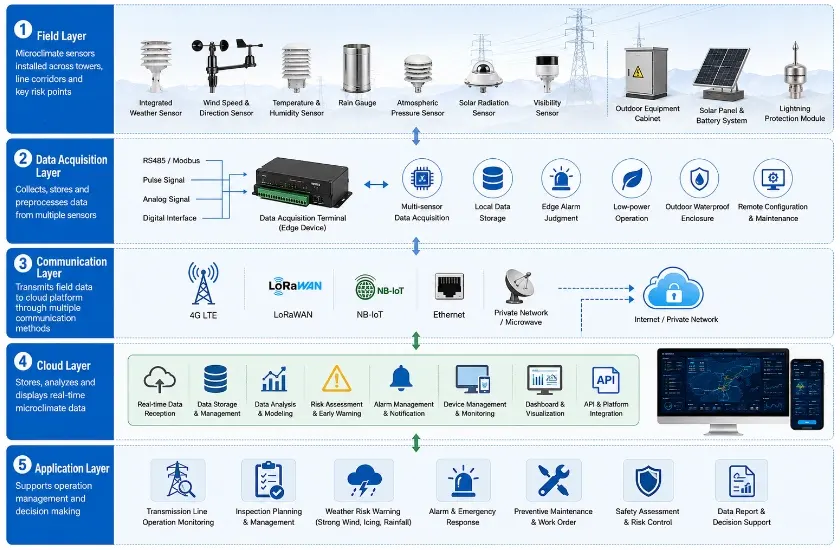

ArchitectureOverview

Microclimate Sensors → Data Acquisition Terminal → 4G / LoRaWAN / NB-IoT Gateway → Cloud Server → Web / Mobile App → Alarm Notification & Operation Decision Support

Field Layer

Microclimate sensors are installed on transmission towers, tower foundations, line corridors, mountain slopes, or key risk points.
Control Layer

The data acquisition terminal collects sensor data through RS485, Modbus, pulse signal, analog signal, or digital interface.
Communication Layer

Field data can be transmitted to the cloud platform through 4G, LoRaWAN, NB-IoT, Ethernet, or private communication networks.
Cloud Layer

The cloud platform receives, stores, analyzes, and displays real-time microclimate data. Operators can view weather conditions, alarm status, device status, and risk trends from a centralized dashboard.

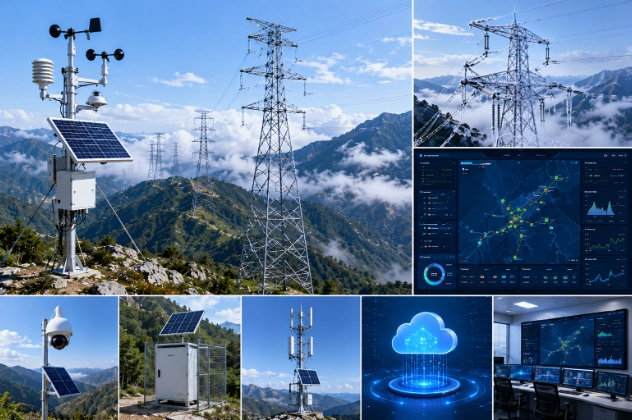

Case Study– Mountain Transmission Line Microclimate Monitoring Project

Driven by reliability, precision, and global compatibility, JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

Project Type: Real-Time Microclimate Monitoring and Weather Risk Warning for High-Voltage Transmission Lines

Project Scale: High-altitude tower sites and icing-prone line sections

Communication:LoRaWAN + 4G Gateway

Deployment:

· 20 Microclimate Monitoring Stations
· 20 Wind Speed and Wind Direction Sensors
· 20 Temperature and Humidity Sensors
· 12 Tipping Bucket Rain Gauges
· 8 Atmospheric Pressure Sensors
· 8 Solar Radiation Sensors
· 6 Visibility Monitoring Points
· 10 Solar Power Supply Systems
· 4 LoRaWAN Gateways
· 1 Cloud-Based Transmission Line Monitoring Platform
Results:

✔ 24-hour real-time monitoring of local weather conditions
✔ Faster identification of strong wind and icing risk
✔ Improved safety assessment for transmission line operation
✔ Reduced manual inspection workload in remote mountain areas
✔ Centralized monitoring of multiple tower sites
✔ Real-time alarm notification for extreme weather events
✔ Better data support for preventive maintenance and emergency response
✔ Improved operation reliability of high-voltage transmission corridors

Why Choose JW-IoT?

Empower Your Smart Solutions

Scenario-Driven Architecture
Compatible With Existing Greenhouse Motors
OEM / White Label Support
Multi-Protocol Integration
Modular & Scalable Design
Remote Technical Support

Empower Your Smart Solutions

Scenario-Driven Architecture
Compatible With Existing Greenhouse Motors
OEM / White Label Support
Multi-Protocol Integration
Modular & Scalable Design
Remote Technical Support

Scopeof Applications

JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

Suitable For

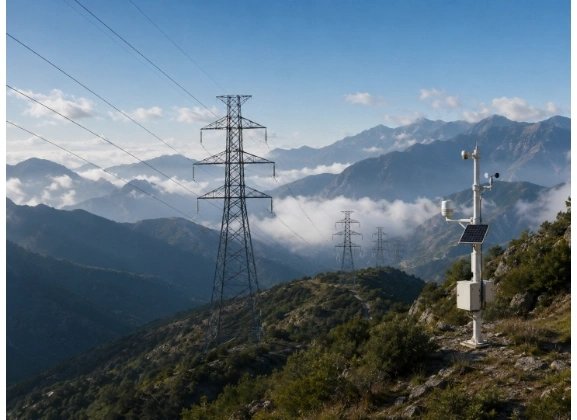

Mountain transmission lines
Suitable For

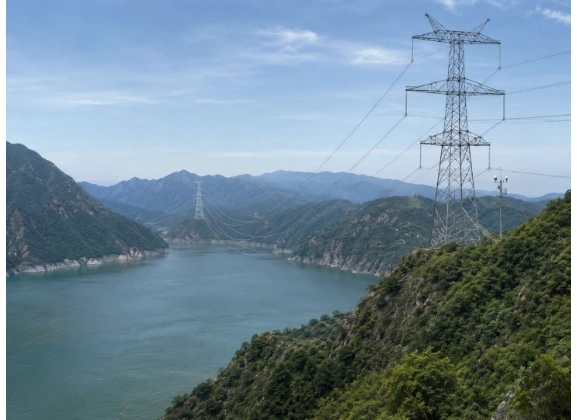

Cross-river and cross-valley transmission lines
Suitable For

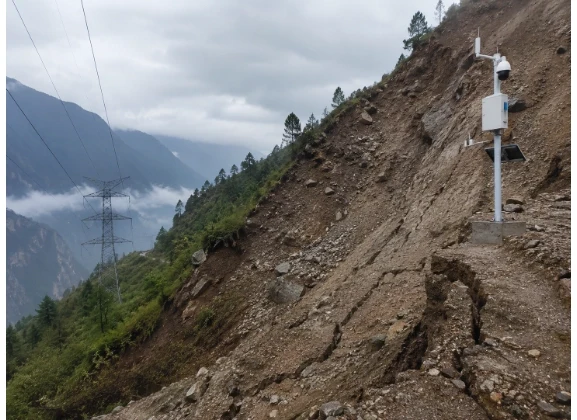

Mountain landslide early warning
Suitable For

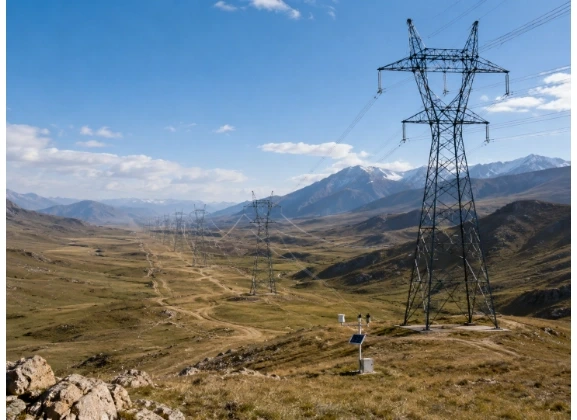

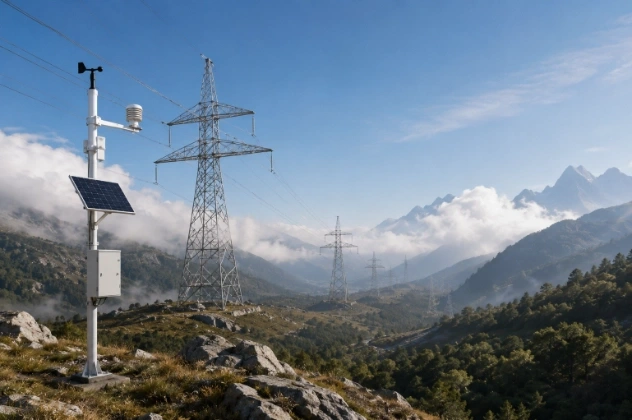

High-voltage transmission line corridors

Ready to Improve Transmission Line Safety?

Get Free System Design
Request Quotation
Speak with Technical Engineer
