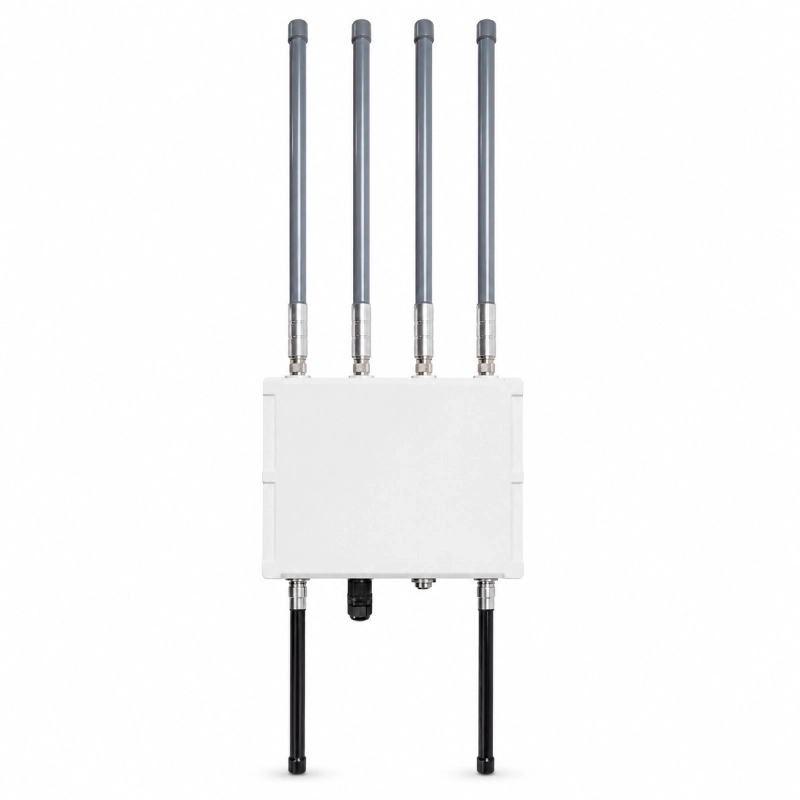

Outdoor LoRaWAN Gateway 8/16 Channel Wireless

Key Features

Supports GWMP and MQTT connections for TTN, ChirpStack, Tencent, and TTS LoRaWAN servers
Compatible with global LoRaWAN frequency plans, user-customizable channels
Supports LoRaWAN 1.0.2/1.0.3/1.0.4 protocols and Class A/C
LoRa half/full duplex: 8/16 receive channels, 1/2 transmit channels
Maximum transmit power up to 27dBm, receiver sensitivity -140dBm @ SF12 BW125kHz
Data transmission via Ethernet or 4G with offline buffering
Embedded LoRaWAN server with RS485 passive/active data output
Local web interface, remote and local upgrades/configuration
Supports terminal packet monitoring, network testing, 4G data flow statistics
LoRa wireless distance: 12km line-of-sight, 5km urban environment

Product Description

1. Description

Robust outdoor LoRaWAN gateway supporting 8/16 channels, Ethernet/4G transmission, embedded LoRaWAN server, and RS485 data output. Ideal for smart agriculture, urban monitoring, and industrial IoT networks

2. Product Overview

JW-OG53 series outdoor LoRaWAN gateways are designed for reliable industrial IoT deployment. They support half/full duplex communication, 8/16 receive channels, 1/2 transmit channels, and multiple connection protocols including Ethernet, 4G, and RS485. The devices are equipped with an embedded LoRaWAN server for seamless terminal data collection without setting up an external NS/AS server. Local and remote web configuration, signal monitoring, and 4G data statistics are fully supported. IP67 rated, they are ideal for outdoor installation on poles or walls, providing long-range wireless communication for urban, agricultural, and industrial applications

Parameter	G52/G53	G56/G57
LoRa Channels	8 Rx / 1 Tx	16 Rx / 2 Tx
LoRa Transmit Power	Max 27dBm	Max 27dBm
LoRa Receiver Sensitivity	-140dBm@SF12 BW125kHz	-140dBm@SF12 BW125kHz
CPU	MT7688, 580MHz	MT7688, 580MHz
RAM	128MB DDR2	128MB DDR2
FLASH	64MB NandFlash	64MB NandFlash
4G Modem	Quectel EC20 CAT4	Quectel EC20 CAT4
WiFi	Optional AP/STA/AP+STA	Optional AP/STA/AP+STA
Power	POE DC12V 2A	POE DC12V 2A
Max Power Consumption	≤15W	≤20W
Dimensions	216×216×70 mm	216×216×70 mm
Weight	~4kg	~4kg
Temperature	-40~80°C	-40~80°C
Humidity	0~95% non-condensing	0~95% non-condensing
Waterproof	IP67	IP67
Mounting	Wall or pole	Wall or pole
RS485 Interface	M16 waterproof connector, Modbus-RTU	M16 waterproof connector, Modbus-RTU

3. Application Scenarios：

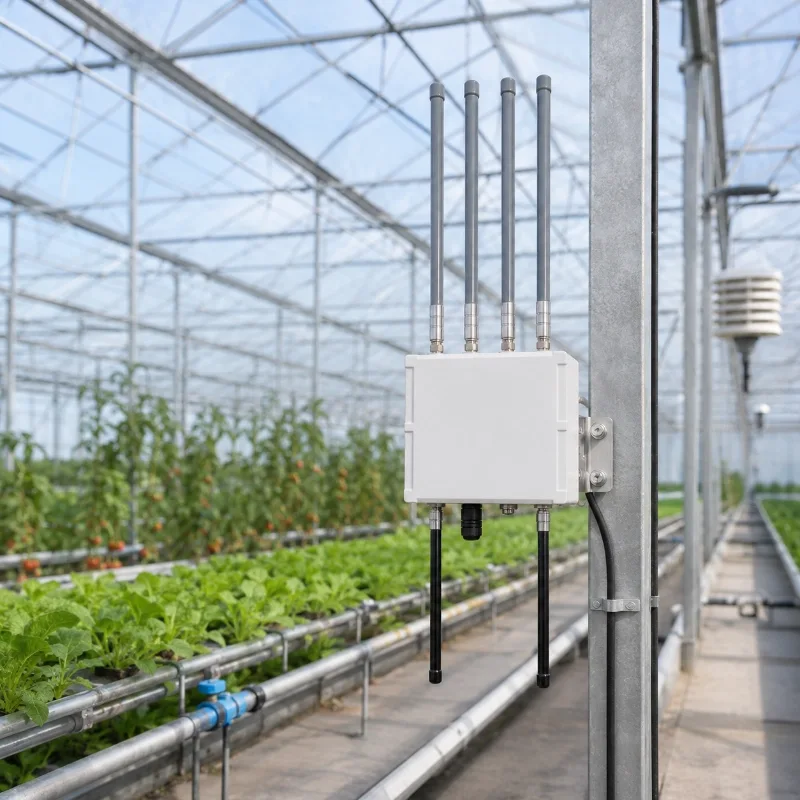

Smart agriculture & greenhouse networks

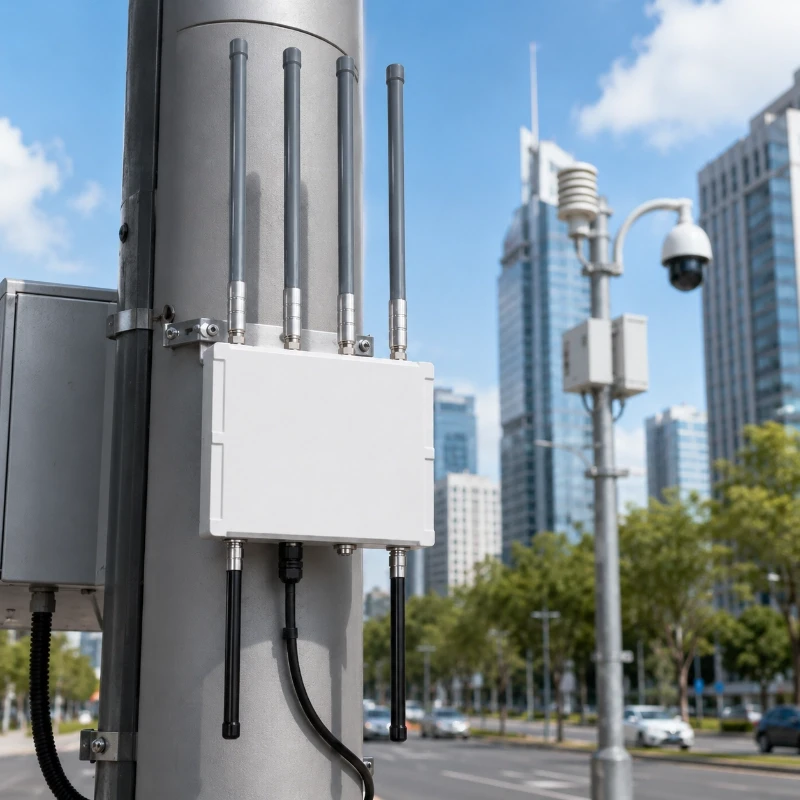

Urban environmental & infrastructure monitoring

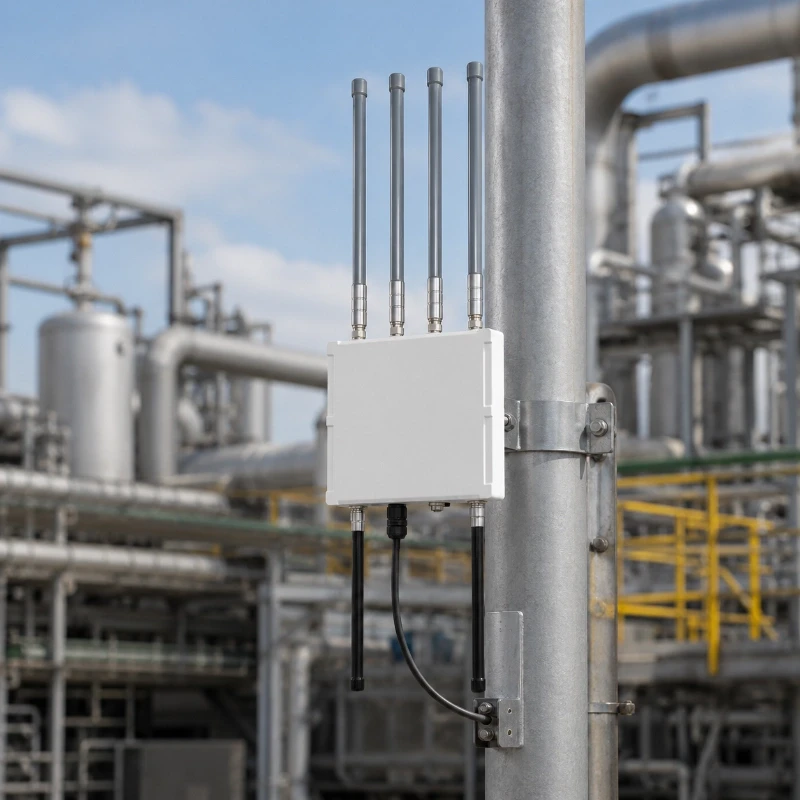

Industrial automation & telemetry
Remote IoT sensor networks
Water management and environmental monitoring：For watersheds, reservoirs, and urban drainage areas, the outdoor gateway can collect data from distributed LoRaWAN rainfall and water level monitoring nodes. This architecture is suitable for building a LoRaWAN flood monitoring system with centralized cloud alarms and multi-site management.

FAQ

Q

1. What is the difference between G52/G53 and G56/G57?

A

G52/G53 are 8-channel models, G56/G57 are 16-channel models with half/full duplex options
Q

2. Can it operate without an external LoRaWAN server?

A

Yes, the gateway has an embedded NS/AS server and can output terminal data directly
Q

3.Which network interfaces are supported?

A

Ethernet, 4G, optional WiFi (AP/STA/AP+STA), RS485 for Modbus-RTU data output.
Q

4. What is the LoRa wireless range?

A

Up to 12km line-of-sight and 5km in urban environments.
Q

5. Is the device suitable for outdoor installation?

A

Yes, rated IP67 and supports wall or pole mounting.
Q

6. Can JW-IoT provide integration support?

A

Yes, JW-IoT offers configuration guidance and integration support for G5x gateways.
Q

7. What is the power requirement?

A

POE DC12V 2A, maximum power ≤20W depending on model.
Q

8. Does it support 4G traffic monitoring?

A

Yes, including signal strength and data usage statistics.
Q

9. Which LoRaWAN protocols are supported?

A

LoRaWAN 1.0.2, 1.0.3, 1.0.4, supporting Class A/C and configurable frequency plans
