JW-DDM-206(K05)conductivity sensor is designed for online conductivity and TDS monitoring in drinking water, surface water, industrial water treatment, agricultural irrigation, and environmental water quality systems. It supports RS485 Modbus RTU output and IP68 immersion installation for long-term monitoring.
2. Product Overview

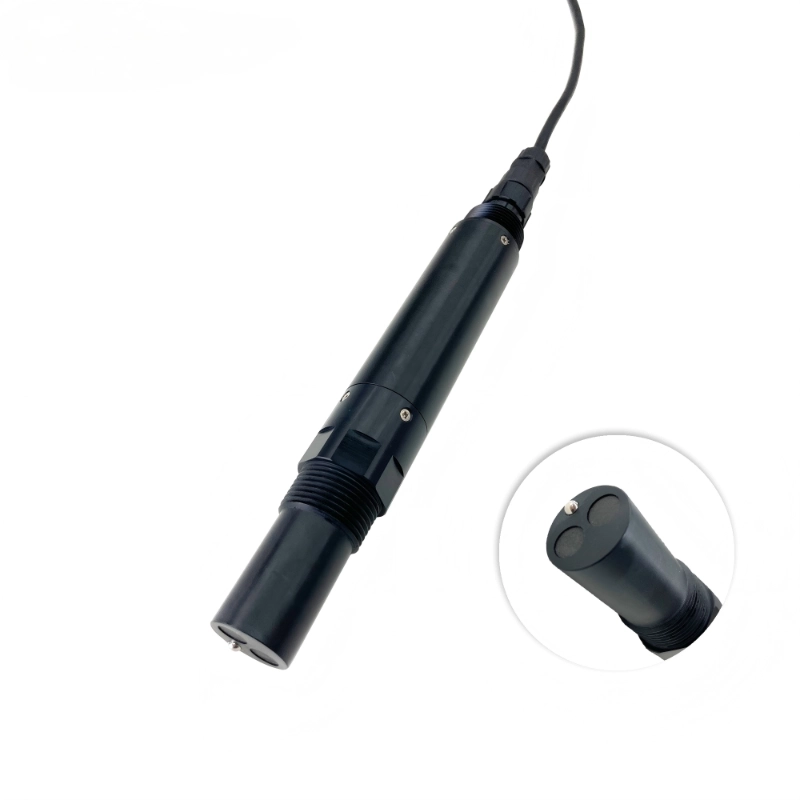

JW-DDM-206(K05)conductivity sensor is an online EC and TDS monitoring probe for continuous water quality measurement. It is suitable for drinking water, surface water, industrial water treatment, agricultural irrigation, and environmental monitoring projects.
With RS485 Modbus RTU communication, the sensor can be connected to PLC, DCS, industrial control computers, universal controllers, paperless recorders, touch screens, RTUs, and IoT gateways. The IP68-rated housing and 3/4 NPT thread allow reliable immersion installation or installation in pipelines and tanks.
The sensor supports multiple conductivity ranges, including 0–20 μS/cm, 0–200 μS/cm, 0–20000 μS/cm, and 0–200 mS/cm, making it suitable for low-conductivity water and high-conductivity industrial applications. Automatic Pt1000 temperature compensation helps maintain stable measurement performance in changing water conditions.
Item
Specification
Model
JW-DDM-206(K05)
Product Type
Online Conductivity Sensor
Measurement Principle
Electrode method
Conductivity Range
0–20 μS/cm 0–200 μS/cm 0–20000 μS/cm 0–200 mS/cm
TDS Range
0–10 mg/L 0–100 mg/L 0–10000 mg/L 0–100 g/L
Resolution
0.01 0.1 or 1 depending on range
Accuracy
±1.5% reading ±0.3°C
Response Time
T90 less than 30s
Detection Limit
0.1 0.2 2 or 8 μS/cm depending on range
Calibration
Two-point calibration
Temperature Compensation
Automatic Pt1000 compensation
Output
RS485 Modbus RTU
Storage Temperature
-5–65°C
Working Conditions
0–50°C ≤0.6MPa
Installation
Immersion installation 3/4 NPT
Power Supply
12–24V DC
Power Consumption
0.2W at 12V
Protection Rating
IP68
Cable Length
5 m standard customizable
Housing Material
316L POM ABS ABS PC alloy
3. Application Scenarios
Drinking water conductivity monitoring

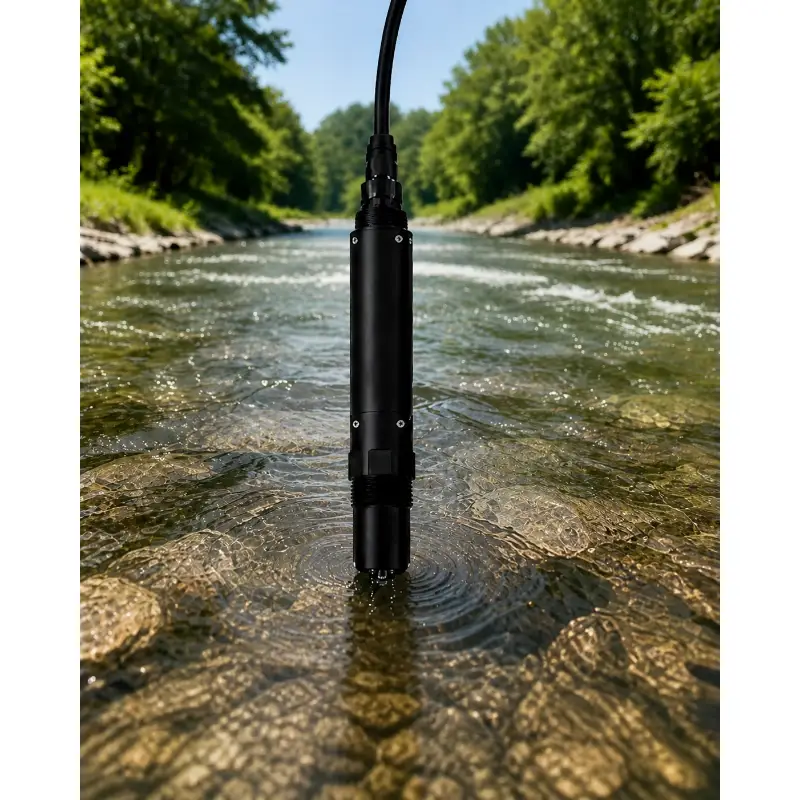

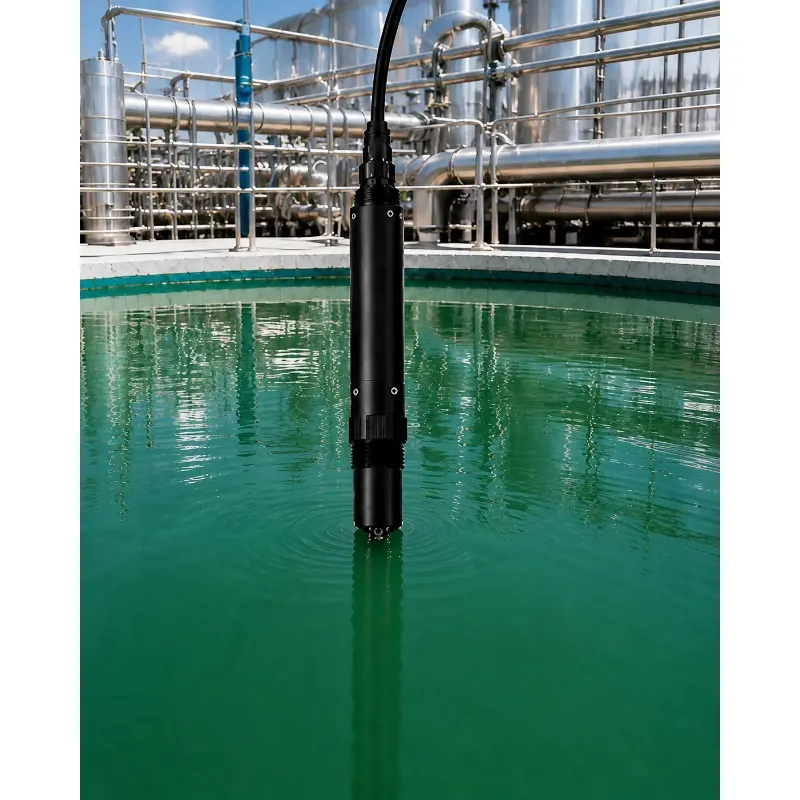

Surface water and river monitoring
Industrial water treatment systems

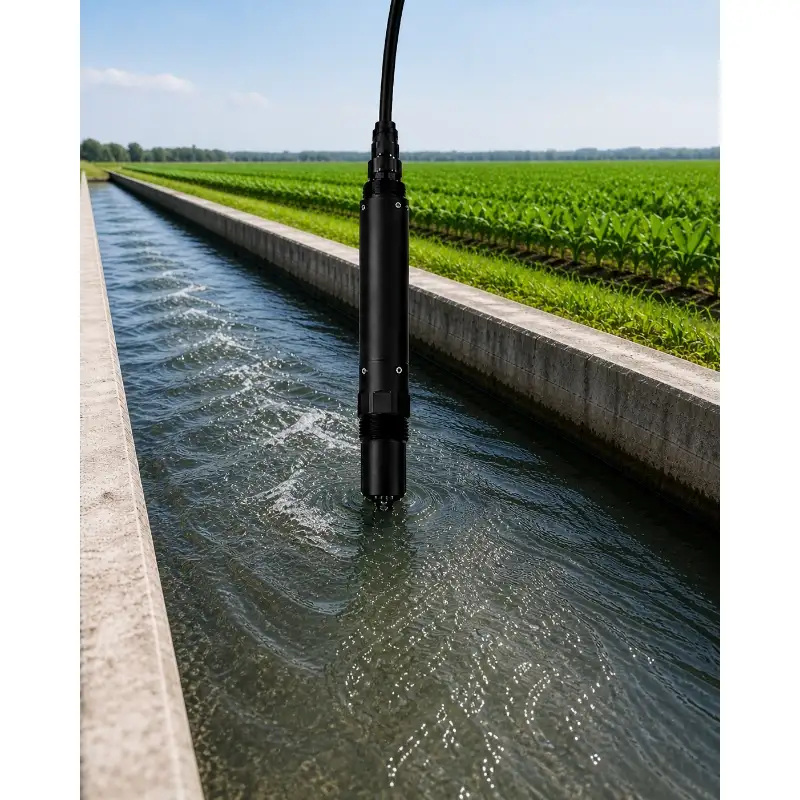

Agricultural irrigation water monitoring
Cooling water conductivity monitoring
Environmental water quality stations

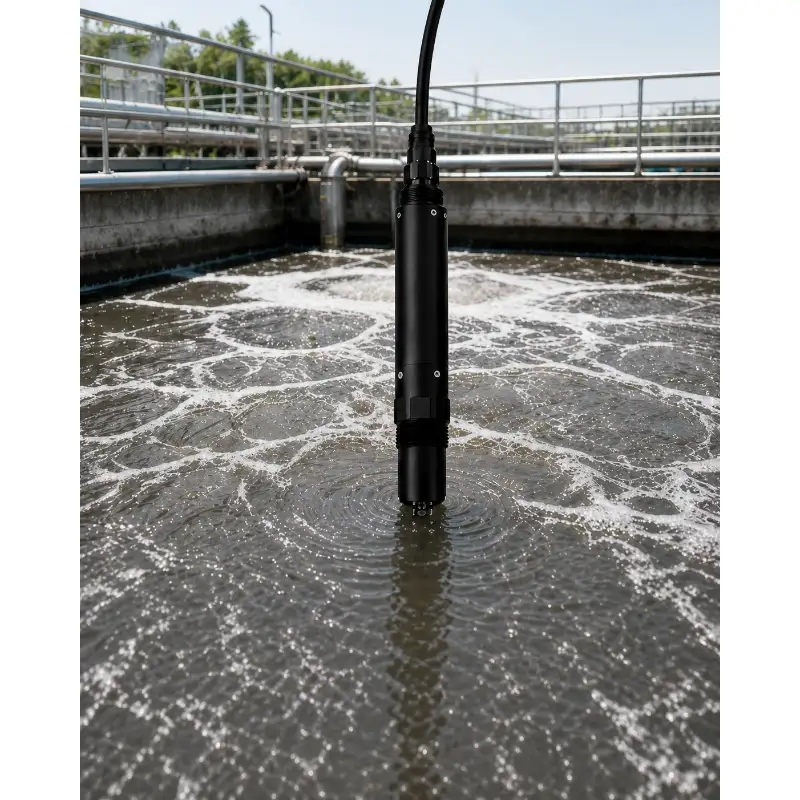

Pipeline and tank EC monitoring
Online TDS monitoring systems
Smart water quality IoT platforms
FAQ
Q
1. What is a conductivity sensor used for?
A
It is used to measure electrical conductivity and TDS in drinking water, surface water, industrial water treatment, agricultural irrigation, and environmental monitoring.
Q
2. Does this conductivity sensor support RS485 communication?
A
Yes. The sensor supports RS485 Modbus RTU output for integration with controllers, data loggers, RTUs, and IoT platforms.
Q
3. Can this sensor measure TDS as well as conductivity?
A
Yes. It can output conductivity and TDS values depending on the selected measuring range.
Q
4. Does JW-IoT support this conductivity sensor for water quality projects?
A
Yes. JW-IoT can integrate conductivity sensors into online water quality monitoring stations, cloud platforms, and remote alarm systems.
Q
5. Is the sensor suitable for immersion installation?
A
Yes. It supports 3/4 NPT immersion installation and has an IP68 waterproof rating.
Q
6. What water types can this EC sensor monitor?
A
It can be used for drinking water, surface water, industrial water, irrigation water, cooling water, and other online water quality applications.
Q
7. Does JW-IoT provide complete EC and TDS monitoring solutions?
A
Yes. JW-IoT can provide sensors, data acquisition, communication gateways, dashboards, and alarm configuration for EC and TDS monitoring.
Q
8. Does the sensor include temperature compensation?
A
Yes. It uses automatic Pt1000 temperature compensation to improve measurement stability.
Q
9. Why choose JW-IoT for online conductivity monitoring?
A
JW-IoT supports sensor selection, system integration, data visualization, and project-based water quality monitoring solutions.
