Solar PV Sensors for Smart Power Forecasting: How Sensor Data Improves Solar Energy Management

Integrating Solar PV Sensors for Smart Power Forecasting

Solar photovoltaic (PV) power generation is highly influenced by environmental conditions.

Changes in solar irradiance, module temperature, cloud movement, wind conditions and atmospheric conditions can directly affect PV output.

For modern solar plants, accurate solar power forecasting has become increasingly important for:

• Grid scheduling
• Renewable energy management
• Battery storage optimization
• Energy trading
• PV plant performance analysis

However, reliable forecasting requires more than historical electricity production data.

A professional forecasting system needs real-time environmental information collected by solar PV sensors, including:

• Solar irradiance sensors
• PV module temperature sensors
• Weather monitoring sensors
• Data acquisition equipment

By combining sensor measurements with forecasting algorithms, cloud platforms and an energy management system (EMS), solar operators can better predict future generation and improve renewable energy utilization.

JW-IoT provides complete Solar PV Monitoring System with IoT Automation solutions that integrate environmental sensors, communication systems and cloud monitoring for solar energy applications.

1. Why Solar Power Forecasting Matters for PV Plants

Solar power generation changes continuously because photovoltaic output depends on weather conditions.

For example:

• Passing clouds can rapidly reduce solar irradiance.
• High module temperatures can decrease PV efficiency.
• Dust and environmental changes can reduce energy yield.
• Seasonal weather patterns affect daily generation profiles.

Without accurate forecasting, solar plant operators may face:

• Unbalanced grid scheduling
• Lower accuracy in energy planning
• Inefficient battery charging and discharging
• Increased operational uncertainty

A smart solar forecasting system combines:

Historical PV production data
+
Real-time PV weather data
+
Solar PV sensor measurements
+
Forecasting algorithms

to estimate future power generation.

For utility-scale solar farms, real-time environmental monitoring is becoming a key component of intelligent PV operation.

2. Key Sensor Data Required for Solar Power Forecasting

A solar forecasting system depends on multiple environmental parameters.

The most important solar PV sensors include:

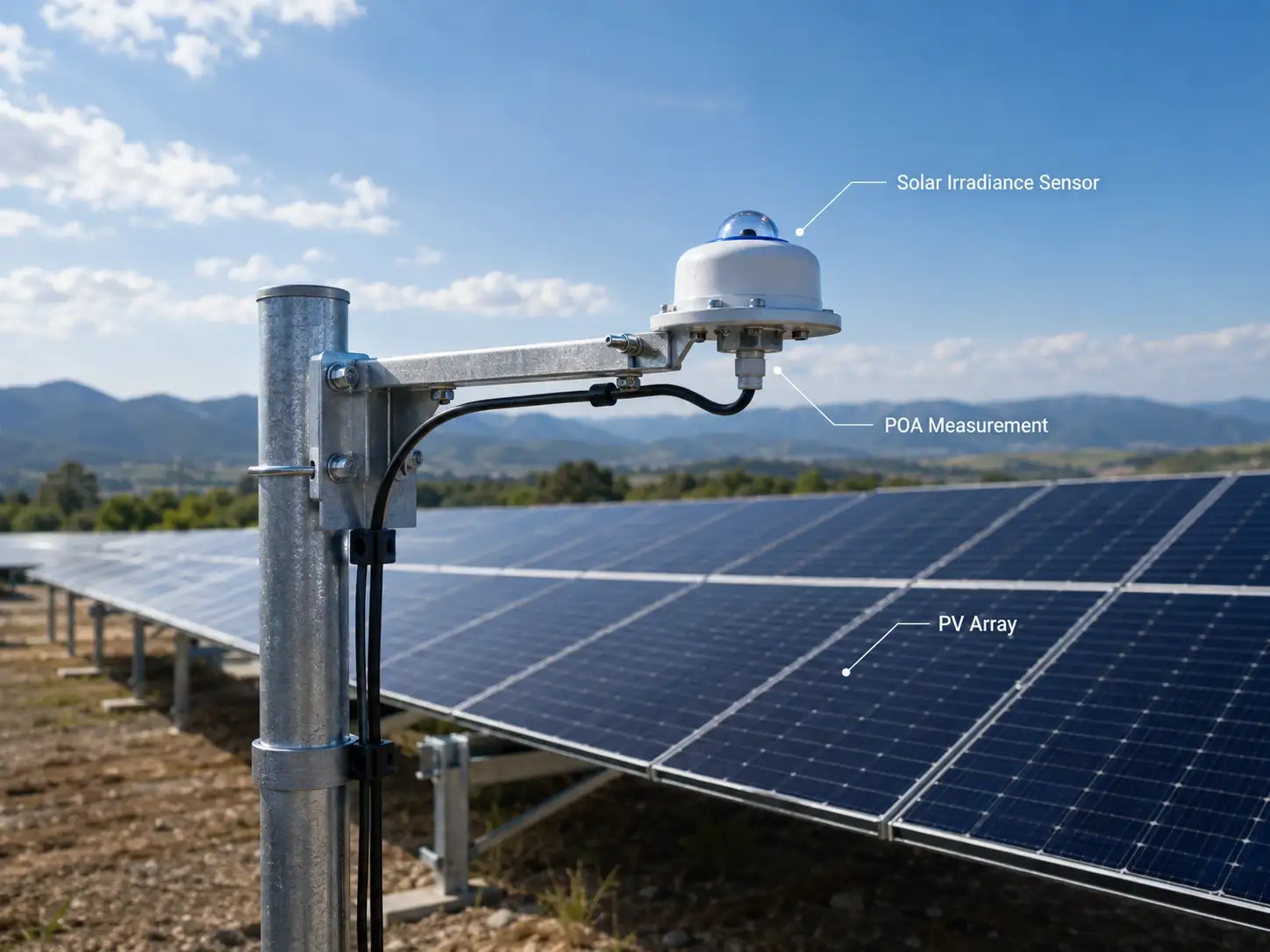

2.1 Solar Irradiance Measurement

Solar irradiance is the primary energy input for photovoltaic systems.

A solar irradiance sensor measures the amount of solar radiation received by PV modules and provides critical data for forecasting models.

Common measurements include:

• Global Horizontal Irradiance (GHI)
• Plane of Array Irradiance (POA)
• Solar radiation intensity

Among them, POA irradiance is especially important because it represents the actual solar radiation received by tilted PV modules.

Accurate irradiance measurement helps PV operators:

• Compare actual output with expected generation
• Improve forecasting accuracy
• Identify performance losses
• Evaluate PV system efficiency

JW-IoT provides Solar Irradiance Sensors for PV Monitoring designed for solar resource measurement, PV performance analysis and energy monitoring applications.

For compact PV monitoring systems, JW-IoT also provides Silicon Irradiance Sensors for PV Performance Monitoring with digital communication options for integration with PV monitoring platforms.

2.2 PV Module Temperature Monitoring

PV module temperature has a direct impact on solar panel efficiency.

As module temperature increases:

• PV voltage decreases
• Conversion efficiency declines
• Actual power output may differ from predicted values

Therefore, temperature measurement is essential for accurate solar forecasting.

A complete solar monitoring system may include:

• Back-of-module temperature sensors
• Ambient temperature sensors
• Temperature and humidity sensors

Temperature data allows forecasting models to compensate for real operating conditions.

For projects requiring detailed environmental monitoring, JW-IoT supports customized PV temperature and weather monitoring configurations.

2.3 PV Weather Data Collection

Weather conditions strongly influence photovoltaic generation.

Typical PV weather data includes:

• Wind speed
• Wind direction
• Ambient temperature
• Relative humidity
• Atmospheric pressure
• Rainfall

A dedicated weather monitoring system allows solar operators to understand how environmental changes affect PV performance.

JW-IoT provides PV Plant Weather Station Solutions integrating solar radiation sensors, weather sensors, data loggers and communication modules for utility-scale photovoltaic projects.

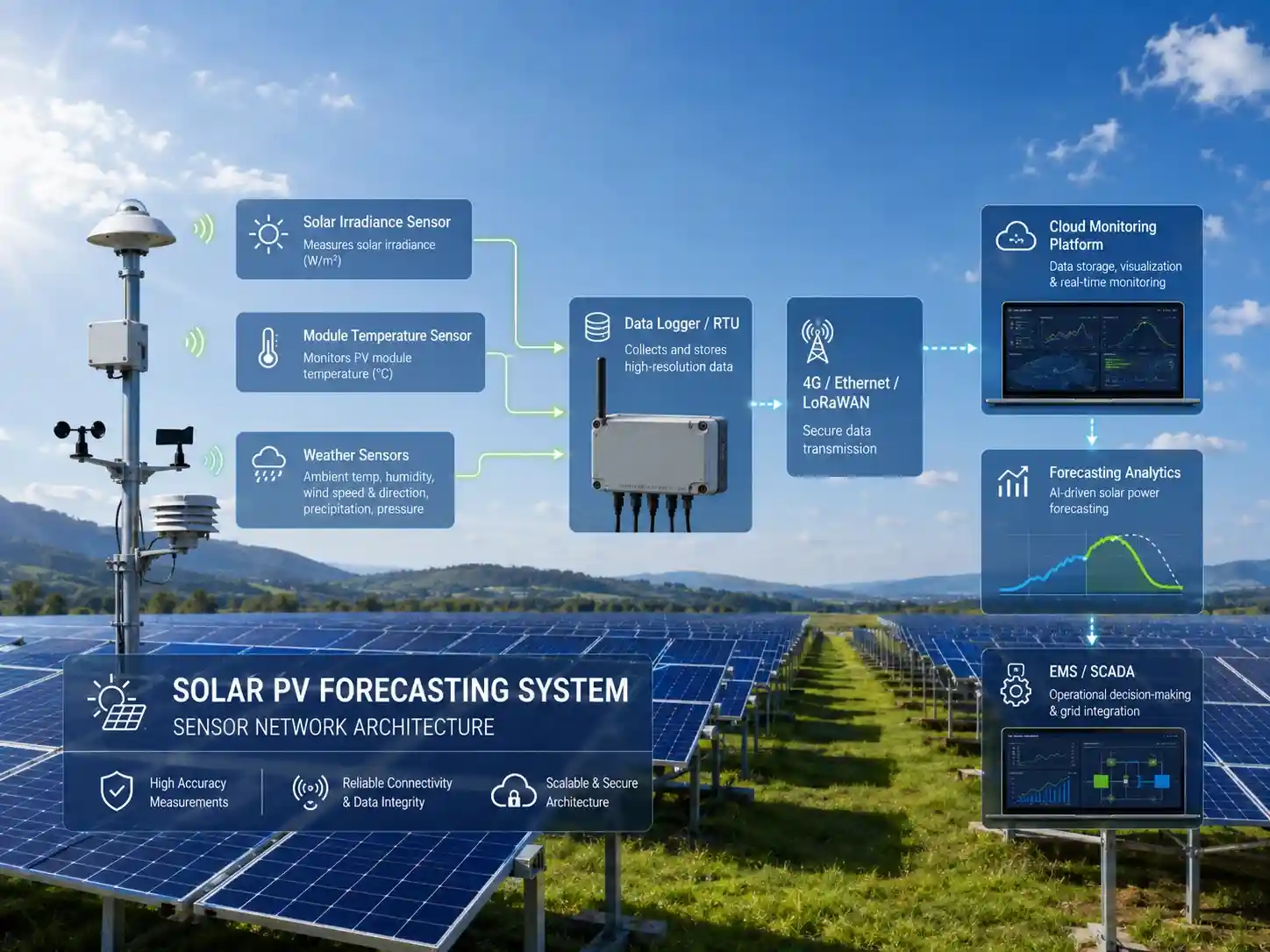

3. How Solar PV Sensors Collect Data for Forecasting

A reliable forecasting system requires accurate field data collection.

A typical solar PV sensor network includes:

Solar Irradiance Sensor
          ↓
PV Module Temperature Sensor
          ↓
Weather Sensors
          ↓
Data Logger / RTU
          ↓
4G / Ethernet / LoRaWAN Communication
          ↓
Cloud Monitoring Platform
          ↓
Forecasting Model & EMS

Sensor Installation Considerations

Correct installation is essential for accurate data.

Sensor Location

Sensors should represent actual environmental conditions around the PV array.

Incorrect installation may result in:

• Irradiance measurement errors
• Temperature deviation
• Incorrect forecasting results

Data Measurement Frequency

Common monitoring intervals include:

• 1-minute data collection for advanced forecasting
• 5-minute intervals for operational monitoring
• 10-minute intervals for general analysis

Higher-frequency measurements allow forecasting models to respond faster to changing weather conditions.

For distributed solar projects, JW-IoT provides PV Weather Monitoring Station for Distributed Solar Plants to support remote monitoring and environmental data collection.

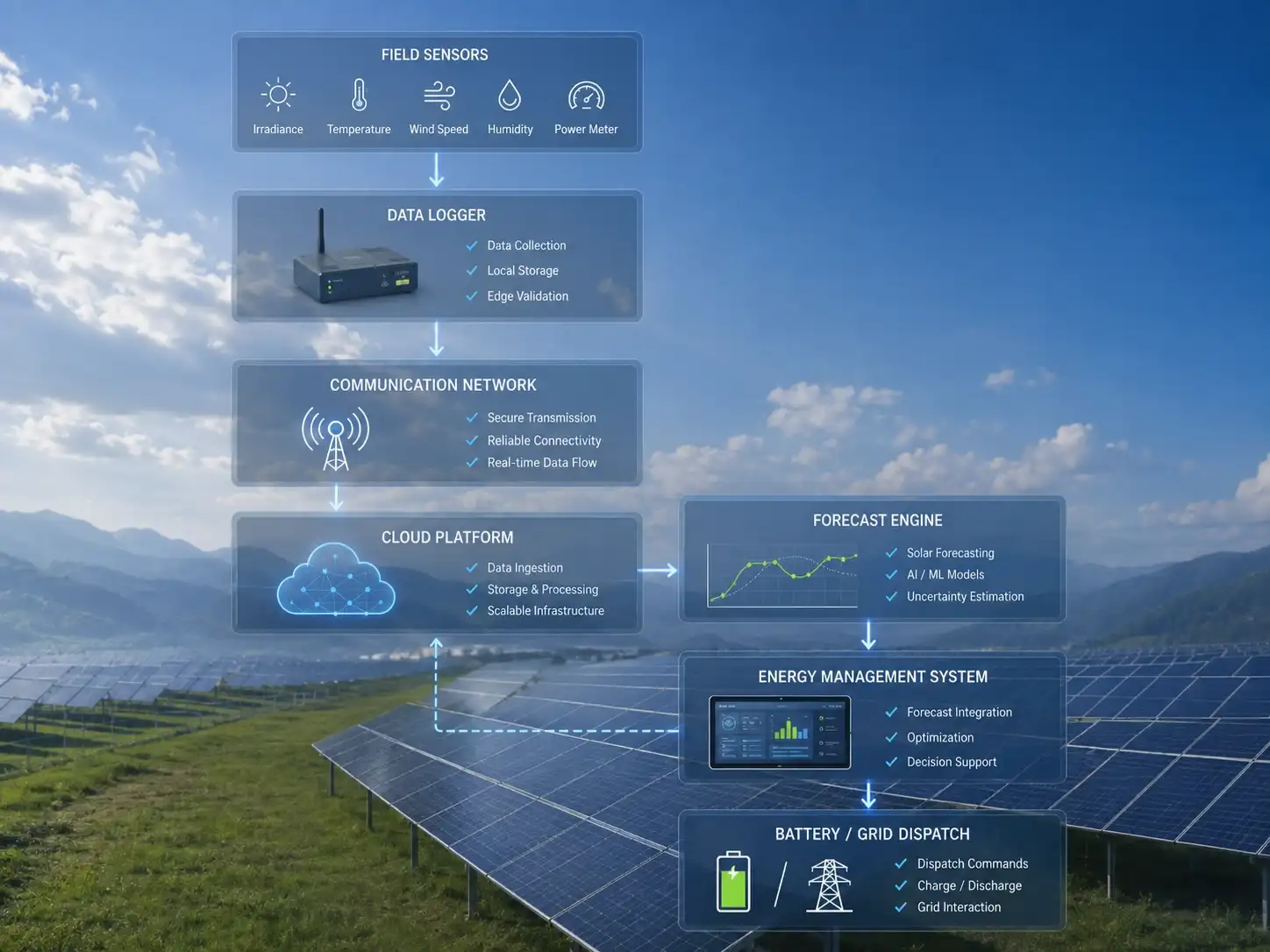

4. Integration with EMS and Cloud Platforms

Modern PV plants increasingly integrate sensor data with cloud platforms and energy management systems.

A complete architecture usually includes four layers:

4.1 Sensor Layer

Collect environmental information:

• Solar irradiance
• Temperature
• Weather conditions

4.2 Data Acquisition Layer

A data logger collects sensor signals through:

• RS485 Modbus
• SDI-12
• Analog interfaces

4.3 Communication Layer

Common communication methods include:

• 4G LTE
• Ethernet
• LoRaWAN

4.4 Cloud and EMS Layer

The platform provides:

• Real-time monitoring
• Historical data analysis
• Forecasting support
• Alarm management
• API integration

For EPC companies and system integrators, JW-IoT provides scalable Solar PV Monitoring System with IoT Automation solutions that can connect field sensors with cloud platforms and energy management systems.

5. Data Reliability Requirements for Solar Forecasting

Forecasting accuracy depends heavily on sensor data quality.

Sensor Accuracy

Small measurement errors can create significant forecasting deviations in large PV plants.

For example:

A small irradiance measurement error in a 100 MW solar farm may result in considerable generation prediction differences.

Outdoor Durability

Solar sensors must operate under:

• Strong sunlight
• High temperatures
• Dust exposure
• Rain
• Wind

Communication Reliability

Different applications require different communication methods:

Reliable communication ensures continuous transmission of PV weather data.

6. Recommended Solar PV Sensor Network Architecture

A scalable solar forecasting system should support future expansion.

A typical architecture includes:

Distributed Monitoring Points

Multiple monitoring stations collect:

• Solar radiation
• Temperature
• Weather conditions

Data Logger and Communication System

The data logger integrates multiple sensors and transmits data to the cloud platform.

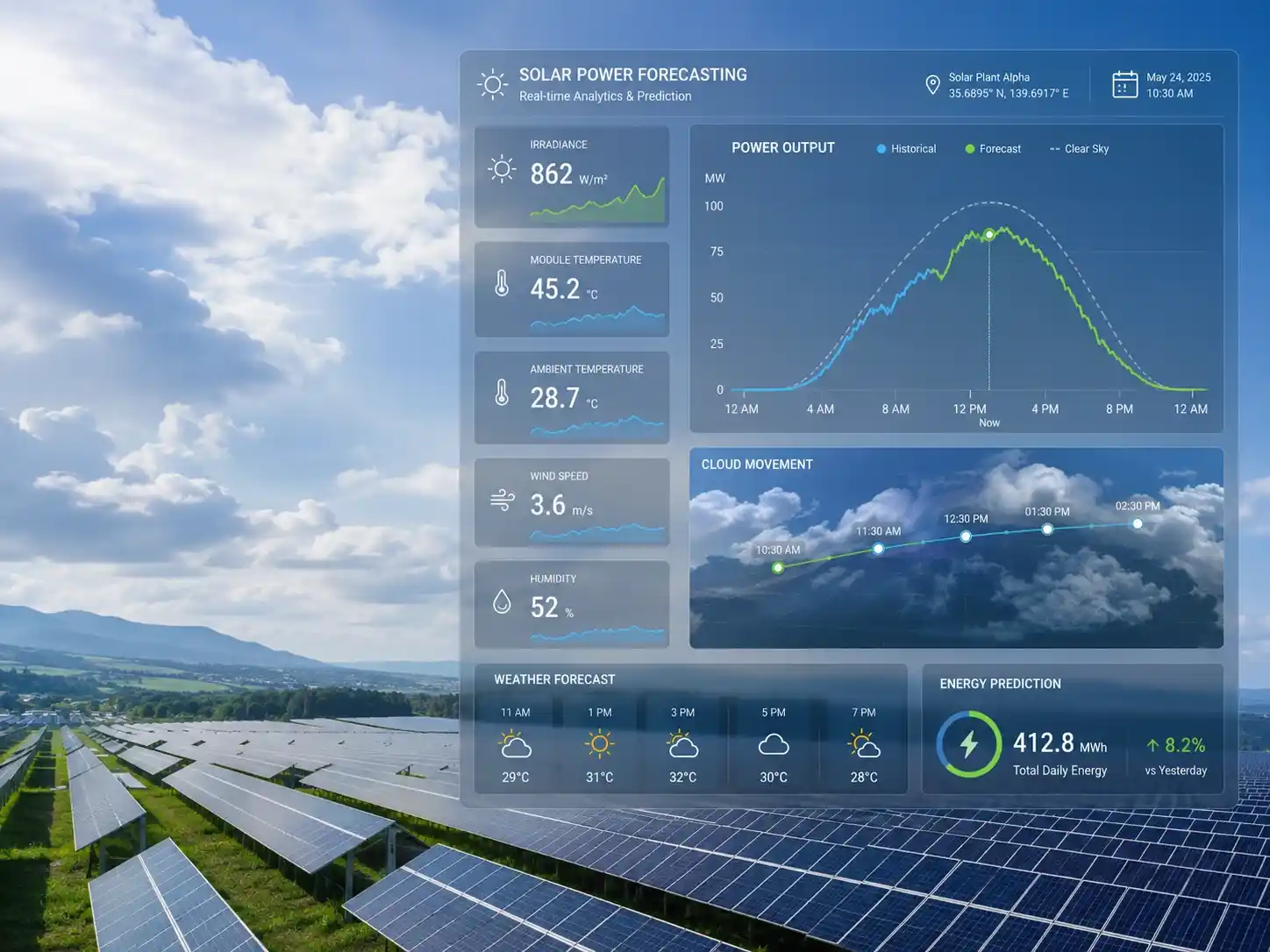

Cloud Monitoring Platform

The platform provides:

• Real-time dashboards
• Data visualization
• Historical analysis
• Remote access

Forecasting Engine

Forecast models combine:

• Solar irradiance data
• Weather information
• Historical generation data
• Environmental trends

For specialized applications such as floating photovoltaic projects, JW-IoT also provides Floating Solar Monitoring Station Solutions combining environmental sensing and remote communication.

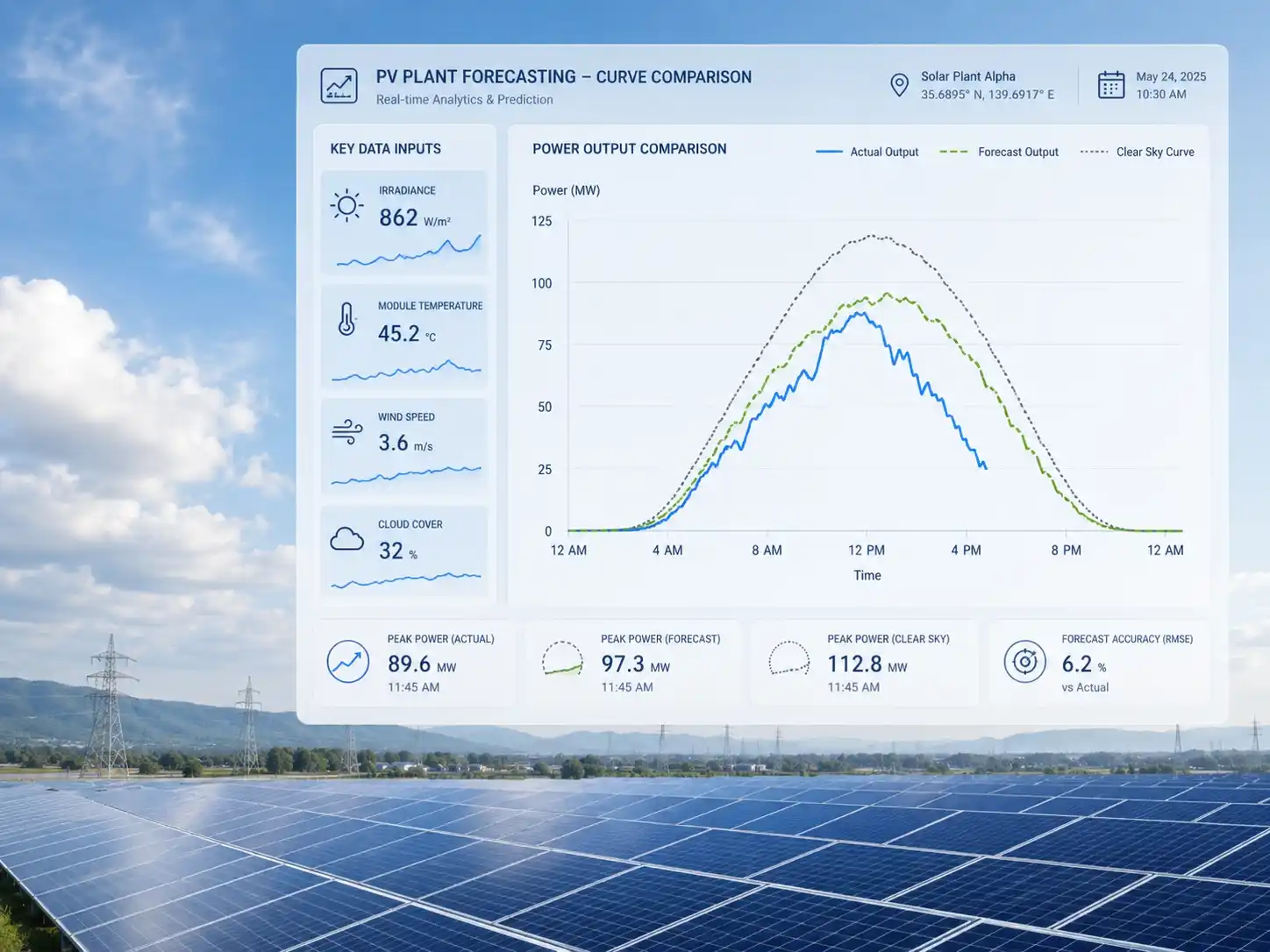

How Do Solar PV Sensors Improve Power Forecasting Accuracy?

Solar PV sensors improve forecasting accuracy by providing real-time environmental data that cannot be obtained from historical power data alone.

The most important inputs include:

✔ Solar irradiance
✔ PV module temperature
✔ Wind conditions
✔ Humidity and atmospheric data
✔ Real-time weather changes

With accurate sensor data, forecasting systems can better respond to:

• Cloud movement
• Irradiance fluctuations
• Temperature changes
• Weather variations

This makes solar PV sensors a fundamental component of smart renewable energy management.

Choosing the Right Solar PV Sensors for Your Project

When selecting sensors for solar forecasting projects, consider:

1. PV Plant Size

Large utility-scale solar plants may require multiple weather stations.

Commercial and distributed PV systems may use compact monitoring solutions.

2. Required Forecast Accuracy

Higher accuracy applications require:

• Professional irradiance sensors
• Stable temperature measurement
• Reliable communication

3. System Integration Requirements

Sensors should support:

• SCADA systems
• EMS platforms
• Cloud monitoring
• API integration

4. Future Expansion

A flexible architecture allows additional monitoring devices to be added later, such as:

• Soiling monitoring sensors
• Additional weather stations
• More environmental monitoring points

Conclusion: Building Smarter Solar Forecasting with Sensor Data

Solar PV sensors are becoming an essential part of modern photovoltaic management.

By integrating:

• Solar irradiance measurement
• PV weather data
• Module temperature monitoring
• Cloud platforms
• Energy management systems

solar operators can improve forecasting accuracy, optimize energy scheduling and increase renewable energy utilization.

JW-IoT provides solar monitoring sensors, weather stations and IoT-based monitoring solutions for global solar projects, including utility-scale PV plants, distributed solar systems and floating photovoltaic applications.
