Floating Solar Monitoring Station Solution

Real-Time Solar Irradiance Monitoring • Floating PV Weather Monitoring • Module Temperature Tracking • LoRaWAN & 4G Connectivity • Cloud-Based PV Performance Management

Request Floating Solar Monitoring Solution

Challengesin Floating Solar PV Projects

Floating solar PV plants are increasingly deployed on reservoirs, lakes, water treatment ponds, and hydropower reservoirs. Compared with ground-mounted PV projects, floating PV systems face more complex environmental conditions, including water surface reflection, humidity, wind load, corrosion, and limited access for maintenance.

Unstable Solar Resource Data

Floating PV projects require accurate on-site solar irradiance data to evaluate power generation efficiency. Without real-time irradiance monitoring, it is difficult to compare actual PV output with available solar resources.
High Humidity and Corrosion Risk

Floating PV stations operate in high-humidity environments. Long-term exposure to moisture, salt mist, and water vapor may affect sensors, cables, junction boxes, and PV module performance.
Module Temperature Variation

Water surface cooling effects may reduce module temperature, but local heat accumulation can still occur due to poor ventilation, biofouling, shading, or system faults. Without module temperature monitoring, performance ratio analysis may be inaccurate.
Wind and Weather Safety Risks

Floating PV platforms are exposed to wind, rainfall, storms, and sudden weather changes. Strong wind or extreme weather may affect floating structures, mooring systems, and O&M safety.
Lack of Centralized Environmental Data

Many floating PV plants rely mainly on inverter data, while environmental data such as solar radiation, module temperature, wind speed, rainfall, humidity, and water surface conditions are not centrally monitored.

JW-IoT Floating Solar Monitoring Station Solution

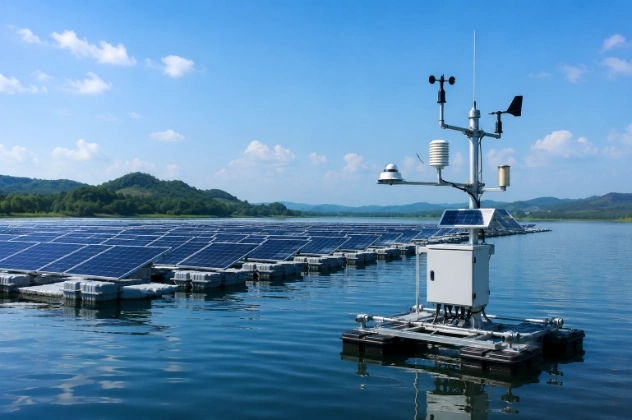

JW-IoT Floating Solar Monitoring Station is an IoT-based environmental monitoring system designed for floating solar PV plants, reservoir PV projects, lake-based PV systems, and hybrid hydropower-solar projects.

Solar Irradiance Monitoring

· Pyranometer / Solar Irradiance Sensor
· Plane-of-Array Irradiance Sensor
· Global Horizontal Irradiance Monitoring
· Reflected Radiation Monitoring
· Solar Resource Data Logging
PV Module Temperature Monitoring

· PV Module Temperature Sensor
· Ambient Temperature Sensor
· Temperature & Humidity Sensor
· Panel Surface Temperature Monitoring
Floating PV Weather Monitoring

· Wind Speed Sensor
· Wind Direction Sensor
· Rain Gauge
· Air Temperature and Humidity Sensor
· Atmospheric Pressure Sensor
· Solar Radiation Sensor
Water Surface and Site Environment Monitoring

· LoRaWAN for large floating PV areas
· 4G LTE for remote reservoir or lake sites
· RS485 Modbus for local data integration
· Ethernet / MQTT for platform connection
· Solar power supply for outdoor monitoring stations
Communication Options

· Real-time dashboard
· Solar irradiance trend analysis
· Module temperature monitoring
· Weather data monitoring
· Alarm and notification
· Historical data export
· Multi-site project management
· API integration with PV O&M platforms
Cloud Platform Features

· Real-time dashboard for solar irradiance and module temperature
· Historical trend analysis
· Alerts & notifications
· Multi-rooftop management
· Data export & API integration

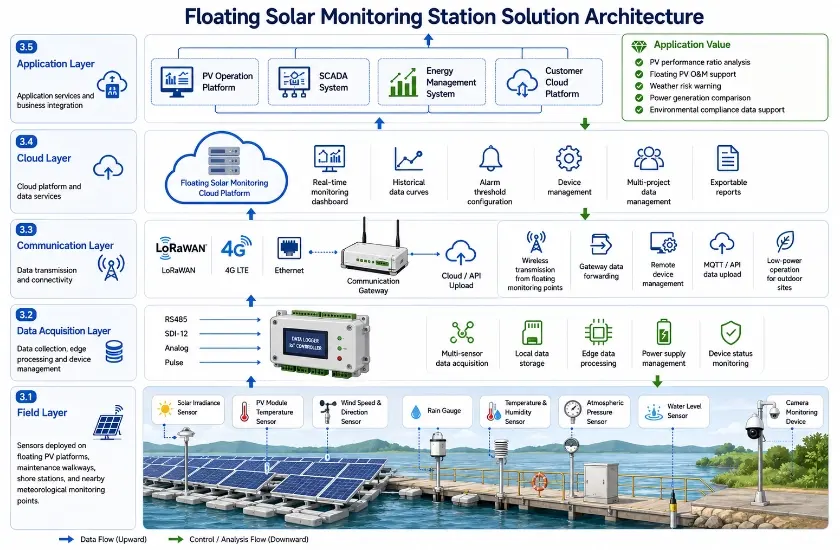

ArchitectureOverview

Sensors → IoT Data Logger / Controller → LoRaWAN / 4G Gateway → Cloud Server → Web / Mobile App → PV O&M Platform / SCADA Integration

Field Layer

Sensors are deployed on floating PV platforms, maintenance walkways, shore stations, or nearby meteorological monitoring points.
Data Acquisition Layer

The data logger or IoT controller collects sensor data through RS485, SDI-12, analog signal, or pulse input.
Communication Layer

Data is transmitted through LoRaWAN, 4G LTE, Ethernet, or other communication methods depending on site conditions.
Cloud Layer

The cloud platform receives, stores, analyzes, and visualizes monitoring data.

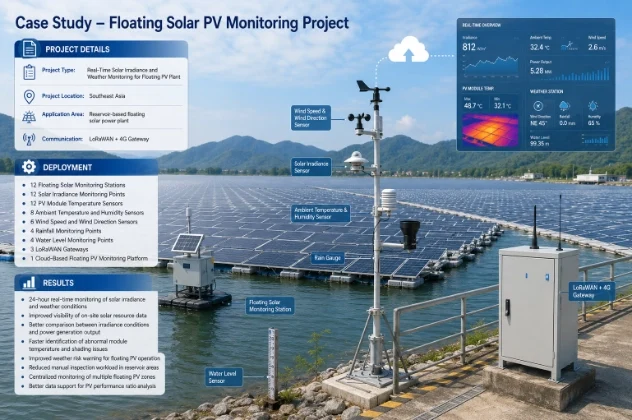

Case Study– Floating Solar PV Monitoring Project

Driven by reliability, precision, and global compatibility, JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

Project Type: Real-Time Solar Irradiance and Weather Monitoring for Floating PV Plant

Project Scale: Reservoir-based floating solar power plant

Communication:LoRaWAN + 4G Gateway

Deployment:

· 12 Floating Solar Monitoring Stations
· 12 Solar Irradiance Monitoring Points
· 12 PV Module Temperature Sensors
· 8 Ambient Temperature and Humidity Sensors
· 6 Wind Speed and Wind Direction Sensors
· 4 Rainfall Monitoring Points
· 4 Water Level Monitoring Points
· 3 LoRaWAN Gateways
· 1 Cloud-Based Floating PV Monitoring Platform
Results:

✔ 24-hour real-time monitoring of solar irradiance and weather conditions
✔ Improved visibility of on-site solar resource data
✔ Better comparison between irradiance conditions and power generation output
✔ Faster identification of abnormal module temperature and shading issues
✔ Improved weather risk warning for floating PV operation
✔ Reduced manual inspection workload in reservoir areas
✔ Centralized monitoring of multiple floating PV zones
✔ Better data support for PV performance ratio analysis

Why Choose JW-IoT?

Empower Your Smart Solutions

Scenario-Driven Architecture
Compatible With Existing Greenhouse Motors
OEM / White Label Support
Multi-Protocol Integration
Modular & Scalable Design
Remote Technical Support

Empower Your Smart Solutions

Scenario-Driven Architecture
Compatible With Existing Greenhouse Motors
OEM / White Label Support
Multi-Protocol Integration
Modular & Scalable Design
Remote Technical Support

Scopeof Applications

JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

Suitable For

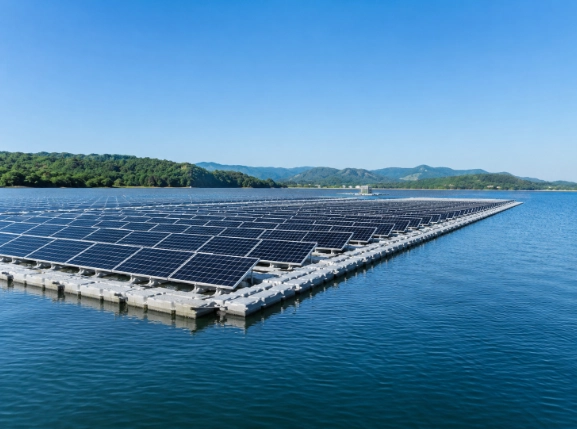

Floating Solar PV Plants
Suitable For

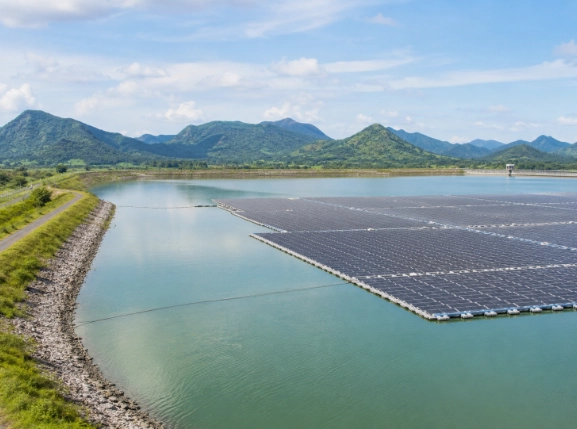

Reservoir-Based PV Projects
Suitable For

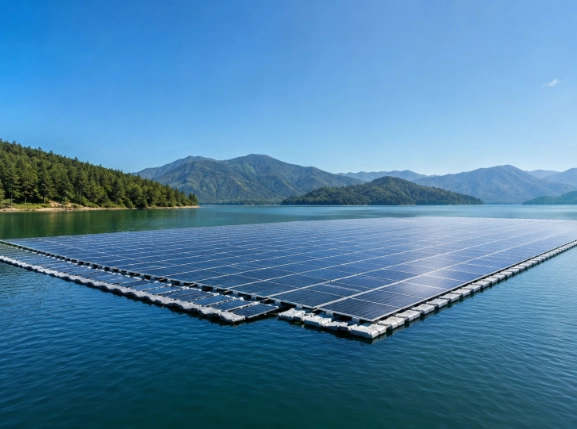

Lake Floating PV Systems
Suitable For

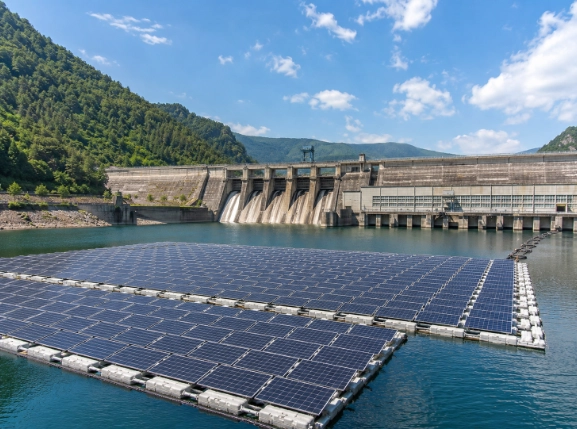

Hydropower-Solar Hybrid Projects
Suitable For

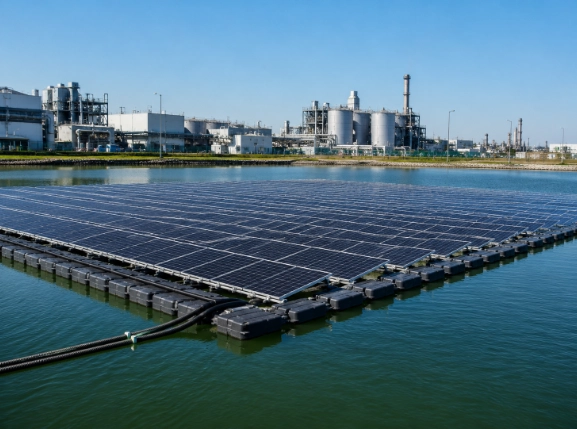

Industrial Pond Solar Projects

Solutions

Driven by reliability, precision, and global compatibility, JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

Floating Solar Monitoring Station Solution

Real-Time Solar Irradiance Monitoring • Floating PV Weather Monitoring • Module Temperature Tracking • LoRaWAN & 4G Connectivity • Cloud-Based PV Performance Management

Challengesin Floating Solar PV Projects

Unstable Solar Resource Data

Floating PV projects require accurate on-site solar irradiance data to evaluate power generation efficiency. Without real-time irradiance monitoring, it is difficult to compare actual PV output with available solar resources.

High Humidity and Corrosion Risk

Floating PV stations operate in high-humidity environments. Long-term exposure to moisture, salt mist, and water vapor may affect sensors, cables, junction boxes, and PV module performance.

Module Temperature Variation

Water surface cooling effects may reduce module temperature, but local heat accumulation can still occur due to poor ventilation, biofouling, shading, or system faults. Without module temperature monitoring, performance ratio analysis may be inaccurate.

Wind and Weather Safety Risks

Floating PV platforms are exposed to wind, rainfall, storms, and sudden weather changes. Strong wind or extreme weather may affect floating structures, mooring systems, and O&M safety.

Lack of Centralized Environmental Data

Many floating PV plants rely mainly on inverter data, while environmental data such as solar radiation, module temperature, wind speed, rainfall, humidity, and water surface conditions are not centrally monitored.

JW-IoT Floating Solar Monitoring Station Solution

JW-IoT Floating Solar Monitoring Station is an IoT-based environmental monitoring system designed for floating solar PV plants, reservoir PV projects, lake-based PV systems, and hybrid hydropower-solar projects.

Solar Irradiance Monitoring

PV Module Temperature Monitoring

Floating PV Weather Monitoring

Water Surface and Site Environment Monitoring

Communication Options

Cloud Platform Features

ArchitectureOverview

Sensors → IoT Data Logger / Controller → LoRaWAN / 4G Gateway → Cloud Server → Web / Mobile App → PV O&M Platform / SCADA Integration

Field Layer

Sensors are deployed on floating PV platforms, maintenance walkways, shore stations, or nearby meteorological monitoring points.

Data Acquisition Layer

The data logger or IoT controller collects sensor data through RS485, SDI-12, analog signal, or pulse input.

Communication Layer

Data is transmitted through LoRaWAN, 4G LTE, Ethernet, or other communication methods depending on site conditions.

Cloud Layer

The cloud platform receives, stores, analyzes, and visualizes monitoring data.

Case Study– Floating Solar PV Monitoring Project

Driven by reliability, precision, and global compatibility, JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

Project Type: Real-Time Solar Irradiance and Weather Monitoring for Floating PV Plant

Project Scale: Reservoir-based floating solar power plant

Communication:LoRaWAN + 4G Gateway

Why Choose JW-IoT?

Empower Your Smart Solutions

Empower Your Smart Solutions

Empower Your Smart Solutions

Scopeof Applications

JW-IoT aims to become a trusted global partner in IoT sensing and smart solution integration.

Ready to Monitor Your Floating Solar PV Project?

RecommendedProducts

Precision Monitoring. Reliable Data. Intelligent Decisions.

Compact Weather Station With Rainfall And Wind Monitoring

Solar PV Weather Station for Power Plant Monitoring

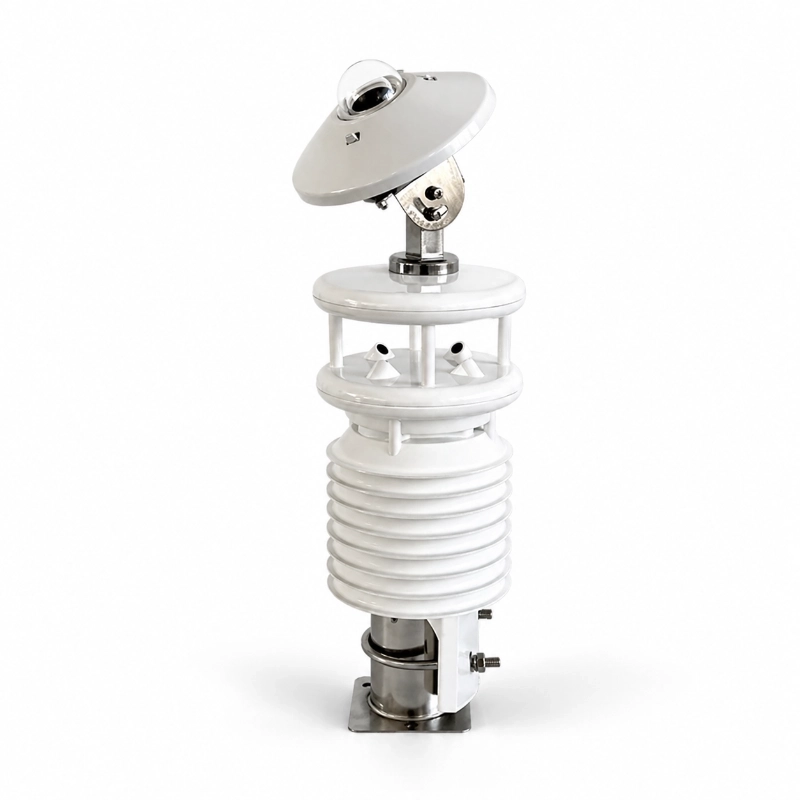

Solar PV Weather Station With Irradiance Monitoring

Near Infrared Radiation Sensor (700-3000nm) for Spectral Radiation Measurement

UVAB Radiation Sensor 280 to 400nm RS485 Output

UV Radiation Sensor 280 to 400nm RS485 Output

Multi-Channel Spectral Solar Radiation Sensor with Filter Domes

Solar Radiation Sensor Class C for 2000 Wm2 Monitoring

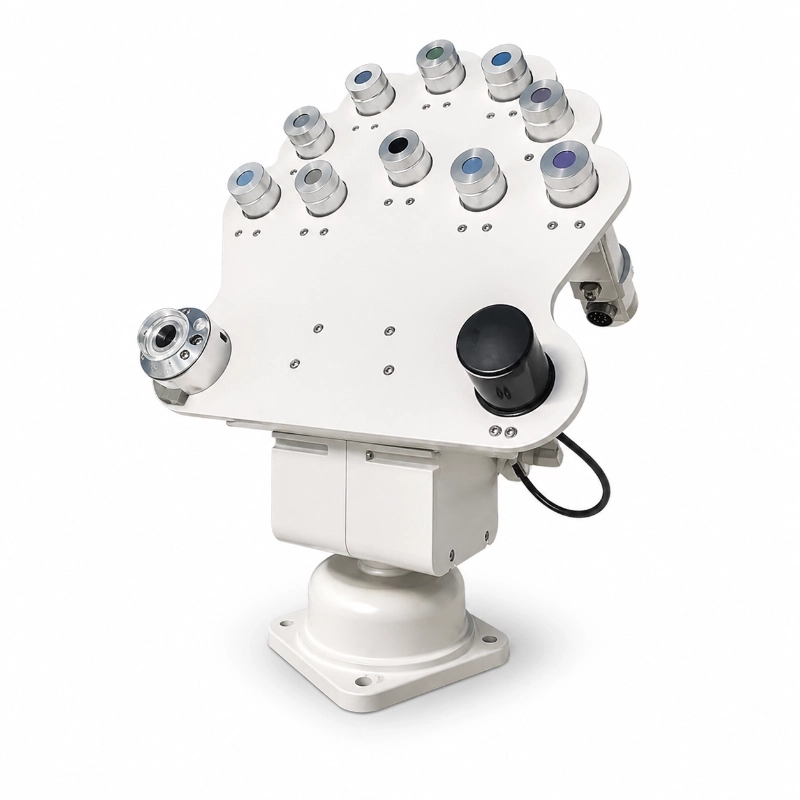

Automatic Solar Photometer for Spectral Irradiance Monitoring and Solar Energy Analysis
