Portable H2S Gas Detector for Industrial Safety Monitoring

H2S gas detection: Measures hydrogen sulfide concentrations using a configurable gas sensor.
Three sampling configurations: Natural diffusion, active pump suction or extended probe sampling.
Multiple measurement ranges: Sensor-dependent options from low-ppm detection up to 50,000 ppm.
3.5-inch HD color display: 320 × 240 resolution for on-site measurement and alarm information.
Audible, visual and text alarms: Provides warnings when configured thresholds are reached.
Configurable sampling pump: Pump-type models support adjustable sampling flow.
Rechargeable battery: 2800 mAh lithium battery with more than 20 hours of stated operation, depending on configuration.
Optional data logging: Supports up to 100,000 historical records.
Multilingual interface: Simplified Chinese, Traditional Chinese and English.
Explosion-protection marking: Ex ib IIC T6 Gb, subject to certificate and application verification.
IP65 enclosure: Designed for industrial field use.

Product Description

The JW-600-H2S Portable Hydrogen Sulfide Gas Detector is a handheld instrument designed to measure hydrogen sulfide (H2S) concentrations during industrial safety inspections, gas leak investigations and workplace environmental monitoring.

Available in diffusion, pump suction and probe-type configurations, the detector supports different sampling requirements across oil and gas facilities, wastewater treatment plants, chemical processing sites and industrial maintenance applications.

Featuring a 3.5-inch HD color display, audible and visual alarms, configurable gas measurement ranges, rechargeable lithium battery and optional historical data storage, the JW-600-H2S provides on-site H2S measurement for industrial personnel.

1. Product Overview

The JW-600-H2S is a portable hydrogen sulfide gas detection instrument developed for industrial personnel requiring localized gas concentration measurement and alarm indication.

Hydrogen sulfide is a toxic gas that may be generated or released during petroleum processing, wastewater treatment, chemical manufacturing and other industrial activities.

According to the OSHA Hydrogen Sulfide Hazard Guidance, elevated hydrogen sulfide concentrations can create severe health risks, including rapid incapacitation at high exposure levels.

Occupational Safety and Health Administration

The JW-600-H2S combines gas sensing, digital measurement display, alarm indication and optional data recording in a handheld instrument.

Three sampling configurations allow users to select a suitable method according to the measurement location and access conditions.

Compared with a fixed H2S gas monitoring sensor, the JW-600-H2S is intended for mobile inspections and localized gas measurement rather than permanent unattended installation.

2. Three Portable H2S Detector Configurations

The JW-600-H2S product family includes three sampling configurations.

JW-600-H2S-A — Diffusion Type

This lightweight configuration uses natural gas diffusion for measurement near the instrument.

It is intended for portable gas checks where an active sampling pump is not required.

Natural diffusion sampling
Compact handheld construction
Approx. 190 g weight
172 × 73 × 34.5 mm

JW-600-H2S-B — Pump Suction Type

This configuration uses an active internal sampling pump to draw gas toward the detection chamber.

It is intended for sample collection through compatible sampling accessories.

Active pump suction
Adjustable sampling flow
Approx. 240 g weight
211.5 × 73 × 34.5 mm

JW-600-H2S-C — Extended Probe Type

This version combines active suction with an extended probe to help operators collect samples from locations that are difficult to access directly.

Active pump sampling
Approx. 95 cm telescopic probe
Approx. 290 g weight
Extended sampling capability

The appropriate configuration should be selected according to the sampling distance, accessibility, measurement objective and site safety procedure.

jw-600-h2s-detector-diffusion-pump-probe-types

3. H2S Measurement Performance

3.1 Configurable Detection Range

The JW-600-H2S supports a series of H2S measurement ranges according to the selected sensor.

The supplied product data lists:

Measurement Parameter	Available Options
Target Gas	Hydrogen Sulfide (H2S)
Measurement Units	ppm, mg/m³, VOL%, LEL% (as applicable)
Listed Range Options	0–1, 0–2, 0–5, 0–10, 0–50, 0–100, 0–500, 0–1,000, 0–5,000, 0–10,000 and 0–50,000 ppm
Resolution Options	0.001, 0.01, 0.1, 1, 2 or 5, sensor-dependent
Stated Accuracy	≤±3% (depending on range)
Repeatability	≤±2%
Linearity Error	≤±2%
Zero Drift	≤±1% FS/year
Response Time	≤20 seconds, sensor-dependent

Different detection ranges require compatible gas sensor configurations. Not all listed ranges or resolutions should be assumed to be available with the same sensor.

3.2 Gas Detection Technology

The product family supports various gas sensing technologies depending on the target gas and selected range.

The source materials list electrochemical, catalytic combustion, infrared, PID, semiconductor and optical technologies for the wider gas detector platform.

For the JW-600-H2S configuration, the exact sensor technology, range and cross-sensitivity information should be confirmed before ordering.

4. High-Resolution Color Display

The JW-600-H2S features a 3.5-inch high-definition color display with 320 × 240 resolution.

The interface can present:

Gas name and concentration
Measurement unit
Alarm status
Battery status
Date and time
Instrument operating information

The multilingual interface supports English, simplified Chinese and traditional Chinese.

The color display helps personnel distinguish measurement information and alarm conditions during industrial field inspections.

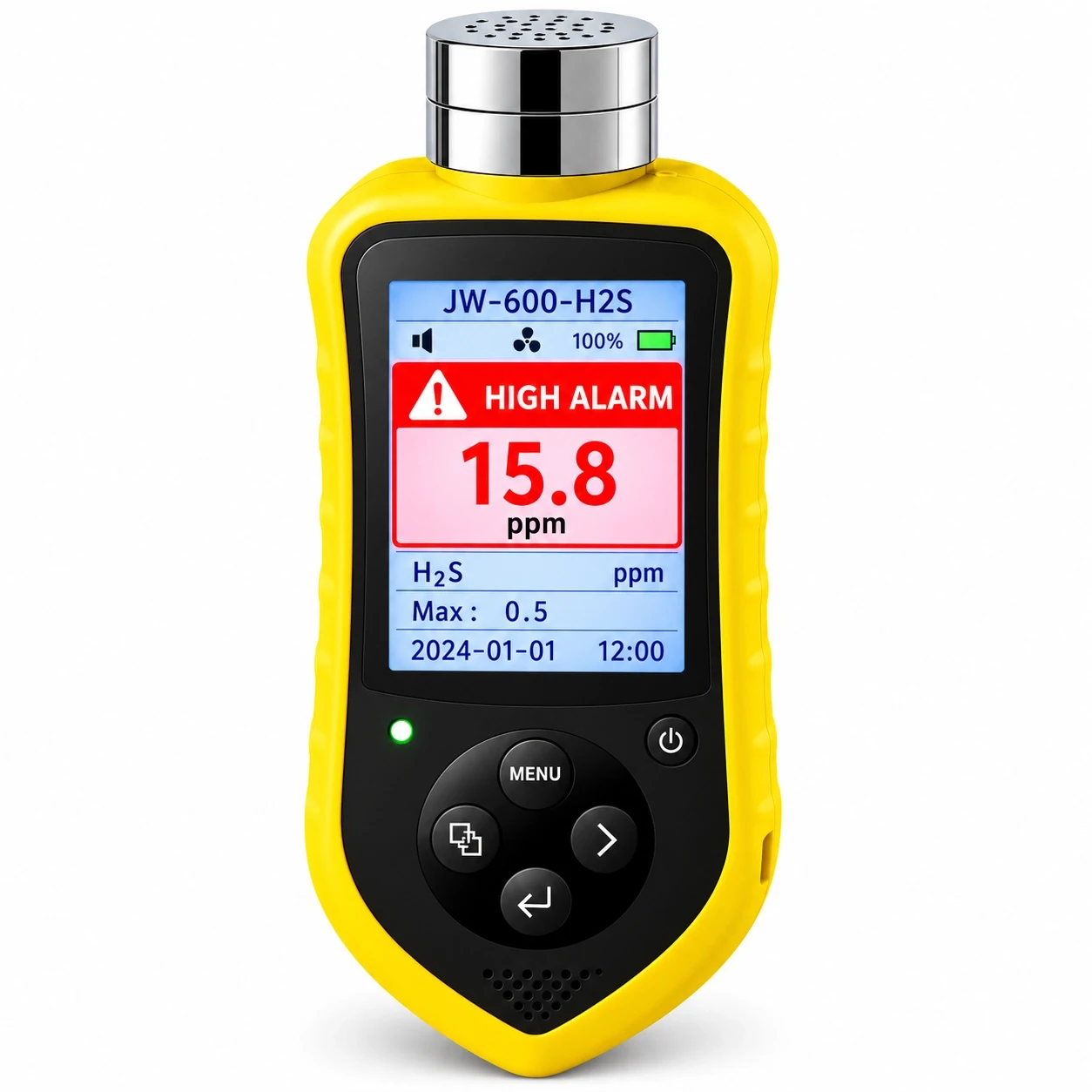

5. Audible, Visual and Text Alarm Functions

The instrument provides a combination of audible, visual and on-screen alarm functions.

When measured gas concentration reaches a configured alarm threshold, the detector can activate the corresponding warning functions.

The supplied information also lists alarms for low battery conditions and instrument faults.

Configurable alarm functions include:

High and low gas concentration alarms
Audible warning
Visual warning
On-screen alarm information
Low-battery indication
Fault indication

Alarm thresholds should be selected according to the relevant workplace regulations, safety procedures and site risk assessment.

The detector must be properly maintained, calibrated and function-tested as required for its intended safety application.

portable-h2s-detector-high-concentration-alarm-display

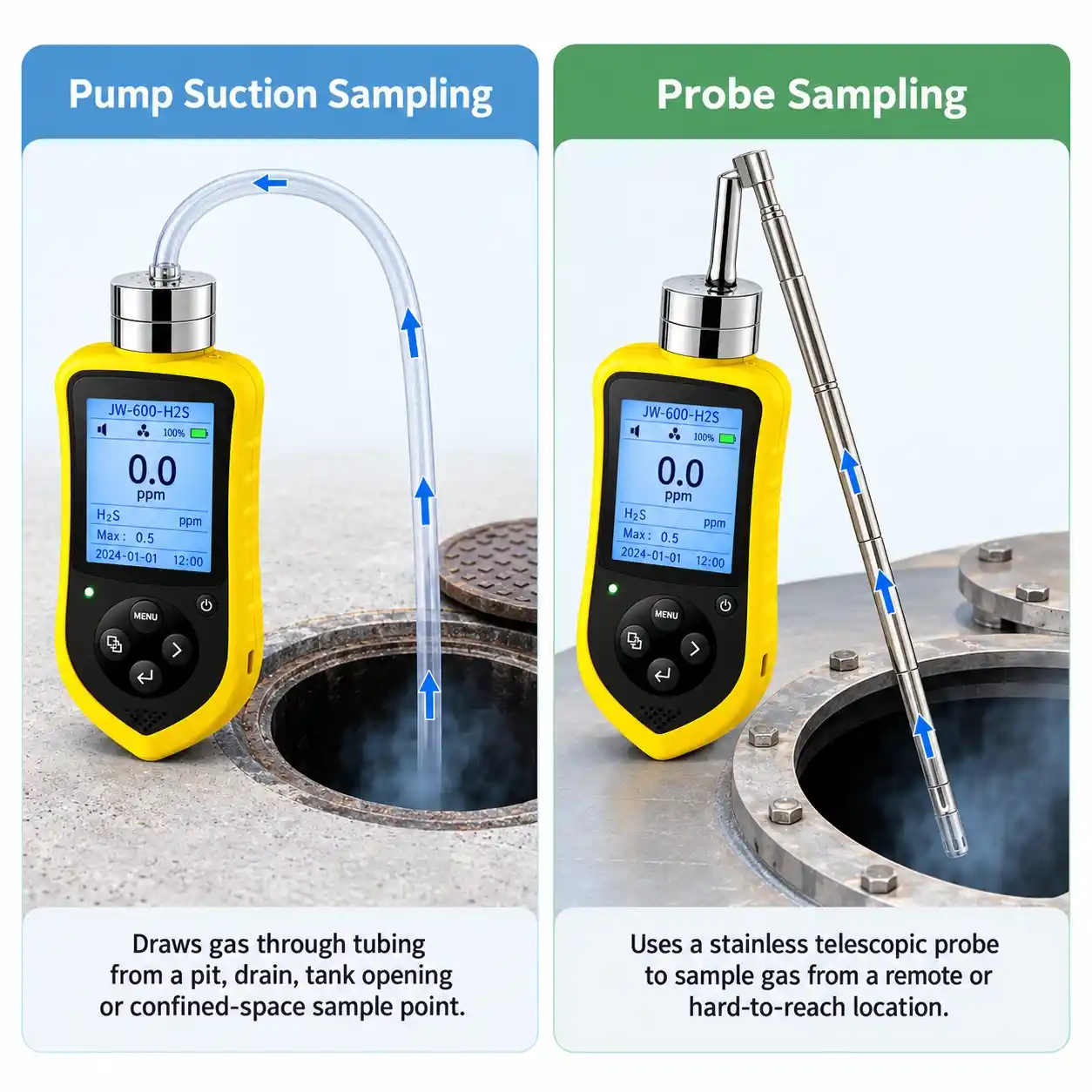

6. Active Pump Sampling and Probe Detection

6.1 Pump Suction Sampling

The pump-type JW-600-H2S uses an internal sampling pump to draw gas samples into the measurement chamber.

The source specification describes a high-performance pump system with adjustable sampling speed.

The listed flow range for the pump-type configuration is approximately 300–500 cc/min.

This configuration can be useful for localized gas concentration checks and compatible remote sampling arrangements.

6.2 Extended Probe Sampling

The JW-600-H2S-C includes a telescopic sampling probe with a listed extension length of approximately 95 cm.

The extended probe helps operators reach certain sampling points without placing the handheld instrument immediately next to the point being checked.

The probe does not make entry into hazardous environments safe. Sampling arrangements and procedures must be assessed by qualified personnel.

7. Rechargeable Battery and Portable Operation

The JW-600-H2S uses a rechargeable 2800 mAh lithium battery.

The product information lists:

Battery capacity: 2800 mAh
Charging interface: Micro USB
Operating duration: More than 20 hours, depending on configuration
Low-battery alarm
Automatic screen brightness adjustment, optional

Actual operating duration depends on display settings, pump operation, alarms and other configuration factors.

For field applications, users should verify sufficient battery charge before inspection and follow the manufacturer’s charging restrictions for hazardous areas.

8. Data Logging and Record Management

The JW-600-H2S supports optional historical data storage.

The listed data management functions include:

Up to 100,000 records
Adjustable recording interval from 1 to 60 seconds
Historical measurement review
Alarm event records
Instrument startup and shutdown records
Fault records
Data export and reporting functions in supported configurations

These functions can assist with maintenance inspections, environmental investigations and historical measurement review.

Data logging and export functions should be confirmed when specifying the instrument.

9. Technical Specifications

The following specifications are based on the supplied SGA-600C series information and adapted to the JW-600-H2S product family.

Parameter	JW-600-H2S Specification
Product Name	Portable Hydrogen Sulfide Gas Detector
Model	JW-600-H2S
Gas Detected	Hydrogen Sulfide (H2S)
Sampling Methods	Diffusion / Pump Suction / Extended Probe
Measurement Range	Configurable, sensor-dependent
Resolution	0.001 / 0.01 / 0.1 / 1 / 2 / 5, depending on range
Accuracy	≤±3% (range-dependent)
Response Time	≤20 s, sensor-dependent
Repeatability	≤±2%
Linearity Error	≤±2%
Zero Drift	≤±1% FS/year
Display	3.5-inch HD Color Screen
Screen Resolution	320 × 240 Pixels
Alarm Methods	Audible, Visual and Text
Pump Flow	Approx. 300–500 cc/min, pump type
Battery Capacity	2800 mAh Lithium Battery
Operating Time	More than 20 hours, configuration-dependent
Charging	DC 5 V, Micro USB
Operating Temperature	-20°C to +50°C
Operating Humidity	≤95% RH, Non-condensing
Operating Pressure	86–106 kPa
Optional Temperature Measurement	-40°C to +80°C
Optional Humidity Measurement	0–100% RH
Explosion-Proof Marking	Ex ib IIC T6 Gb (as listed)
Protection Rating	IP65
User Interface	Chinese / English
Optional Data Storage	100,000 Records
Storage Interval	1–60 s, Adjustable
Optional Screen Adjustment	Automatic Brightness Control
Expected Service Life	3–5 Years, Sensor-dependent

Mechanical Specifications

Configuration	Dimensions	Weight	Housing
JW-600-H2S-A	172 × 73 × 34.5 mm	Approx. 190 g	As specified for series
JW-600-H2S-B	211.5 × 73 × 34.5 mm	Approx. 240 g	Aluminum Alloy
JW-600-H2S-C	211 × 73 × 34.5 mm, probe excluded	Approx. 290 g	Aluminum Alloy

The C configuration has an approximately 95 cm telescopic sampling probe. The supplied specifications list the detector body and probe arrangements separately.

Note: Measurement ranges, sensor technologies, battery duration and optional functions vary by configuration. Explosion-protection documentation and the full technical specification must be verified for the final supplied unit.

10. Industrial Applications

10.1 Oil and Gas Industry

Hydrogen sulfide can be encountered in oil and gas production, handling and processing facilities.

Portable H2S gas detectors can support gas inspections, maintenance activities and localized concentration measurements under established safety procedures.

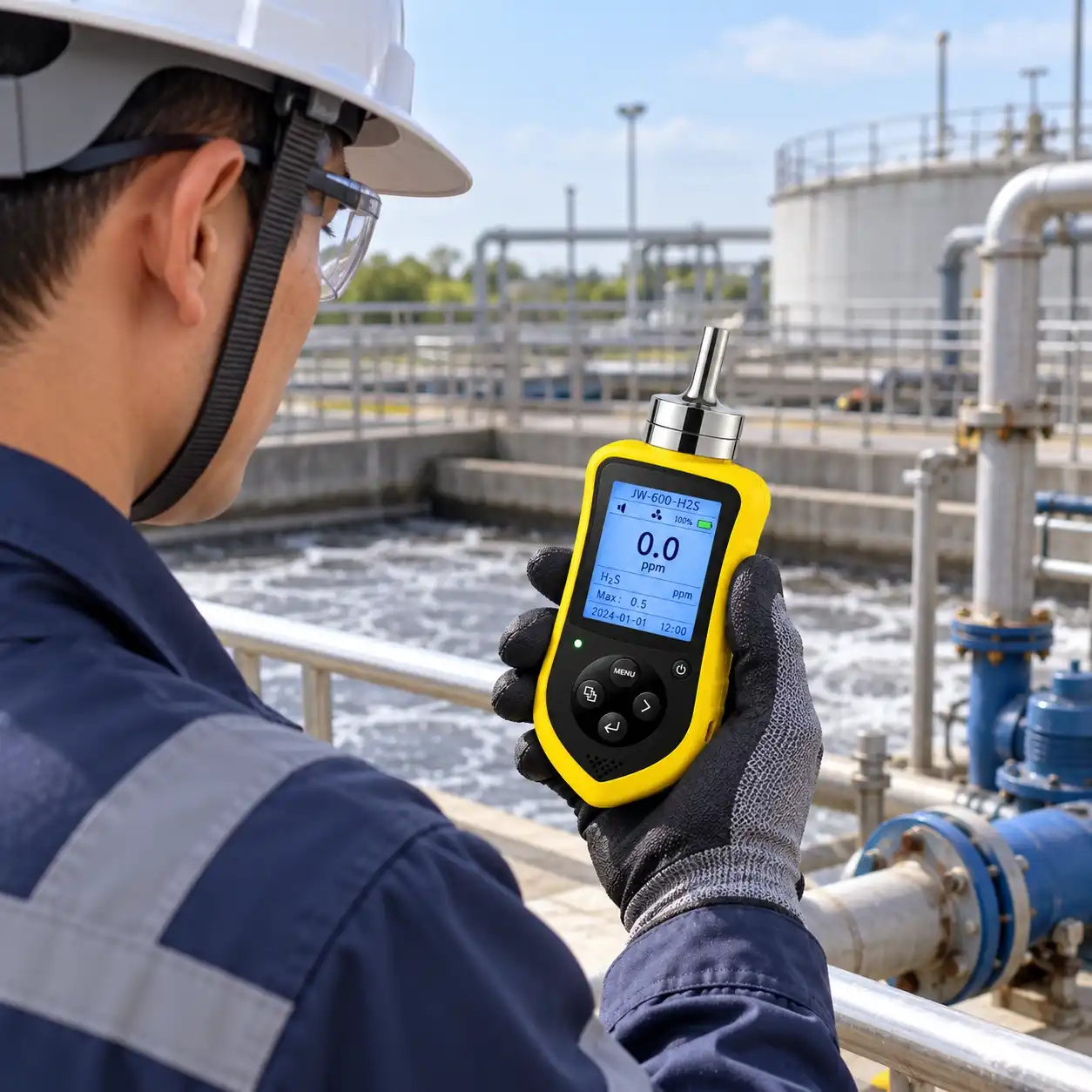

10.2 Wastewater Treatment Plants

Wastewater treatment facilities may generate hydrogen sulfide during collection, storage and treatment processes.

The JW-600-H2S can assist with portable gas checks around wastewater infrastructure, including:

Wastewater treatment equipment
Sludge handling areas
Pump stations
Sewer maintenance locations

For broader environmental monitoring, JW-IoT also provides Gas Detection Weather Station Solutions.

portable-h2s-gas-detector-wastewater-treatment

10.3 Chemical Processing Facilities

The portable detector can be used for local H2S concentration checks during process maintenance, inspections and relevant industrial safety activities.

The sampling configuration should be selected according to the expected concentrations and applicable hazardous-area restrictions.

10.4 Mining and Industrial Maintenance

Hydrogen sulfide monitoring may be necessary in certain mining, underground infrastructure and industrial maintenance environments.

Portable instruments provide localized measurement capability when used as part of an appropriately designed gas detection program.

10.5 Confined-Space Atmospheric Testing

Hydrogen sulfide is one of the gases that may need to be evaluated before certain confined-space activities.

A portable H2S detector can contribute H2S concentration data to a qualified atmospheric testing procedure.

It does not measure oxygen concentration or combustible gas levels unless other independently specified measurement capabilities are included. It must not be used as the sole basis for confined-space entry clearance.

Refer to OSHA guidance on H2S exposure evaluation and control for additional safety information.

Occupational Safety and Health Administration

11. Diffusion vs Pump Suction H2S Detectors

Selecting the appropriate sampling method is important for industrial gas measurement applications.

Feature	Diffusion Type	Pump Suction Type	Probe Type
Sampling Principle	Passive diffusion	Active suction	Active suction
Built-in Pump	No	Yes	Yes
Extended Probe	No	Optional arrangement	Included
Typical Use	Local gas checks	Drawn-sample inspection	Hard-to-reach sampling points
Portability	Highest	High	High
Main Advantage	Compact and lightweight	Controlled sample intake	Extended reach

For routine checks near the instrument, a diffusion-type configuration may be sufficient.

For sample collection from compatible tubing or sampling points, the pump suction configuration provides greater flexibility.

The probe-type configuration is intended for applications requiring extended physical reach.

The sampling method does not remove the need for proper gas testing practices, sensor calibration or safety precautions.

12. Order JW-600-H2S Portable Gas Detectors

Looking for a portable hydrogen sulfide gas detector for industrial safety monitoring?

JW-IoT offers the JW-600-H2S series with different sampling configurations, selectable measurement ranges and optional data recording functions.

For an accurate quotation, please provide your preferred sampling method, H2S measurement range, required certification, application environment and purchase quantity.

Contact JW-IoT to discuss the JW-600-H2S configuration and request detailed product information.

Website: www.jw-iot.com

FAQ

Q

1.What is a portable H2S gas detector?

A

A portable H2S gas detector is a handheld instrument used to measure hydrogen sulfide concentration in the surrounding air or in a sample drawn into the instrument.
It provides gas concentration information and warning functions to support workplace gas monitoring.
Q

2.What is the detection range of JW-600-H2S?

A

The available ranges depend on the selected H2S sensor, with multiple options listed in the supplied product information.
Customers should specify their required measurement range, expected concentration and measurement resolution.
Q

3.Does the JW-600-H2S support pump suction sampling?

A

Yes. Pump suction is available in the JW-600-H2S-B and JW-600-H2S-C configurations.
The diffusion configuration does not require an internal sampling pump.
Q

4.Can the instrument measure hydrogen sulfide in wastewater facilities?

A

Yes. It can be considered for portable H2S measurements in wastewater treatment environments, subject to the selected sensor range and applicable safety procedures.
Q

5.Can the detector record historical gas measurements?

A

Optional data logging supports up to 100,000 records, along with configurable recording intervals and event information.
Q

6.How long does the battery last?

A

The source product information specifies a 2800 mAh rechargeable lithium battery and more than 20 hours of operation, depending on the configuration.
Q

7.Is the JW-600-H2S explosion-proof?

A

The supplied product information lists Ex ib IIC T6 Gb and IP65.
However, the exact certification documents and their applicability to the finished JW-600-H2S configuration should be confirmed before use in a classified hazardous area.
Q

8.Is the JW-600-H2S an H2S personal safety monitor?

A

The device is a portable H2S gas detector. Its suitability as a continuously worn personal safety monitor depends on factors such as certification, alarm performance, sensor characteristics, wearing arrangement and applicable workplace requirements.
These requirements should be verified before using it for personal exposure protection.
Q

9.What is the difference between a portable H2S detector and a fixed H2S gas sensor?

A

A portable H2S detector is used for mobile measurements and localized inspections, while a fixed gas sensor is installed at a designated monitoring location for ongoing gas measurement.
JW-IoT offers both portable detection options and products in its Environmental Gas Sensor Portfolio
