Laser Snow Depth Multi Point Monitor for Winter Safety

Key Features

Multi point snow depth monitoring with automatic patrol scanning
Laser phase measurement for stable and fast snow depth data
±1 mm measurement accuracy and 1 mm resolution
Measuring range up to 0 to 50 m
Supports up to 180 automatic patrol points
Horizontal rotation range 0 to 360°
Vertical rotation range minus 85° to 20°
Rotation speed up to 9° per second horizontally
Supports 4G RS485 and Bluetooth communication
Standard Modbus protocol for system integration
Bluetooth configuration for easier local debugging
Cloud platform support for remote monitoring and data storage
Automatic low temperature heating for stable winter operation
IP65 protection rating for outdoor snow and freezing environments
Low standby power consumption below 2W

Product Description

1. Description

JW-XH-GF(LC15) laser snow depth multi point monitor is designed for real time snow accumulation measurement in harsh winter environments. With laser phase measurement, automatic patrol scanning, Bluetooth communication, 4G or RS485 data upload, and cloud platform integration, it provides accurate snow depth data for roads, bridges, photovoltaic sites, airports, agriculture, and scenic areas.

2. Product Overview

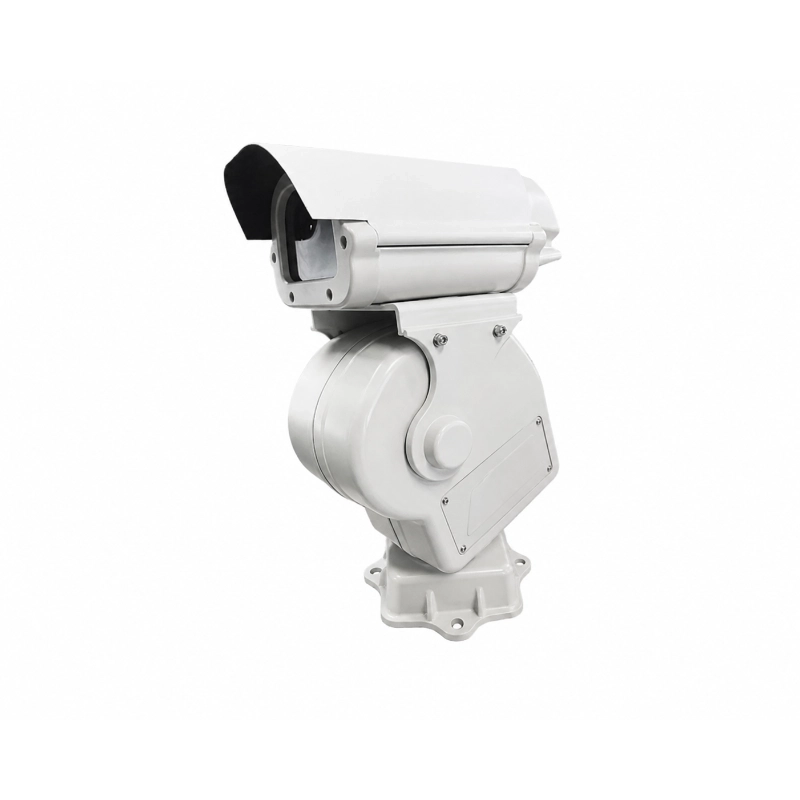

JW-XH-GF(LC15) laser snow depth multi point monitor measures the depth of unmelted snow on observation surfaces by using laser phase measurement technology. Compared with fixed point snow depth sensors, this model supports automatic multi point patrol monitoring, allowing users to collect snow depth data across different angles and positions.

The device is suitable for outdoor snow monitoring systems that require wider coverage, dynamic measurement, and remote data management. It can rotate horizontally from 0 to 360° and vertically from minus 85° to 20°, supporting up to 180 automatic patrol points. With IP65 protection, automatic low temperature heating, and stable Modbus communication, it is built for long term deployment in cold and snowy conditions.

Parameter	Specification
Product Type	Laser Snow Depth Multi Point Monitor
Model	JW-XH-GF(LC15)
Measurement Method	Laser phase method
Measuring Range	0 to 50 m
Resolution	1 mm
Measurement Accuracy	±1 mm
Measurement Time	0.3 to 2 s
Horizontal Rotation Angle	0 to 360°
Vertical Rotation Angle	minus 85° to 20°
Horizontal Rotation Speed	0 to 9° per second
Vertical Rotation Speed	0 to 5° per second
Automatic Patrol Points	Up to 180 points
Communication Methods	4G RS485 Bluetooth
Communication Protocol	Standard Modbus
Protection Rating	IP65
Time Calibration	RTC internal time with time calibration
Power Supply	DC12 to 24V
Standby Power Consumption	Less than 2W
Heating Function	Automatic low temperature heating
Cloud Support	Available with wireless communication configuration

3. Output Options and Communication

The laser snow depth multi point monitor supports multiple data transmission methods for different project requirements.

Communication Option	Typical Use
RS485 Modbus	Connection to RTU PLC data logger or monitoring platform
4G Wireless	Remote snow monitoring with cloud upload
Bluetooth	Local configuration debugging and parameter checking
Cloud Platform	Remote data storage visualization and monitoring
Local Storage	Historical data review and backup

4. Application Scenarios

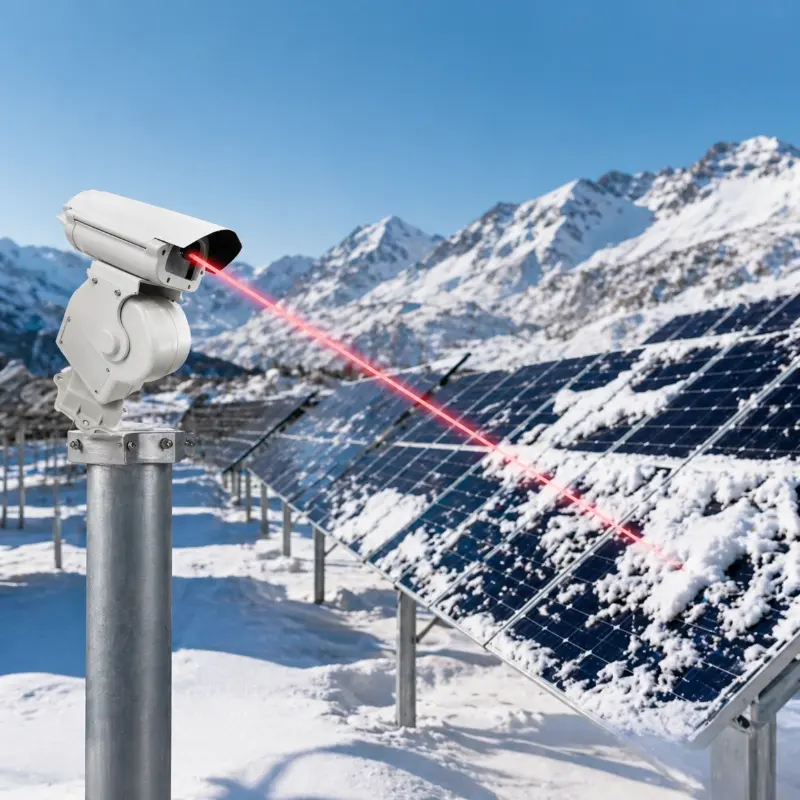

Photovoltaic snow accumulation monitoring
Road snow depth monitoring and traffic safety

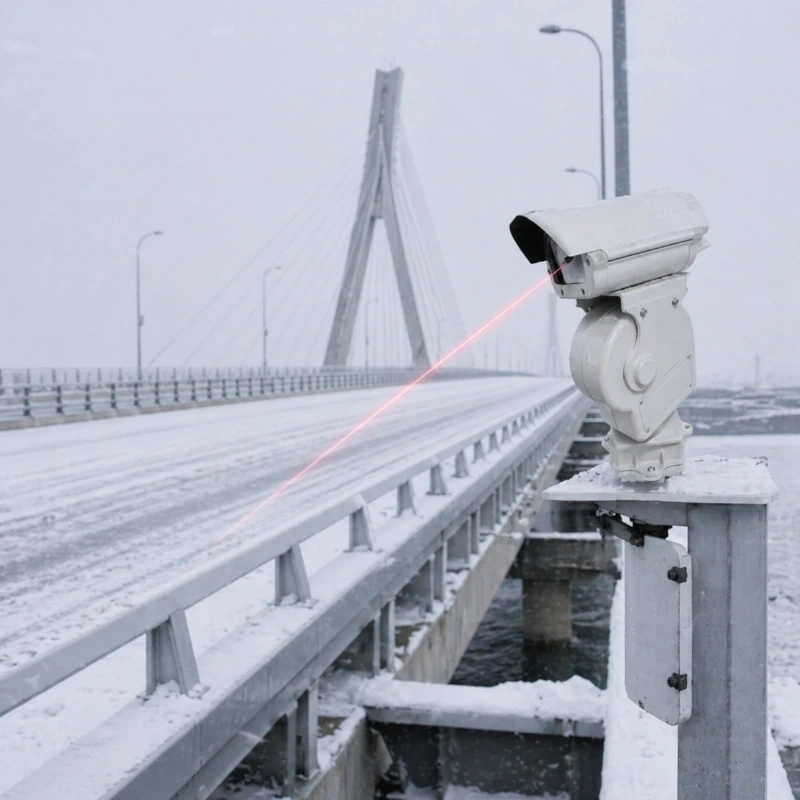

Bridge snow accumulation monitoring

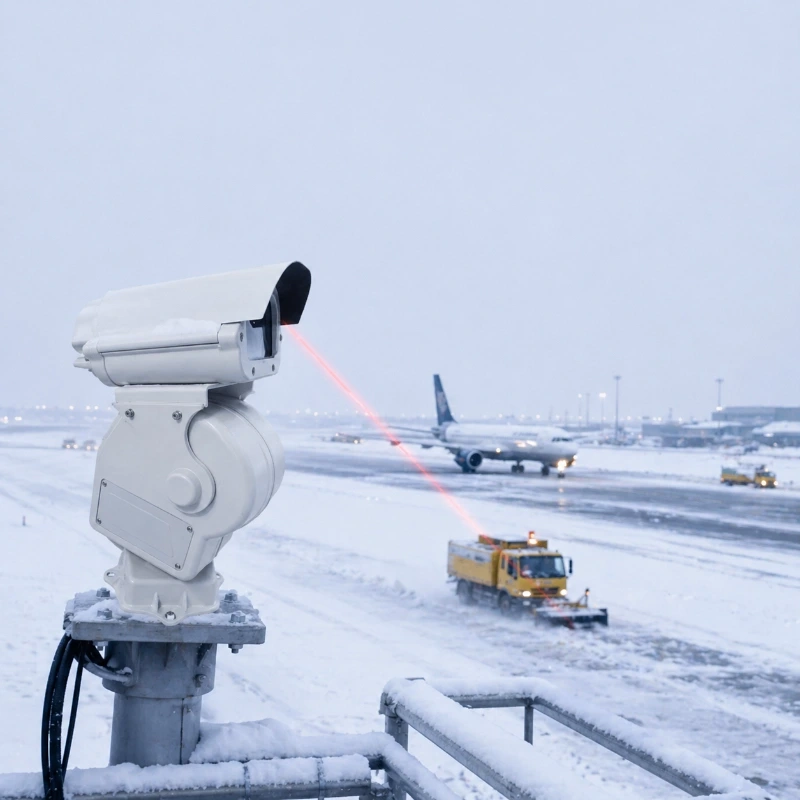

Airport runway and aviation field snow monitoring
Agricultural production snow monitoring
Park and scenic area winter safety monitoring

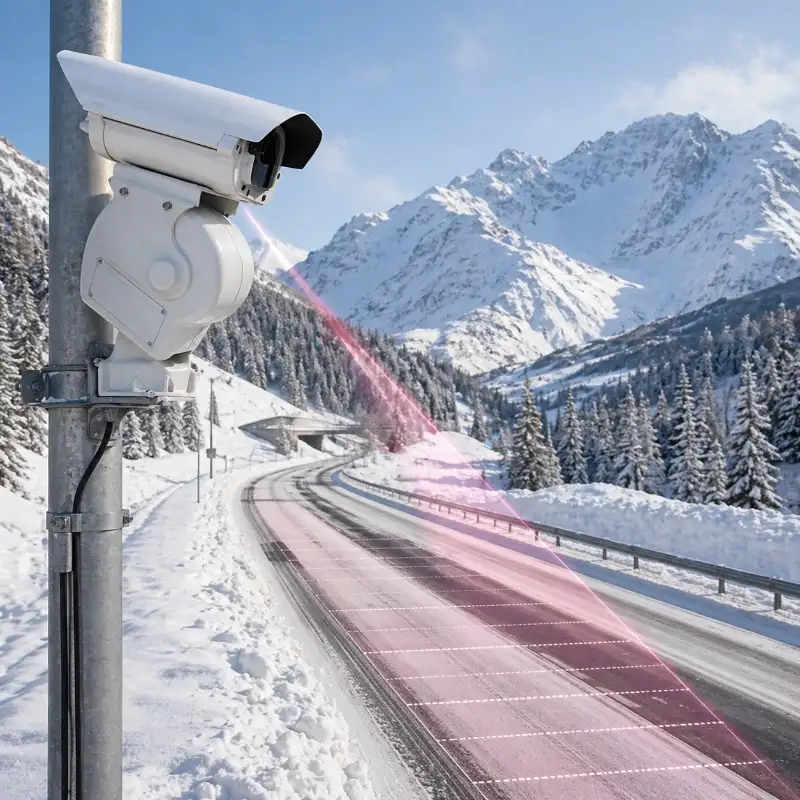

Mountain road snow warning systems
Smart transportation and winter maintenance systems
Remote meteorological observation stations
Snow disaster prevention and emergency response systems

FAQ

Q

1. What is a laser snow depth multi point monitor used for?

A

It is used to measure snow depth across multiple locations or angles in real time. It is suitable for roads, bridges, photovoltaic stations, airports, agriculture, and scenic areas.
Q

2. How is this product different from a fixed point snow depth sensor?

A

A fixed point sensor measures only one position, while this multi point monitor can automatically rotate and scan preset patrol points, providing wider snow accumulation coverage.
Q

3. Does JW-IoT Automation provide cloud monitoring support?

A

Yes. JW-IoT Automation can provide cloud monitoring support when the device is configured with wireless communication, enabling remote data viewing, storage, and management.
Q

4. What is the measurement accuracy?

A

The device provides ±1 mm accuracy and 1 mm resolution, making it suitable for high precision snow depth monitoring applications.
Q

5. Can it work in extremely cold environments?

A

Yes. The monitor includes automatic low temperature heating, helping maintain stable measurement performance in cold and snowy outdoor environments.
Q

6. What communication methods are available?

A

It supports 4G, RS485, and Bluetooth communication. RS485 is suitable for wired integration, 4G is suitable for remote upload, and Bluetooth is suitable for local configuration.
Q

7. Why choose JW-IoT Automation for multi point snow monitoring?

A

JW-IoT Automation offers a practical multi point laser snow monitoring solution with high accuracy, automatic patrol scanning, Modbus communication, Bluetooth debugging, and optional cloud platform integration.
Q

8. How many patrol points can the device support?

A

The device supports up to 180 automatic patrol points, making it suitable for wide area snow accumulation monitoring.
Q

9. Is it suitable for photovoltaic snow monitoring?

A

Yes. It can monitor snow depth across different PV panel areas, helping operators evaluate snow accumulation and support maintenance decisions.
Q

10. Can JW-IoT Automation support project based customization?

A

Yes. JW-IoT Automation can support project configuration for communication mode, data upload, cloud platform access, installation scenarios, and system integration requirements.
