JW-SA256(HY08) UAV ultrasonic wind speed and direction sensor is a compact 56 g wind measurement device designed for drones, unmanned platforms, low-altitude airflow monitoring, and mobile environmental sensing applications.
2. Product Overview

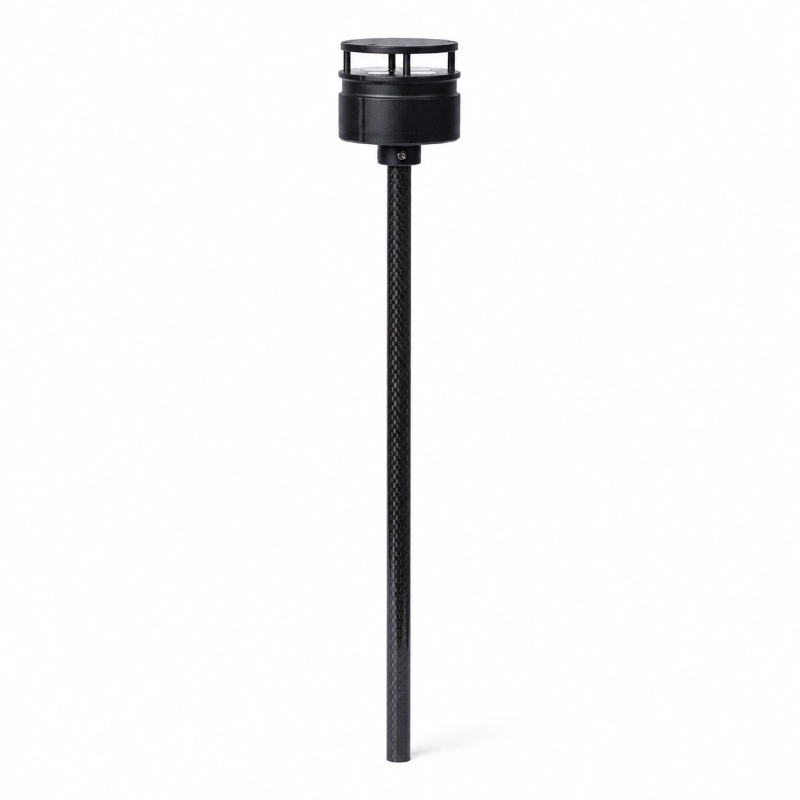

JW-SA256(HY08)UAV Ultrasonic Wind Speed Direction Sensor is a lightweight ultrasonic anemometer designed for installation on small aircraft, UAVs, drones, and unmanned mobile platforms. With a compact 50 mm diameter body and only 56 g weight, it is suitable for applications where sensor size, weight, power consumption, and response speed are critical.
Using ultrasonic resonance measurement technology, JW-SA256(HY08) can accurately measure wind speed and wind direction without moving parts. This structure reduces mechanical wear, improves long-term stability, and makes the sensor suitable for low-altitude wind field monitoring, narrow-channel airflow measurement, drone-mounted weather observation, and flight-control environmental sensing.
The sensor supports RS485 digital output and ModBus or ASCII communication protocol, allowing easy integration with UAV flight control systems, environmental monitoring platforms, and portable wind measurement devices. With a wind speed range of 0–60 m/s, wind direction range of 0–359°, low power consumption, anti-electromagnetic interference capability, waterproof and dustproof design, and operating altitude up to 4000 m, the HY-SA256 is ideal for drone-based wind monitoring and low-altitude atmospheric observation.
Parameter
Specification
Product Model
JW-SA256(HY08)
Sensor Type
UAV Ultrasonic Wind Speed Direction Sensor
Wind Speed Range
0–60 m/s
Wind Speed Accuracy
±3%
Wind Speed Resolution
0.1 m/s
Wind Direction Range
0–359°
Wind Direction Accuracy
±3°
Wind Direction Resolution
1°
Sensor Diameter
50 mm
Sensor Height
50 mm
Sensor Weight
56 g
Digital Output
RS485
Baud Rate
4800–19200
Communication Protocol
ModBus, ASCII
Operating Temperature and Humidity
-40°C to +70°C, 0–100% RH
Operating Altitude
0–4000 m
Power Supply
5–24 VDC, 19 mA
Installation Method
Aircraft top vertical mounting or bottom suspended mounting
Material and Color
ABS, black
3. Typical Applications

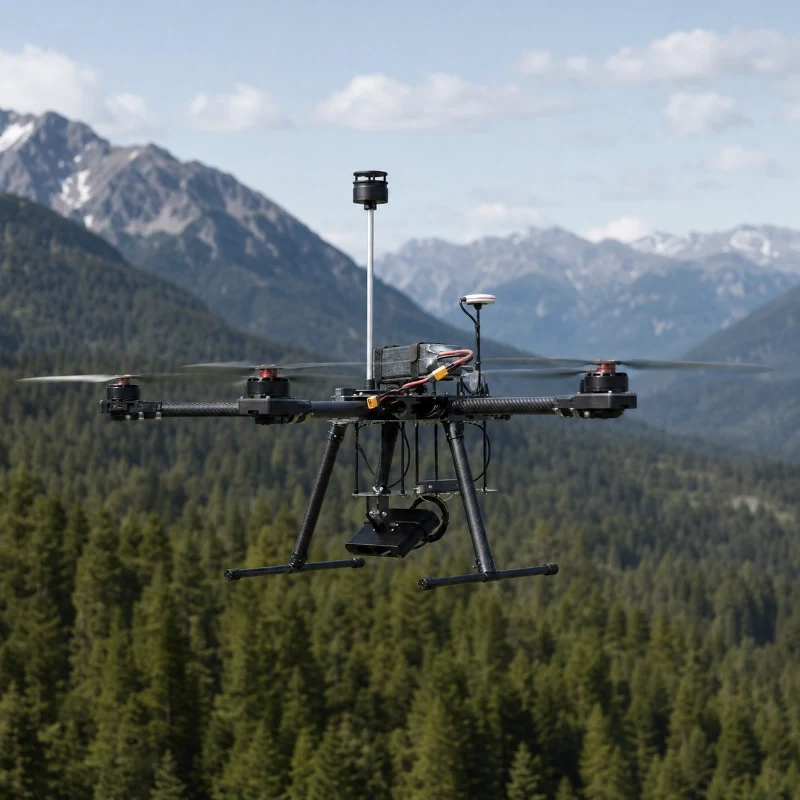

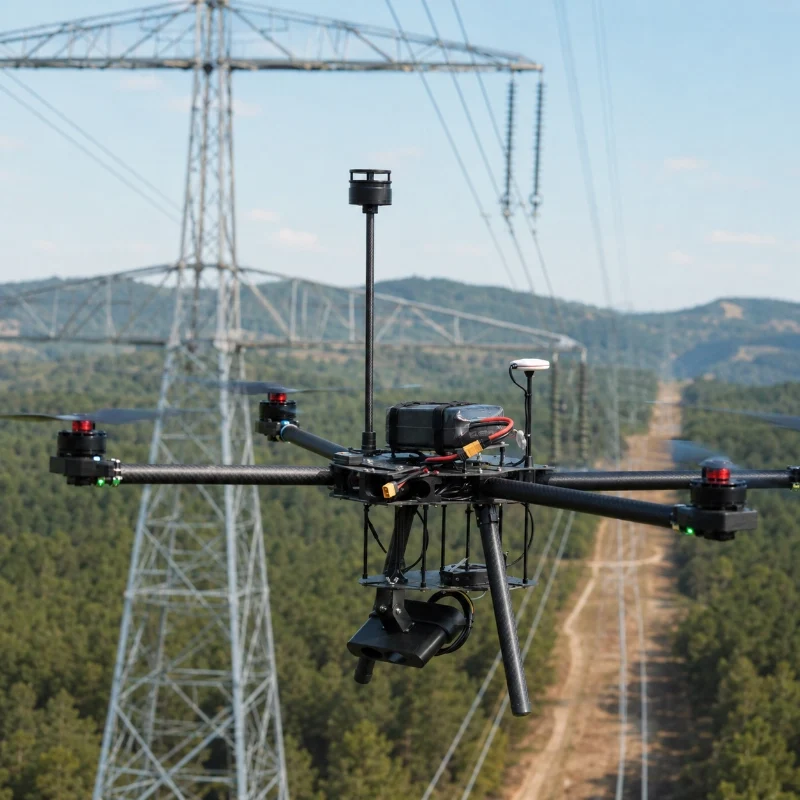

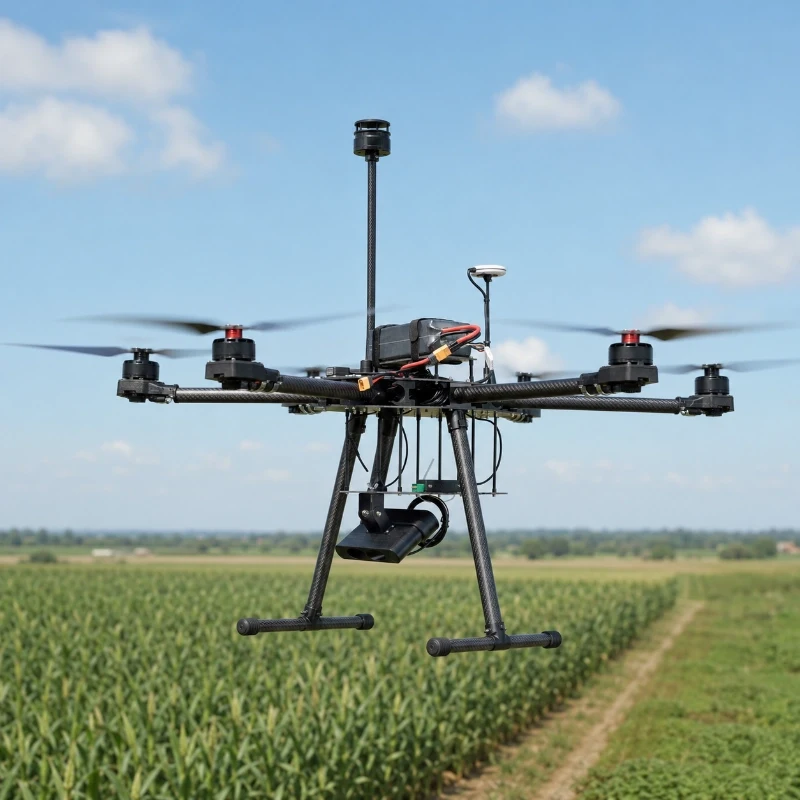

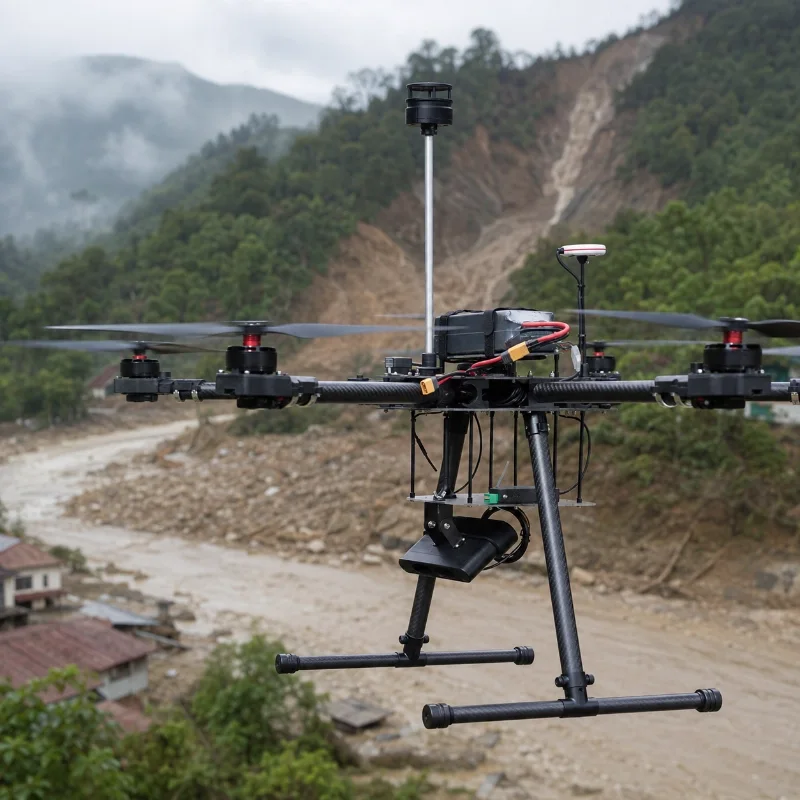

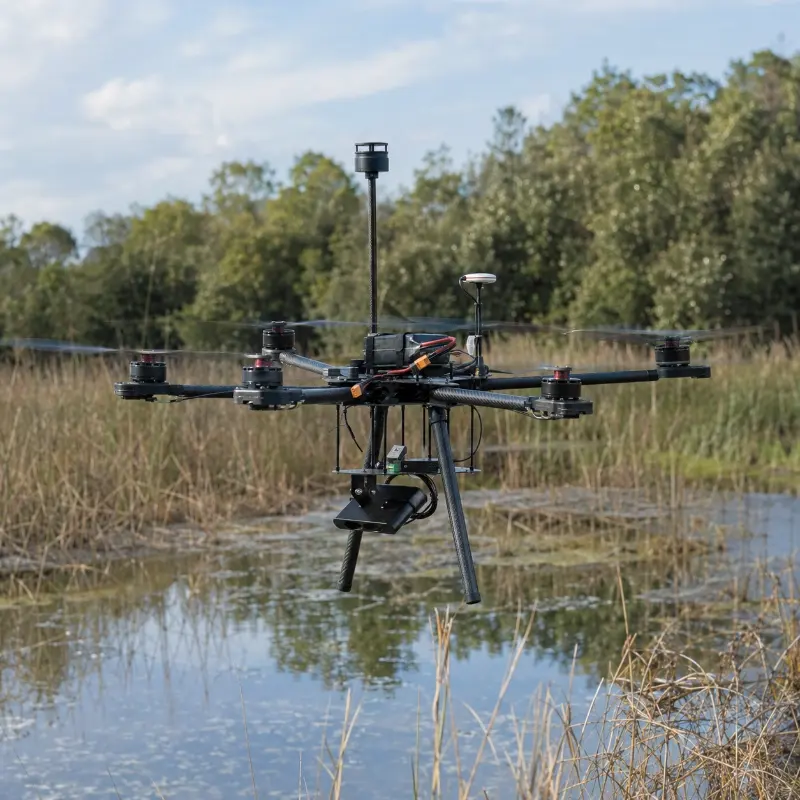

UAV-mounted low-altitude wind speed and direction measurement
1. What is JW-SA256(HY08) UAV ultrasonic wind sensor used for?
A
It is used for wind speed and wind direction measurement on UAVs, drones, small aircraft, unmanned platforms, and mobile environmental monitoring systems.
Q
2. What is the weight of this UAV wind sensor?
A
The sensor weighs only 56 g, making it suitable for small drones and lightweight airborne monitoring systems.
Q
3. What is the wind speed measurement range?
A
The wind speed measurement range is 0–60 m/s, with ±3% accuracy and 0.1 m/s resolution.
Q
4. Does this ultrasonic wind sensor have moving parts?
A
No. JW-SA256(HY08) uses ultrasonic measurement technology with no moving parts, reducing maintenance and improving reliability during flight operation.
Q
5. Can JW-IoT integrate this sensor into UAV monitoring systems?
A
Yes. JW-IoT can support integration of this UAV ultrasonic wind sensor into drone weather payloads, flight control platforms, and low-altitude environmental monitoring systems.
Q
6. What communication output does the sensor support?
A
The sensor supports RS485 digital output and ModBus or ASCII communication protocols.
Q
7. What installation methods are available?
A
The sensor can be installed vertically on the top of an aircraft or suspended under the aircraft body, depending on the UAV structure and airflow measurement requirements.
Q
8. Can JW-IoT provide this sensor for drone environmental monitoring projects?
A
Yes. JW-IoT can provide this sensor for drone-based wind measurement, low-altitude atmospheric monitoring, environmental inspection, and mobile weather observation projects.
Q
9. Does JW-IoT support customized UAV wind monitoring solutions?
A
Yes. JW-IoT can support customized sensor integration, data output, platform connection, and project-based UAV weather monitoring solutions.
