Integrated Wind Speed Direction Sensor RS485 for Weather Monitoring

Key Features

Integrated wind speed and direction measurement: Combines three cup wind speed measurement and wind vane direction measurement in one compact sensor.
Wide wind speed measurement range: Measures wind speed from 0 to 60 m/s, suitable for outdoor weather monitoring and industrial wind observation.
Full wind direction monitoring: Measures wind direction from 0 to 360° with 0.1° resolution, supporting precise directional wind data collection.
RS485 Modbus RTU output: Digital output makes the sensor easy to connect with data loggers, RTUs, PLCs, IoT gateways, and cloud monitoring platforms.
Sensitive low wind response: Wind speed starting threshold is ≤0.6 m/s, and wind direction starting wind speed is ≤0.8 m/s.
Fast response time: Response time is less than 1 second, helping monitoring systems capture real time wind changes.
High performance bearing system: Smooth bearing structure reduces rotational resistance and improves measurement stability.
Durable ASA housing: ASA housing offers high mechanical strength, corrosion resistance, outdoor durability, and long term color stability.
Low power design: Power consumption is ≤200 mW, suitable for solar powered and remote weather monitoring stations.

Product Description

1. Description

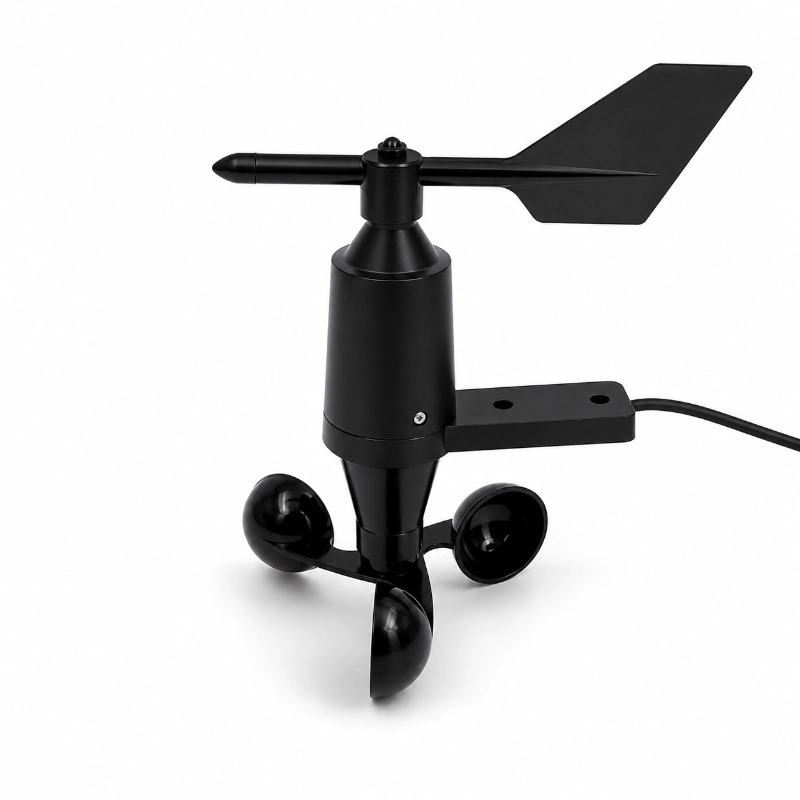

JW-FSX(YN04) Wind Speed Direction Sensor RS485 is an integrated wind monitoring sensor designed to measure both wind speed and wind direction in one compact device. With a three cup anemometer structure, wind vane design, RS485 Modbus RTU output, low power consumption, and durable ASA housing, it is ideal for automatic weather stations, smart agriculture, environmental monitoring, ports, airports, traffic weather systems, and industrial meteorology.

2. Product Overview

JW-FSX(YN04) Wind Speed Direction Sensor RS485 is a two in one wind monitoring device for professional meteorological and environmental applications. It uses a traditional three cup anemometer structure for wind speed measurement and a large wind vane design for wind direction detection.

The wind cups are made from high strength PC material and dynamically balanced for stable rotation. The wind direction part uses a large vane structure to capture wind direction changes effectively. Combined with an internal smooth bearing system, the sensor provides sensitive response, low rotational resistance, and reliable data acquisition.

With RS485 Modbus RTU communication, this integrated wind sensor can be easily connected to automatic weather stations, smart agriculture platforms, environmental monitoring systems, marine observation systems, airport weather stations, port monitoring systems, and traffic weather monitoring networks.

Item	Specification
Product Type	Integrated wind speed and wind direction sensor
Wind Speed Range	0 to 60 m/s
Wind Speed Principle	Hall effect
Wind Speed Accuracy	±0.3 ±0.03V m/s
Wind Speed Resolution	0.3 m/s
Wind Speed Starting Threshold	≤0.6 m/s
Wind Direction Range	0 to 360°
Wind Direction Principle	Hall effect
Wind Direction Accuracy	±3°
Wind Direction Resolution	0.1°
Wind Direction Starting Threshold	≤0.8 m/s
Response Time	<1 s
Power Supply	DC 12V to DC 24V
Power Consumption	≤200 mW
Operating Temperature	-20°C to 80°C
Operating Humidity	0 to 100%RH
Output	RS485 Modbus RTU
Communication Setting	9600 n 8 1
Default Address	0xFF
Optional Output Types	0 to 5V 0 to 10V 4 to 20mA Pulse RS485 Modbus RTU
Housing Material	ASA
Wind Cup Material	PC

3. Application Scenarios

Automatic weather stations
Smart agriculture weather monitoring
Greenhouse climate monitoring
Environmental monitoring stations
Airport meteorological monitoring
Port and marine weather monitoring
Traffic weather observation
Industrial site wind monitoring
Laboratory wind measurement
Solar powered outdoor weather stations
Agricultural IoT monitoring systems

4. Installation and Integration

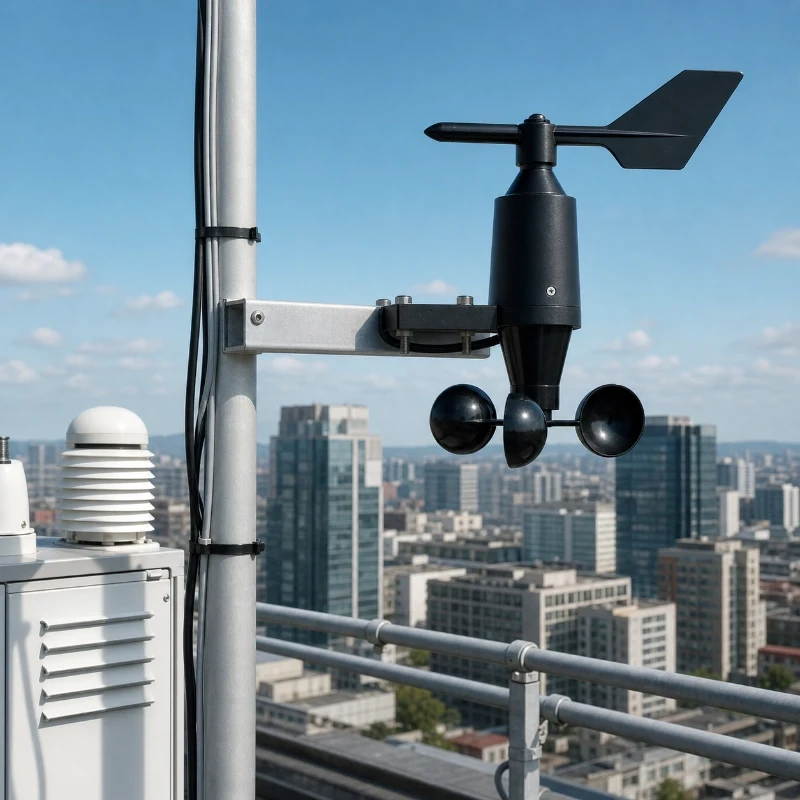

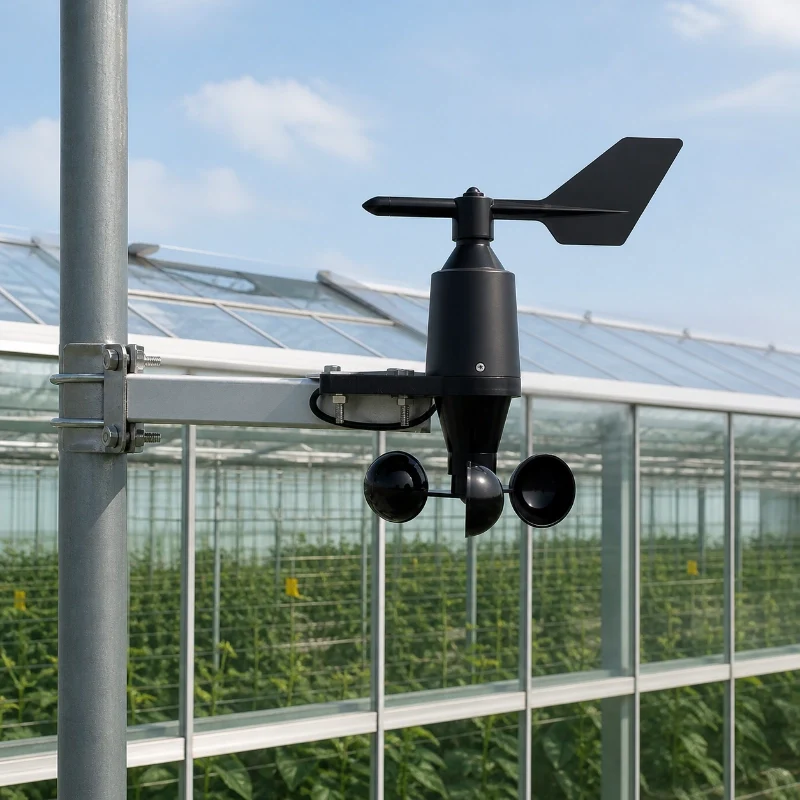

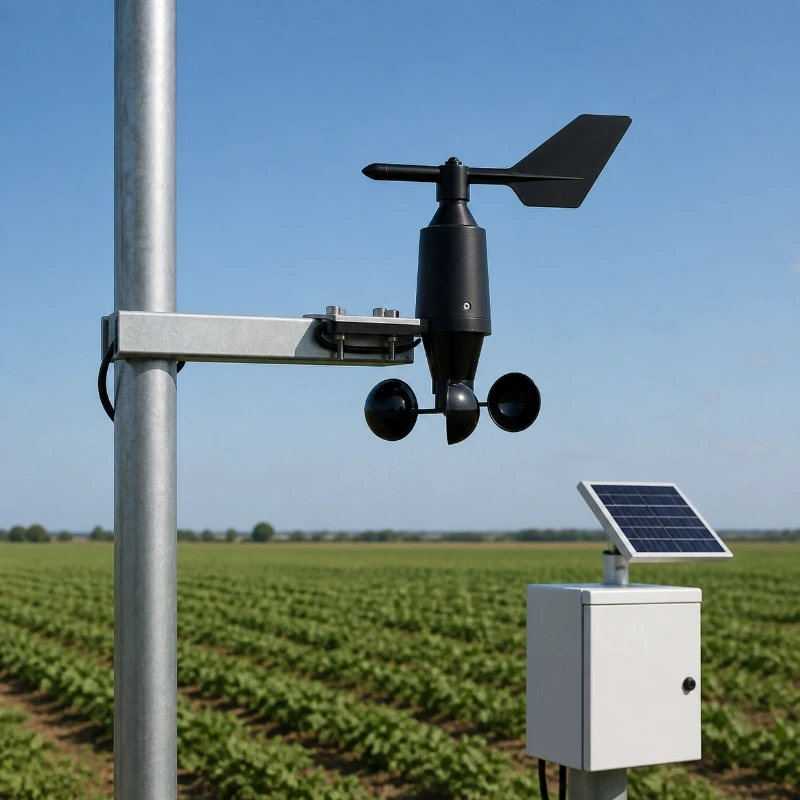

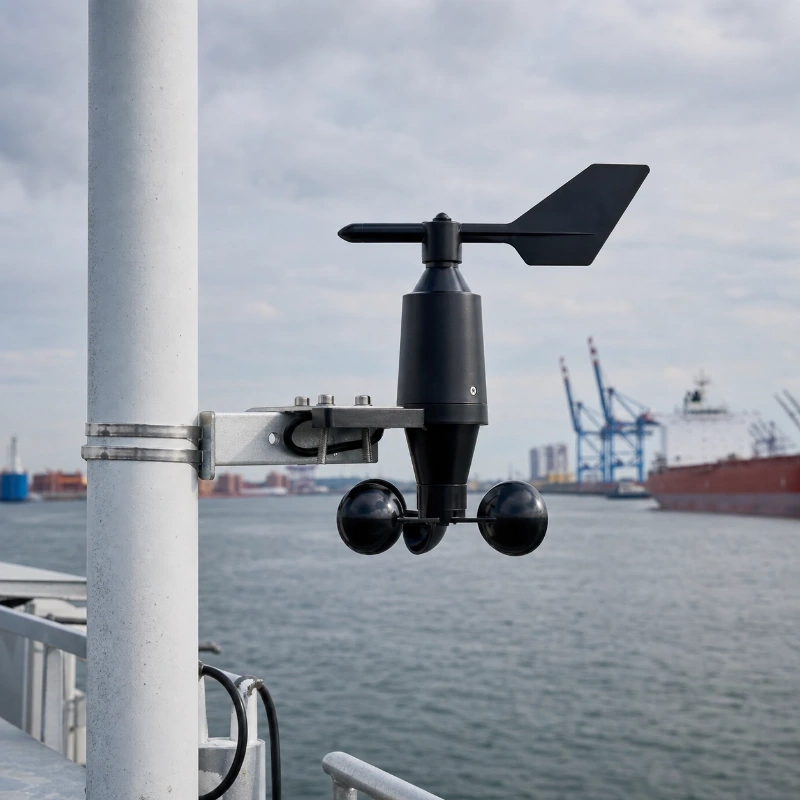

The sensor can be installed on a horizontal mounting arm, meteorological pole, rooftop bracket, greenhouse mast, port monitoring pole, or solar powered weather station structure. For best performance, install it in an open area away from buildings, trees, walls, and other airflow obstacles.

Recommended integration devices include:

RS485 data logger
Modbus RTU gateway
Automatic weather station controller
Solar powered monitoring cabinet
PLC or RTU system
IoT weather monitoring platform
Rain gauge and temperature humidity sensor
Cloud based environmental monitoring system

FAQ

Q

1. What does this Wind Speed Direction Sensor measure?

A

It measures both wind speed and wind direction in one integrated device.
Q

2. What is the wind speed measurement range?

A

The wind speed measurement range is 0 to 60 m/s.
Q

3. What is the wind direction measurement range?

A

The wind direction measurement range is 0 to 360°, with 0.1° resolution.
Q

4. Does the sensor support RS485 Modbus RTU?

A

Yes. The sensor supports RS485 Modbus RTU output for easy integration with data loggers, RTUs, gateways, PLCs, and cloud platforms.
Q

5. Can JW-IoT integrate this sensor into a complete weather station?

A

Yes. JW-IoT can integrate this sensor with rain gauges, temperature humidity sensors, solar power systems, data loggers, and IoT monitoring platforms.
Q

6. Is this sensor suitable for outdoor use?

A

Yes. It uses durable ASA housing and is designed for long term outdoor wind monitoring applications.
Q

7. Can JW-IoT provide this sensor for smart agriculture projects?

A

Yes. JW-IoT can supply this integrated wind sensor for farms, greenhouses, irrigation decision support, and agricultural weather stations.
Q

8. What power supply does the sensor require?

A

The sensor works with DC 12V to DC 24V power supply.
Q

9. Can JW-IoT support project based system integration?

A

Yes. JW-IoT can support RS485 integration, solar powered station design, cloud platform connection, and project based weather monitoring solutions.
