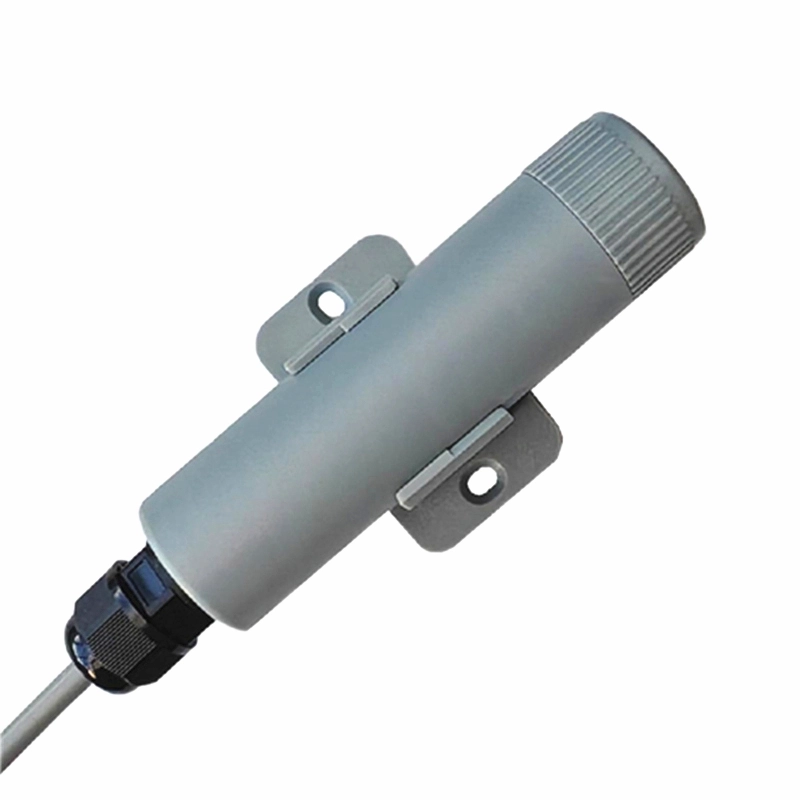

JWGas-VOC(Z16) TVOC eCO2 Air Quality Sensor is a compact indoor air quality monitoring sensor designed for HVAC systems, building automation, air purifiers, demand-controlled ventilation, and laboratory environmental monitoring. Based on MOX gas sensing technology and an integrated ENS161 gas sensor, it measures equivalent TVOC, equivalent CO2, AQI-U, AQI-S, temperature, humidity, and dew point.
With optional RS485 Modbus RTU or SDI-12 V1.3 digital output, low power operation modes, temperature and humidity compensation, and wall-mounted installation, this sensor is ideal for IoT-based indoor air quality monitoring and smart building integration.
2. Product Overview
JWGas-VOC(Z16) TVOC eCO2 Air Quality Sensor is designed for continuous indoor air quality monitoring and digital environmental data acquisition. It can detect a wide range of volatile organic compounds, including ethanol, toluene, hydrogen, and oxidizing gases, and uses intelligent algorithms to calculate eTVOC, eCO2, and multiple air quality index outputs.
The sensor is suitable for smart buildings, HVAC systems, indoor air quality monitoring, demand-controlled ventilation, air purification equipment, home appliances, and laboratory applications. Its RS485 Modbus RTU and SDI-12 output options make it easy to integrate with data loggers, IoT gateways, building automation systems, and cloud monitoring platforms.
According to the supplier manual, the sensor supports SDI-12 V1.3 or RS485 Modbus RTU, 5–28 V DC power input, IP50 protection, wall-mounted installation, default 2 m cable length, and a compact sensor body size of 111 × 25.5 mm.
Parameter
Model No
JWGas-VOC(Z16)
Sensing Technology
MOX metal oxide gas sensing
Integrated Gas Sensor
ENS161
Measurement Parameters
eTVOC, eCO2, AQI-U AQI-S, temperature, humidity, dew point
eTVOC Range
0–65000 ppb
eTVOC Resolution
1 ppb
eTVOC Typical Accuracy
±15% of measured value
eCO2 Range
400–65000 ppm
eCO2 Resolution
1 ppm
eCO2 Typical Accuracy
±20% of measured value
AQI-U Range
1–5
AQI-S Range
0–500
Temperature Range
-40 to 125°C
Long-Term Operating Temperature
-40 to 80°C
Temperature Resolution
0.01°C
Typical Temperature Accuracy
Up to ±0.2°C
Humidity Range
0–100% RH
Humidity Resolution
0.01% RH
Typical Humidity Accuracy
Up to ±1.8% RH
Working Environment
-40 to 80°C, 0–95% RH non-condensing
Output Option 1
SDI-12 V1.3
Output Option 2
RS485 Modbus RTU
Power Supply
5–28 V DC
Protection Rating
IP50
Installation Method
Wall-mounted
Default Cable Length
2 m
Max Custom Cable Length
5 m
Sensor Body Size
111 × 25.5 mm
OEM ODM
Available

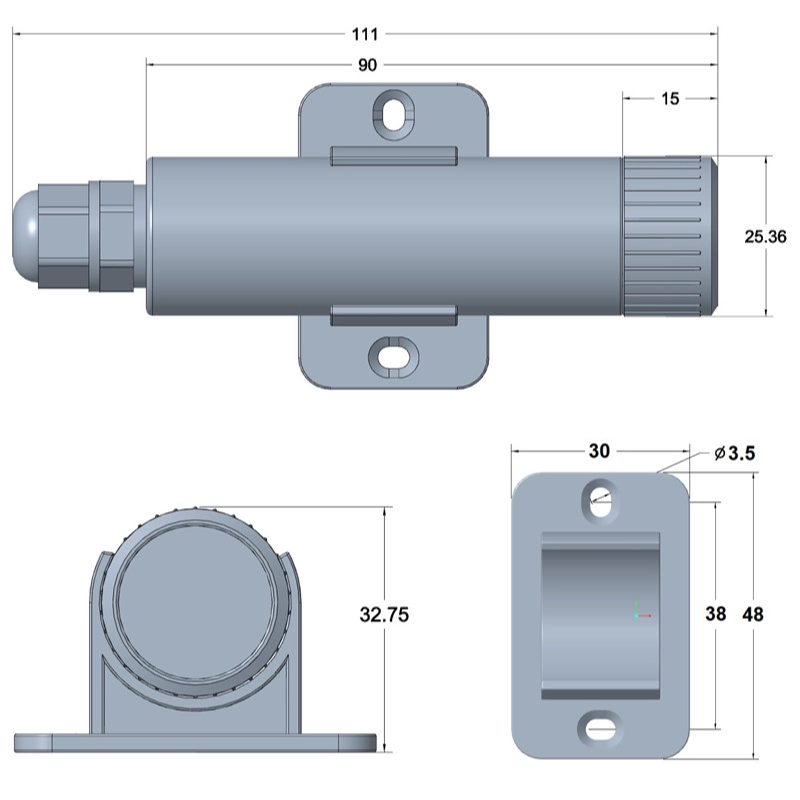

3. Dimension
4. Application Scenarios
Indoor air quality monitoring
HVAC system monitoring
Building automation
Demand-controlled ventilation

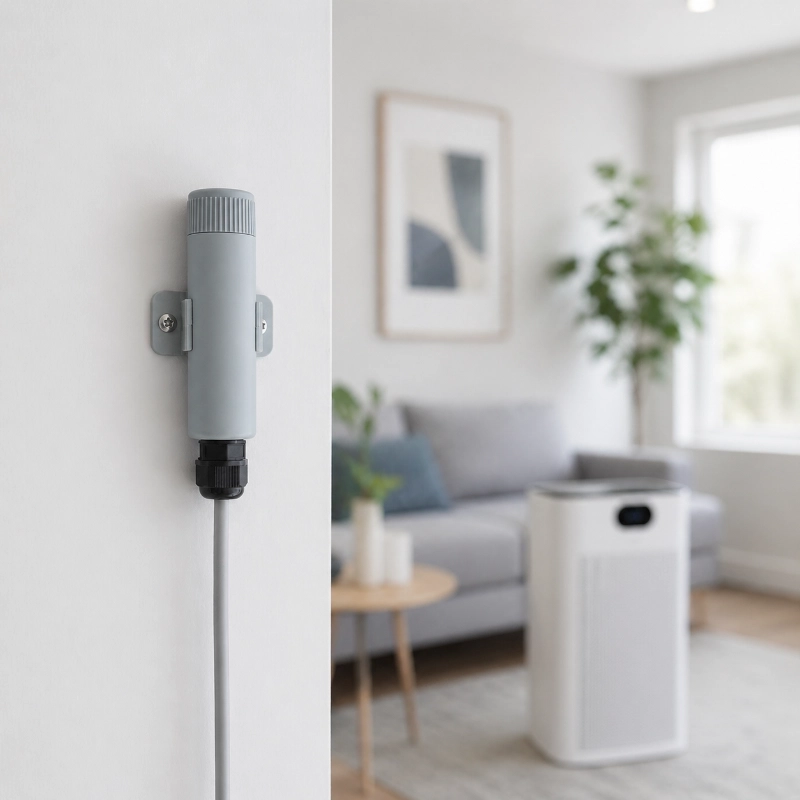

Air purification systems
Smart home appliances
Kitchen hood and air purifier control

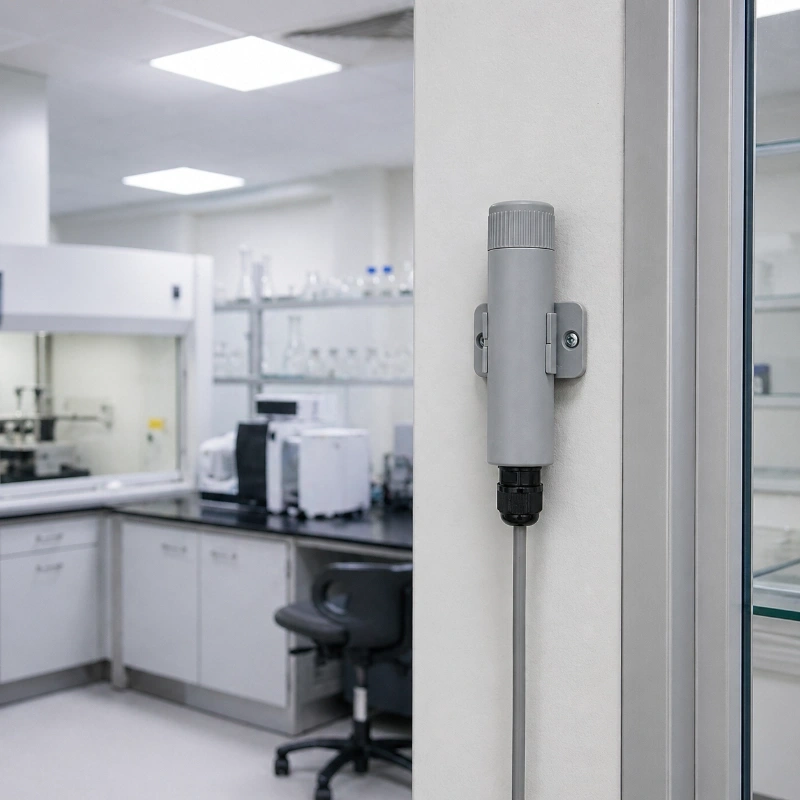

Laboratory environmental monitoring

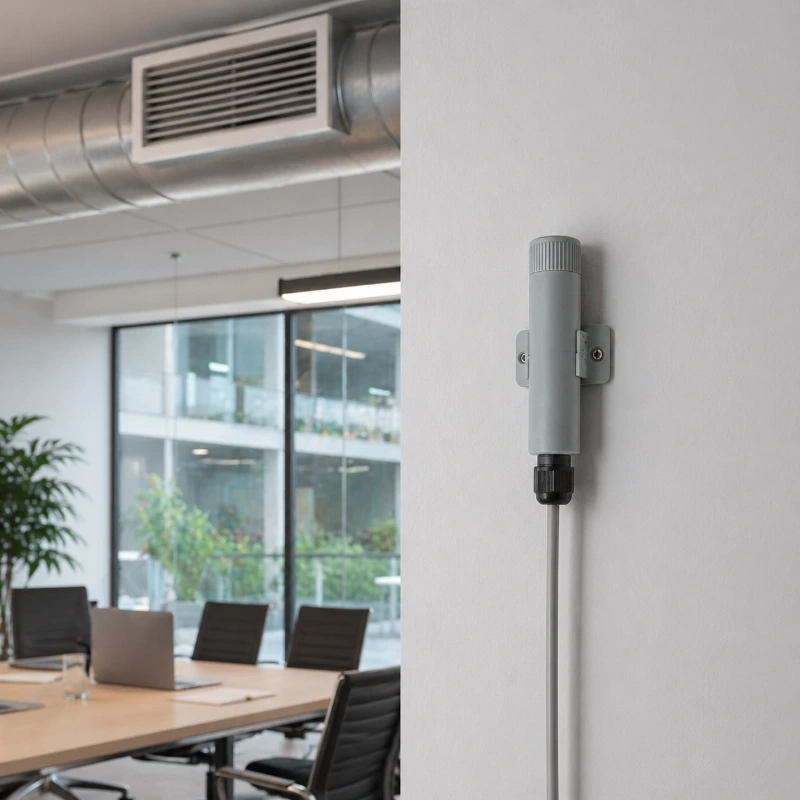

Office and classroom air quality monitoring
Smart building
IAQ management
IoT-based environmental monitoring platforms
Data logging and remote air quality monitoring
FAQ
Q
1. What does the JWGas-VOC(Z16) TVOC eCO2 Air Quality Sensor measure?
A
JWGas-VOC(Z16) sensor measures eTVOC, eCO2, AQI-U, AQI-S, temperature, humidity, and dew point for indoor air quality monitoring and HVAC control applications.
Q
2. What is the eTVOC measurement range?
A
The eTVOC measurement range is 0 to 65000 ppb, with a resolution of 1 ppb.
Q
3. What is the eCO2 measurement range?
A
The eCO2 measurement range is 400 to 65000 ppm, with a resolution of 1 ppm.
Q
4. Does JWGas-VOC(Z16) support RS485 Modbus RTU?
A
Yes. JWGas-VOC(Z16) supports RS485 Modbus RTU, making it suitable for HVAC systems, building automation controllers, IoT gateways, PLC systems, and cloud monitoring platforms.
Q
5. Can JWGas-VOC(Z16) work with SDI-12 data loggers?
A
Yes. JWGas-VOC(Z16) supports SDI-12 V1.3, allowing it to connect with data loggers and low-power environmental monitoring systems.
Q
6. What is AQI-U?
A
AQI-U is an indoor air quality level output ranging from 1 to 5. It is designed to provide a simple air quality rating for indoor monitoring and ventilation control.
Q
7. What is AQI-S?
A
AQI-S is a relative air quality index ranging from 0 to 500. It compares current air quality with the average air quality over the previous 24 hours.
Q
8. Does the sensor measure temperature and humidity?
A
Yes. The sensor measures temperature from -40 to 125°C and humidity from 0 to 100% RH, with dew point output also available.
Q
9. Is JWGas-VOC(Z16) suitable for battery-powered systems?
A
Yes. The sensor has a low-power design. The SDI-12 version has a static current of less than 2 mA @ 12 V DC, making it suitable for low-power monitoring applications.
Q
10. What applications is this sensor suitable for?
A
It is suitable for indoor air quality monitoring, HVAC systems, building automation, demand-controlled ventilation, air purification systems, smart appliances, laboratories, offices, classrooms, and IoT monitoring platforms.
Q
11. Can JWGas-VOC(Z16) be wall mounted?
A
Yes. JWGas-VOC(Z16) uses a compact wall-mounted design with a sensor body size of 111 × 25.5 mm, making it easy to install in indoor monitoring points.
Q
12. Does JWGas-VOC(Z16) support OEM or ODM customization?
A
Yes. JWGas-VOC(Z16) supports OEM and ODM customization, including communication interface, cable length, labeling, and system integration requirements.
