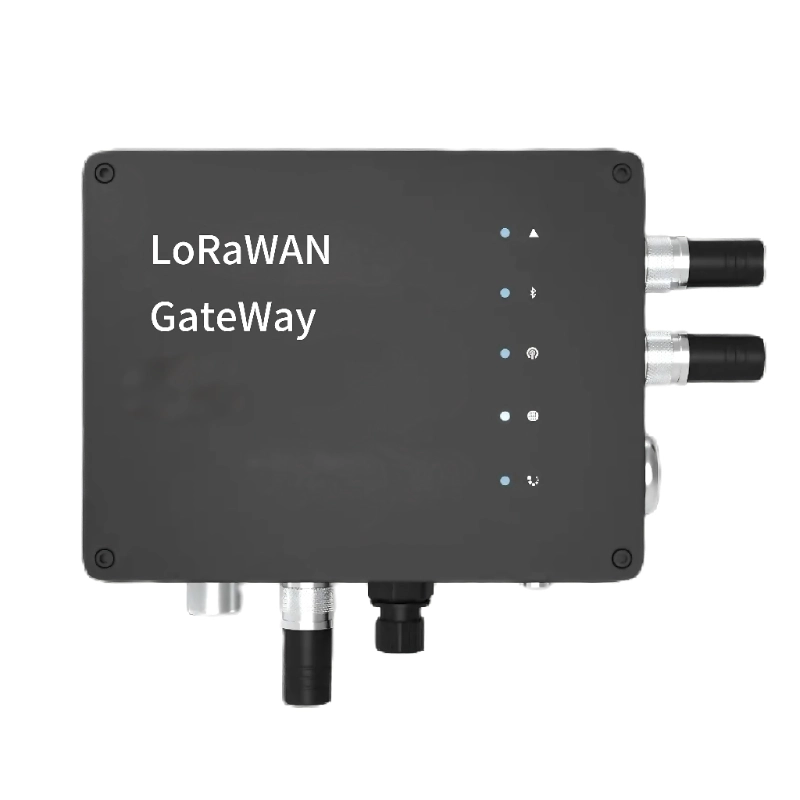

Outdoor LoRaWAN Gateway IP67

1. Description

JW-LWG-GDO(M02) Outdoor LoRaWAN Gateway is a high performance multi channel gateway designed for wide area LoRaWAN network deployment in smart cities, factories, parks, utilities, agriculture, and harsh outdoor environments. It supports 4G WiFi Ethernet POE power IP67 protection multiple LoRaWAN frequency bands and remote maintenance, making it suitable for reliable IoT data collection and transmission in large scale projects.

2. Product Overview

JW-LWG-GDO(M02) Outdoor LoRaWAN Gateway IP67 is built for stable low power network construction and long range wireless data transmission. It is suitable for urban IoT networks, industrial sites, public utilities, parks, remote fields, deserts, grasslands, and other harsh environments where reliable LoRaWAN coverage is required.

With strong processing capability, flexible deployment options, and support for mainstream LoRaWAN network servers, this gateway can be used in smart city infrastructure, industrial monitoring, environmental sensing, energy management, and remote meter reading systems. The product supports TTN ChirpStack Basicstation ThinkLink and local network server deployment, enabling flexible integration into different IoT platforms.

Item	Specification
Product Type	Outdoor LoRaWAN Gateway
Model	JW-LWG-GDO(M02)
SOC	LS1012A 64 bit ARM Cortex A53 800MHz
Memory	512MB DDR3L 1066MHz
Storage	8GB EMMC
Network Server Support	Basicstation GWMP ThinkLink TTN ChirpStack Local NS
LoRa Frequency Bands	CN470 EU868 EU433 AS923 US902 AU915
Communication Rate	292bps to 5.4kbps
Spreading Factor	SF7 to SF12
Transmit Power	22dBm Max
Antenna Type	Omnidirectional
Channel Mode	Up to 8 frequency points 16 channels half duplex
Maximum Channel Support	Up to 32 channels
Data Backhaul	Ethernet 4G WiFi
Ethernet	1000M 100M
4G Module	CAT1 module by default
SIM Card	External nano SIM interface
Timing	GPS BeiDou
Configuration Ports	USB Type C Ethernet WiFi
Power Supply	POE 48V
Power Consumption	5W
Operating Temperature	-40°C to 70°C
Operating Humidity	0% to 95% RH
Protection Rating	IP67
Weight	1.2kg
Dimensions	164 x 124 x 50 mm
Installation	Pole mounting or wall mounting

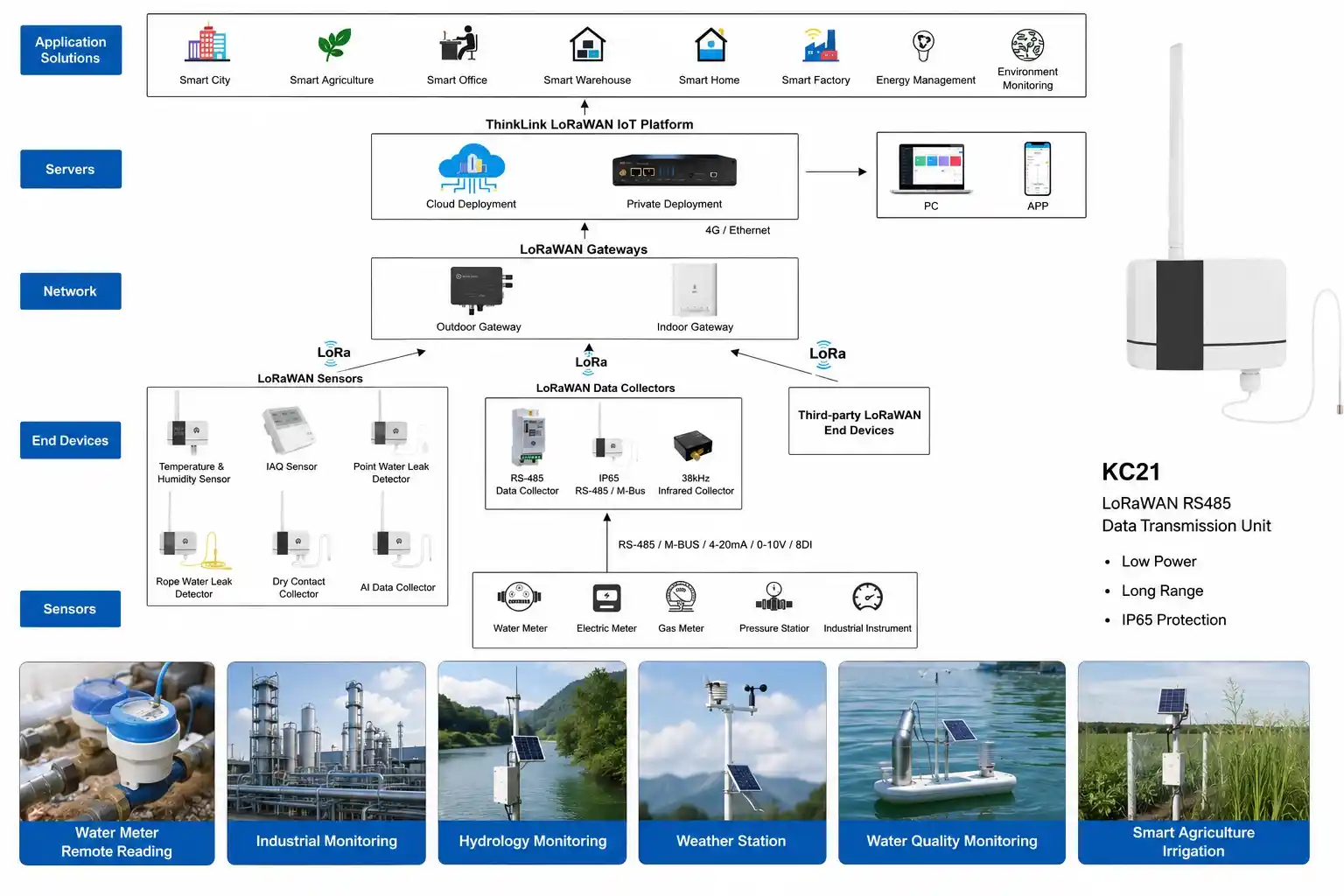

3. Application Scenarios：

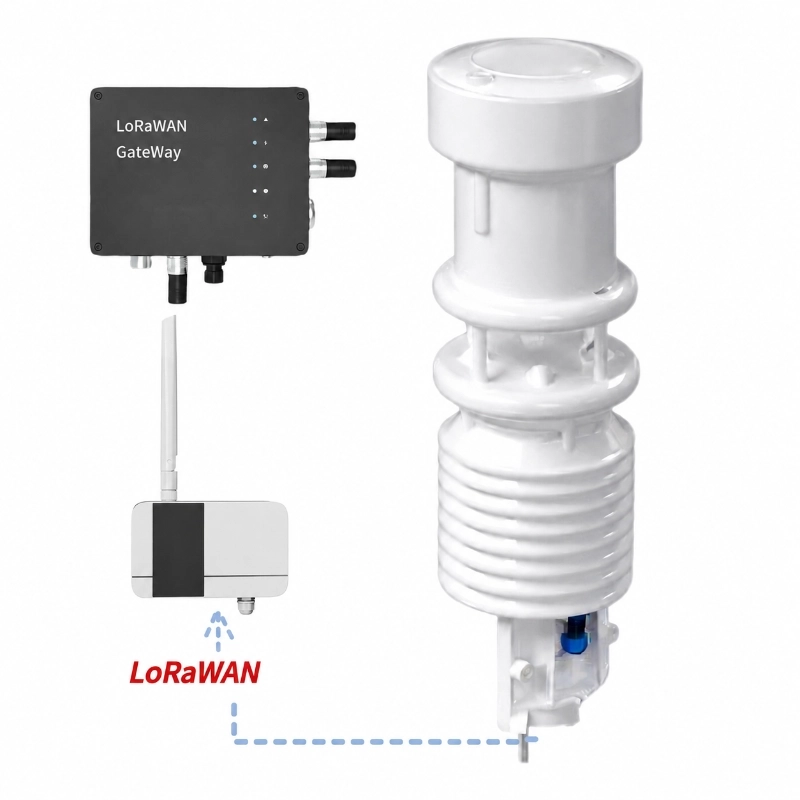

Smart City IoT Network: Deploy LoRaWAN gateways on poles, rooftops, or utility infrastructure to connect distributed sensors for waterlogging monitoring, manhole monitoring, street environment sensing, and municipal asset management.
Industrial Monitoring: Connect LoRaWAN sensors and RS485 data collectors across factories, workshops, storage areas, and industrial parks for equipment status monitoring and environmental data acquisition.
Smart Agriculture: Build long range wireless sensor networks for greenhouse monitoring, irrigation control, soil moisture monitoring, weather stations, and farm asset tracking.
Water Conservancy and Hydrology: Use the gateway to receive data from remote water level sensors, rain gauges, water quality sensors, and hydrological monitoring terminals.
Remote Meter Reading: Support LoRaWAN meter reading networks for water meters, gas meters, electric meters, pressure stations, and industrial instruments.

4. Interface Description

Interface	Description
RF	LoRa antenna interface
WiFi	WiFi antenna interface
POE	POE power interface
SIM	SIM card slot
4G	4G antenna interface
GPS	GPS antenna interface

5. Installation Highlights

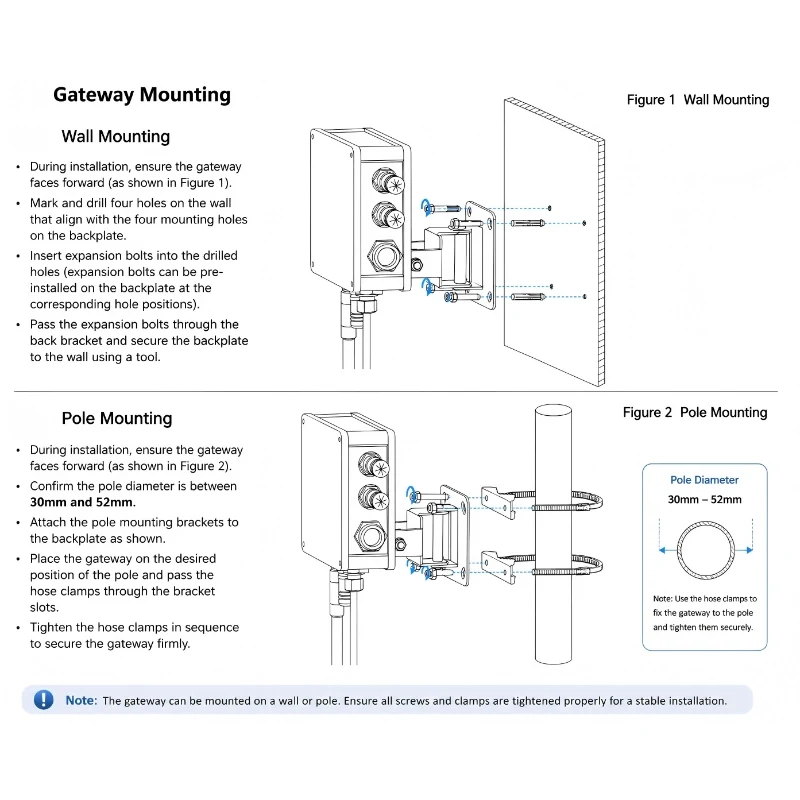

The gateway supports both wall mounting and pole mounting. For pole installation, the recommended pole diameter is 30mm to 52mm. The manual also emphasizes waterproof protection for outdoor installations, including sealing cable entry points, antenna interfaces, and power input ports to prevent water ingress.
