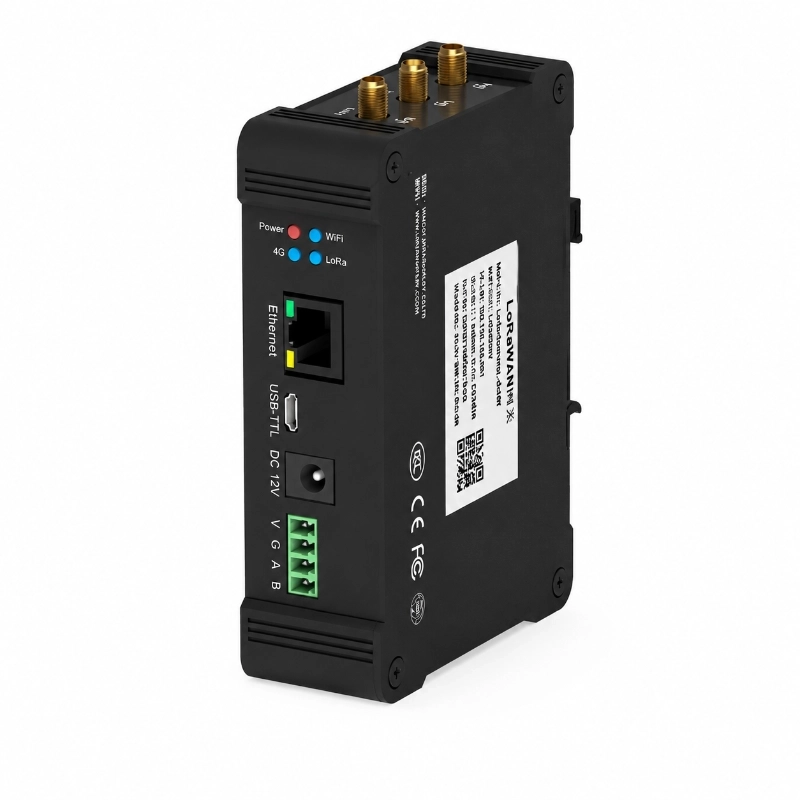

Indoor LoRaWAN Gateway G42/3 with Multi-Sensor Connectivity

Key Features

Indoor LoRaWAN gateway supporting G42/3 series devices
Multi-sensor connectivity with RS232 and RS485 interfaces
Real-time data transmission with secure encryption protocols
Compact, durable enclosure optimized for indoor use
Easy installation with flexible mounting options
Supports OTA firmware upgrade and remote configuration
Low power consumption with high operational efficiency
Wide temperature and humidity operational range

Product Description

1. Description

Reliable indoor LoRaWAN gateway for smart IoT deployments, supporting multi-sensor data collection, real-time monitoring, and secure network connectivity.

2. Product Overview

JW-IG43 Indoor LoRaWAN Gateway provides seamless connectivity for smart homes, smart buildings, and small-scale industrial IoT networks. With robust indoor coverage and support for multiple sensors, it enables centralized monitoring and real-time data reporting. Equipped with advanced LoRaWAN protocol support, dual communication interfaces, and easy deployment features, it ensures secure and efficient IoT network management.

Parameter	Specification
LoRaWAN Standard	1.0.2 / 1.0.3 / 1.0.4, Class A/C
Channels	8 or 16 channels depending on model
Frequency Range	EU868, US915, AS923, CN470, AU915
Transmit Power	Max 20-27dBm
Receiver Sensitivity	-137dBm @ SF12 BW125kHz

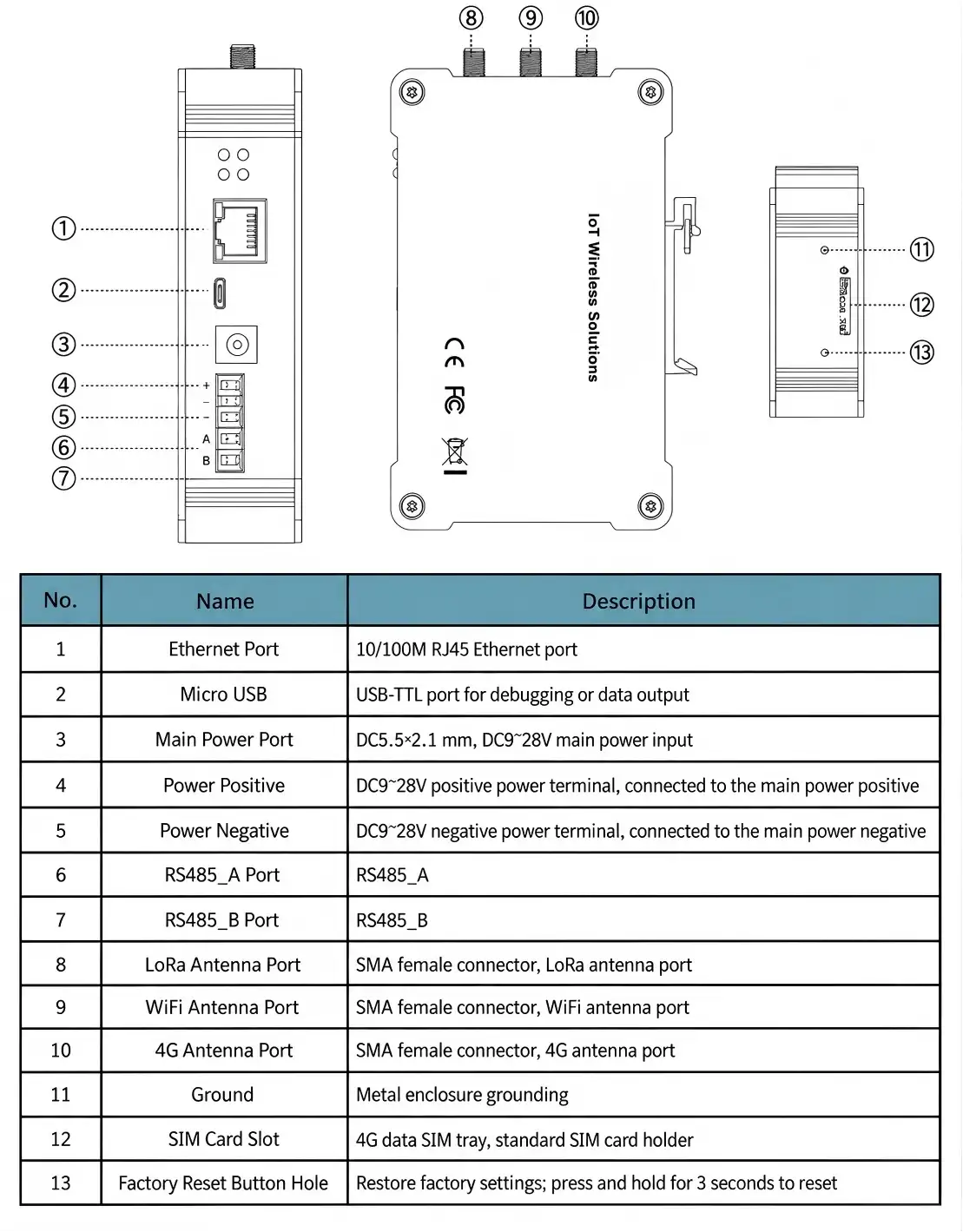

Communication Interfaces	RS232, RS485, Ethernet, WiFi (optional)
Ethernet Port	1 × RJ45, 10/100 Mbps
WiFi	IEEE 802.11 b/g/n, optional AP/STA mode
4G LTE (optional)	CAT4, fallback 3G/2G
Local Storage	16MB flash for data buffer
Power Supply	DC12V ±5%, POE support
Max Power Consumption	10W typical
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 70°C
Humidity	0–95% non-condensing
Mounting	Wall or table mount
Enclosure	Plastic ABS+PC, flame-retardant
Dimensions	180 × 150 × 50 mm
Weight	~1.2 kg
LED Indicators	Power, LoRa, WAN, Status
Security	AES128 encryption, secure boot, OTA updates
Compliance	CE, FCC, RoHS

3. Application Scenarios：

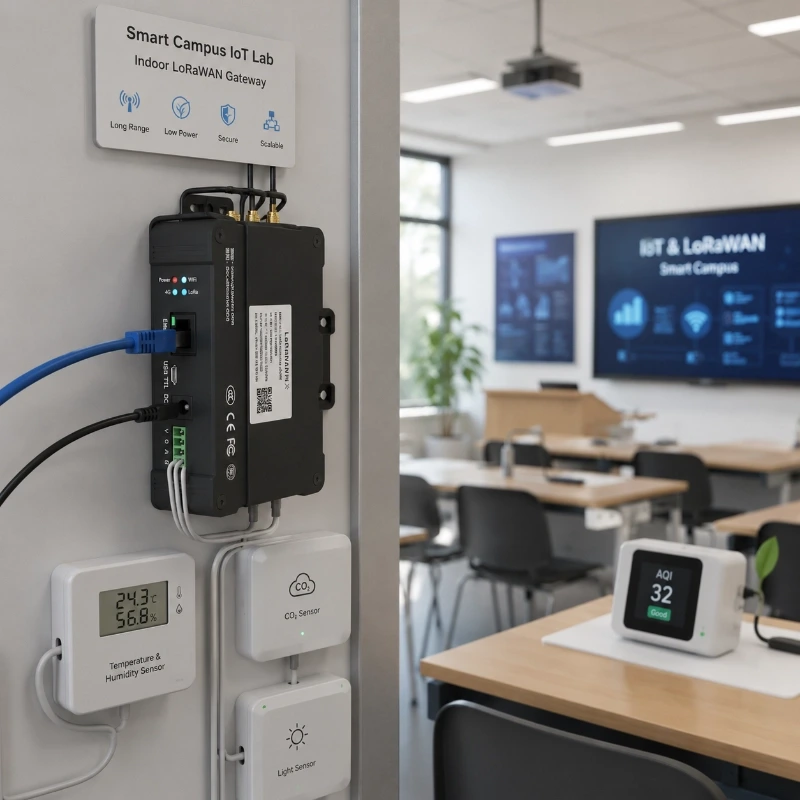

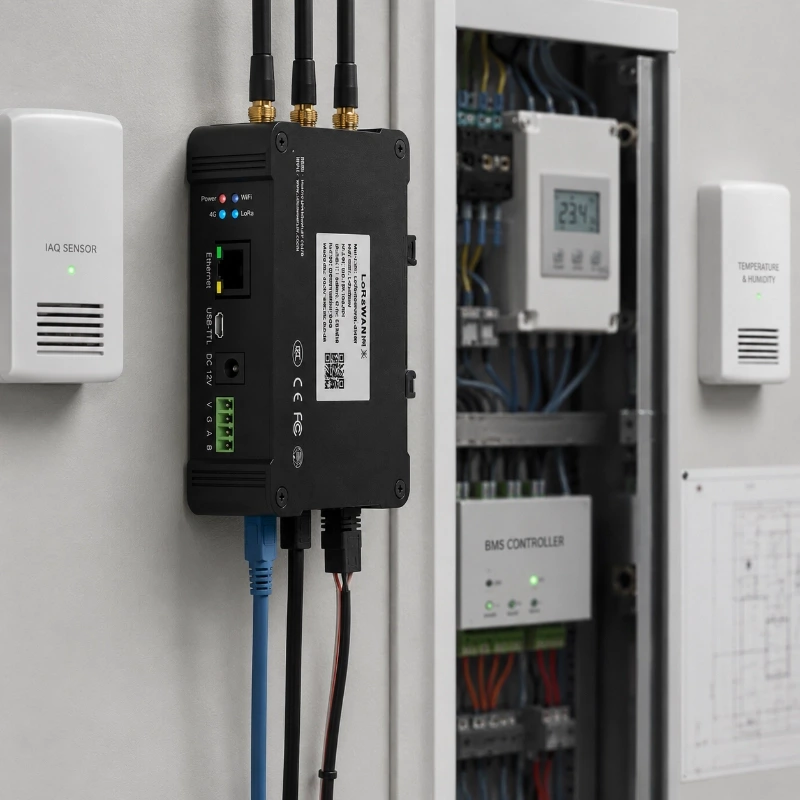

Smart buildings and offices
Home automation networks
Indoor environmental monitoring
Industrial IoT sensor networks
Education and research IoT projects

FAQ

Q

1. What indoor areas are suitable for G42/3 deployment?

A

It is ideal for homes, offices, and indoor industrial environments.
Q

2. Can the G42/3 gateway connect multiple sensors simultaneously?

A

Yes, it supports multiple RS232/RS485 sensor connections.
Q

3. Does JW-IoT provide technical support for setup?

A

Yes, JW-IoT provides setup guides and firmware updates for all G42/3 gateways.
Q

4. What is the operating temperature range?

A

The gateway operates between -20°C and 60°C.
Q

5. Is the G42/3 gateway compatible with standard LoRaWAN networks?

A

Yes, it is fully compliant with LoRaWAN protocol specifications.
Q

6. Can firmware be upgraded remotely?

A

Yes, the gateway supports OTA firmware upgrades.
Q

7. What kind of mounting options are available?

A

Wall mounting and tabletop placement are supported.
Q

8. Is the device power-efficient?

A

Yes, it has low power consumption optimized for indoor IoT networks.
Q

9. How secure is the data transmission?

A

The gateway uses encryption protocols to ensure secure and reliable data transmission.
