Water Quality Monitoring Terminal With Touchscreen Display

Key Features

7 Inch Color Touchscreen Display: Equipped with a 7 inch color capacitive touchscreen for real time data display, parameter setting, calibration, and system operation.
RS485 Sensor Integration: Works with a wide range of RS485 digital water quality sensors for online monitoring systems.
Modbus RTU Communication: Supports standard Modbus RTU protocol for integration with PLCs, RTUs, gateways, and monitoring platforms.
Multi Sensor Data Monitoring: Can identify up to 25 sensor types, including conventional sensors and wet chemistry analyzers.
Real Time Data Display: Displays current sensor measurement values and electrode status on the touchscreen interface.
60 Day Data Storage: Stores up to 60 days of testing data for historical review and operational tracking.
USB Data Export: Supports data export to USB storage in CSV format for reporting and analysis.
Alarm Threshold Setting: Allows users to set upper and lower alarm limits for monitored parameters.
Process Control Function: Supports relay based process control when connected with serial IO control accessories.
Bilingual Interface Support: Supports Chinese and English interface switching for international project deployment.
IP65 Front Panel Protection: The front panel meets IP65 protection requirements, suitable for industrial monitoring environments.
Compact Wall Mounted Design: Compact size and two hole wall mounted installation make it easy to integrate into cabinets and monitoring stations.

Product Description

1. Description

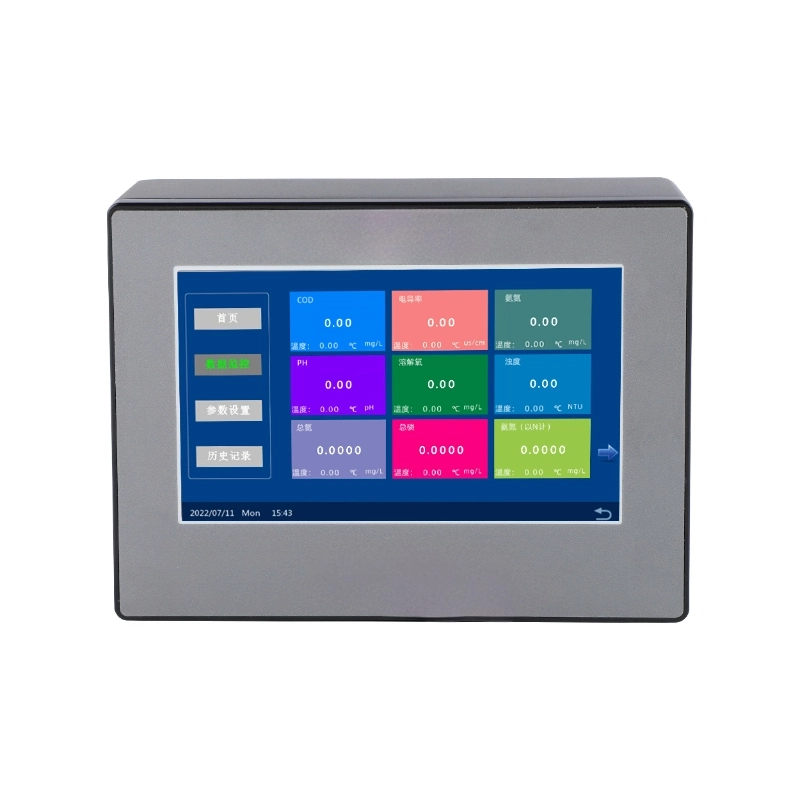

JW-MPC-206S(K36) Water Quality Monitoring Terminal With Touchscreen Display is a multifunctional control and data display terminal for online water quality monitoring systems. It connects with RS485 digital sensors to display real time measurement values, sensor status, alarm information, and historical records.

With a 7 inch color capacitive touchscreen, Modbus RTU communication, USB data export, multi sensor access, and IP65 front panel protection, the terminal is suitable for surface water monitoring, wastewater treatment, drinking water plants, industrial process water, and aquaculture water quality monitoring projects.

2. Product Overview

JW-MPC-206S(K36) Water Quality Monitoring Terminal With Touchscreen Display is designed for real time data acquisition, display, storage, calibration, and system control in online water quality monitoring applications. It can work with various RS485 water quality sensors and wet chemistry analyzers to provide centralized monitoring for multiple water quality parameters.

The terminal supports real time data display, sensor page management, parameter setting, alarm setting, process control, historical data query, and USB data export. Its 7 inch color capacitive touchscreen provides a clear and user friendly interface for field operation and system maintenance.

With Modbus RTU communication, 12–24V DC power supply, 60 day data storage, and IP65 front panel protection, this terminal is suitable for smart water monitoring stations, wastewater treatment plants, drinking water monitoring systems, industrial water control, aquaculture monitoring, and environmental IoT projects.

Item	Specification
Product Type	Multifunctional water quality monitoring terminal
Display	7 inch color capacitive touchscreen
Dimensions	204 mm × 145 mm × 42.5 mm
Installation Method	Two hole wall mounted installation
Mounting Hole Distance	100 mm
Power Supply	12V to 24V DC
Power Consumption	10 W
Weight	0.8 kg
Storage Temperature	0 to 60 °C
Operating Humidity	10 to 90% RH non condensing
Front Panel Protection	IP65
Measurement Variables	Defined by connected sensors
RS485 Output	Modbus RTU communication protocol
Data Storage	60 days testing data
USB Requirement	FAT32 format up to 32 GB
Port 1	Power port
Port 2	DTU interface
Port 3	USB interface
Ports 4 to 7	Sensor interfaces

3. Application Scenarios

Surface Water Monitoring Stations: Used with water quality sensors for rivers, lakes, reservoirs, and environmental monitoring projects.
Municipal Wastewater Treatment: Displays and stores online sensor data for wastewater treatment plants and discharge monitoring points.
Industrial Wastewater Monitoring: Suitable for process water, industrial discharge, and factory water quality supervision.
Drinking Water Treatment Plants: Supports online monitoring of pH, turbidity, free chlorine, conductivity, and other key drinking water parameters.
Aquaculture Water Quality Monitoring: Used for fish ponds, shrimp farms, and recirculating aquaculture systems to monitor critical water quality data.
Smart Water IoT Systems: Integrates with DTU, RTU, gateway, and cloud platforms for remote monitoring and data management.
Cabinet Integrated Monitoring Systems: Compact wall mounted design is suitable for water quality monitoring cabinets and control panels.

FAQ

Q

1. What is this water quality monitoring terminal used for?

A

It is used to collect, display, store, calibrate, and manage data from RS485 water quality sensors in online monitoring systems.
Q

2. What type of screen does the terminal use?

A

The terminal uses a 7 inch color capacitive touchscreen for real time data display and system operation.
Q

3. Can JW-IoT integrate this terminal into a smart water platform?

A

Yes. JW-IoT can integrate the terminal with RS485 sensors, DTUs, RTUs, IoT gateways, and cloud based smart water monitoring platforms.
Q

4. Which communication protocol does the terminal support?

A

It supports standard Modbus RTU communication through RS485 output.
Q

5. How many types of sensors can the terminal identify?

A

It can identify up to 25 sensor types, including conventional water quality sensors and wet chemistry analyzers.
Q

6. Can data be exported from the terminal?

A

Yes. JW-IoT can support USB data export in CSV format for reporting, analysis, and historical data backup.
Q

7. Is the terminal suitable for wastewater treatment plants?

A

Yes. It can be used in municipal wastewater, industrial wastewater, surface water, and process water monitoring systems.
Q

8. What power supply does the terminal require?

A

The terminal supports 12V to 24V DC power input.
Q

9. Why choose JW-IoT for water quality terminal integration?

A

JW-IoT provides sensor matching, terminal configuration, communication integration, platform connection, and project based smart water monitoring solutions.
